LA 150

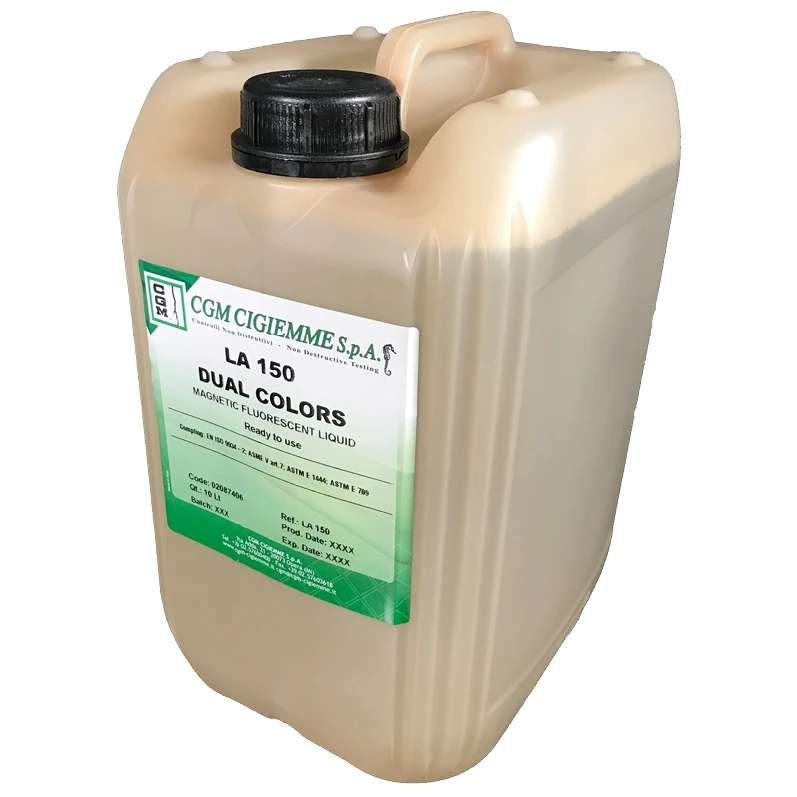

LA 150 is a ready-to-use suspension of fluorescent magnetic powder in water, for wet magnetic particle testing method.
About the LA 150
LA 150 is a ready-to-use suspension of fluorescent magnetic powder in water, for wet magnetic particle testing method. It is suitable for rough or unworked surfaces. The powder is characterized by particularly fluorescent pigments which allow it to be used in environments not totally darkened. The suspension contains the anti-rust, surfactant, antifoam product Ata Fluid A44 and is totally nitrite-free. LA 150 is a low-sulfur and low-halogen product, in compliance with standards. Intended NDT method: visible magnetic particle inspection, wet method. CGM states compliance with EN ISO 9934-2, ASME V Art. 7, ASTM E709, ASTM E1444, AMS 3044, AS 4792, PMUC (certificate of compliance upon request). Published packaging: 10 L cans.
- Excellent sensitivity
- Good fluorescent contrast
- Good particle mobility
- Long-lasting particles
Technical data
- Appearance
- Green
- Color under UV light
- Bright yellow-green
- Average particle size
- 12 μm
- NDT Method
- Visible magnetic particle inspection, wet method
- Shelf life
- 3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
- Usage temperature
- < 48°C
- Preliminary cleaning
- Velnet/Solnet
- Recommended accessories according to standards ASTM E1444 ASTM E709 EN ISO 9934-2
- Sedimentation glass tube – Magnetic Stripe Card Type 2000 – Reference Block Type I / MTU Test – Reference Block Type II – Flexible Laminated Strips – Tool Steel Ring AS 5282 Type and Ketos 01 Type – Octagonal flat plate
Values as published by CGM Cigiemme. Refer to the current technical datasheet for full conditions.
Published packaging & part numbers
| Format | CGM part number |
|---|---|
| 10 L cans | 02087406 |
Formats as published by CGM. Product photos may show one packaging option only; units per carton are not published.
Compliance stated by CGM
- EN ISO 9934-2
- ASME V Art. 7
- ASTM E709
- ASTM E1444
- AMS 3044
- AS 4792
- PMUC (certificate of compliance upon request)
Where the LA 150 is used
- Visible magnetic particle inspection, wet method
