LA 755
LA 755 is a ready-to-use suspension of fluorescent magnetic powder in water, for wet magnetic particle testing method.
About the LA 755
LA 755 is a ready-to-use suspension of fluorescent magnetic powder in water, for wet magnetic particle testing method. The powder is characterized by medium/small sized particles, suitable for surfaces with low and medium roughness. The suspension contains the anti-rust, surfactant, antifoam product Ata Fluid A44 and is totally nitrite-free. LA 755 is a low-sulfur and low-halogen product, in compliance with standards. Intended NDT method: fluorescent magnetic particle testing, wet method. CGM states compliance with EN ISO 9934-2, ASME V Art. 7, ASTM E709, ASTM E1444, AMS 3044, AS 4792, PMUC (certificate of compliance upon request). Published packaging: 10 L cans.
- Excellent sensitivity
- Excellent fluorescent contrast
- Excellent particle mobility
- Long-lasting particles
Technical data
- Appearance
- Green
- Color under UV light
- Bright yellow-green
- Average particle size
- 8 μm
- NDT Method
- Fluorescent magnetic particle testing, wet method
- Shelf life
- 3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
- Usage temperature
- < 48°C
- Preliminary cleaning
- Velnet/Solnet
- Recommended accessories according to standards ASTM E1444 ASTM E709 EN ISO 9934-2
- Sedimentation glass tube – Magnetic Stripe Card Type 2000 – Reference Block Type I / MTU Test – Reference Block Type II – Flexible Laminated Strips – Tool Steel Ring AS 5282 Type and Ketos 01 Type – Octagonal flat plate
Values as published by CGM Cigiemme. Refer to the current technical datasheet for full conditions.
Published packaging & part numbers
| Format | CGM part number |
|---|---|
| 10 L cans | 02087405 |
Formats as published by CGM. Product photos may show one packaging option only; units per carton are not published.
Compliance stated by CGM
- EN ISO 9934-2
- ASME V Art. 7
- ASTM E709
- ASTM E1444
- AMS 3044
- AS 4792
- PMUC (certificate of compliance upon request)
Where the LA 755 is used
- Fluorescent magnetic particle testing, wet method

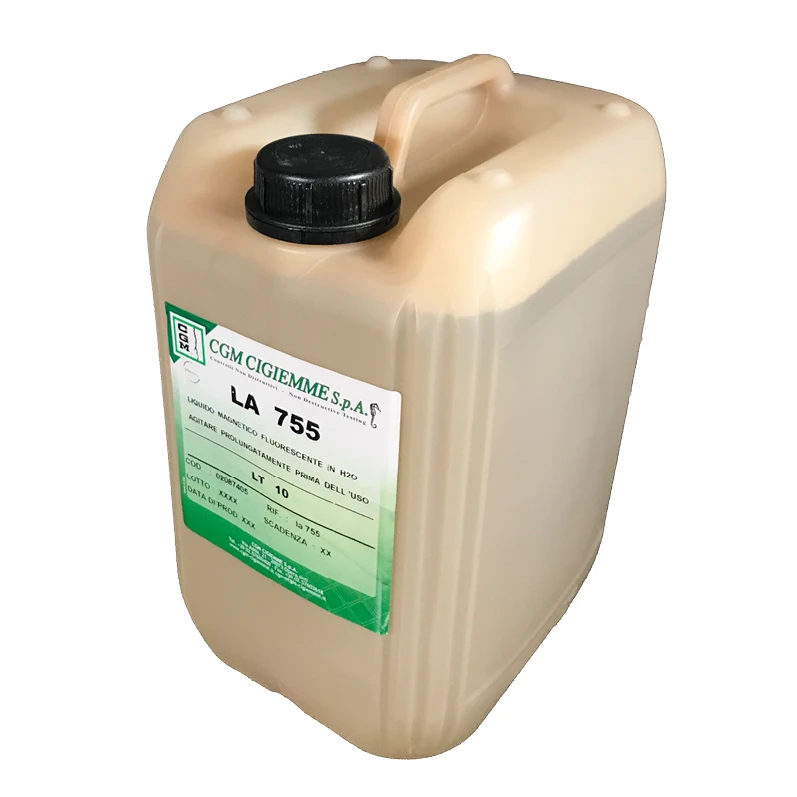

Product imagery
Datasheets & brochures
CGM does not publish the safety datasheet online. EMUS supplies the current SDS with every order or on request.
