LK 31-73
LK 31-73 is a ready-to-use suspension of fluorescent magnetic powder in hydrocarbons for wet magnetic particle testing.
About the LK 31-73
LK 31-73 is a ready-to-use suspension of fluorescent magnetic powder in hydrocarbons for wet magnetic particle testing. The fluorescent pigment used enables high contrast under UV light. Due to small size particles, this powder is very sensitive and particularly suitable for surfaces with low roughness. LK 31-73 is a product with low sulphur and halogen content, according to standards. Intended NDT method: fluorescent magnetic particle inspection, wet method. CGM states compliance with EN ISO 9934-2, ASME V Art. 7, ASTM E709, ASTM E1444, AMS 3046, AMS 3045, AMS 2641, PMUC (certificate of compliance upon request). Published packaging: 10 L cans, 400 ml spray, 500 ml spray.
- Excellent sensitivity
- Excellent fluorescent contrast
- Excellent particle mobility
- Long-lasting particles
- Easily dispersible
Technical data
- Appearance
- Green
- Color under UV light
- Bright yellow-green
- Average particle size
- 3 μm
- NDT Method
- Fluorescent magnetic particle inspection, wet method
- Shelf life
- 3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
- Usage temperature
- < 48°C
- Preliminary cleaning
- Velnet/Solnet
- Recommended accessories according to standards ASTM E1444 ASTM E709 EN ISO 9934-2
- Sedimentation glass tube – Magnetic Stripe Card Type 2000 – Reference Block Type I / MTU Test – Reference Block Type II – Flexible Laminated Strips – Tool Steel Ring AS 5282 Type and Ketos 01 Type – Octagonal flat plate
Values as published by CGM Cigiemme. Refer to the current technical datasheet for full conditions.
Published packaging & part numbers
| Format | CGM part number |
|---|---|
| 10 L cans | 02087300 |
| 400 ml spray | 03087310 |
| 500 ml spray | 03057310 |
Formats as published by CGM. Product photos may show one packaging option only; units per carton are not published.
Compliance stated by CGM
- EN ISO 9934-2
- ASME V Art. 7
- ASTM E709
- ASTM E1444
- AMS 3046
- AMS 3045
- AMS 2641
- PMUC (certificate of compliance upon request)
Where the LK 31-73 is used
- Fluorescent magnetic particle inspection, wet method

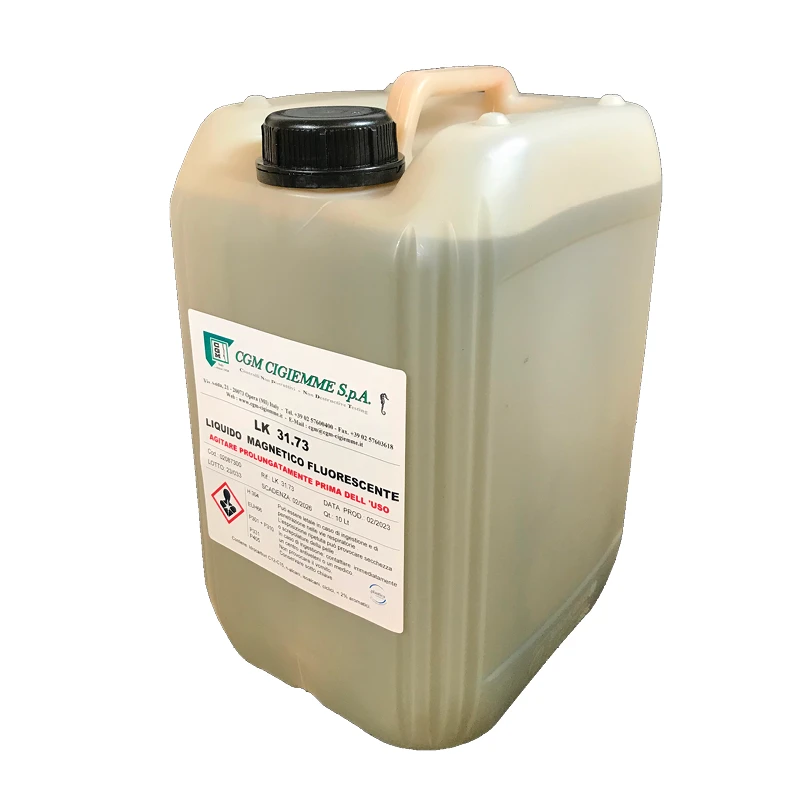

Product imagery
Datasheets & brochures
CGM does not publish the safety datasheet online. EMUS supplies the current SDS with every order or on request.
