LK 35

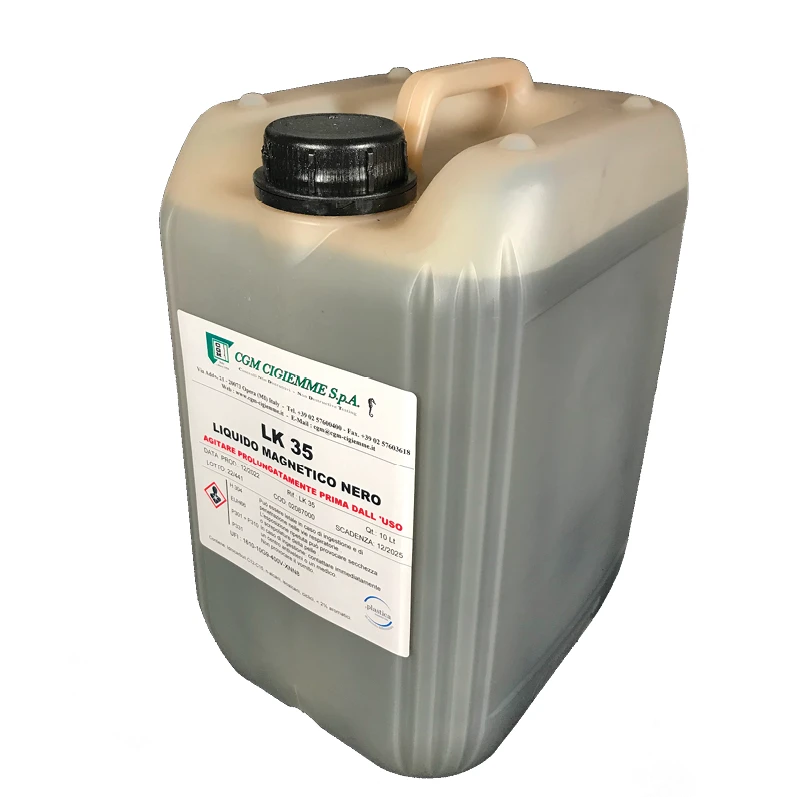

LK 35 is a ready-to-use hydrocarbons-based black magnetic particle powder suspension for visible wet method magnetic particle testing.
About the LK 35
LK 35 is a ready-to-use hydrocarbons-based black magnetic particle powder suspension for visible wet method magnetic particle testing. The magnetic particles’ small size allows the use of this product on a wide range of surfaces, while ensuring excellent sensitivity. If applied together with the Vecoplast contrast paint, LK 35 guarantees an excellent color contrast even on dark surfaces, highlighting even the smallest discontinuities. LK 35 is a product with low sulfur and halogen content, in compliance with applicable standards. Intended NDT method: visible magnetic particle inspection, wet method. CGM states compliance with EN ISO 9934-2, ASME V Art. 7, ASTM E709, ASTM E1444, AMS 3041, AMS 3043, AMS 2641, PMUC (certificate of compliance upon request). Published packaging: 10 L cans, 400 ml spray, 500 ml spray.
- Excellent sensitivity
- Excellent fluorescent contrast
- Excellent particle mobility
- Long-lasting particles
- Easily dispersible
Technical data
- Appearance
- Black
- Color under UV light
- NA
- Average particle size
- <1 μm
- NDT Method
- Visible magnetic particle inspection, wet method
- Shelf life
- 3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
- Usage temperature\*
- < 48°C
- Preliminary cleaning
- Velnet/Solnet
- Contrast paint
- Vecoplast
- Recommended accessories according to standards ASTM E1444 ASTM E709 EN ISO 9934-2
- Sedimentation glass tube – Magnetic Stripe Card Type 2000 – Reference Block Type I / MTU Test – Reference Block Type II – Flexible Laminated Strips – Tool Steel Ring AS 5282 Type and Ketos 01 Type – Octagonal flat plate
Values as published by CGM Cigiemme. Refer to the current technical datasheet for full conditions.
Published packaging & part numbers
| Format | CGM part number |
|---|---|
| 10 L cans | 02087000 |
| 400 ml spray | 03087010 |
| 500 ml spray | 03057010 |
Formats as published by CGM. Product photos may show one packaging option only; units per carton are not published.
Compliance stated by CGM
- EN ISO 9934-2
- ASME V Art. 7
- ASTM E709
- ASTM E1444
- AMS 3041
- AMS 3043
- AMS 2641
- PMUC (certificate of compliance upon request)
Where the LK 35 is used
- Visible magnetic particle inspection, wet method
