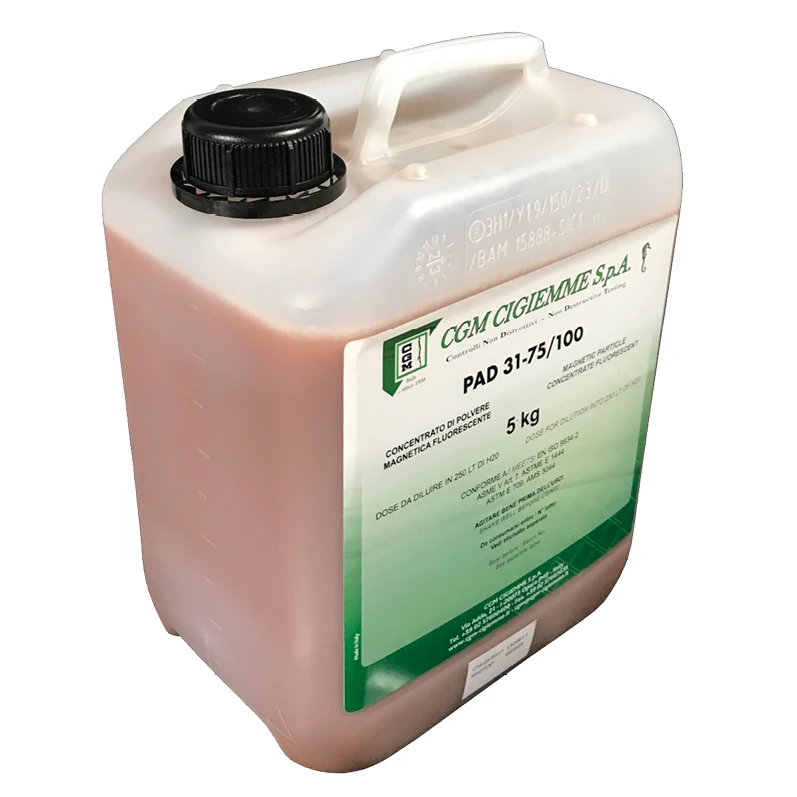

PAD 31-75/100
PAD 31-75/100 is a fluid concentrate of fluorescent magnetic powder to be diluted in water, for wet magnetic particle inspection method.
About the PAD 31-75/100
PAD 31-75/100 is a fluid concentrate of fluorescent magnetic powder to be diluted in water, for wet magnetic particle inspection method. The concentrate contains a anti-rust, surfactant, antifoam product and is totally nitrite-free. The concentrate must be diluted in water from 100 to 250 litres, depending on the type of system and the desired final concentration. PAD 31-75/100 is a low-sulfur and low-halogen product, in compliance with standards. Intended NDT method: fluorescent magnetic particle testing, wet method. CGM states compliance with EN ISO 9934-2, ASME V Art. 7, ASTM E709, ASTM E1444, AMS 3044, AS 4792, PMUC (certificate of compliance upon request). Published packaging: 5 L cans.
- Excellent sensitivity
- Excellent fluorescent contrast
- Excellent particle mobility
- Long-lasting particles
Technical data
- Appearance
- Red
- Color under UV light
- Bright yellow
- Average particle size
- 3 μm
- NDT Method
- Fluorescent magnetic particle testing, wet method
- Shelf life
- 3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
- Usage temperature
- < 48°C
- Suspension vehicle
- Water
- Preliminary cleaning
- Velnet/Solnet
- Recommended accessories according to standards ASTM E1444 ASTM E709 EN ISO 9934-2
- Sedimentation glass tube – Magnetic Stripe Card Type 2000 – Reference Block Type I / MTU Test – Reference Block Type II – Flexible Laminated Strips – Tool Steel Ring AS 5282 Type and Ketos 01 Type – Octagonal flat plate
Values as published by CGM Cigiemme. Refer to the current technical datasheet for full conditions.
Published packaging & part numbers
| Format | CGM part number |
|---|---|
| 5 L cans | 01036115 |
Formats as published by CGM. Product photos may show one packaging option only; units per carton are not published.
Compliance stated by CGM
- EN ISO 9934-2
- ASME V Art. 7
- ASTM E709
- ASTM E1444
- AMS 3044
- AS 4792
- PMUC (certificate of compliance upon request)
Where the PAD 31-75/100 is used
- Fluorescent magnetic particle testing, wet method
Product imagery
Datasheets & brochures
CGM does not publish the safety datasheet online. EMUS supplies the current SDS with every order or on request.
