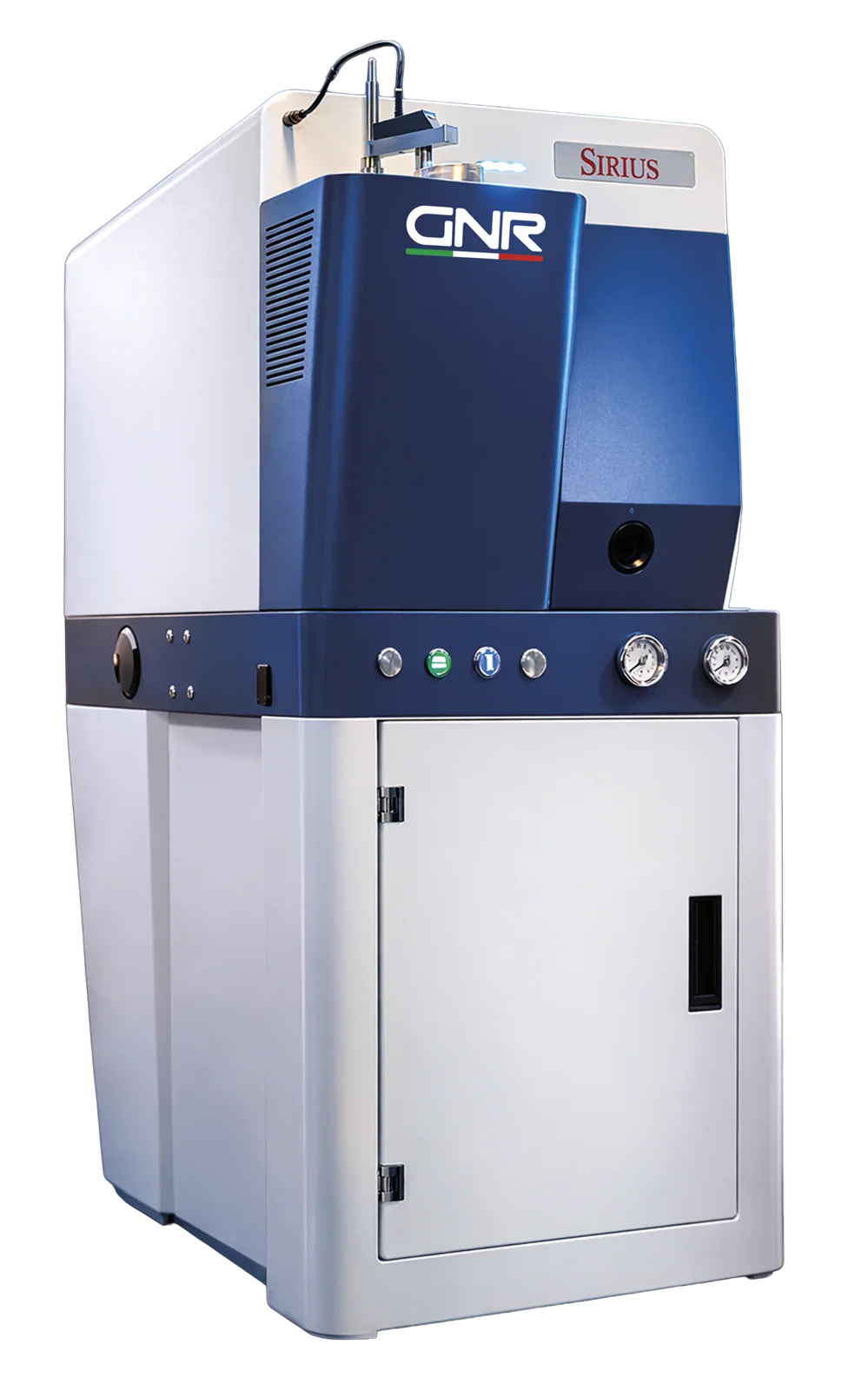

S6 Sirius
Laboratory CMOS Based Optical Emission Spectrometer
Laboratory spark OES with high-resolution CMOS detectors and sealed argon-filled optics for multi-matrix metal analysis.
About the S6 Sirius
SIRIUS is the new optical emission spectrometer designed and manufactured by GNR.
Based on CMOS technology and EOS Software, this brand-new metal analyzer covers the complete spectrum of elements in ferrous and not ferrous materials; it is powerful, fast, easy-to-use spectrometer equipped with specific application packages for all requirements.
S6 SIRIUS, adopting CMOS with high sensibility to ensure the best luminosity together with a wavelength of 119nm to 850nm, allows to analyze oxygen in Cu pure matrix or gaseous elements (N, O, H) into Ti matrix or N in Co matrix and Ni matrix.
S6 SIRIUS is offered to the market with Argon purged system fully suitable not only for general purpose applications but for also more demanding and heavy-duty applications in order to better satisfy customer needs and market compliance.
Documented applications
- Iron & Ssteel and its alloys
- Low Nitrogen in Fe Matrix
- Soluble and Insoluble content in Low Alloy Steel
- Aluminum and its alloys
- Sodium / Lithium in Al Matrix
- Copper and its alloys
- Oxygen in Copper pure matrix
- Nickel and its alloys
- N in Co and Ni matrix
- Cobalt and its alloys
- Magnesium and its alloys
- Tin and its alloys
- Lead and its alloys
- Titanium and its alloys
- Gaseous elements (N, O, H) into Ti matrix
Matrices, elements and ranges depend on the configuration supplied; EMUS confirms them in the quotation.
Sectors served
GNR application fields
Technical data
- Optical Air System
- Multi High Resolution CMOS system
- High luminosity holographic grating
- Argon purged optical chamber with Proprietary Low Consumption Argon device
- Power Supply
- 110/240 V AC, 50 / 60 Hz
- Dimensions
- W 54 x D 1275 x H 79cm
- Weight
- 140 Kg
Reproduced from official GNR product information. Values apply to the configuration described by GNR; final configuration is confirmed in the EMUS quotation.
Operating software
- EOS® Software, operating in Windows environment, is the GNR proprietary SW very functional and easy to use.
- Operator can use all the spectrometer’s functions in a flexible way and cover all the requirements.
- Analysis
- Controlled Standardization
- Printing of the Certificates (customizable)
- Determination of alloys in accordance to international norms (UNI, ASTM, DIN, …)
- Network linking and remote control
- Data Export
- Instrument and Spark Check
- Multi-User Access
- Software Remote Update
Product imagery
Official product videos
Brochures & application notes
S6 Sirius — brochure
PDF · Brochure
