Pig Vaccine Injection Robot
K2 automatic injection robot, according to the path planned by the computer, according to the shape and posture of the pig, using a variety of sensors to sense and analyze the pig and the surrounding environment, automatically identify/target the injection are
About the Pig Vaccine Injection Robot
K2 automatic injection robot, according to the path planned by the computer, according to the shape and posture of the pig, using a variety of sensors to sense and analyze the pig and the surrounding environment, automatically identify/target the injection area, precise control of the dose, can continuously drive the robot arm to sterilize the pig and inject vaccine. After the injection, the robot automatically changes the needle and automatically recovers the used needle. The above actions are repeated in the injection process of the second and subsequent pigs, and the rapid injection of all pigs in the pig farm is finally completed. The whole injection process is digitized without manual participation, and vaccine injection inform
The task list, operating environment and figures on this page follow the published K2 TECH product page. Navigation, autonomy, payload and endurance values apply to the configuration described by the manufacturer; suitability for a specific farm, crop or greenhouse layout is confirmed in a site assessment.
No CE marking, EU conformity declaration or market-specific safety approval is published for this product. EMUS reviews the required documentation with K2 TECH before any project in the Balkan region.
- Mobile / Truss Injection ModeHigh-efficiency and precise injection operation method
- Motion TrackingInter-frame Video Stream Differencing
- Injection Zone Visual DetectionSkeletal Keypoint Detection / Statistical Localization of Injection Area
- Vaccine injection workflowAutomatic disinfection and robotic vaccine injection, with the option to link to the farm’s environmental-control equipment.
Technical data
- Injection Site
- Hindquarters (buttocks) of the pig
- End-Effector Options
- Needle-based injection / Needle-free injection
- Adjustable Single-dose Volume
- 0.5cc ~ 5.0cc（needle-based injection）
- Adjustable Single-dose Volume
- 1ml or 2ml （needle-free injection）
- Injection Speed
- ≤ 3 minutes / pig
- Single-attempt Injection Success Rate
- ≥80%
- Two-attempt Injection Success Rate
- ≥95%
- Data Logging
- Vaccine type/Batch number/Injection date/Success/failure status
- Loading Capacity
- 150 Kg
- Charging Input
- 24V 15A
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
Where the Pig Vaccine Injection Robot is used

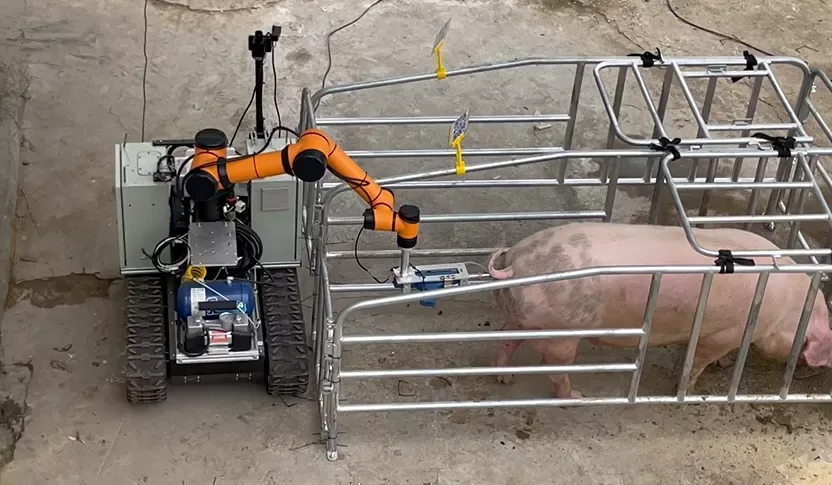

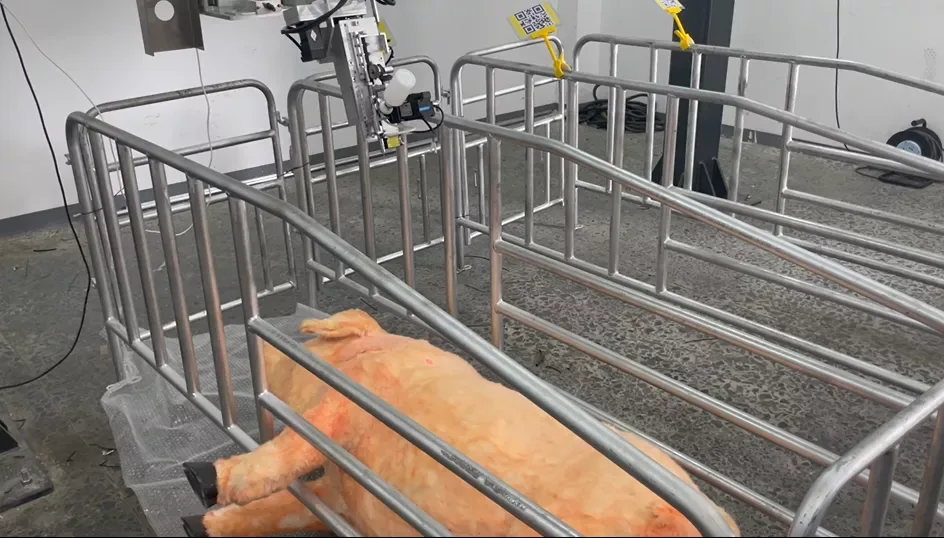

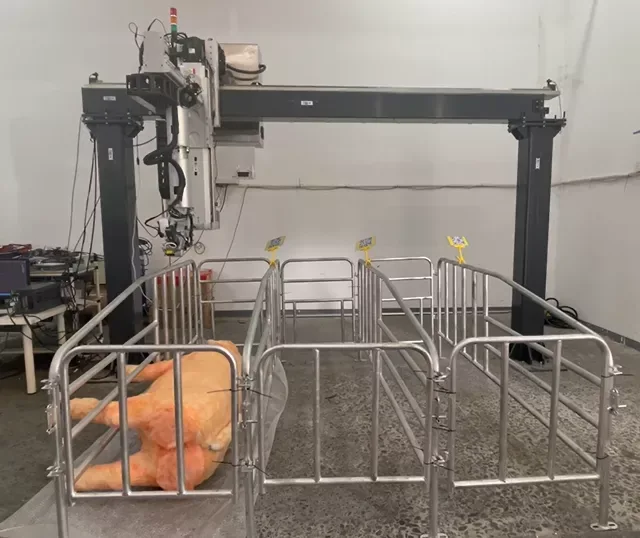

- Injection Mode
- Posture Recognition
- Motion Tracking
- Injection Zone
- ID Recognition
Product imagery
How EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
K2 TECH
ThePig Vaccine Injection Robot is part of the K2 TECH portfolio, supplied and supported by EMUS across the Balkan region.
Request Technical Consultation
Talk to an EMUS engineer about thePig Vaccine Injection Robot, your parts and tolerances, and the configuration that fits your inspection workflow.
