ECO Water Fluor 1
ECO Water Fluor 1 is a water-based fluorescent penetrant that can be eliminated with water, with very low environmental impact as it is easily degradable, being free of persistent and bioaccumulative substances.
About the ECO Water Fluor 1
ECO Water Fluor 1 is a water-based fluorescent penetrant that can be eliminated with water, with very low environmental impact as it is easily degradable, being free of persistent and bioaccumulative substances. It is part of CGM’s ECO line as it does not contain petroleum derivatives or hydrocarbon mixtures. It can be used instead of any traditional water-washable fluorescent penetrant, of the same sensitivity level. Intended NDT method: water-based fluorescent liquid penetrant inspection. CGM states compliance with ASME B and PV, Sect. V, ASTM E165/E165M-18, EN ISO 3452-2, PMUC (certificate of compliance upon request). Published packaging: 10 L cans, 200 L metal drums.
- Free of hydrocarbons
- Biodegradable
- Excellent water wash removability
Technical data
- Appearance
- Yellow-green
- Type / Method
- Type 1 / Method A
- Sensitivity
- Level 0,5
- NDT Method
- Water-based fluorescent liquid penetrant inspection
- Usage temperature
- From 4°C to 52°C<br>ASTM E165/UNI EN ISO 3452-1
- Preliminary cleaning
- Velnet/Solnet
- Recommended penetration time\*
- From 10 to 20 min.
- Developer
- Rotrivel U − Velcontrast Dry Powder
- Final cleaning
- Water – Velnet/Solnet – Detergent H2O
- Shelf life
- 3 years at T between 5°C and 45°C
- Accessories EN ISO 3452
- Reference block type 1<br>Reference block type 2
Values as published by CGM Cigiemme. Refer to the current technical datasheet for full conditions.
Published packaging & part numbers
| Format | CGM part number |
|---|---|
| 10 L cans | 02042379 |
| 200 L metal drums | // |
Formats as published by CGM. Product photos may show one packaging option only; units per carton are not published.
Compliance stated by CGM
- ASME B and PV, Sect. V
- ASTM E165/E165M-18
- EN ISO 3452-2
- PMUC (certificate of compliance upon request)
Where the ECO Water Fluor 1 is used
- Water-based fluorescent liquid penetrant inspection

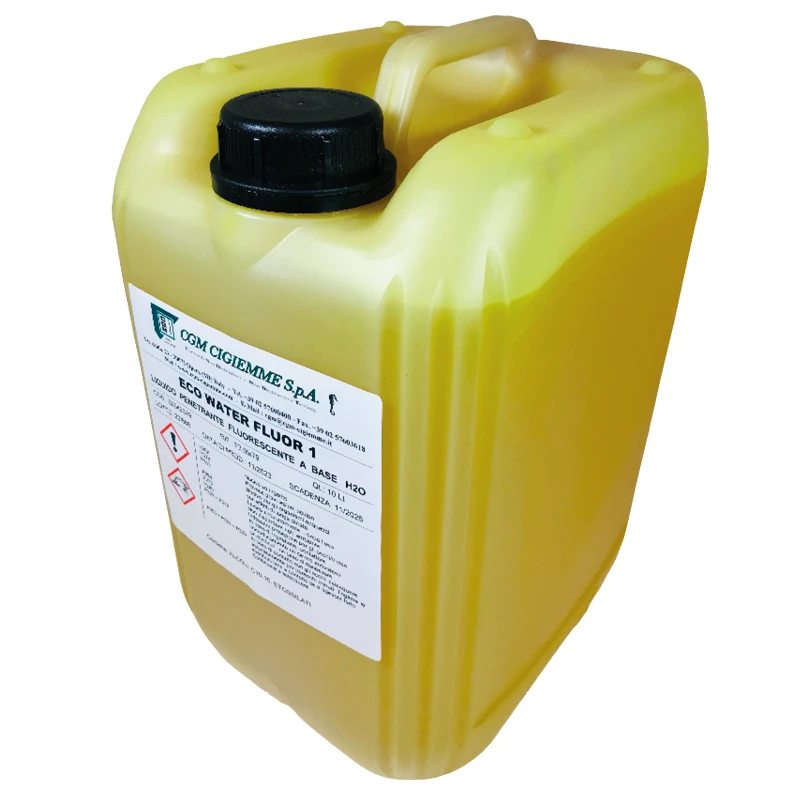

Product imagery
Datasheets & brochures
CGM does not publish the safety datasheet online. EMUS supplies the current SDS with every order or on request.
