Magisglow 17
Magisglow 17 is a water-washable fluorescent penetrant with excellent washability.
About the Magisglow 17
Magisglow 17 is a water-washable fluorescent penetrant with excellent washability. It can be used in a wide range of applications with excellent penetration characteristics and excellent reliability in identifying open defects on the surface with defect dimensions detectable using a level 3 penetrant. Intended NDT method: water washable fluorescent liquid penetrant inspection. CGM states compliance with ASME BPVC-V, ASTM E165/E165M-18, ASTM E1417/E1417M, EN ISO 3452-2, AMS 2644 (Complies with the standard, but not included in the QPL list), PMUC (certificate of compliance upon request). Published packaging: 10 L cans, 200 L metal drums.
- Excellent penetration characteristics
- Intense and extremely bright color
- Excellent discontinuity resolution
- Wide range of applications
- Excellent washability
Technical data
- Appearance
- Yellow-green
- Type / Method
- Type 1 / Method A
- Sensitivity
- Level 3
- NDT Method
- Water washable fluorescent liquid penetrant inspection
- Usage temperature
- From 4°C to 52°C<br>ASTM E165/UNI EN ISO 3452-1
- Preliminary cleaning
- Velnet/Solnet
- Recommended penetration time\*
- From 10 to 20 min.
- Developer
- Rotrivel U − Velcontrast Dry Powder − Rotrivel H2O Paste
- Final cleaning
- Water – Velnet/Solnet – Detergent H2O
- Shelf life
- 3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
- Accessories EN ISO 3452
- Reference block type 1<br>Reference block type 2
Values as published by CGM Cigiemme. Refer to the current technical datasheet for full conditions.
Published packaging & part numbers
| Format | CGM part number |
|---|---|
| 10 L cans | 02042200 |
| 200 L metal drums | // |
Formats as published by CGM. Product photos may show one packaging option only; units per carton are not published.
Compliance stated by CGM
- ASME BPVC-V
- ASTM E165/E165M-18
- ASTM E1417/E1417M
- EN ISO 3452-2
- AMS 2644 (Complies with the standard, but not included in the QPL list)
- PMUC (certificate of compliance upon request)
Where the Magisglow 17 is used
- Water washable fluorescent liquid penetrant inspection

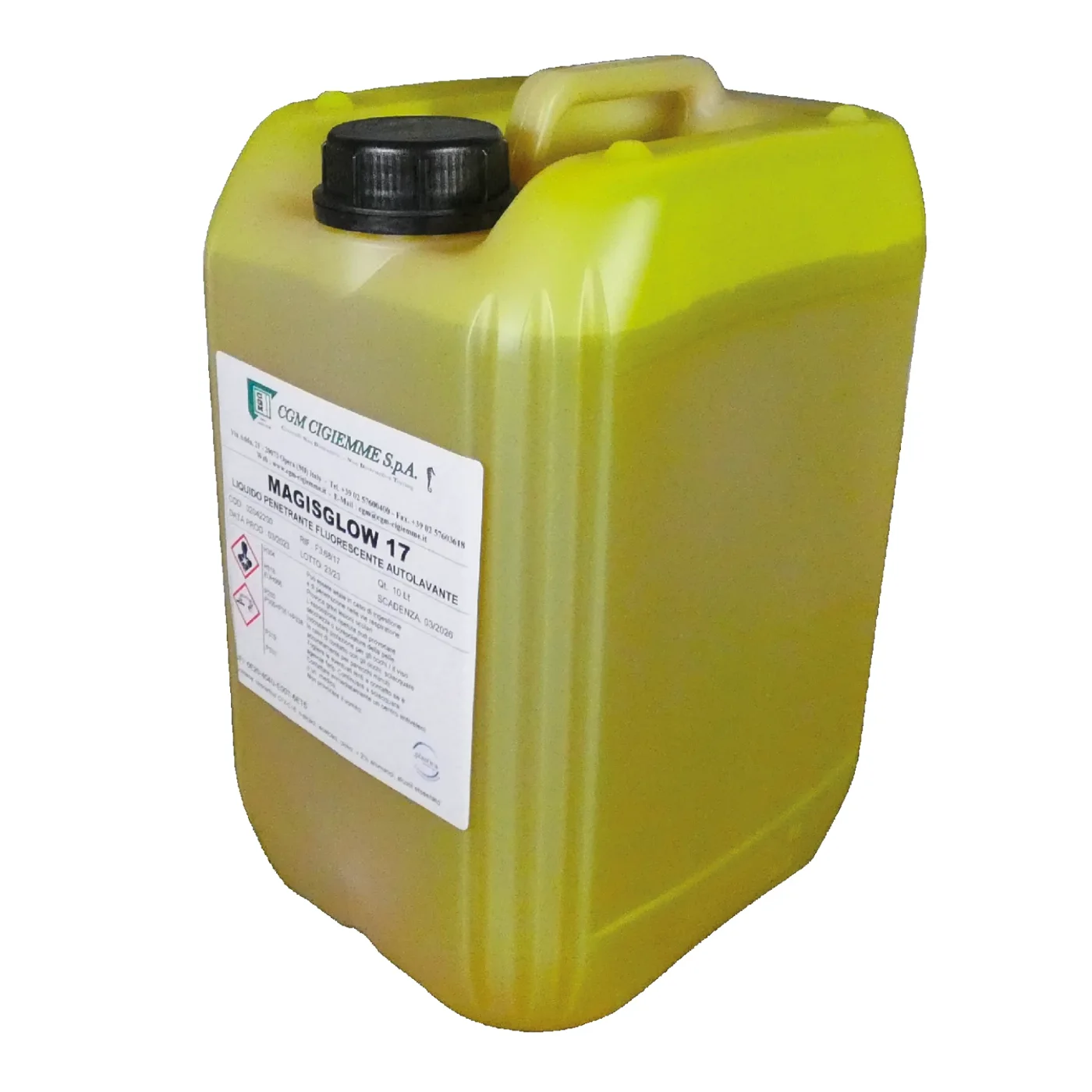

Product imagery
Datasheets & brochures
CGM does not publish the safety datasheet online. EMUS supplies the current SDS with every order or on request.
