Shims type / QQIs
The Quantitative Quality Indicators (QQIs) are one of the most used method of assuring proper field direction and adequate field strength.
About the Shims type / QQIs
The Quantitative Quality Indicators (QQIs) are one of the most used method of assuring proper field direction and adequate field strength. A Gaussmeter is frequently used together with QQIs to set up the inspection procedure for a specific component. Wet method is the only one applicable, and like other verification devices, they can only be used with continuous magnetization. The QQI is a thin strip of either 0.002” or 0.004”-inch-thick AISI 1005 steel. A photoengraving process is used to inscribe a specific pattern, such as concentric circles or a plus sign. QQIs are normally 3/4 inch square, but smaller shims are also available. QQIs must be positioned in close contact with the tested piece.
- They can accommodate virtually any configuration with suitable selection
- They can be reused with careful application and removal practices
Technical data
- Part Number 04099901: Shim QQI Type CX-230
- Ref.: 90.1M
- Part Number 04099902: Shim QQI Type CX-430
- Ref.: 90.2M
- Part Number 04099903: Shim QQI Type CX4-230 (CM-230)
- Ref.: 90.3M
- Part Number 04099904: Shim QQI Type 3C2-234
- Ref.: 90.4M
- Part Number 04099905: Shim QQI Type 3C4-234
- Ref.: 90.5M
Values as published by CGM Cigiemme. Refer to the current technical datasheet for full conditions.

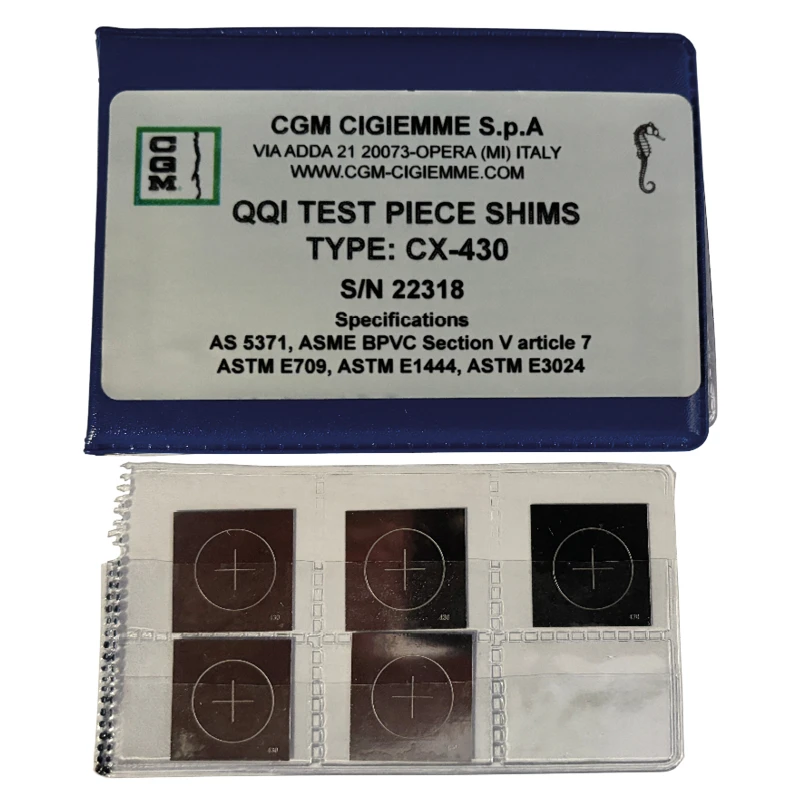

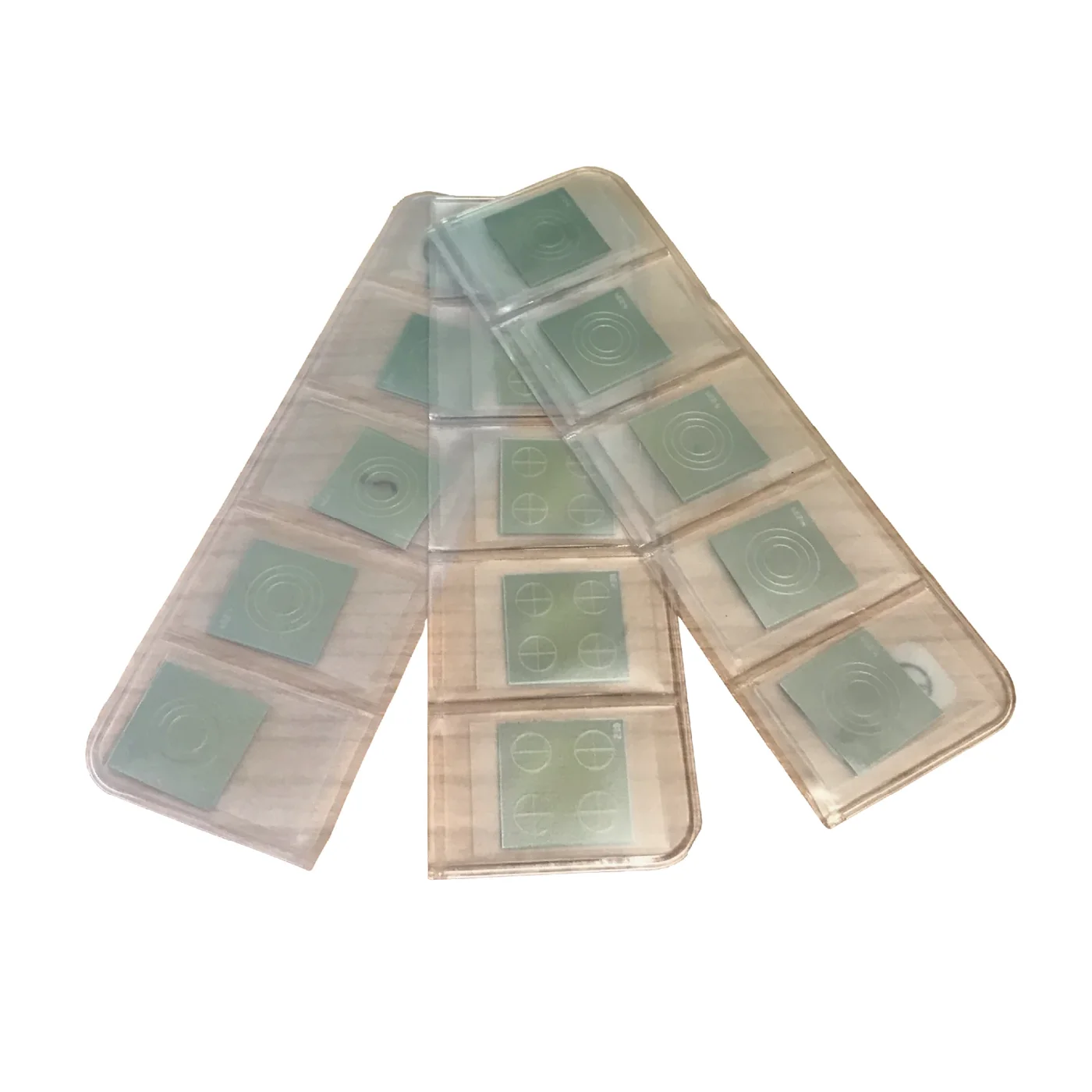

Product imagery
