TAM Panel 146040 – Stainless Steel
The stainless steel TAM Panel is made by Hoffmann and consists of a 0.100” (2.5 mm) stainless steel plate.
About the TAM Panel 146040 – Stainless Steel

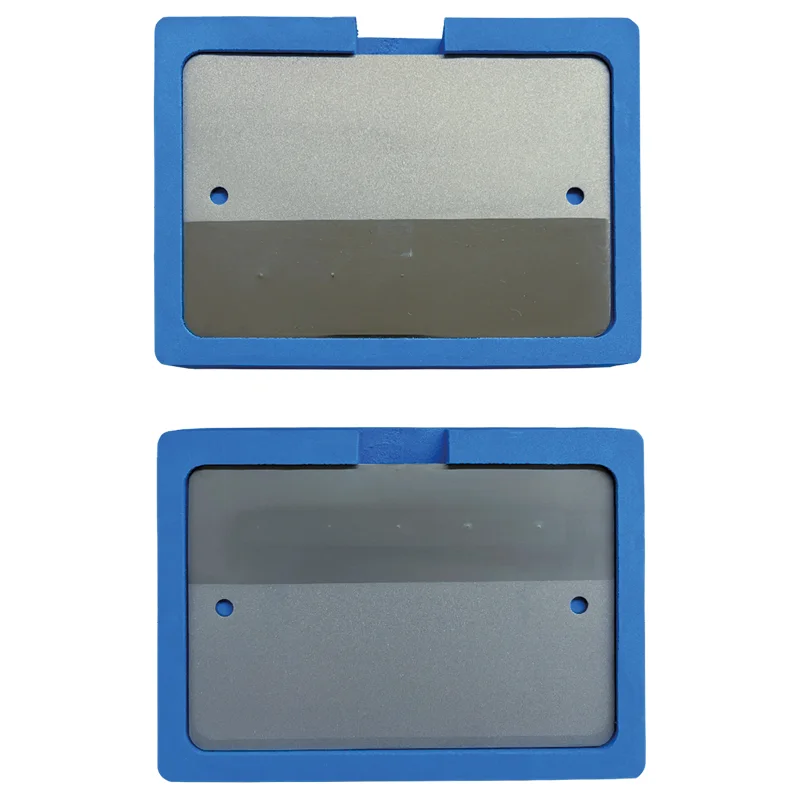

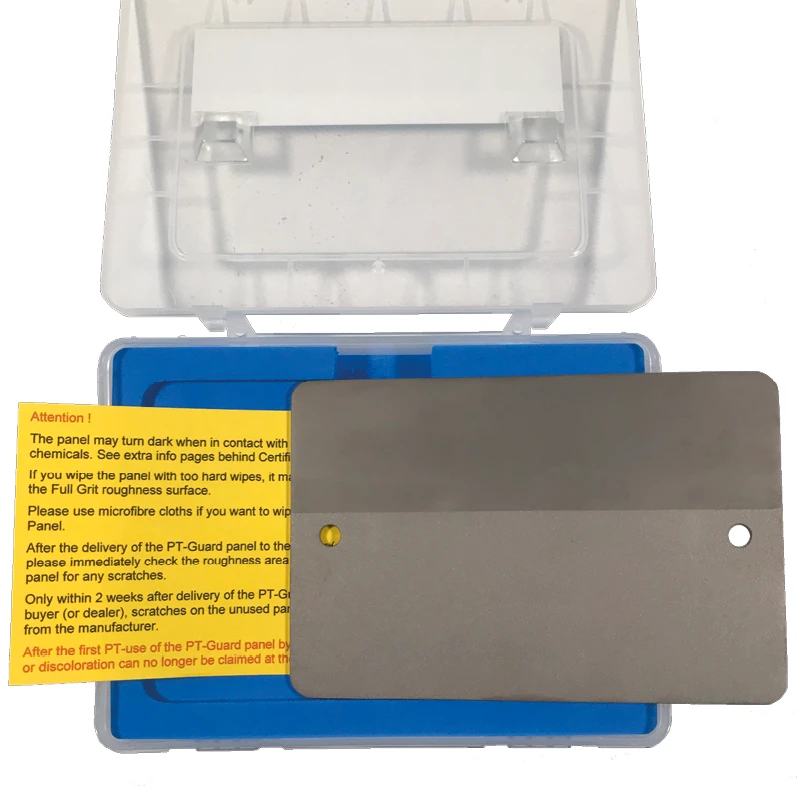

The stainless steel TAM Panel is made by Hoffmann and consists of a 0.100” (2.5 mm) stainless steel plate. Half of the test surface is coated with a 0.003” thick hard chrome alloy (0,0762 mm). This hard coated half contains five evenly spaced cracks, forming star-like shapes The non-coated side is grit blasted with roughness equal to Ra = 2.0 for testing the penetrants’ washability. The tool is used for the process verification of the inspection with both dye and fluorescent penetrants, but it can also be used for the comparison between penetrants of different brands with the same or different sensitivity. Polished or Grit models available.
Technical data
- Part Number HOF-GRIT: Grit surface with certificate, P&W TAM 146040
- Ref.: No.1-fg
- Part Number HOF-GRIT-PHOTO: Grit surface with certificate and one full size photo, P&W TAM 146040
- Ref.: No.3-fg
- Part Number HOF-GRIT-PHOTO5: Grit surface with certificate, one full size photo & single photo for each stars, P&W TAM 146040
- Ref.: No.2-fg
- Part Number HOF-POL: Polished surface with certificate, P&W TAM 146040
- Ref.: No.1-po
- Part Number HOF-POL-PHOTO: Polished surface with certificate and one full size photo, P&W TAM 146040
- Ref.: No.3-po
- Part Number HOF-POL-PHOTO5: Polished surface with certificate, one full size photo & single photo for each stars, P&W TAM 146040
- Ref.: No.2-po
Values as published by CGM Cigiemme. Refer to the current technical datasheet for full conditions.
