S5 Solaris Plus
Laboratory CMOS Based Optical Emission Spectrometer
Laboratory CMOS-based spark OES for multi-matrix analysis of ferrous and non-ferrous alloys, available in standard or customised configurations.
About the S5 Solaris Plus
S5 SOLARIS Plus (S5 SCP) is an advanced CMOS based optical emission spectromter for Metal Analysis.
S5 SCP offers the perfect solution for Metal Analysis: reliability and accuracy in results, superior analytical performance, ease of use and attractive price.
With more than 600 units installed all over the world, S5 Solaris Plus (known as SCP) is the most popular model of GNR range of optical emission spectrometer.
S5 SCP represent the ideal solution in any working place (Office, Laboratory, Stock, Production), thanks to the reduced dimensions and to the quality of the components.
GNR OES R&D Technicians have introduced during the years several innovative and advanced technological solutions, which makes S5 SCP system fully suitable not only for general purpose applications but also for specific demands.
S5 SCP instrument is offered as standard configuration as well as it can be easily customized in terms of optical parameters, elements and analytical range to fulfil the most strictly analytical demands. It is the perfect unit to perform multi-matrix analysis on both Ferrous and Not Ferrous Alloys.
Documented applications
- Iron and Steel and its alloys
- Low Nitrogen in Fe Matrix
- Soluble and Insoluble content in Low Alloy Steel
- Aluminum and its alloys
- Sodium / Lithium in Al Matrix
- Copper and its alloys
- Nickel and its alloys
- Cobalt and its alloys
- Magnesium and its alloys
- Lead and its alloys
- Tin and its alloys
- Titanium and its alloys
- Zinc and its alloys
Matrices, elements and ranges depend on the configuration supplied; EMUS confirms them in the quotation.
Sectors served
GNR application fields
Technical data
- Optical Air System
- Multi High Resolution CMOS solid state detectors
- High luminosity holographic grating
- Equipped with Vacuum System
- Power Supply
- 110/220 V AC 16 A 1 KW
- Dimensions
- W 60 x D 36 x H 62 cm
- Weight
- 100 Kg (w/o stand)
Reproduced from official GNR product information. Values apply to the configuration described by GNR; final configuration is confirmed in the EMUS quotation.
Operating software
- EOS®, operating in Windows environment, is the GNR proprietary SW very functional and easy to use.
- Operator can use all the spectrometer’s functions in a flexible way and cover all the requirements.
- Analysis
- Controlled Standardization
- Printing of the Certificates (customizable)
- Determination of alloys in accordance to international norms (UNI, ASTM, DIN, …)
- Network linking and remote control
- Data Export
- Equipment and Spark Check
- Multi-User Access
- Software Remote Update

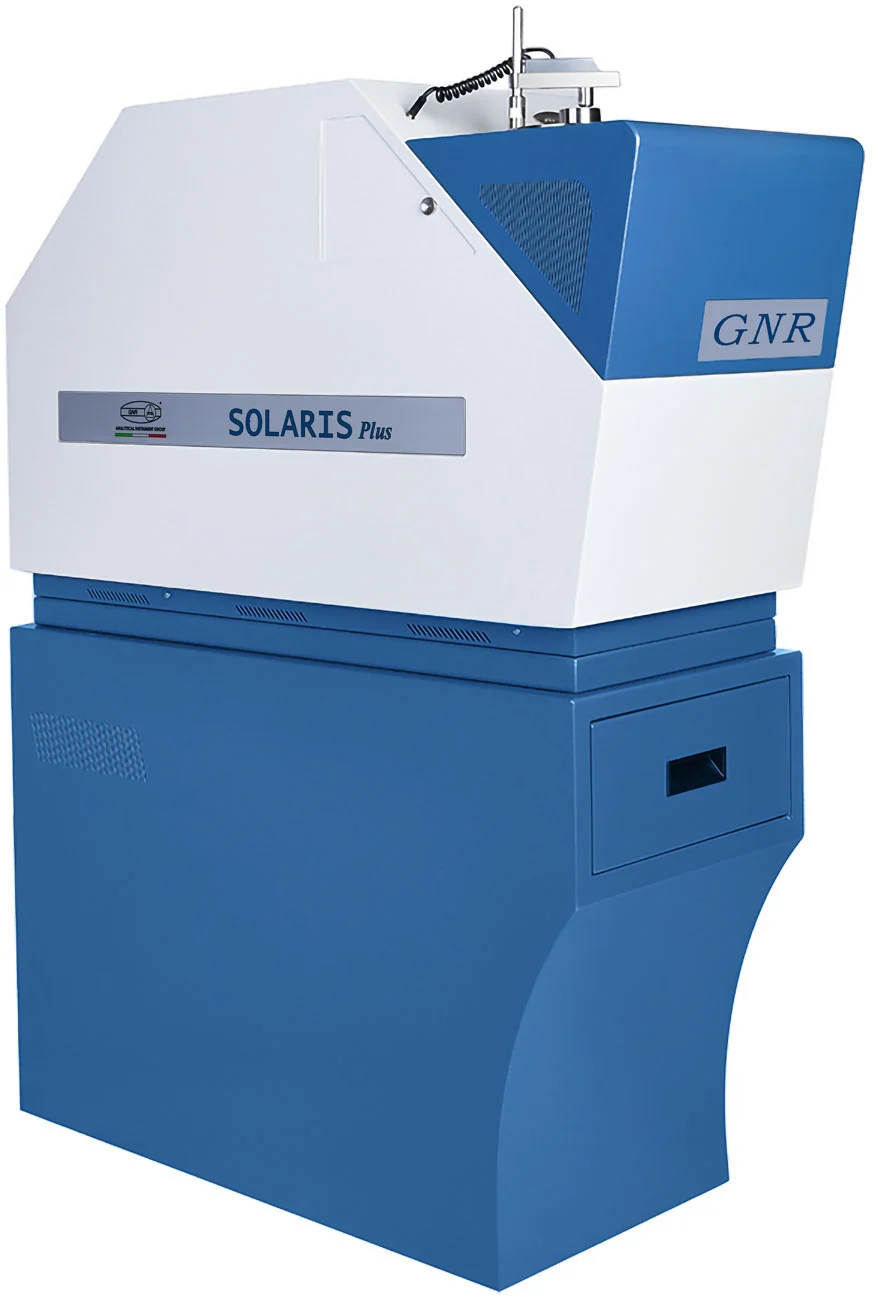

Product imagery
