FMM Motorized Test Stand
Model: FMM
Compact motorized single-column force tester for high-volume production, 500 N or 2500 N.
About the FMM Motorized Test Stand
FMM digital force testers are compact motorized frames for high-volume, lean production. They can be operated manually, with a DFG or DFC gage, or with Lx software (L1, L2, L2Plus, L3), and upgraded from gage control to PC operation. Capacities of 500 N and 2500 N are offered, each with 20" (508 mm) standard or 30" (762 mm) extended travel, and crosshead speed is set from 0.05 to 1016 mm/min.
- Compact single-column motorized frame
- Operation by DFC gage, all-in-one PC or PC with monitor
- Lx software: L1, L2, L2Plus, L3
- Crosshead speed 0.002–40 in/min (0.05–1016 mm/min)
- Quiet operation at full speed
Technical data
- Capacities
- 500 N (110 lbf), 2500 N (550 lbf)
- Travel
- Standard 20" (508 mm); extended 30" (762 mm)
- Crosshead speed
- 0.05–1016 mm/min (0.002–40 in/min)
- Controller
- DFC, all-in-one PC, PC with monitor
- Software
- DFC, L1, L2, L2Plus, L3
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Extended 30" (762 mm) travel
- Lx software upgrade
- Compatible load cells, platens and fixtures
Where the FMM Motorized Test Stand is used
- High-volume production force testing
- Load, distance and break tests
- Tensile and compression testing

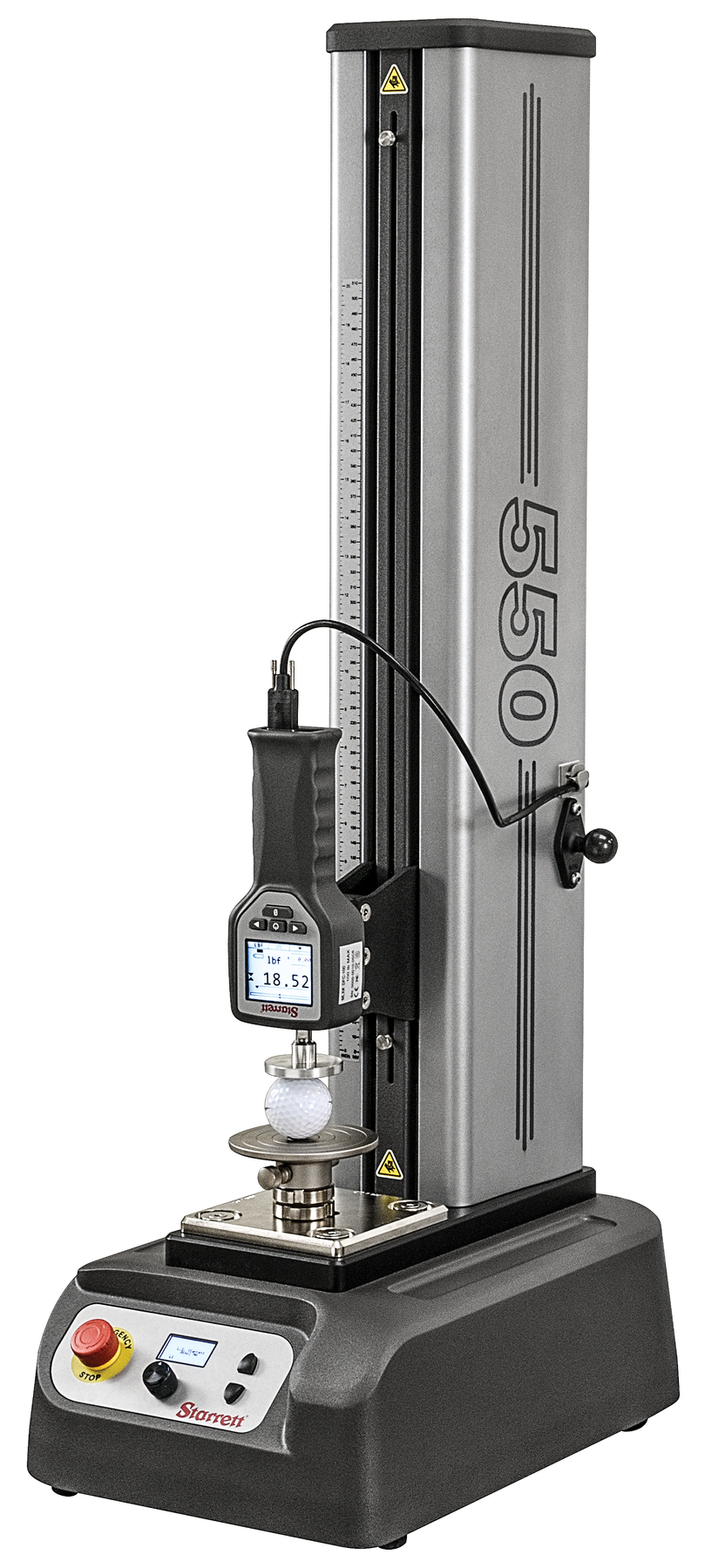

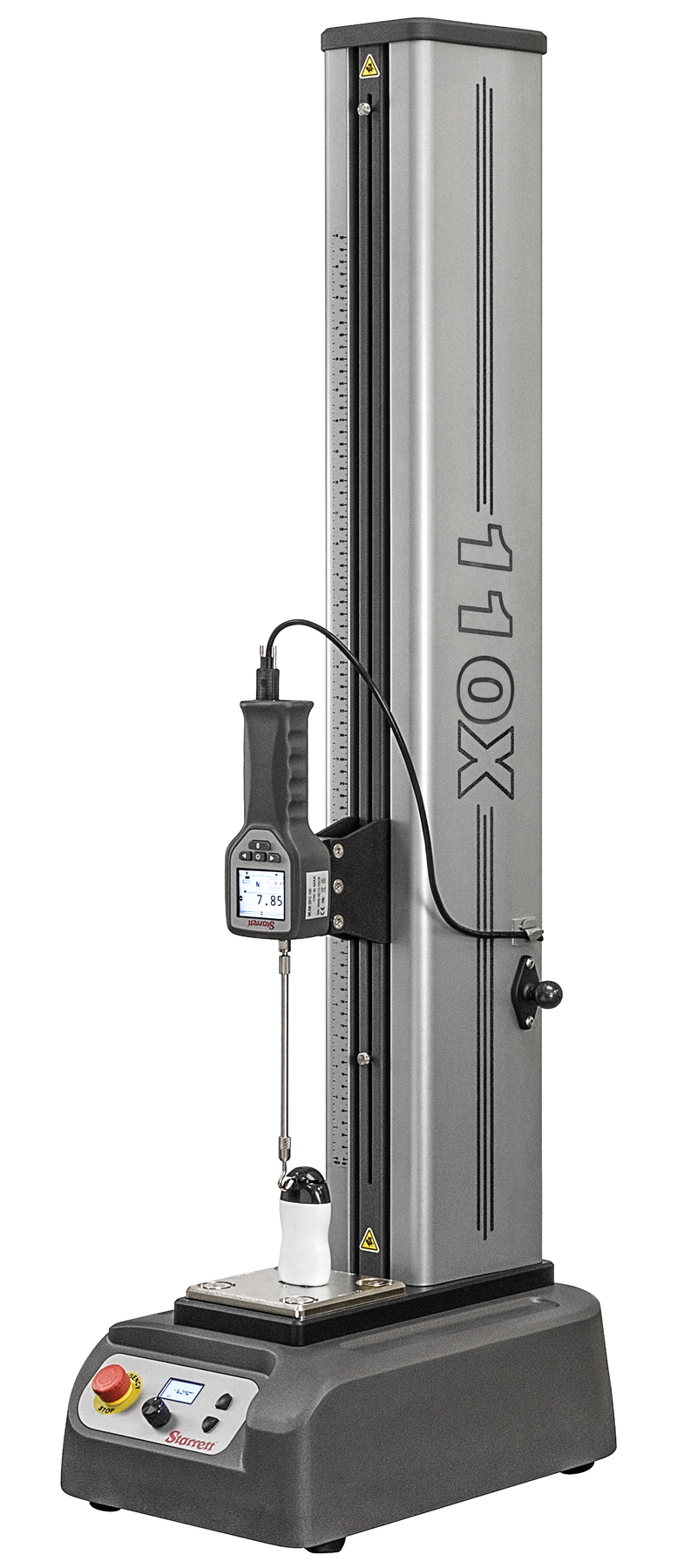

Product imagery
Other Starrett systems to consider
How EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
Starrett Metrology Systems
TheFMM Motorized Test Stand is part of the Starrett metrology portfolio, supplied and supported by EMUS across the Balkan region.
Request Technical Consultation
Talk to an EMUS engineer about theFMM Motorized Test Stand, your parts and tolerances, and the configuration that fits your inspection workflow.
