VUVISION / VUVISION+ Documentation System
Model: VUVISION / VUVISION+ / VUHD-CAM / VUSCOPE
Full-HD documentation system for conventional borescopes and fiberscopes, with VUHD-CAM eyepiece camera and compact VUSCOPE probes from 0.7 mm.
About the VUVISION / VUVISION+ Documentation System

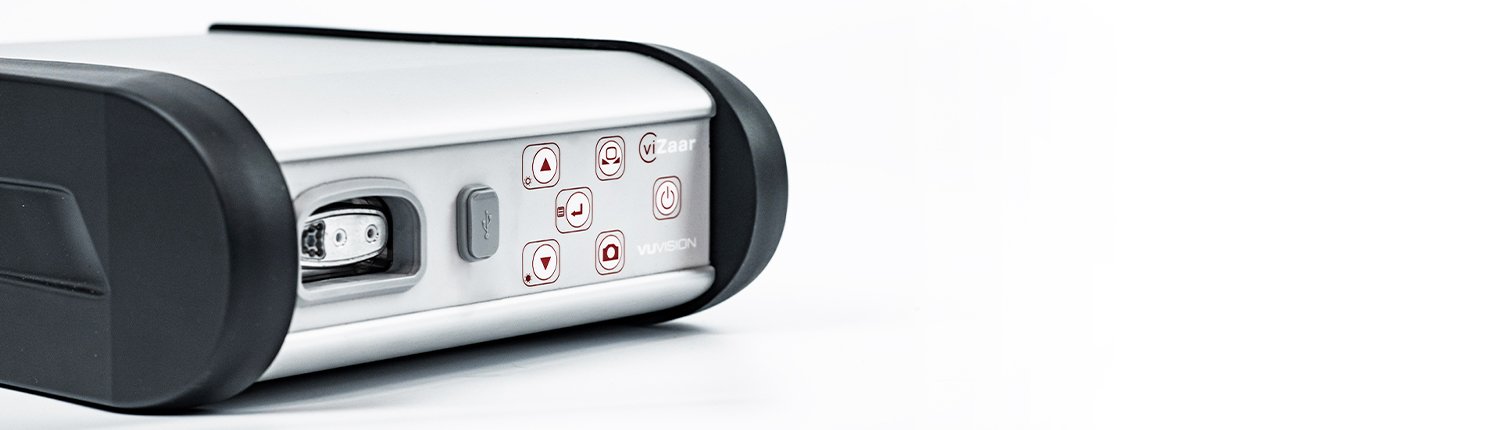

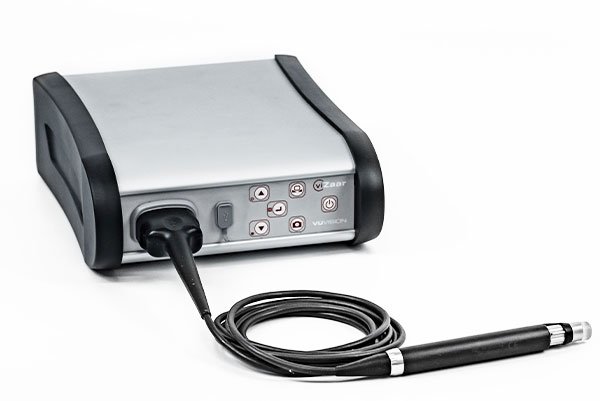

VUVISION is viZaar's mobile documentation system for inspections with rigid, semi-flexible and flexible endoscopes. Existing endoscopes are integrated via the VUHD-CAM: the eyepiece is locked onto the camera and zoom and focus are adjusted for a sharp Full-HD image. For new workstations, the VUSCOPE combines a focusable Full-HD camera with an LED light source in a very compact unit, with probe sizes from 0.7 to 4.0 mm. Presets for standard endoscopes or custom settings optimise the image; images are labelled via keyboard and stored to a USB drive, a second monitor and foot switch support serial inspection, and VUVISION+ adds functions for finding small corrosion pits and discoloration, suppressing dust and comparing with a reference.
- Full-HD documentation for classic endoscopes
- VUHD-CAM eyepiece camera with zoom and focus
- VUSCOPE Full-HD camera with LED light, probes 0.7–4.0 mm
- Presets for standard endoscopes
- Keyboard labelling and USB data storage
- Optional foot switch and second monitor
- VUVISION+ advanced image functions
Technical data
- Resolution
- Full HD
- Probe diameter
- 0.7 – 4.0 mm
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Foot switch
- Second monitor
- VUHD-CAM
- VUSCOPE
Where the VUVISION / VUVISION+ Documentation System is used

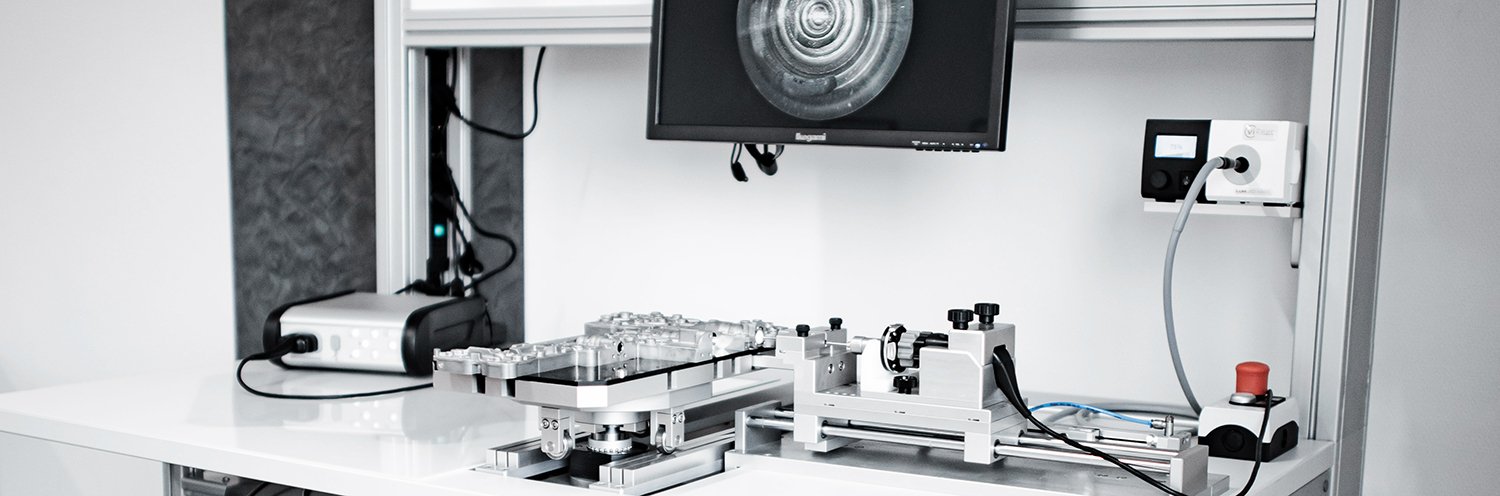

- Serial production inspection

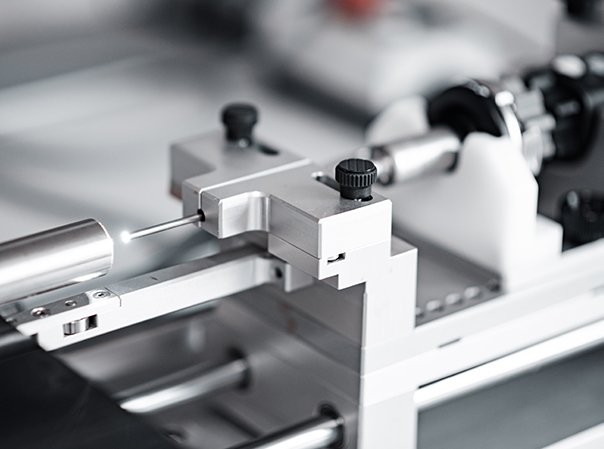

- Bore and cavity inspection
- Reproducible documentation of borescope inspections
