About viZaar
viZaar industrial imaging AG is a German manufacturer that develops and produces visual inspection systems and performs remote visual inspections (RVI) itself. Its portfolio has grown into a broad range of industrial inspection cameras — from long-reach videoscopes and handheld endoscopes to pan-tilt-zoom tank cameras, pipe cameras and a magnetic inspection crawler.
The systems are designed as modular platforms: interchangeable video probes on the VUMAN, iPLORE and VISIO systems; the MATRIX E3 and VUnit documentation units driving several camera heads; and a full range of optic adapters, guide tubes, centering devices, illumination and retrieval tools for foreign-object search and retrieval (FOSAR).
Where no standard system fits, viZaar engineers customized inspection solutions — the VUFLEX sword camera and the UVin UV endoscope both began as special developments for individual customers.
Technologies
The inspection and measurement technologies viZaar manufactures.
Industries served
Manufacturing sectors where viZaar technology is typically applied.
Applications
Typical inspection and quality-control tasks viZaar systems address.
Products grouped by application
Organized by viZaar product category. Each product links to its dedicated page with features, specifications, images and videos.
Remote Visual Inspection
Videoscopes
6 ProductsLong-range, handheld, sword and UV videoscopes from Ø 2.4 mm and up to 30 m working length.

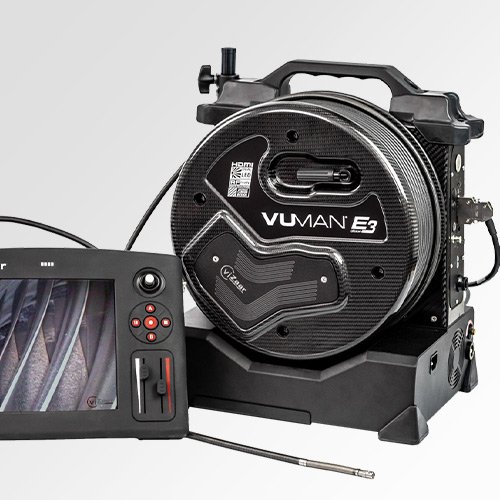

VUMAN E3/E3+ Videoscope
Long-range industrial videoscope with interchangeable probes from Ø 6.1 mm and working lengths up to 30 m, X-WAY articulation and remote focus.
VUCAM Portable Videoscope
Handheld portable videoscope series with Ø 4 and 6 mm probes, 120° articulation, lengths up to 6.6 m and pre-trigger recording.

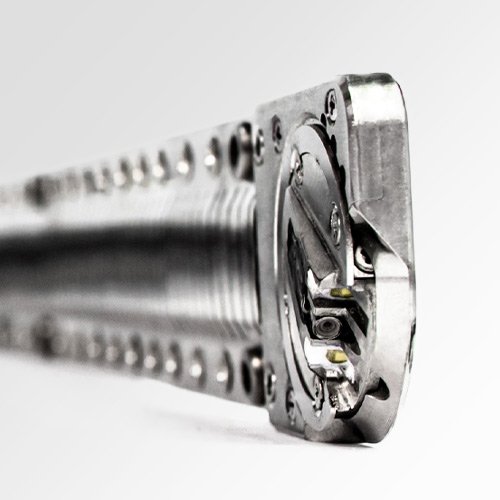

VUFLEX Sword Videoscope
The thinnest viZaar videoscope — a sword-shaped camera from only 2.4 mm wide for steam generators, tube bundles and heat exchangers.

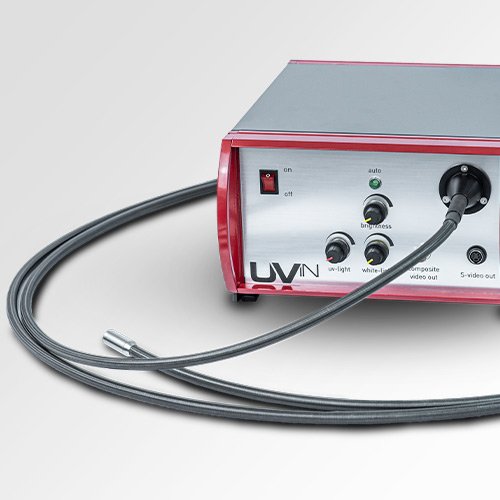

UVin UV Endoscope
Flexible video endoscope with 365 nm UV-LEDs and daylight LEDs for fluorescent penetrant and magnetic particle testing and residue detection.

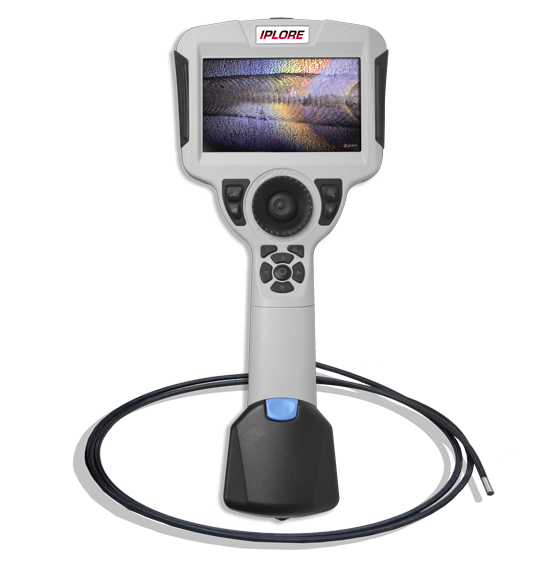

iPLORE+ Videoscope
Cost-effective handheld videoscope with plug-and-play interchangeable probes from Ø 2.4 mm, lengths up to 6 m and up to 4 h battery operation.

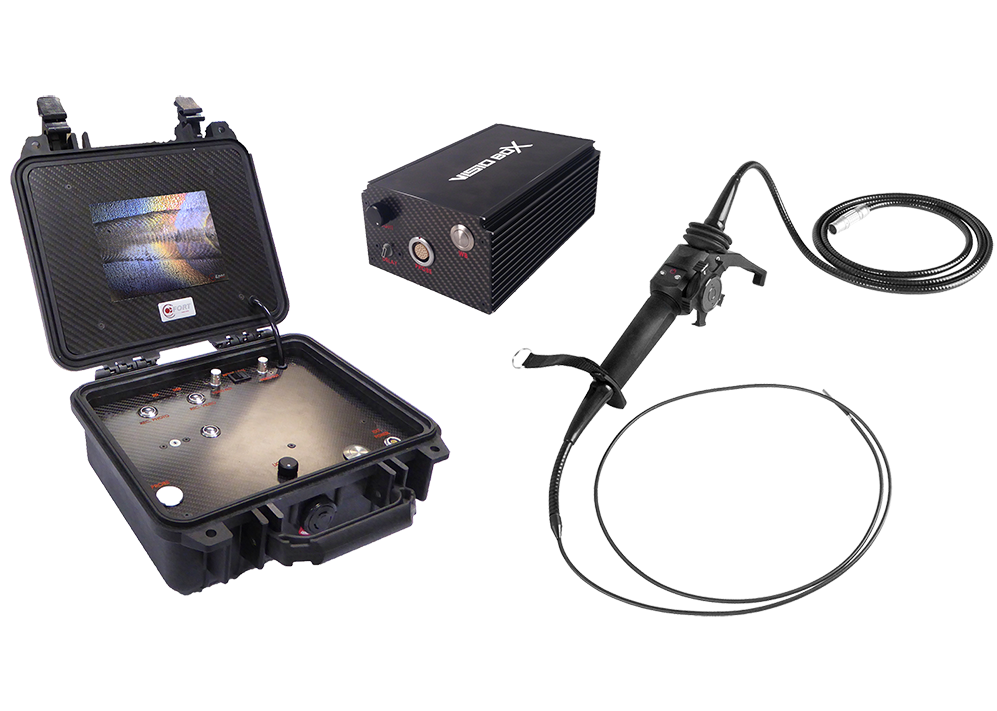

VISIO Videoscope System
Modular videoscope system with VISIO DOC multimedia case, VISIO BOX desktop unit and interchangeable P2 probes from 3.7 to 6 mm.
Tank & Pipe Cameras
5 ProductsFull-HD and 60x zoom PTZ cameras, a dual-view pipe camera and a magnetic crawler for vessels, tanks and pipelines.

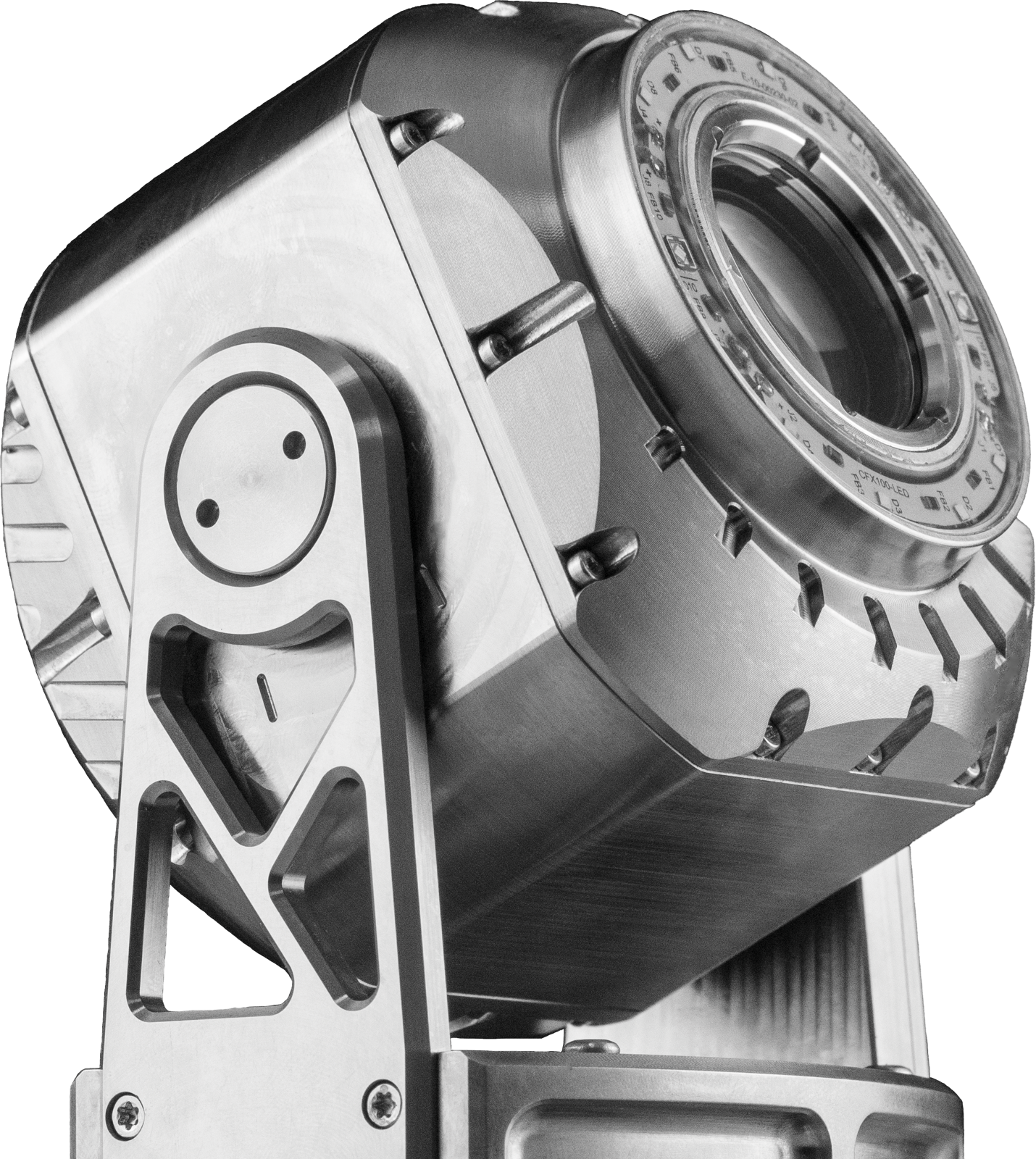

INVIZx98 Full-HD PTZ Camera
Ø 98 mm Full-HD pan-tilt-zoom inspection camera with uncompressed 1920 × 1080 imaging, 10x optical zoom, 2,000 lm LED and titanium housing.

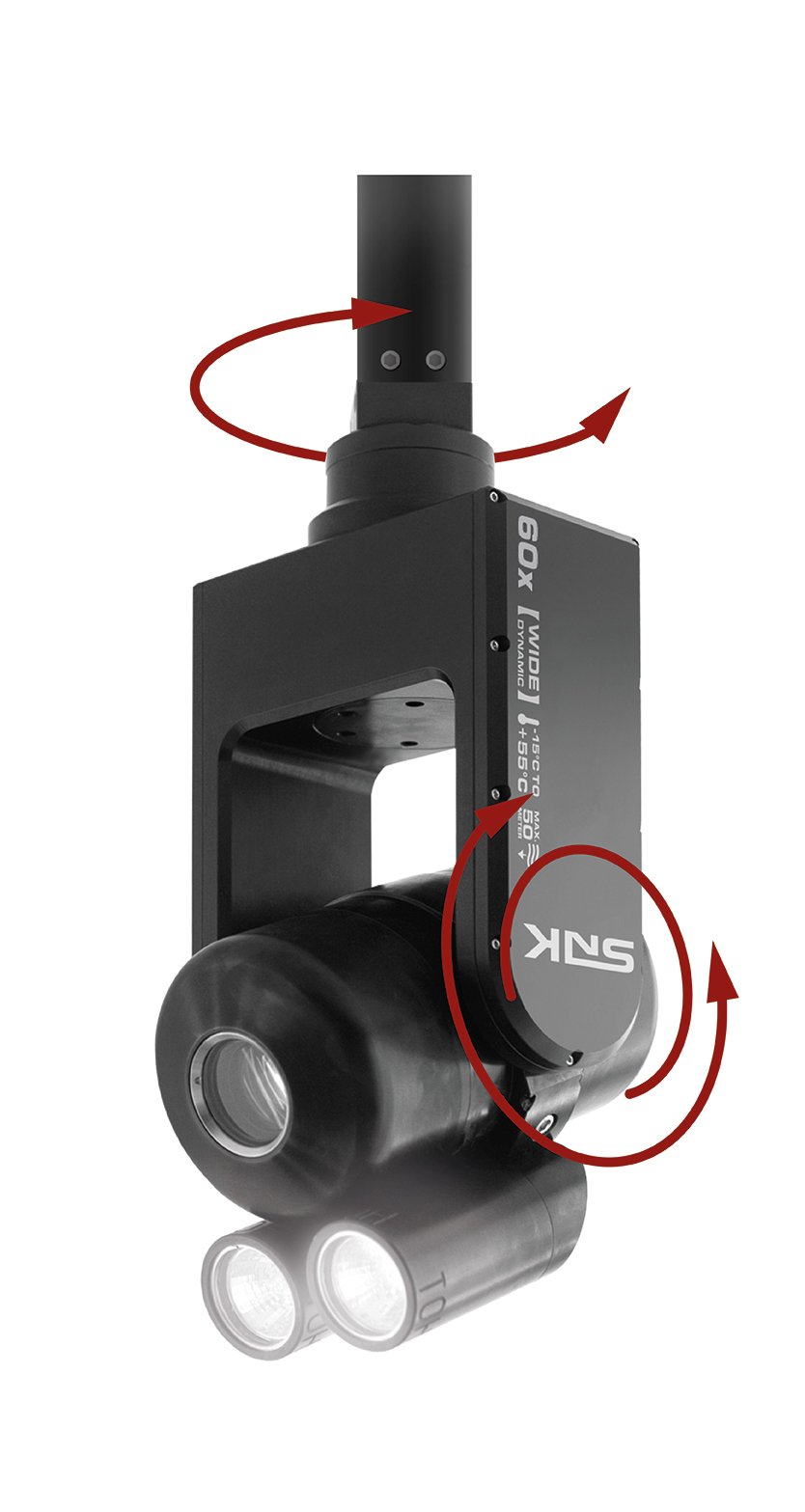

SNK 60x PTZ Tank Camera
Fifth-generation pan-tilt-zoom tank camera with 60x zoom, macro from 1 cm, 347° pan, 240° tilt and Run & Scan automation.

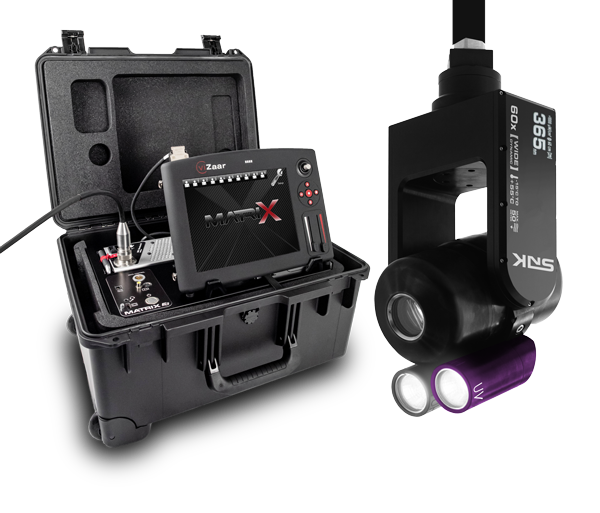

SNK Ultra 365 UV Vessel Camera
PTZ vessel camera combining the SNK 60x with a 365 nm UV emitter for cleanliness testing and fluorescent crack detection.

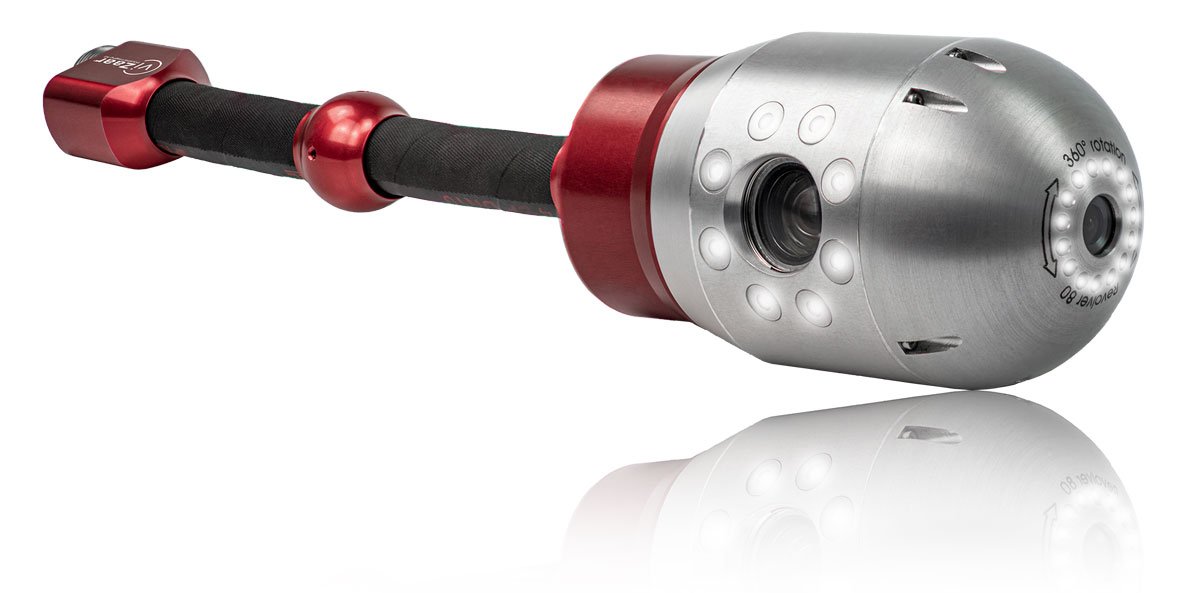

Revolver 80 Pipe Camera
Dual-view pipe camera from 80 mm inner diameter with endless 360° side-view rotation for orbital weld inspection; work lengths up to 150 m.

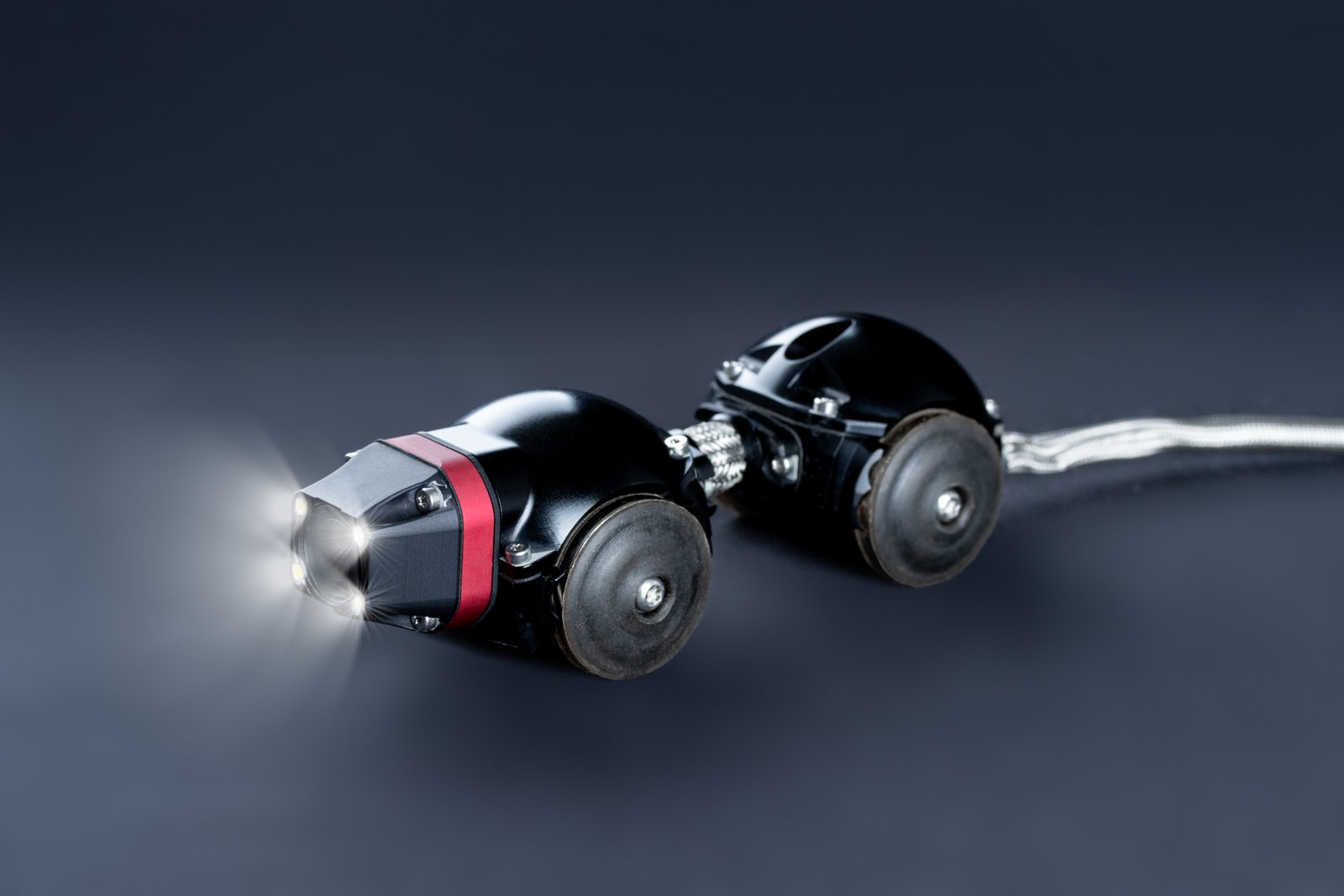

IPIDRO Magnetic Inspection Crawler
Compact magnetic crawler with uncompressed Full-HD camera, 145° field of view and 20 m cable for RVI of ferromagnetic pipes, ducts and boilers.
Industrial Endoscopes
3 ProductsClassic rigid borescopes and flexible fiberscopes with matched LED illumination.

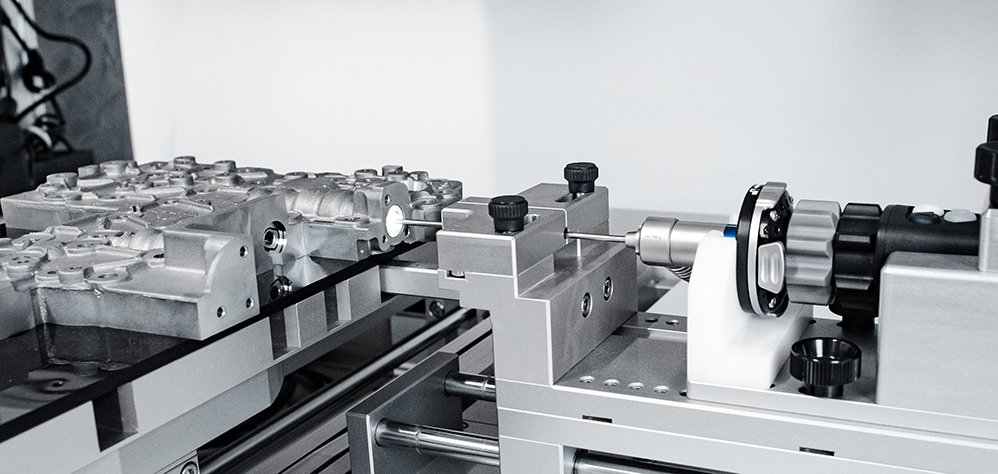

Rigid Borescopes
Classic rigid industrial endoscopes with high-quality lens systems for bores, castings and cavities with straight access.

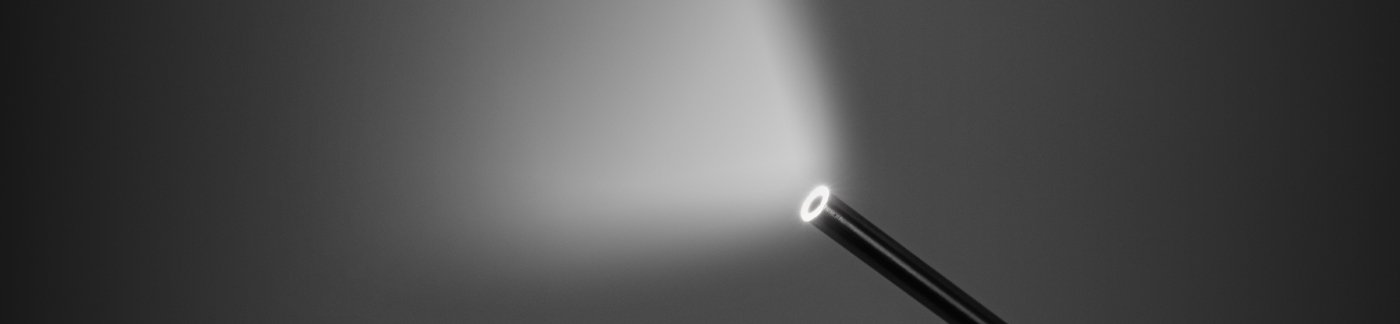

Fiberscopes
Flexible optical endoscopes from Ø 0.35 mm to 11 mm and up to 15,000 mm long, with or without articulating tip.

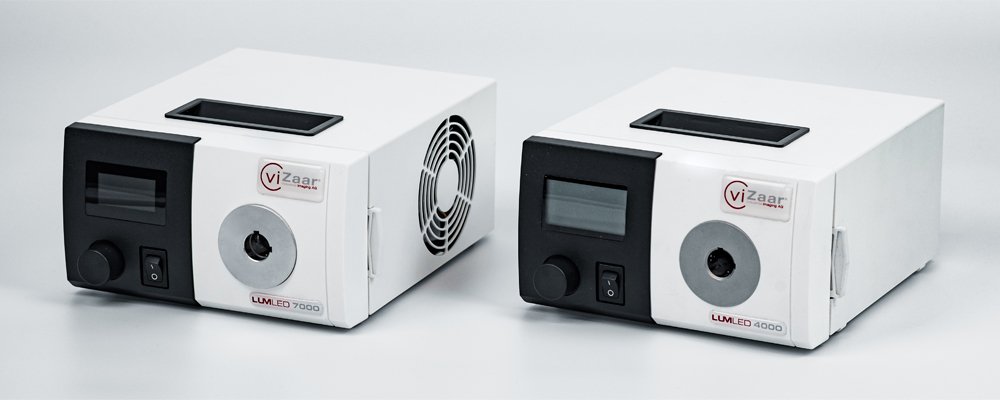

LUMLED Endoscope Illumination
LED light sources and handle lights for borescopes and fiberscopes, selected by light output, colour temperature and intensity.
Retrieval & Documentation
Retrieval Tools
2 ProductsFOSAR tool kits and motorized GR 8 / GR 16 grippers for removing foreign objects without dismantling.

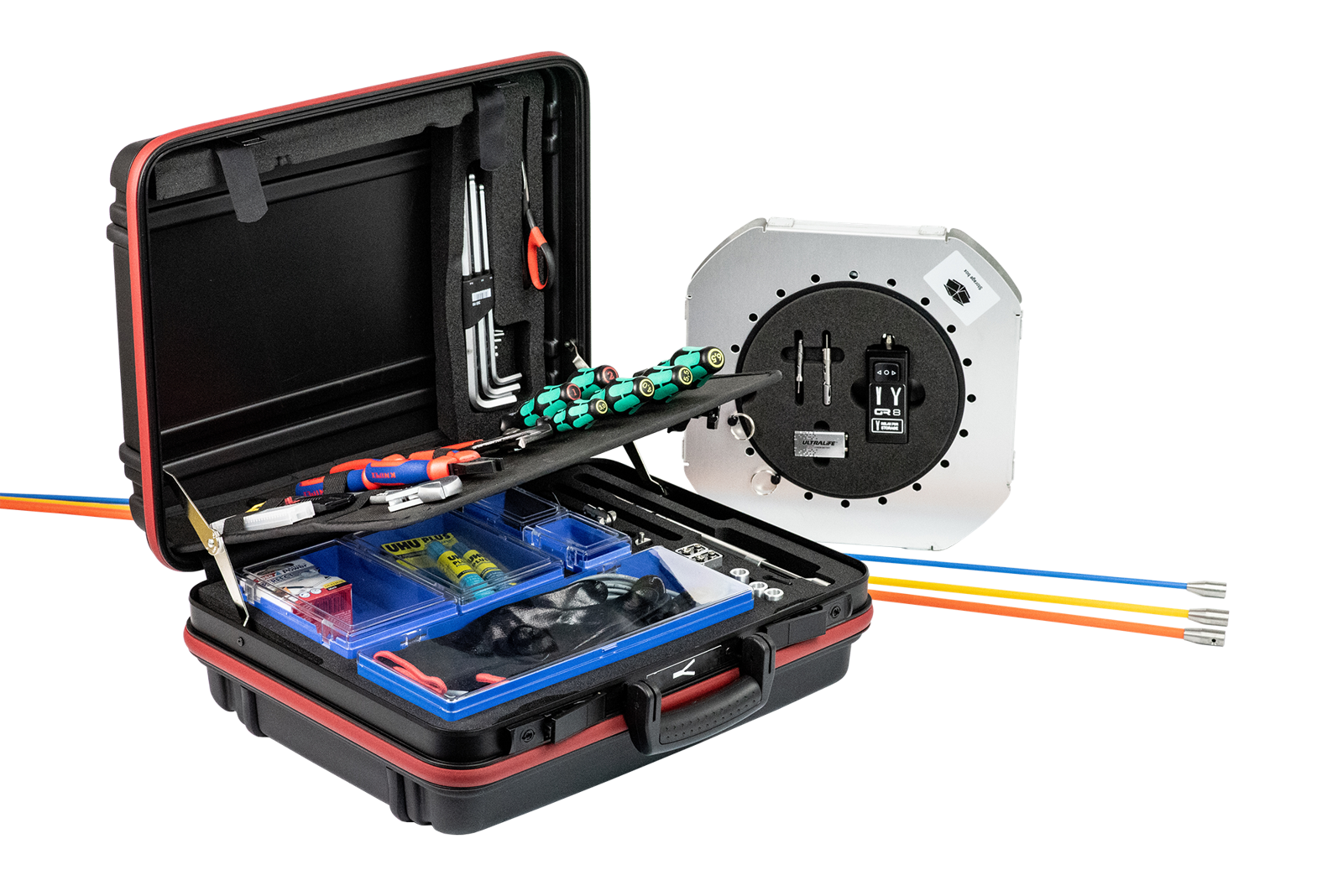

Retrieval Tool Kits
FOSAR tool kits with snares, hooks, magnets and push rods — up to the PRO kit with motorized GR 8 and GR 16 grippers.

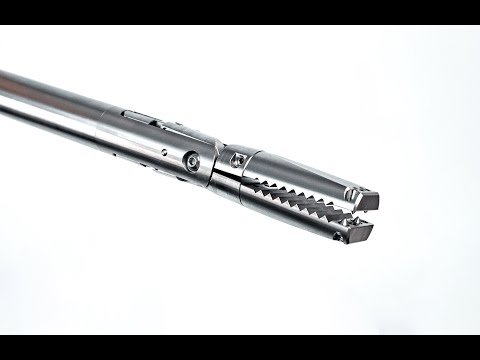

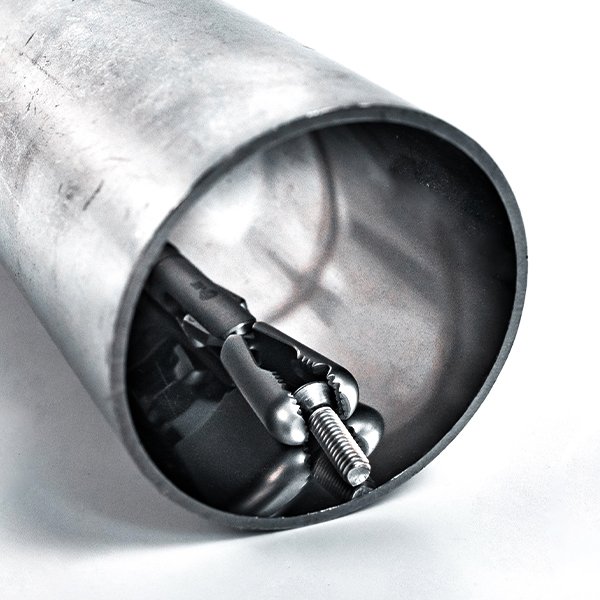

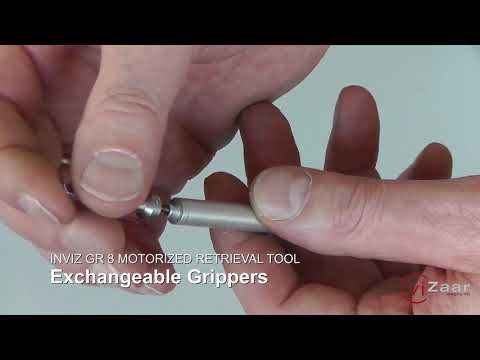

Motorized Retrieval Tools GR 8 / GR 16
Motorized grippers for FOSAR — the compact GR 8 with up to 30 m working length and the powerful GR 16 for large objects.
Documentation Systems
3 ProductsMATRIX E3, VUVISION and the VUDESK test station for control, reporting and serial inspection.

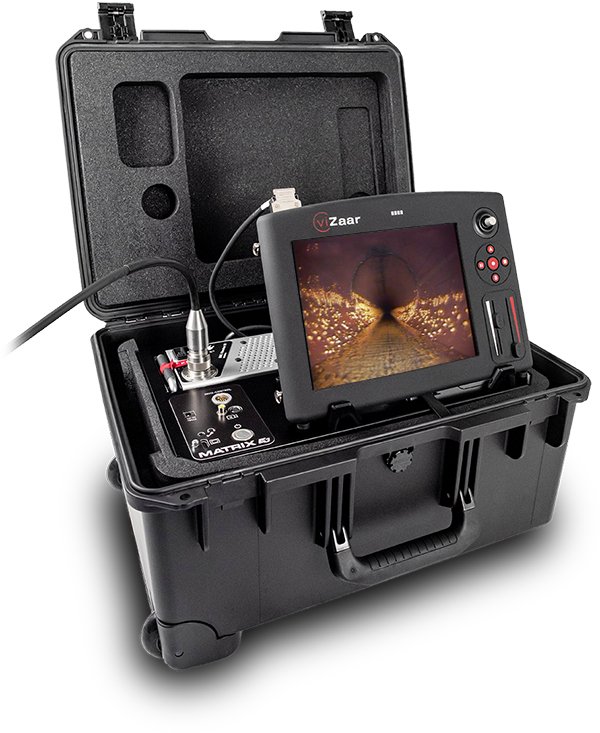

MATRIX E3 Documentation System
All-in-one control and documentation unit for tank and pipe cameras, with trans-reflective touchscreen, joystick and up to 5 h battery operation.

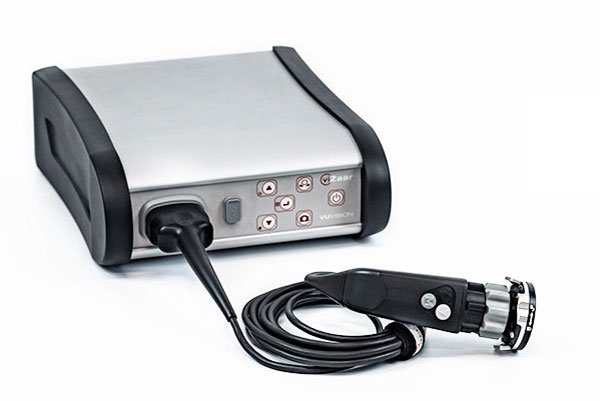

VUVISION / VUVISION+ Documentation System
Full-HD documentation system for conventional borescopes and fiberscopes, with VUHD-CAM eyepiece camera and compact VUSCOPE probes from 0.7 mm.

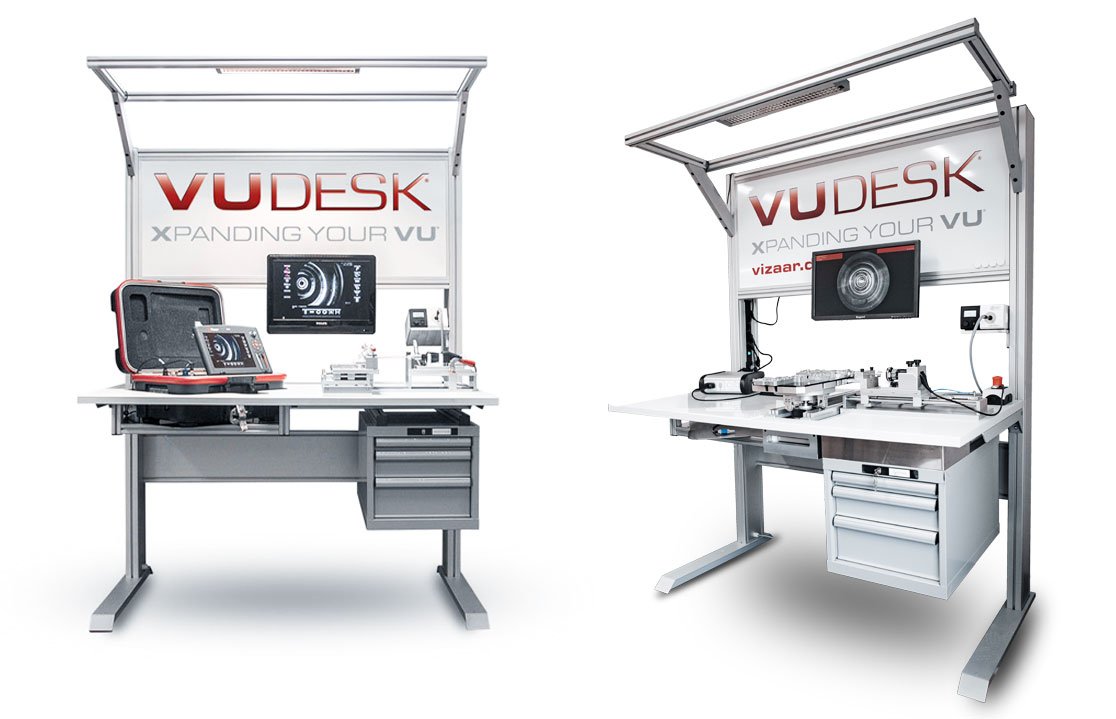

VUDESK Test Station
Configurable inspection workbench with integrated test fixture, MATRIX E3 recess and height adjustment for reproducible serial-part inspection.
Accessories & Custom Solutions
Endoscope Accessories
4 ProductsOptic adapters, guide tubes, centering devices and accessory kits that extend every system.

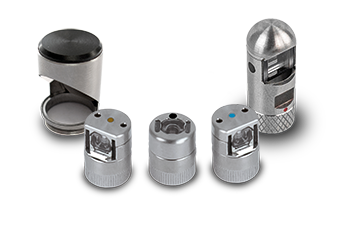

Optic Adapters
Interchangeable tip adapters for VUMAN, VUCAM and VISIO probes that change direction of view, field of view and depth of field.

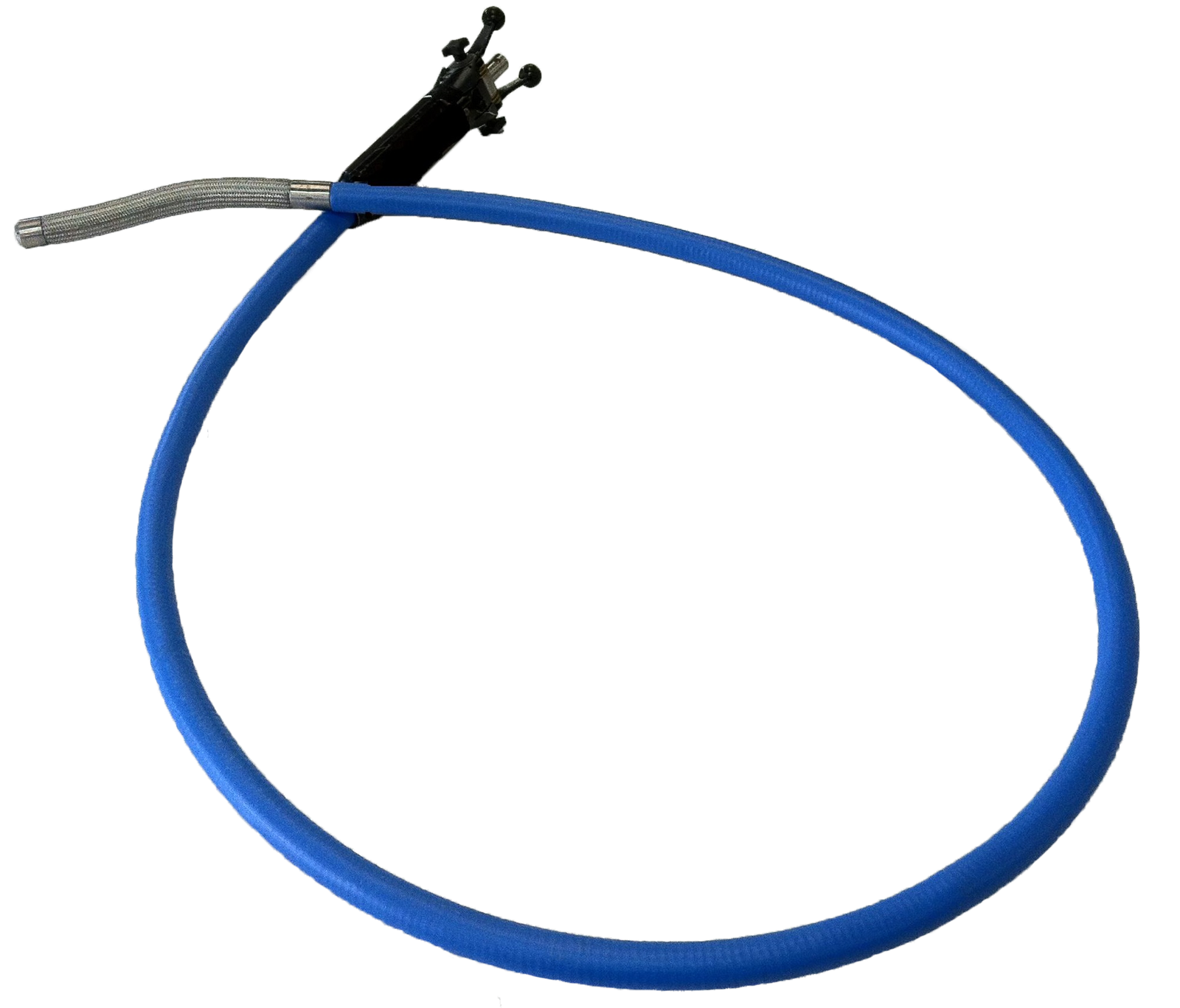

Guide Tubes
Articulating and non-articulating guide tubes with working channels for videoscopes, fiberscopes and retrieval tools.

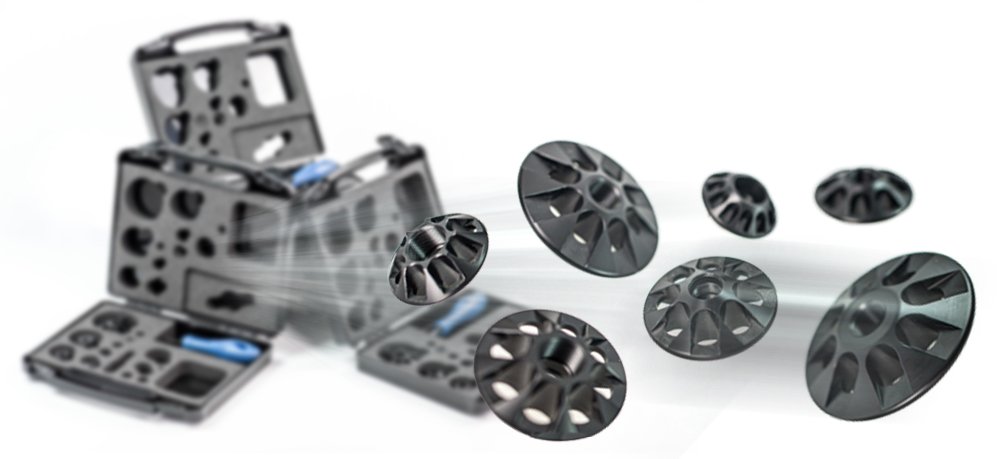

Centering Devices
Centering disks and spiders that keep VUCAM and VUMAN probes centred in pipes for consistent distance and image quality.

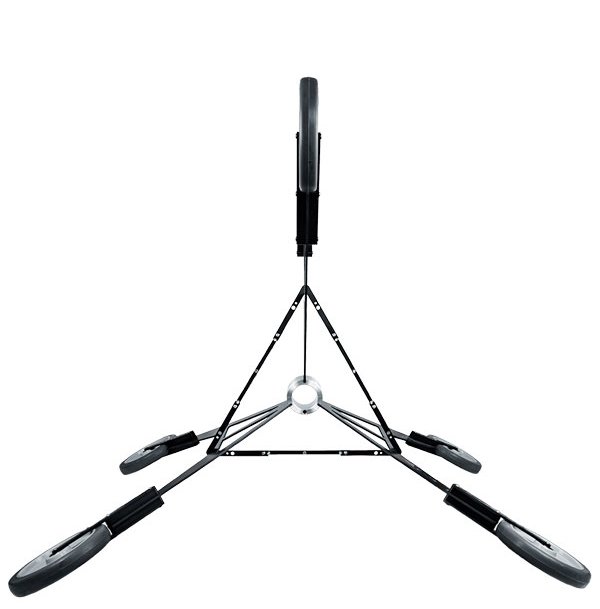

Inspection Accessory Kits
Pre-assembled accessory sets for VUCAM, Revolver 80 and SNK cameras — push rods, centring fixtures, tripods and hardware.
Customized Inspection Solutions
1 ProductSpecial cameras and endoscopes engineered for inspection tasks beyond standard equipment.

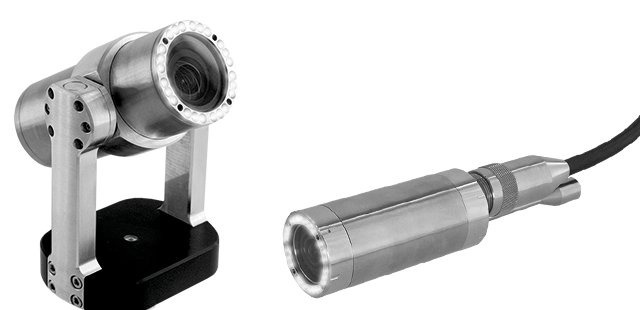

Customized Inspection Solutions
Special cameras, endoscopes and fixtures engineered by viZaar when no standard inspection system fits the application.
Why EMUS represents viZaar
viZaar covers the full remote visual inspection chain — reach, image, documentation and retrieval — from 2.4 mm sword cameras to Ø 98 mm Full-HD PTZ tank cameras. EMUS helps maintenance, NDT and quality teams in the Balkan region select probe diameter, working length, articulation and documentation platform for the actual access path and defect type, and supports the system with demonstration, training and service coordination.
- One manufacturer for videoscopes, tank and pipe cameras, crawlers, classic endoscopes and retrieval tools.
- Configuration advice on probe diameter, length, articulation and optic adapters based on the access path.
- Documentation platforms (MATRIX E3, VUnit, VUVISION) matched to reporting and data-security requirements.
- FOSAR capability with motorized and non-motorized retrieval tool kits.
- Access to viZaar customized solutions when standard equipment cannot reach the inspection point.
Media library
Official viZaar brochures and product videos available through EMUS.
Brochures
- VUMAN E3/E3+ — Brochure
- VUCAM series — Brochure
- VUFLEX — Brochure
- UVin — Brochure
- iPLORE+ — Brochure
- INVIZx98 — Brochure
- SNK 60x — Brochure
- SNK Ultra 365 — Brochure
- Revolver 80 — Brochure
- IPIDRO — Brochure
- MATRIX E3 — Brochure
- VUDESK test station — Brochure
- Retrieval tool kits — Brochure
- Videoscopes — Catalogue
- Tank, vessel & pipe inspection cameras — Catalogue
- Industrial endoscopes — Catalogue
- Retrieval tools & guide tubes — Catalogue
Videos
Talk to an EMUS engineer aboutviZaar
Tell us about your application and our engineers will recommend the rightviZaar system and configuration.
