Baincut Large Plus
Model: CMLP015
Heavy-duty cutter with 16" (400 mm) wheel, 10 HP motor, 3-axis movement and 130 mm capacity.
About the Baincut Large Plus
The Baincut Large Plus is a heavy-duty cutting machine of integral construction for sectioning large specimens up to 130 mm diameter. A 10 HP motor drives a 16" (400 mm) wheel at 1800–1900 rpm, with 3-axis (X, Y, Z) movement and two T-slot tables for flexible clamping.
- Cutting capacity up to 130 mm dia
- Powered by Motor 10 HP, 3 phase motor
- Cut-off wheel dia 16" (400mm)
- 3 Axis user friendly movement (X,Y,Z)
- Spindle speed 1800 - 1900 rpm.
- Table size : 254 mm X 355 mm X 2 Nos with 12 mm T-slot
- Machine size: 1040mm X 1600mm X 1800mm (L x D x H)
Technical data
- Cutting capacity
- up to 130 mm dia
- Motor
- 10 HP, 3 phase motor
- Cut-off wheel
- 16" (400mm)
- Spindle speed
- 1800 - 1900 rpm.
- Table
- 254 mm X 355 mm X 2 Nos with 12 mm T-slot
- Machine size
- 1040mm X 1600mm X 1800mm (L x D x H)
Data from official Chennai Metco product information. Final configuration is confirmed in the EMUS quotation.
Where the Baincut Large Plus is used
- Metallographic sectioning of metals and alloys
- Sectioning of heat-treated and case-hardened parts
- Sample preparation for microstructure and weld analysis

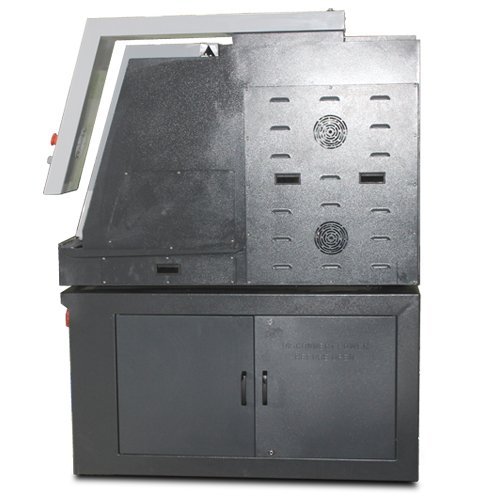

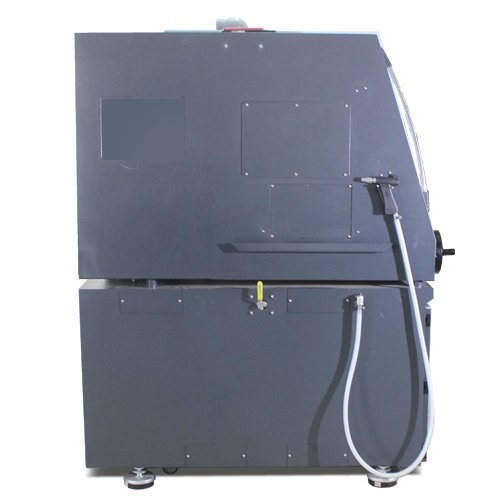

Product imagery
Official product videos
Brochures & catalogues
Baincut Large Plus — Brochure
PDF ·Brochure
