About Chennai Metco
Chennai Metco is an Indian manufacturer of metallography equipment and consumables, established in 2000 and supplying machines and consumables for metallography and petrography worldwide.
Its in-house manufacturing covers the complete sample-preparation chain — precision and abrasive sectioning, special-purpose cutters, hot mounting presses, belt and spectro grinders, manual, semi-automatic and automatic polishers — together with the GEO Series petrography line, peripherals and a full consumables range.
Technical expertise and in-house manufacturing allow machines to be customised to customer requirements, and Chennai Metco also designs complete turnkey preparation laboratories.
Technologies
The inspection and measurement technologies Chennai Metco manufactures.
Industries served
Manufacturing sectors where Chennai Metco technology is typically applied.
Applications
Typical inspection and quality-control tasks Chennai Metco systems address.
Products grouped by application
Organized by Chennai Metco product category. Each product links to its dedicated page with features, specifications, images and videos.
Sectioning
Precision Cutting Machines
4 ProductsLow- and high-speed precision saws for small, hard and delicate specimens.

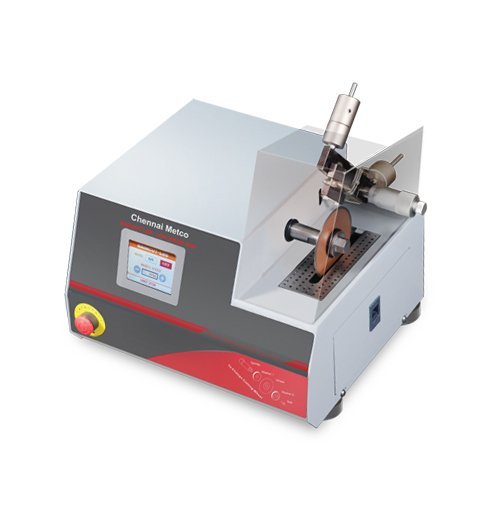

Baincut LSS
Compact low-speed precision section saw for accurate cutting of very small, hard components, with touch-screen presets.

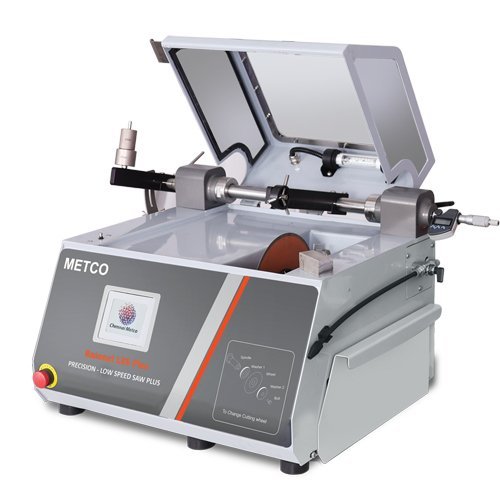

Baincut LSS Plus
Low-speed precision cutter with 0.01 mm positioning accuracy, colour touch-screen HMI and 60–1000 rpm spindle for fragile, high-value materials.

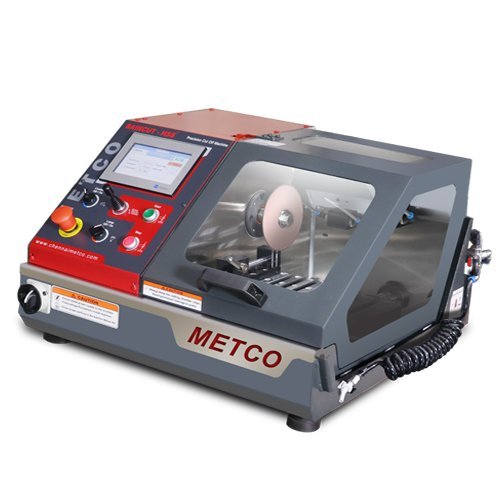

Baincut HSS
High-speed precision cut-off machine with variable 100–4000 rpm spindle, automatic Y-movement and 7" touch screen; capacity up to 40 mm.

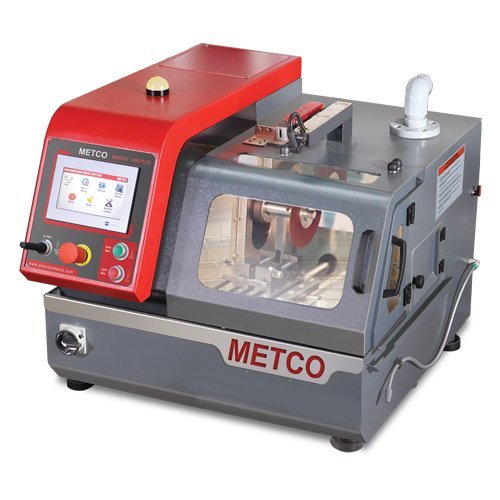

Baincut HSS Plus
Larger precision saw with 2 HP motor, 100–5000 rpm, 40 mm Z-movement and diamond or abrasive wheels up to 8" (200 mm); capacity 50 mm.
Abrasive Cutting Machines
12 ProductsTable-top to 30 HP floor-standing cut-off machines, manual and automatic, from 60 to 180 mm capacity.

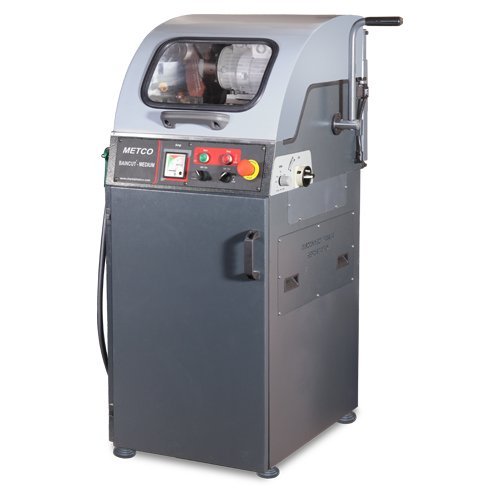

Baincut Medium
General-purpose floor-standing abrasive cut-off machine with 10" (250 mm) wheel and 60 mm capacity.

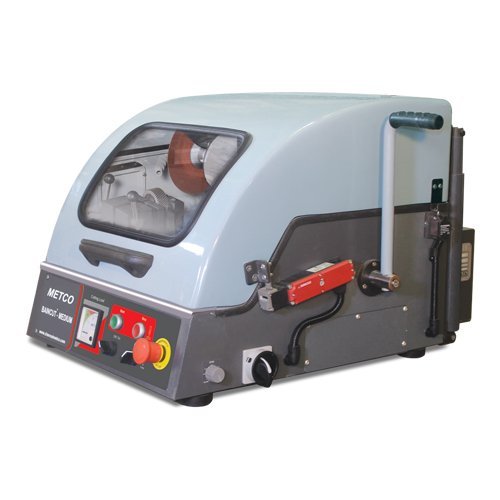

Baincut Medium Table Top
Sturdy table-top abrasive cutter with 10" (250 mm) wheel for sectioning metals, ceramics and mineral samples up to 60 mm.

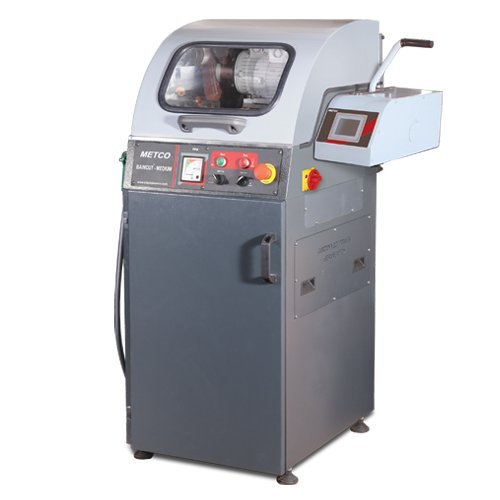

Baincut Medium Auto
Automatic version of the Baincut Medium for repeatable abrasive sectioning of specimens up to 60 mm.

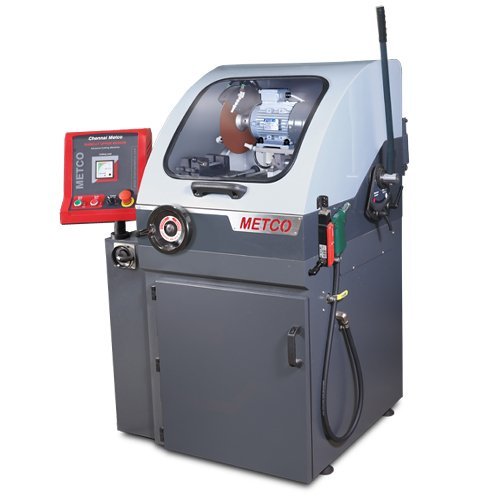

Baincut UM
Floor-standing general-purpose cutter with 12" (300 mm) wheel, 5 HP motor, 3-axis movement and 80 mm capacity.

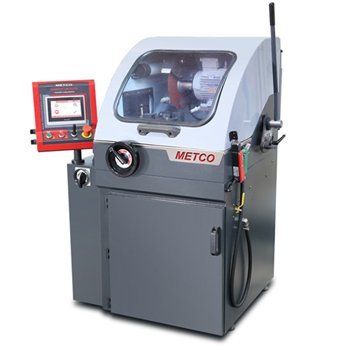

Baincut UM Auto
Automatic version of the Baincut UM floor-standing cutter for repeatable sectioning up to 80 mm.

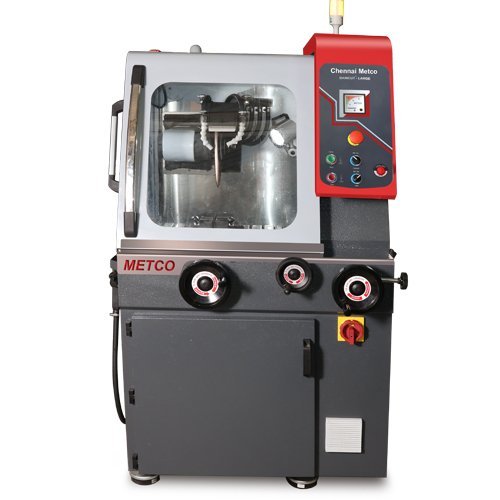

Baincut Large
Heavy-duty floor-standing abrasive cutter with integral construction for larger components.

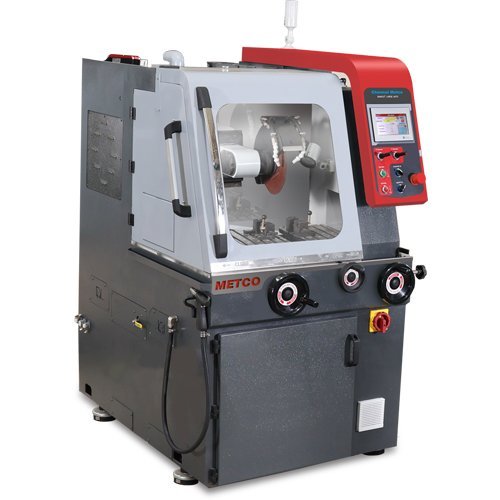

Baincut Large Auto
Automatic heavy-duty cutter with 14" (350 mm) wheel, 7.5 HP motor and 110 mm capacity; standard Y automation and preset parameters.

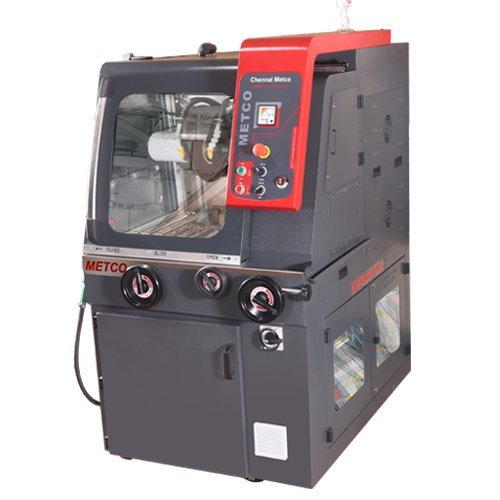

Baincut Large Plus
Heavy-duty cutter with 16" (400 mm) wheel, 10 HP motor, 3-axis movement and 130 mm capacity.

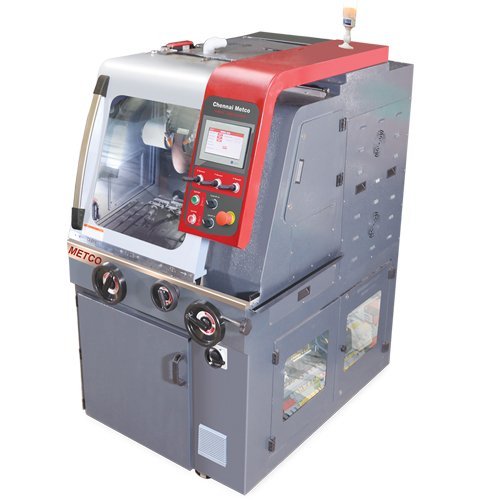

Baincut Large Plus Auto
Automatic Large Plus cutter with standard Y automation, burn-free plus cutting and preset parameters; 130 mm capacity.

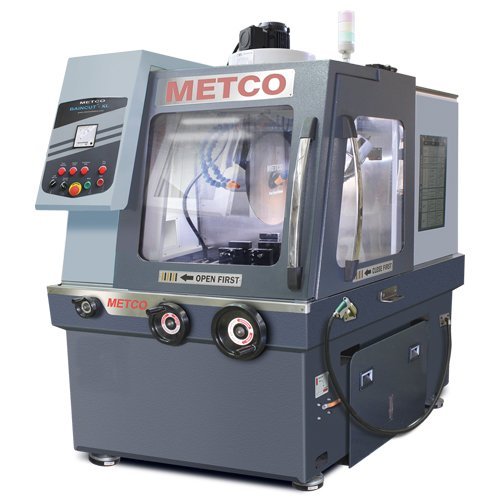

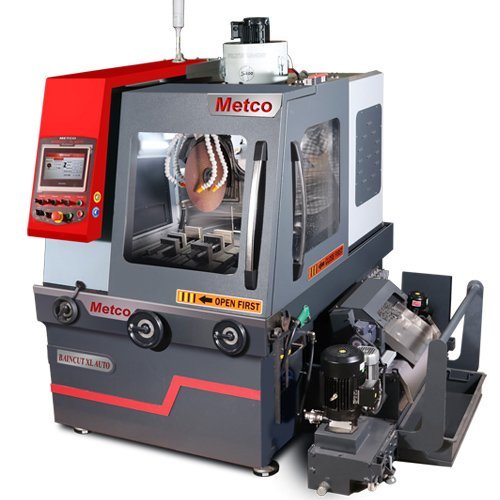

Baincut XL Auto
Automatic extra-large cutter with 20" (500 mm) wheel, 15 HP motor, variable 1000–3000 rpm and 150 mm capacity.

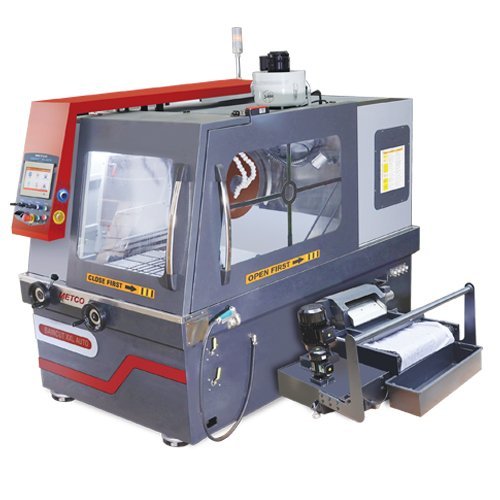

Baincut XXL Auto
Largest standard automatic cutter: 30 HP, 20" (500 mm) wheel, 500 × 500 mm table, pulse and step cutting; 180 mm capacity.
Special-Purpose Cutting Machines
8 ProductsCarbide rod, bar, composite, conical-sample and diamond wire cutters.

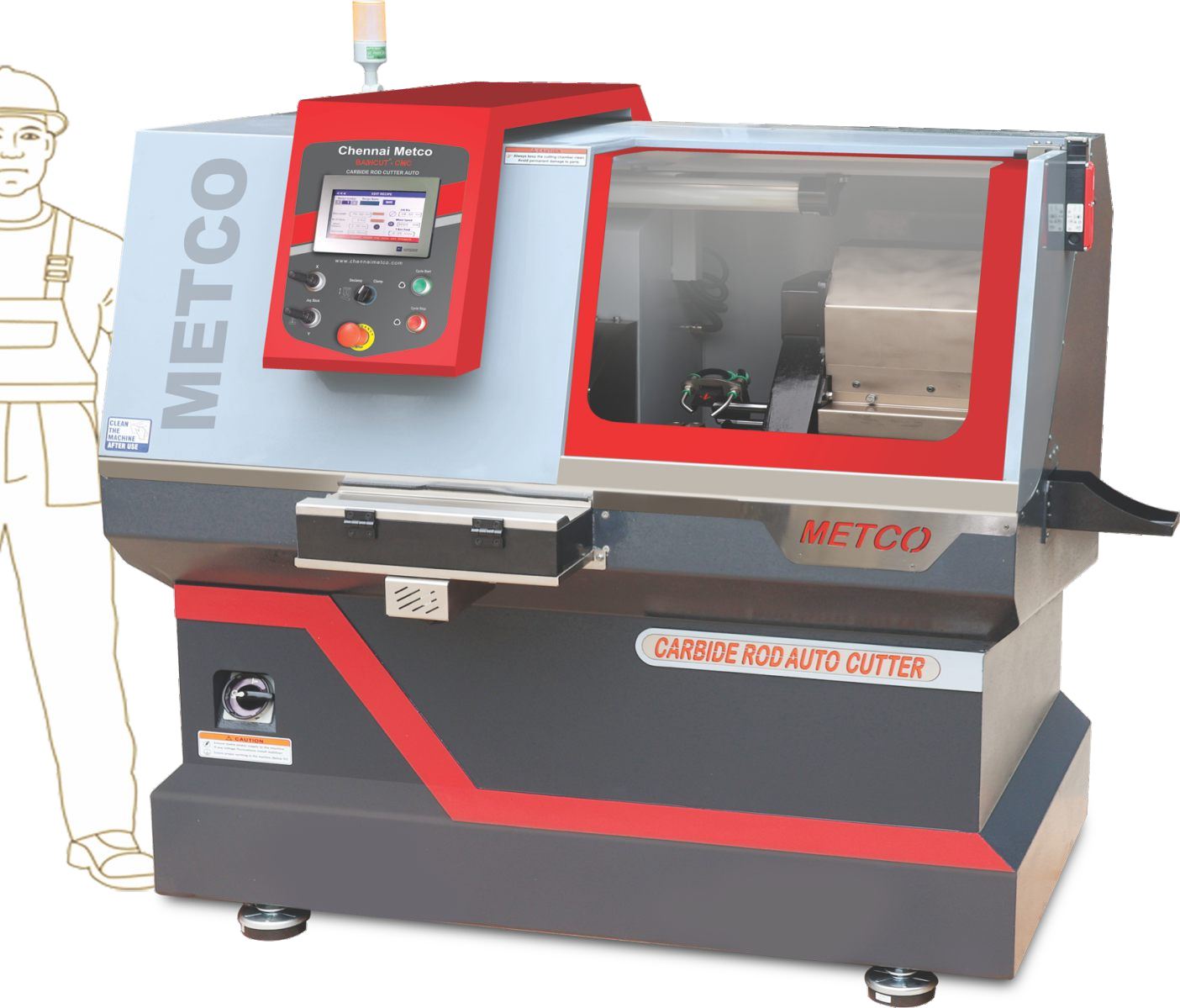

Baincut CMC Auto — Fully Automatic Carbide Rod Cutter
Fully automatic cutting-cum-chamfering machine for carbide and hard rods, designed for mass production.

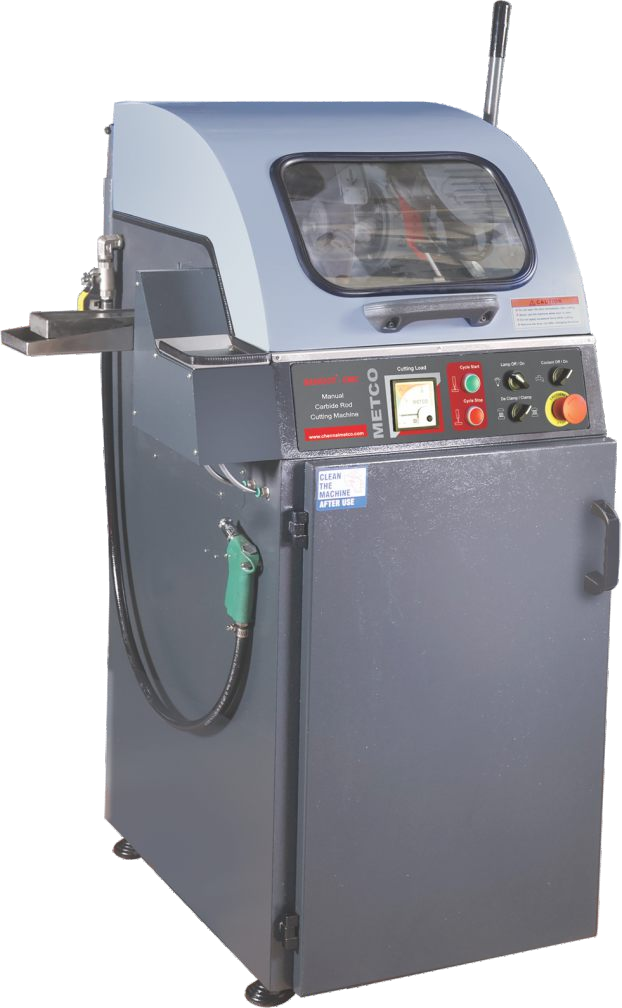

Baincut CMC Medium — Carbide Rod Cutter
Small-diameter economy manual cutter for carbide and HSS rods, with adjustable length stopper.

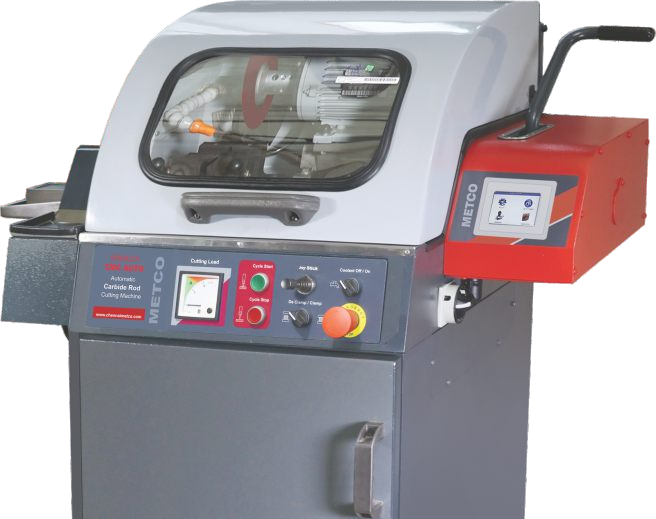

Baincut CMC Medium Semi Auto — Carbide Rod Cutter
Semi-automatic version of the CMC Medium with automatic cutting movement for carbide and HSS rods.

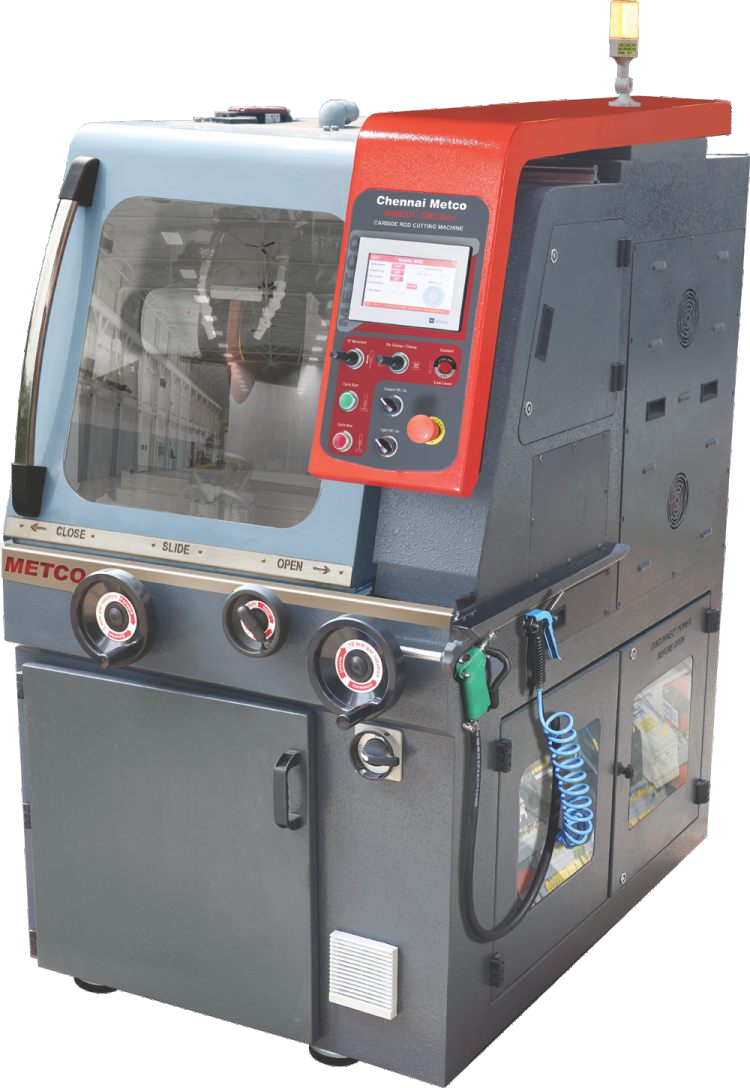

Baincut CMC Large Semi Auto — Carbide Rod Cutter
Higher-capacity semi-automatic floor-model carbide and HSS rod cutter for 3–50 mm diameters and 20–400 mm lengths.

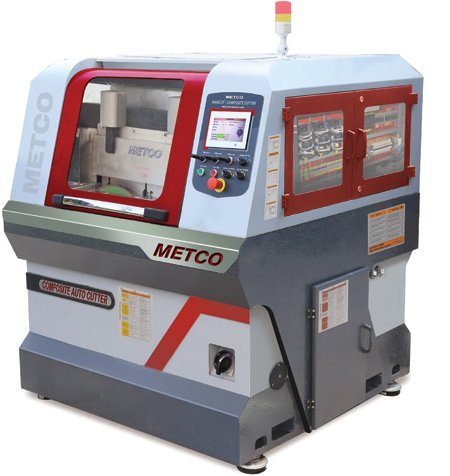

Composite Cutter
Fully automatic special-purpose cutter for composite materials.

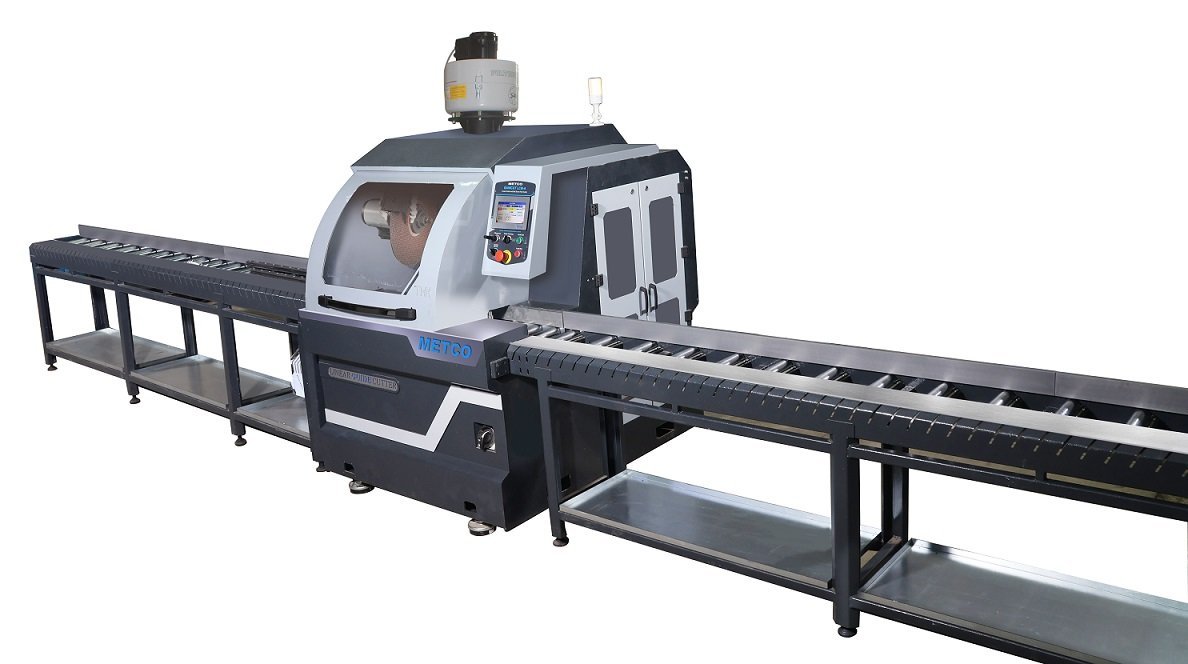

Bar Cutting Machine
Automatic bar cutting machine with roller conveyor for cutting bar stock to length.

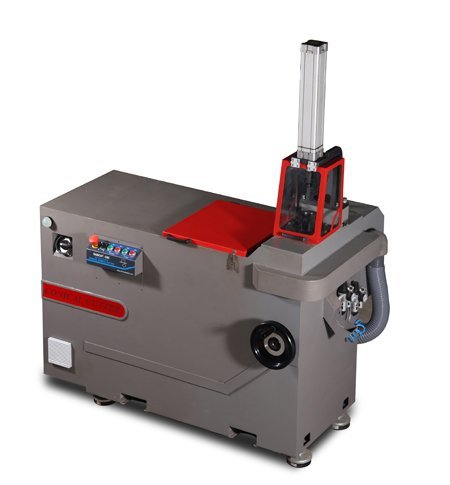

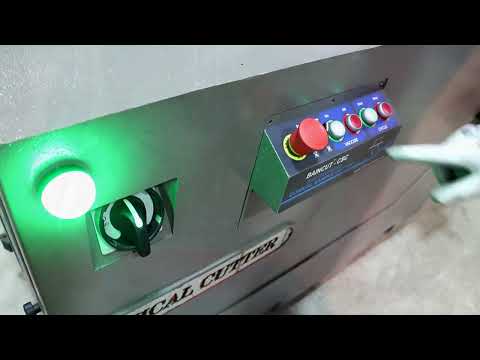

Conical Sample Cutter — Baincut SCCM
Special-purpose cutter for conical (spectro) samples.

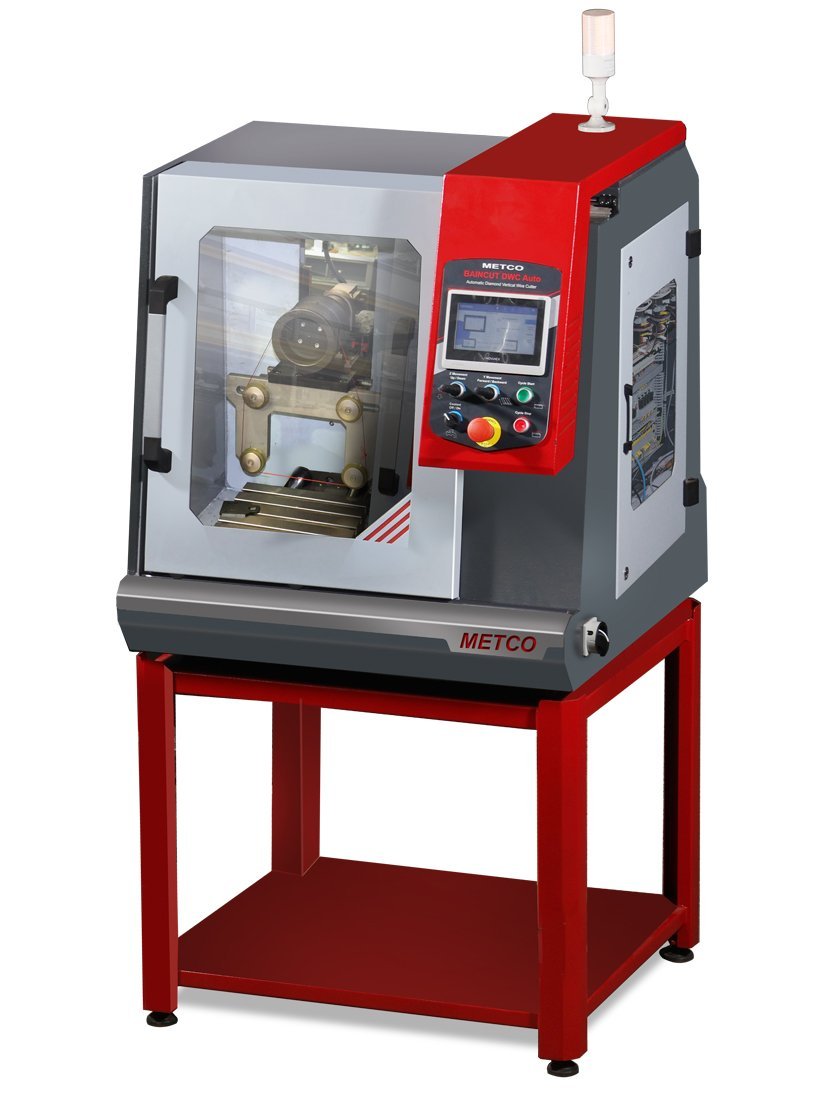

Diamond Wire Cutter
Automatic vertical diamond wire saw for low-damage cutting of delicate and brittle materials.
Mounting, Grinding & Polishing
Mounting Presses
5 ProductsPneumatic and hydraulic hot mounting presses, single and twin cylinder.

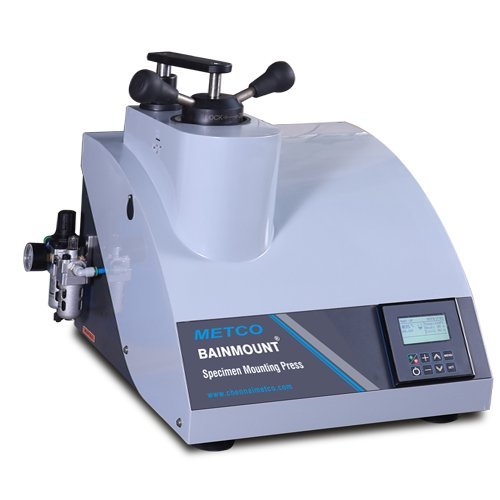

Bainmount Pneumatic
Pneumatic hot mounting press with 1600 W heater, digital temperature and timer display, and manual water cooling.

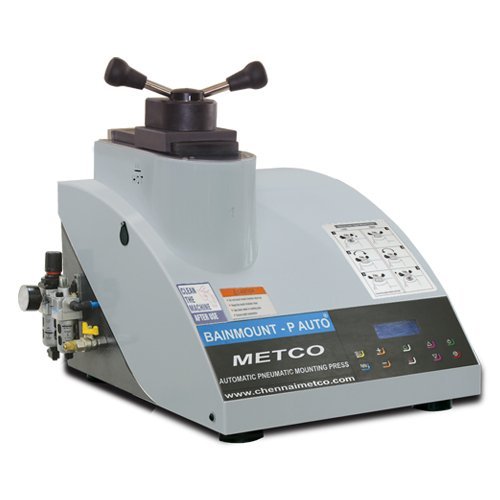

Bainmount P Auto
Automatic pneumatic hot mounting press with automatic water cooling and quick ram return.

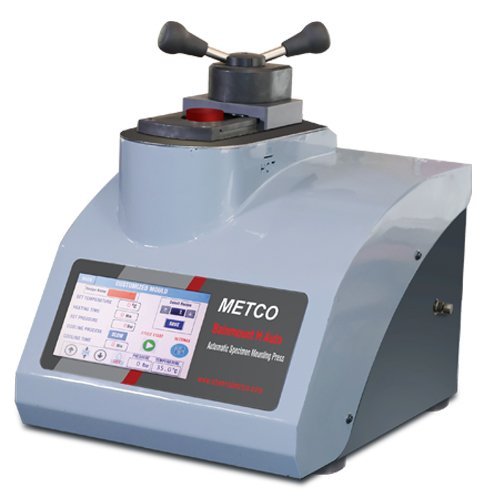

Bainmount H Auto
Automatic hydraulic hot mounting press with touch-screen control, 25 stored programs and automatic water cooling.

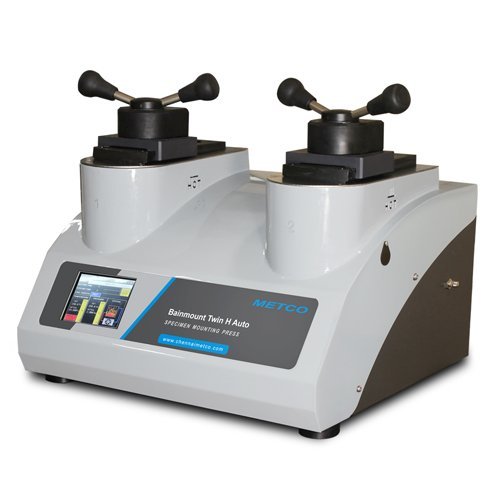

Bainmount Twin H Auto
Automatic hydraulic mounting press with dual cylinders for double throughput.

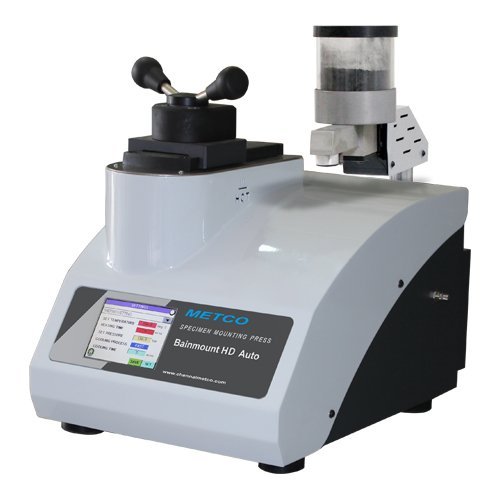

Bainmount HD Auto
Automatic hydraulic mounting press with integrated auto doser for resin.
Grinding Machines
5 ProductsBelt pre-grinders and vacuum-disc spectro grinders.

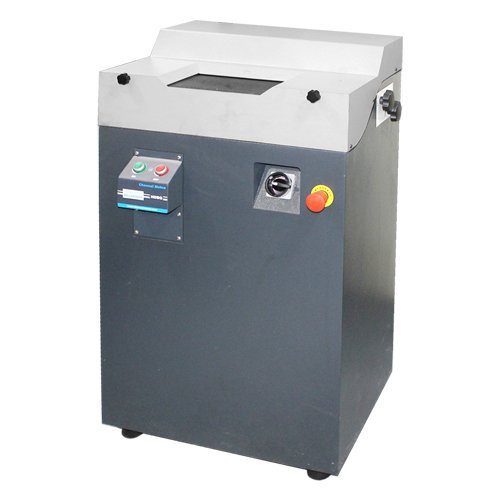

Bainline H
Floor-model belt pre-grinder with dual-speed mechanism for large metal sections.

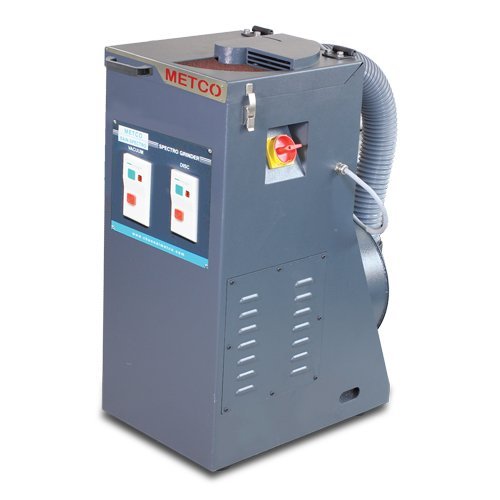

Bainline SSG
Single-speed 14" (350 mm) vacuum-disc spectro grinder with 1 HP vacuum suction.
Polishing Machines

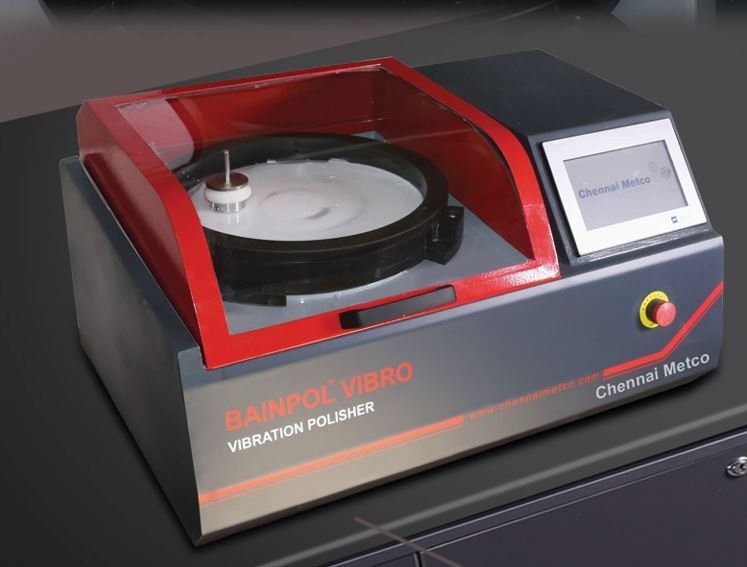

9 ProductsManual, semi-automatic and automatic single- and double-disc polishers, plus vibratory polishing.

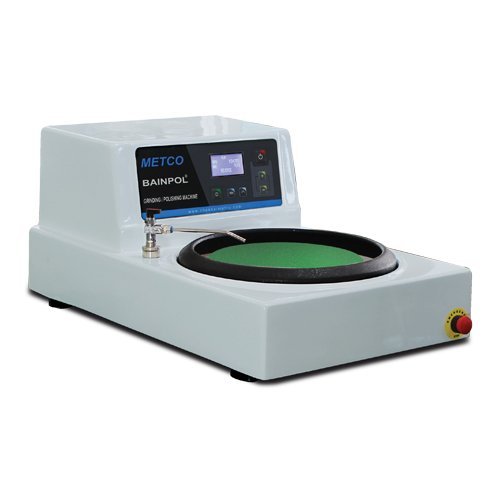

Bainpol VT (Single Disc)
Single-disc variable-speed grinding and polishing machine with quick-change disc.

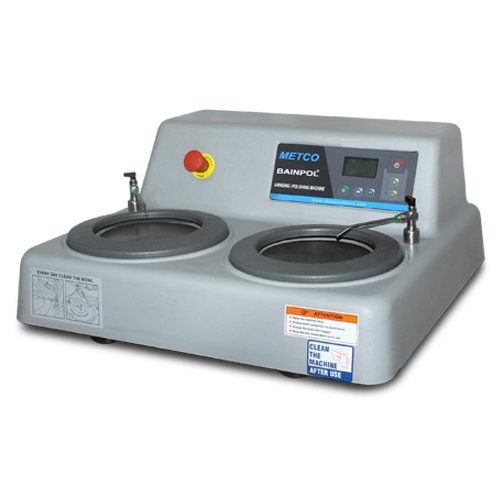

Bainpol VTD (Double Disc)
Double-disc grinder/polisher with 8" discs (10"/12" optional), 50–1000 rpm and quick-change discs.

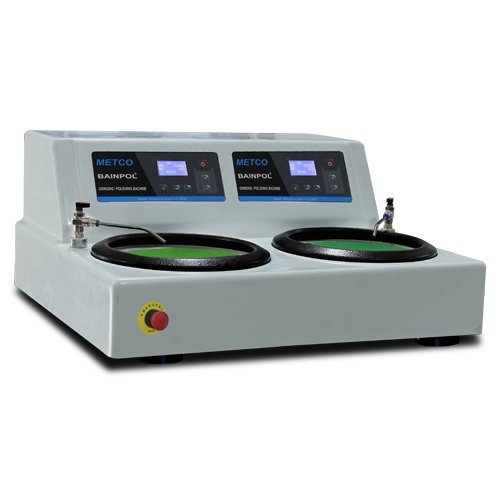

Bainpol VTD (Individual Drive)
Double-disc polisher with an individual drive for each disc.

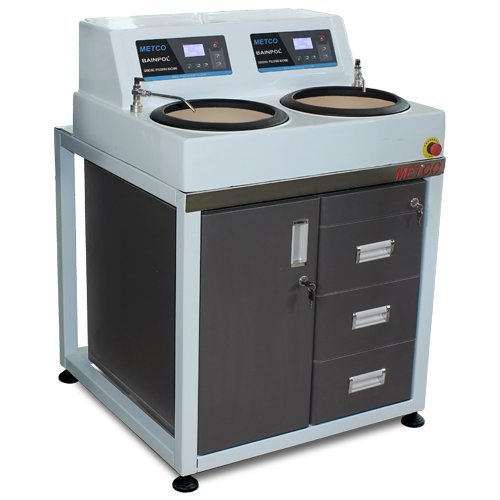

Bainpol VFD (Floor Model)
Floor-standing double-disc grinding and polishing machine with storage cabinet.

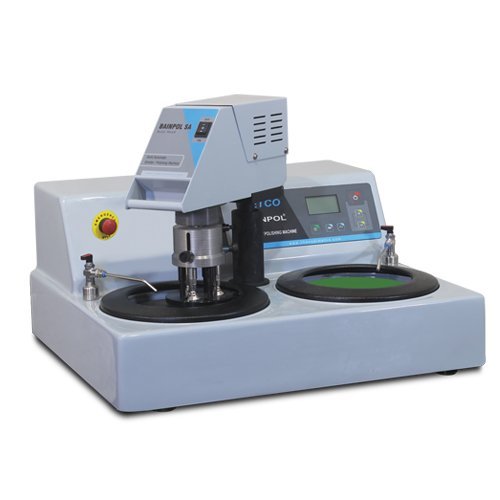

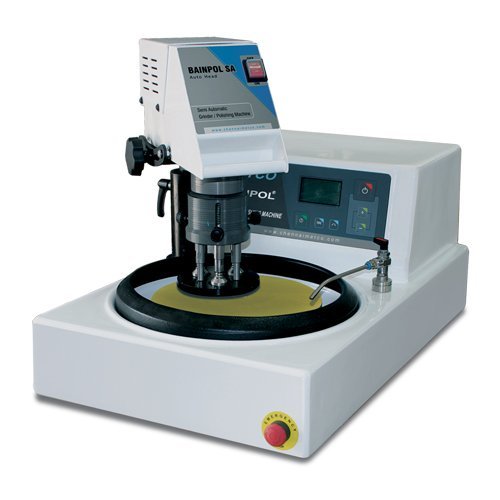

Bainpol SA
Semi-automatic single-disc polisher with powered head holding three specimens.

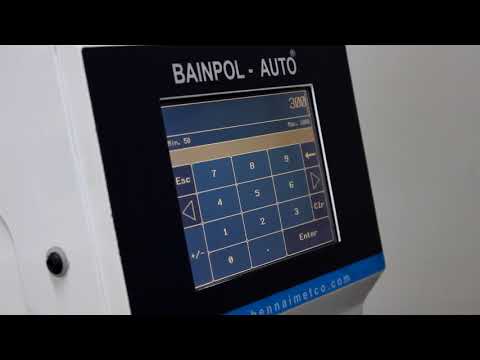

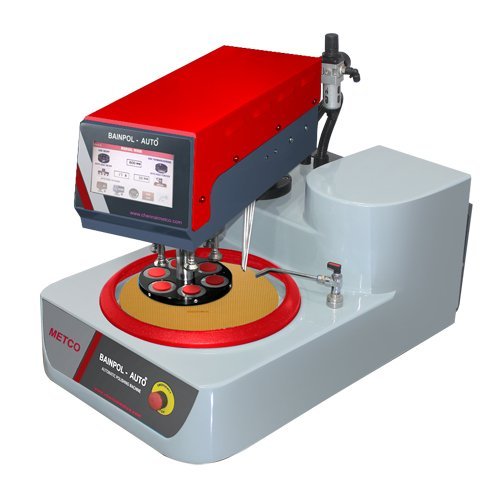

Bainpol Auto (Single Disc)
Automatic single-disc polisher holding up to six moulds with individual 10–90 N force and touch-screen control.

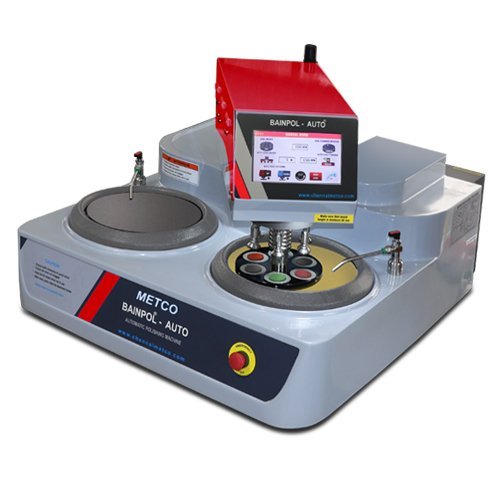

Bainpol VTD Auto (Double Disc)
Automatic double-disc polisher with individual 10–90 N specimen force and touch-screen control.
Specialised Lines
Petrography & Nuclear Metallography
2 ProductsGEO Series thin-section line and equipment for nuclear metallography.

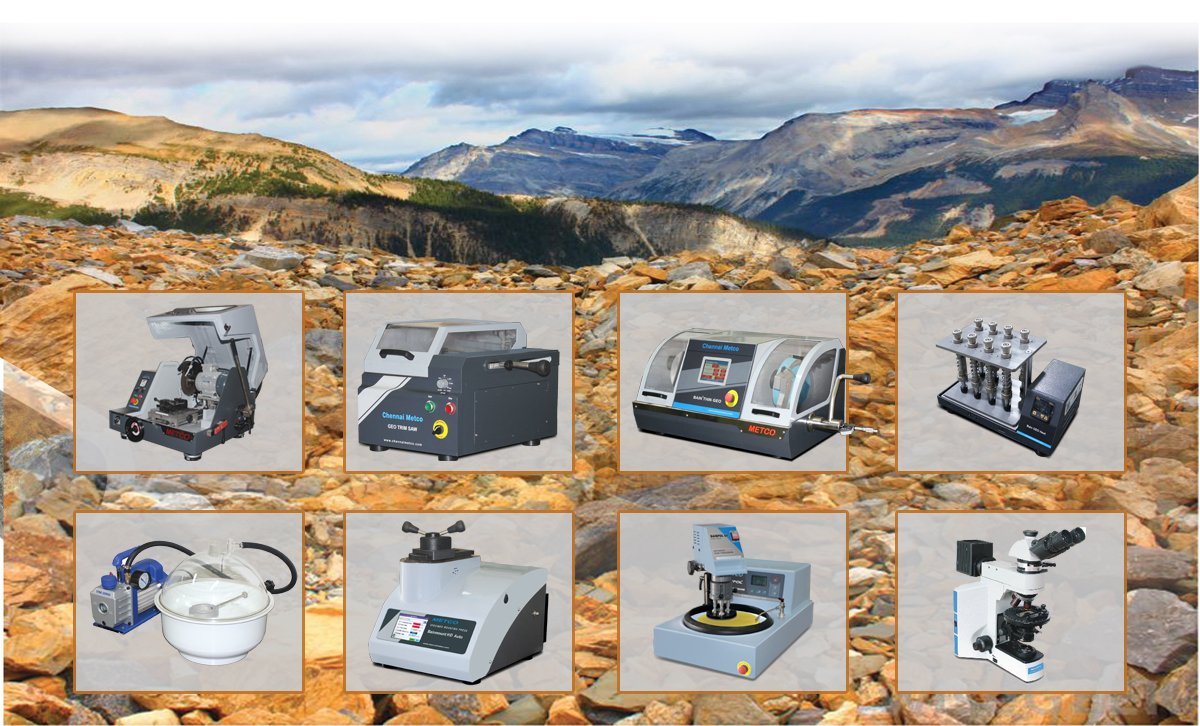

Petrography GEO Series
Complete thin-section preparation line for rocks, minerals, refractories and concrete — from primary sectioning to final grinding.
Nuclear Metallography
Chennai Metco sample-preparation equipment configured for nuclear metallography — Baincut LSS, Bainpol VT and Bainpol SA.
Inspection, Imaging & Laboratory
3 ProductsImage analysis, peripherals and turnkey laboratory set-up.

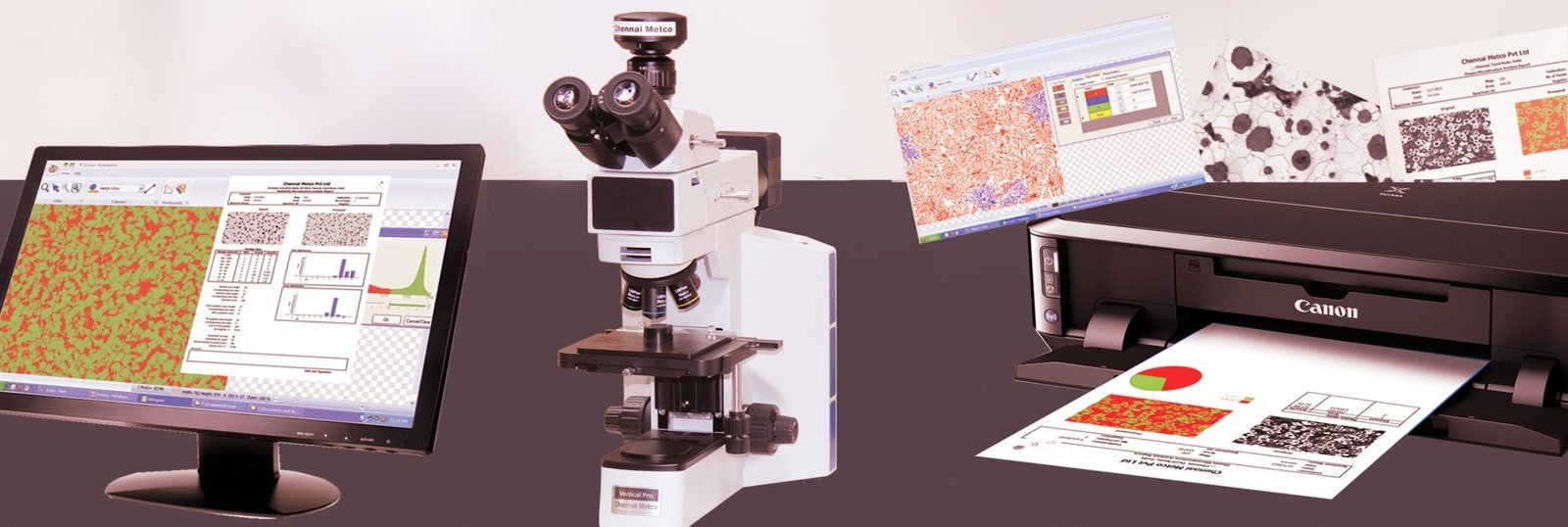

Image Analysis System
Integrated image capture and analysis — adapter, camera, hardware and software — from image acquisition to advanced analysis.

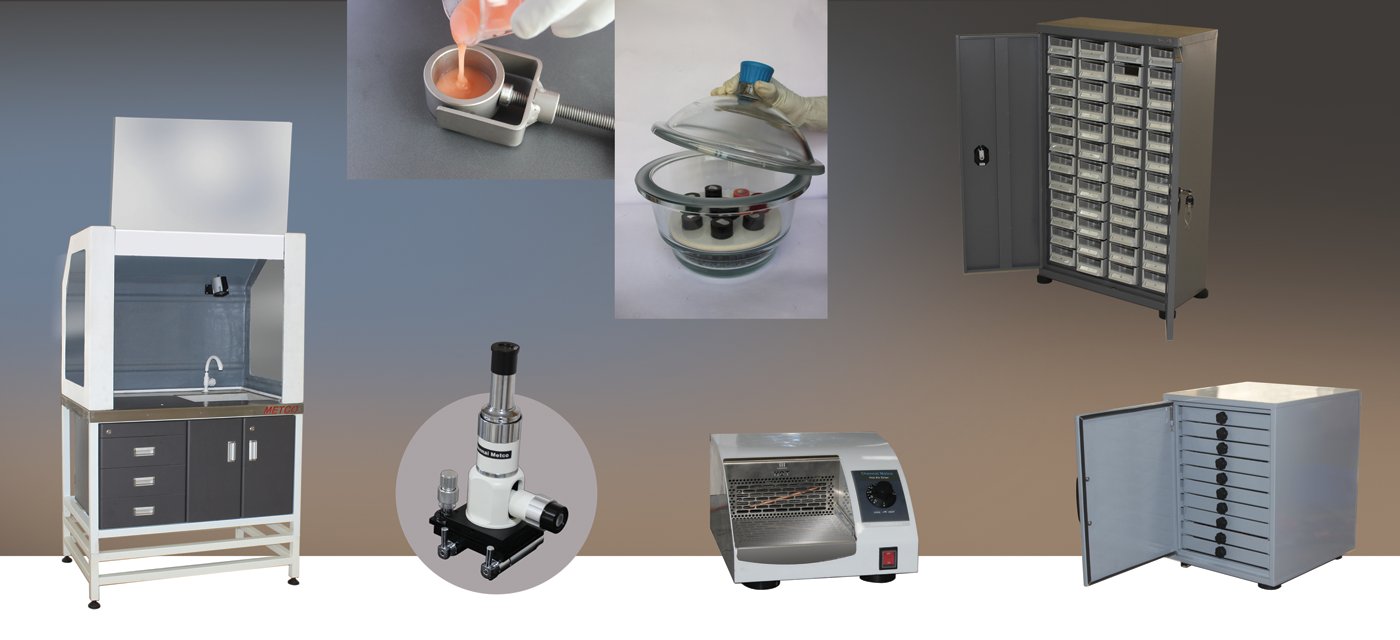

Laboratory Peripherals
Laboratory peripherals and work-holding devices — from specimen levellers to storage cabinets.

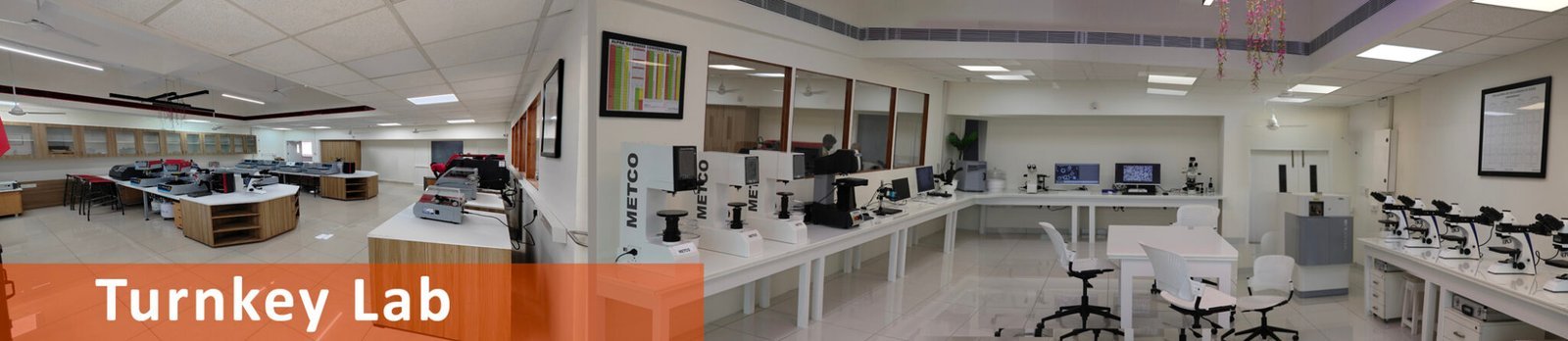

Turnkey Metallography Lab
Complete metallography lab set-up — equipment, furniture and layout from a single source.
Consumables
Consumables
4 ProductsCutting, mounting, grinding and polishing consumables matched to the machines.

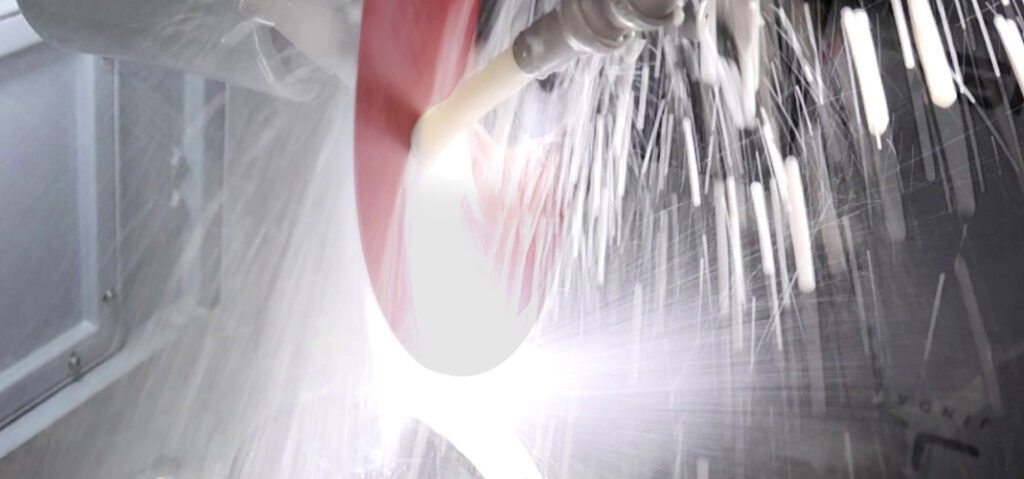

Cutting Consumables
Abrasive and diamond cut-off wheels, precision wafering blades and coolants matched to material and hardness.

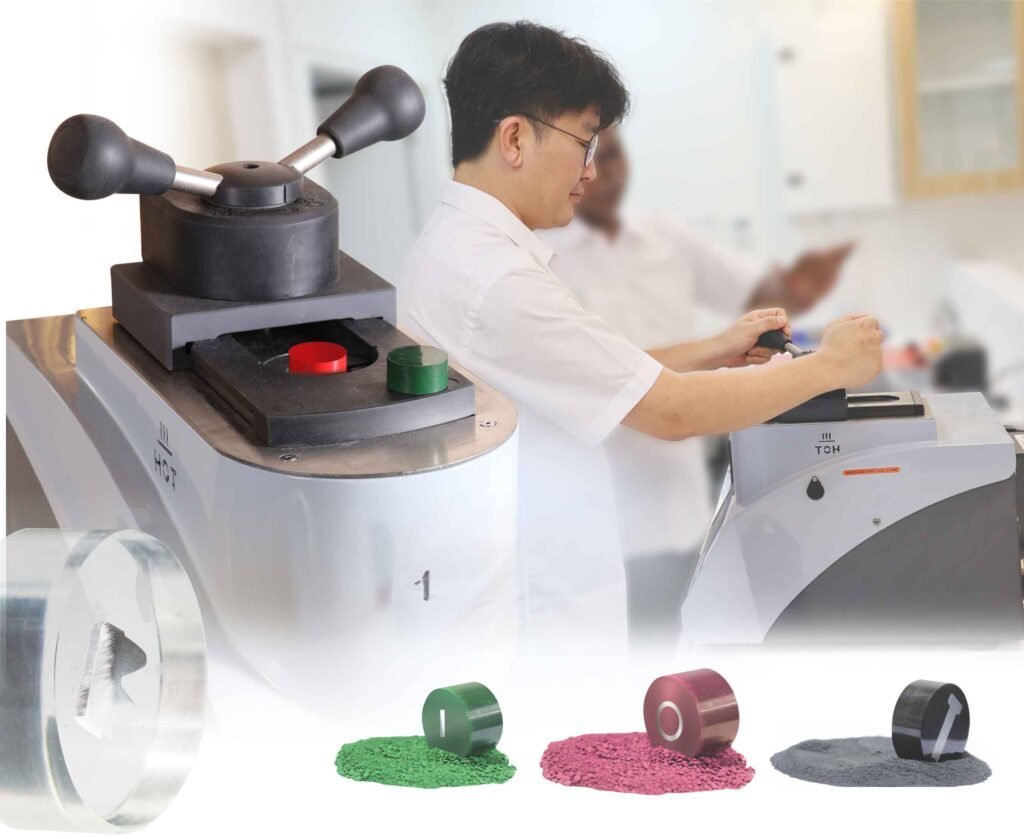

Mounting Consumables
Hot and cold mounting resins for easy handling and edge preservation.
Grinding Consumables
Abrasive papers, belts and discs for achieving specimen flatness quickly.
Polishing Consumables
Polishing cloths and media for a mirror finish ready for microscopic analysis.
Why EMUS represents Chennai Metco
Chennai Metco covers every step of metallographic sample preparation — cut, mount, grind, polish — plus petrography and matched consumables, from compact bench machines to 30 HP automatic cutters. EMUS helps laboratories in the Balkan region size cutting capacity, automation level and consumables to their specimens and throughput, and supports installation planning and operator training.
- One manufacturer for sectioning, mounting, grinding, polishing and consumables.
- Cut-off machines from 20 mm precision saws to 180 mm automatic heavy-duty cutters.
- Special-purpose cutters for carbide rods, bars, composites and conical samples.
- Petrography GEO Series for geological thin sections.
- Consumables matched to each machine and material.
