Baincut Large Plus Auto
Model: CMLP015A
Automatic Large Plus cutter with standard Y automation, burn-free plus cutting and preset parameters; 130 mm capacity.
About the Baincut Large Plus Auto
The Baincut Large Plus Auto combines the Large Plus heavy-duty platform with standard Y automation, plus-cutting for burn-free results and preset parameters for consistency. It sections specimens up to 130 mm diameter with a 16" (400 mm) wheel.
- Cutting capacity up to 130 mm dia
- Powered by Motor 10 HP, 3 phase motor
- Cut-off wheel dia 16" (400mm)
- 3 Axis user friendly movement (X,Y,Z)
- Spindle speed 1800 - 1900 rpm
- Table size : 254 X 355 mm x 2 nos with 12 mm T-slot
- Machine size: 1120mm X 1600mm X 1800mm (L x D x H)
Technical data
- Cutting capacity
- up to 130 mm dia
- Motor
- 10 HP, 3 phase motor
- Cut-off wheel
- 16" (400mm)
- Spindle speed
- 1800 - 1900 rpm
- Table
- 254 X 355 mm x 2 nos with 12 mm T-slot
- Machine size
- 1120mm X 1600mm X 1800mm (L x D x H)
Data from official Chennai Metco product information. Final configuration is confirmed in the EMUS quotation.
Where the Baincut Large Plus Auto is used
- Metallographic sectioning of metals and alloys
- Sectioning of heat-treated and case-hardened parts
- Sample preparation for microstructure and weld analysis

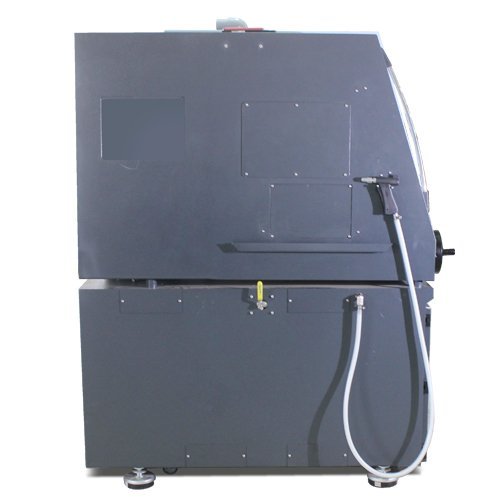

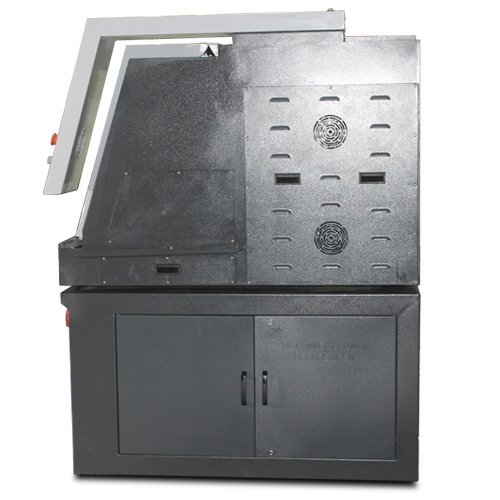

Product imagery
Brochures & catalogues
Baincut Large Plus Auto — Brochure
PDF ·Brochure
Other Chennai Metco systems to consider
How EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
Chennai Metco
TheBaincut Large Plus Auto is part of the Chennai Metco metrology portfolio, supplied and supported by EMUS across the Balkan region.
Request Technical Consultation
Talk to an EMUS engineer about theBaincut Large Plus Auto, your parts and tolerances, and the configuration that fits your inspection workflow.
