Baincut Medium
Model: CMM001
General-purpose floor-standing abrasive cut-off machine with 10" (250 mm) wheel and 60 mm capacity.
About the Baincut Medium
The Baincut Medium is a popular general-purpose abrasive cut-off machine of simple, robust construction. An FRP hood with viewing window, internal illumination, recirculating coolant, washing jet and safety limit switch are standard. Chop cutting is performed by lowering the wheel with the handle (Z-movement), driven by a 3 HP motor at 2800 rpm.
- Cutting capacity up to 60 mm dia.
- Powered by Motor 3 HP, 3 phase motor
- Cut-off wheel dia 10" (250 mm)
- Spindle speed 2800 rpm
- Table size : 110 X 200 mm with 12 mm T-slot - 2 Nos
- Machine size: 850mm X 750mm X 1550mm
Technical data
- Cutting capacity
- up to 60 mm dia.
- Motor
- 3 HP, 3 phase motor
- Cut-off wheel
- 10" (250 mm)
- Spindle speed
- 2800 rpm
- Table
- 110 X 200 mm with 12 mm T-slot - 2 Nos
- Machine size
- 850mm X 750mm X 1550mm
Data from official Chennai Metco product information. Final configuration is confirmed in the EMUS quotation.
Where the Baincut Medium is used
- Metallographic sectioning of metals and alloys
- Sectioning of heat-treated and case-hardened parts
- Sample preparation for microstructure and weld analysis

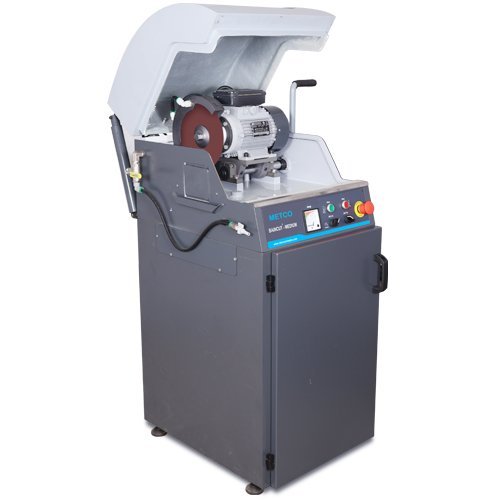

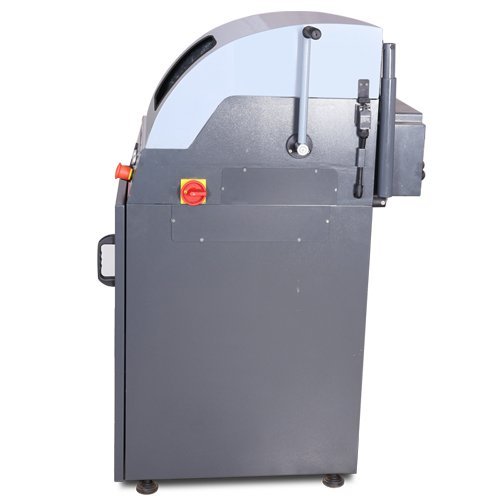

Product imagery
Brochures & catalogues
Baincut Medium — Brochure
PDF ·Brochure
