Baincut Medium Table Top
Model: CMT022
Sturdy table-top abrasive cutter with 10" (250 mm) wheel for sectioning metals, ceramics and mineral samples up to 60 mm.
About the Baincut Medium Table Top
The Baincut Medium Table Top brings Medium-class cutting capacity to the bench. It sections metals, ceramics and mineral samples up to 60 mm diameter with a 10" (250 mm) wheel driven by a 3 HP motor at 2800 rpm. Viewing window, internal illumination, recirculating coolant, washing jet and safety limit switch are included; chop cutting is by lowering the wheel with the handle.
- Cutting capacity up to 60 mm dia
- Powered by Motor 3 HP, 3 phase motor
- Cut-off wheel dia 10" (250 mm)
- Spindle speed 2800 rpm
- Table size :110 X 200 mm with 10 mm T-slot - Two Nos
- Machine size: 700 mm X 600 mm X 580 mm
Technical data
- Cutting capacity
- up to 60 mm dia
- Motor
- 3 HP, 3 phase motor
- Cut-off wheel
- 10" (250 mm)
- Spindle speed
- 2800 rpm
- Table
- 110 X 200 mm with 10 mm T-slot - Two Nos
- Machine size
- 700 mm X 600 mm X 580 mm
Data from official Chennai Metco product information. Final configuration is confirmed in the EMUS quotation.
Where the Baincut Medium Table Top is used
- Metallographic sectioning of metals and alloys
- Sectioning of heat-treated and case-hardened parts
- Sample preparation for microstructure and weld analysis

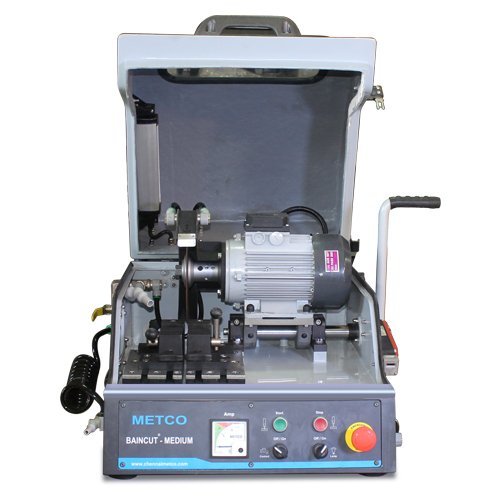

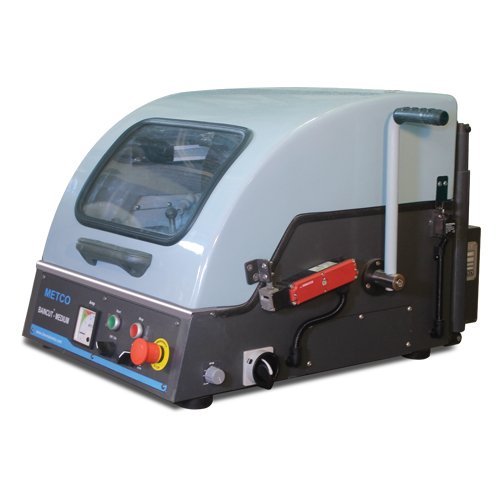

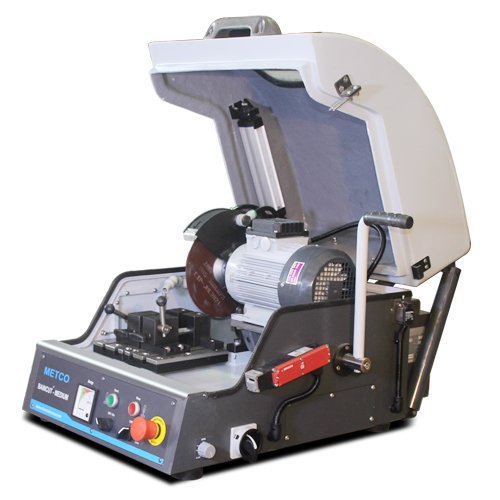

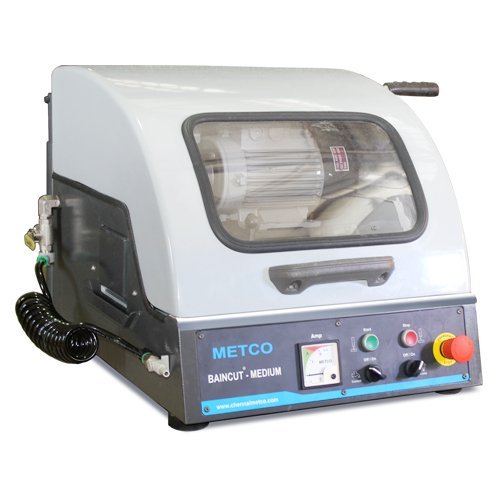

Product imagery
Official product videos
Brochures & catalogues
Baincut Medium Table Top — Brochure
PDF ·Brochure
