Baincut UM
Model: CMU002
Floor-standing general-purpose cutter with 12" (300 mm) wheel, 5 HP motor, 3-axis movement and 80 mm capacity.
About the Baincut UM
The Baincut UM is a sturdy floor-model general-purpose cutter. A large cutting chamber accommodates a wide variety of fixtures; cutting is by lowering the arm (Z-movement) or by longitudinal table movement through the cutting plane (Y-movement), with an optional side (X) movement. The Z wheel position can be locked for added convenience.
- Cutting capacity up to 80 mm dia
- Powered by Motor 5 HP, 3 phase motor
- Cut-off wheel dia 12" (300 mm)
- 3 Axis user friendly movement (X,Y,Z)
- Spindle speed 2800 rpm
- Table size : 260 X 260 mm with 10 mm T-slot
- Machine size: 1100mm X 1300mm X 1640 mm (L x D x H)
Technical data
- Cutting capacity
- up to 80 mm dia
- Motor
- 5 HP, 3 phase motor
- Cut-off wheel
- 12" (300 mm)
- Spindle speed
- 2800 rpm
- Table
- 260 X 260 mm with 10 mm T-slot
- Machine size
- 1100mm X 1300mm X 1640 mm (L x D x H)
Data from official Chennai Metco product information. Final configuration is confirmed in the EMUS quotation.
Where the Baincut UM is used
- Metallographic sectioning of metals and alloys
- Sectioning of heat-treated and case-hardened parts
- Sample preparation for microstructure and weld analysis

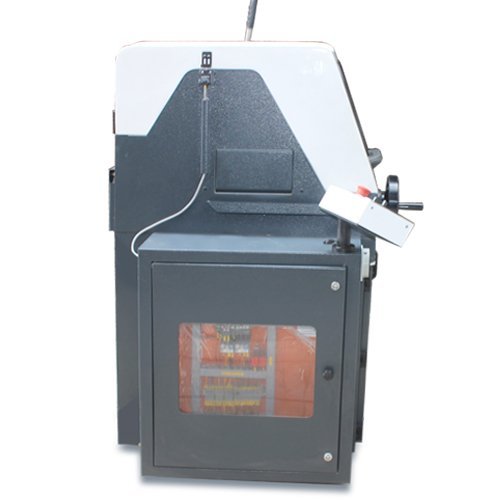

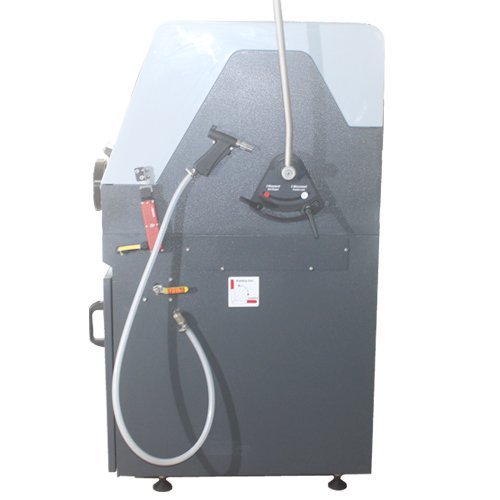

Product imagery
Official product videos
Brochures & catalogues
Baincut UM — Brochure
PDF ·Brochure
Baincut UM Plus — Brochure
PDF ·Brochure
