Baincut XL
Model: CMXL016
Extra-large heavy-duty cutter with 20" (500 mm) wheel and 150 mm capacity.
About the Baincut XL
The Baincut XL is an extra-large heavy-duty abrasive cutter for very large specimens, with a 20" (500 mm) cut-off wheel, 3-axis movement and integral sliding-door construction.
- Cutting capacity up to 150 mm dia
- Powered by Motor 15 HP, 3 phase motor
- Cut-off wheel dia 20" (500mm)
- 3 Axis user friendly movement (X,Y,Z)
- Variable speed 1000 - 3000 rpm
- Coolant tank with 200 L capacity
Technical data
- Cutting capacity
- up to 150 mm dia
- Motor
- 15 HP, 3 phase motor
- Cut-off wheel
- 20" (500mm)
- Speed
- 1000 - 3000 rpm
- Coolant tank
- 200 L capacity
Data from official Chennai Metco product information. Final configuration is confirmed in the EMUS quotation.
Where the Baincut XL is used
- Metallographic sectioning of metals and alloys
- Sectioning of heat-treated and case-hardened parts
- Sample preparation for microstructure and weld analysis

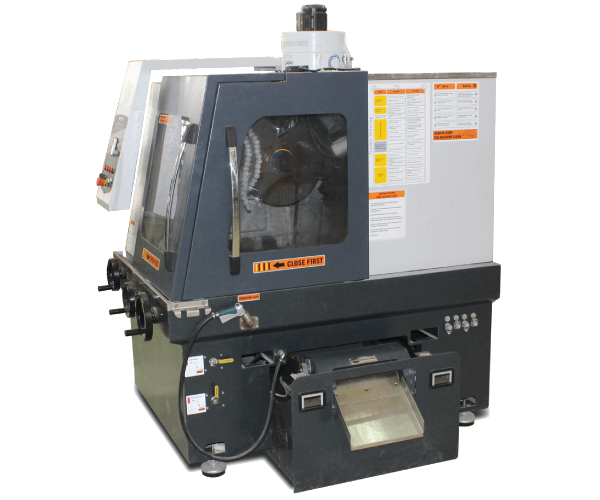

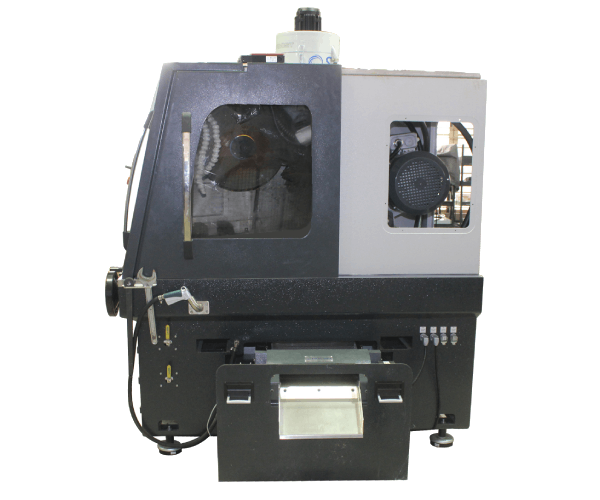

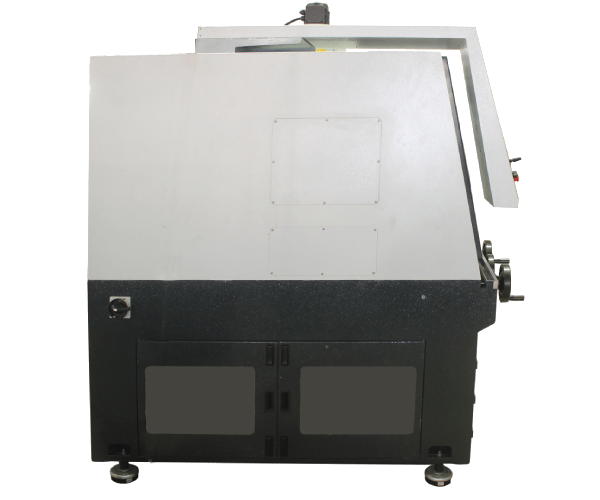

Product imagery
Brochures & catalogues
Baincut XL — Brochure
PDF ·Brochure
