Baincut XXL Auto
Model: CMXXL017A
Largest standard automatic cutter: 30 HP, 20" (500 mm) wheel, 500 × 500 mm table, pulse and step cutting; 180 mm capacity.
About the Baincut XXL Auto
The Baincut XXL Auto is a fully equipped automatic cutting machine of top-closed design. Two side sliding doors give generous internal space and easy access for big components. Z and Y automation are standard, pulse and step cutting modes support burn-free cutting, and variable spindle speed is included.
- Cutting capacity up to 180 mm dia
- Powered by Motor 30 HP, 3 phase motor
- Cut-off wheel dia 20" (500mm)
- 3 Axis user friendly movement (X,Y,Z)
- Variable speed 1000 - 3000 rpm
- Coolant tank with 200L capacity
- Table 500 X 500 mm with 12 mm T-slot
- Machine Size: 2100 X 2150 X 2400 mm
Technical data
- Cutting capacity
- up to 180 mm dia
- Motor
- 30 HP, 3 phase motor
- Cut-off wheel
- 20" (500mm)
- Speed
- 1000 - 3000 rpm
- Coolant tank
- 200L capacity
- Table
- 500 X 500 mm with 12 mm T-slot
- Machine size
- 2100 X 2150 X 2400 mm
Data from official Chennai Metco product information. Final configuration is confirmed in the EMUS quotation.
Where the Baincut XXL Auto is used
- Metallographic sectioning of metals and alloys
- Sectioning of heat-treated and case-hardened parts
- Sample preparation for microstructure and weld analysis

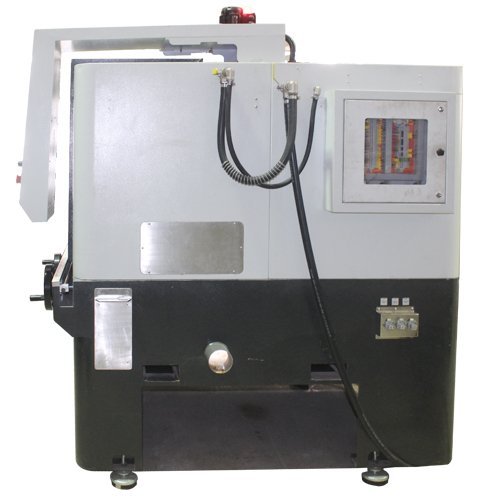

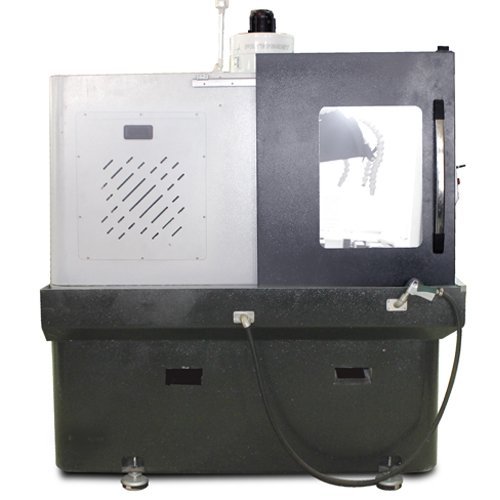

Product imagery
