Bainpol VTD (Double Disc)
Model: PMV009
Double-disc grinder/polisher with 8" discs (10"/12" optional), 50–1000 rpm and quick-change discs.
About the Bainpol VTD (Double Disc)

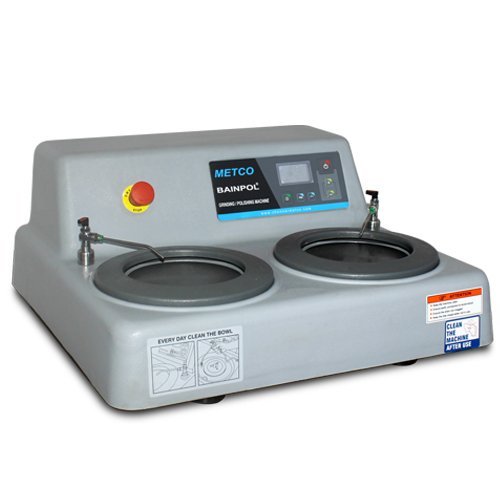

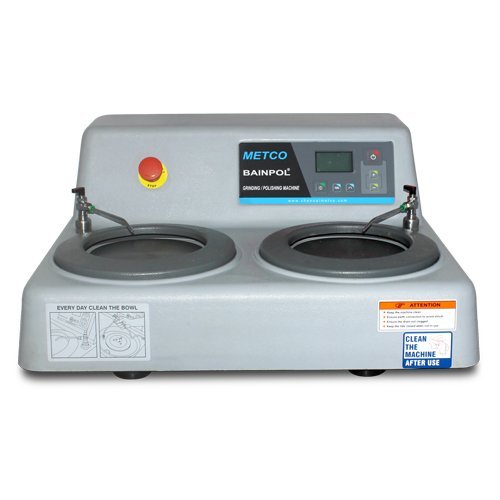

The Bainpol VTD is a double-disc grinding and polishing machine with a 0.5 HP high-torque AC motor and imported AC drive. Two 8" discs (10" and 12" options) run at 50–1000 or 50–600 rpm, and the quick-change disc design lets grinding and polishing steps run side by side.
- 0.5 HP high torque AC motor
- Single phase input 220v/50Hz or 110v/60Hz
- Imported AC Drive
- 8" disc dia. standard
- 10" & 12" dia options
- Feather touch control
- 50 to 1000 RPM or 50 to 600 RPM
- Machine size :710 X 660 X 310 mm
Technical data
- Single phase input
- 220v/50Hz or 110v/60Hz
- Machine size
- 710 X 660 X 310 mm
Data from official Chennai Metco product information. Final configuration is confirmed in the EMUS quotation.
Where the Bainpol VTD (Double Disc) is used
- Fine grinding and polishing of metallographic specimens
- Mirror-finish preparation for microstructure analysis
- Routine quality-control sample preparation
