GNR Analytical Instruments|X-Ray Diffractometers (XRD)

Edge

Name: Edge
Brand: GNR Analytical Instruments

Portable Residual Stress Analyzer

Portable X-ray diffractometer for on-site residual stress analysis of components and structures.

Request Technical Consultation About GNR

Overview

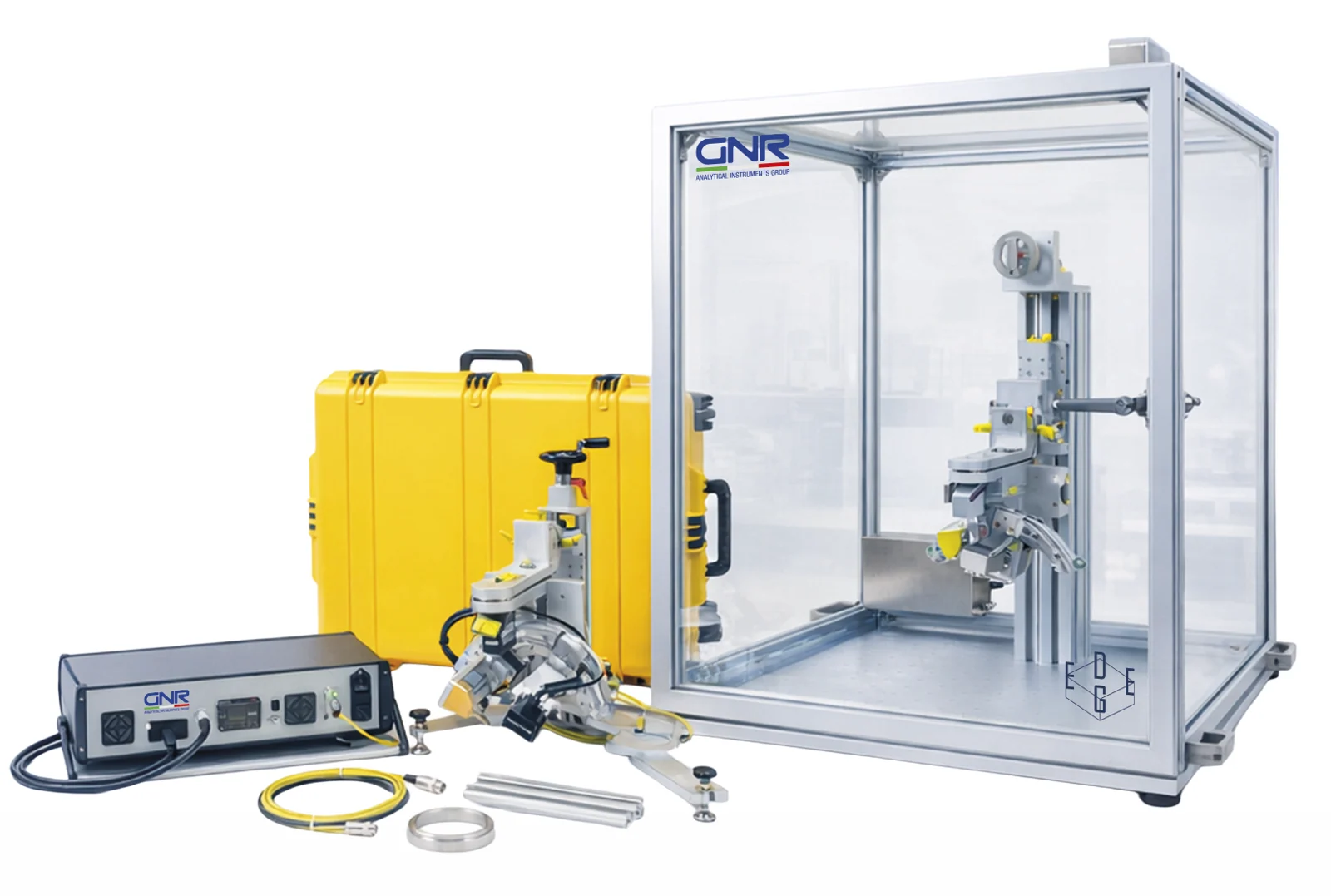

About the Edge

Non-destructive analysis on any dimensions sample for indoor and outdoor analysis.

Edge is the new GNR portable residual stress analyzer. It has been designed focusing on exceptional portability lightness, easiness to set up and outstanding performances.

Edge is a portable Theta/Theta X-ray diffractometer: it allows performing reliable measurements on production samples and specimens to determine residual stress, retained austenite and to investigate alloys structure and phase composition.

The instrument is compliant to ASTM E915, UNI EN 15305 (residual stress standard practices) and ASTM E975 – 13 (retained austenite standard practice).

Edge includes everything needed taking advantage of its portability and lightness for making residual stress and retained austenite measurements by X-ray diffraction in a portable manner.

It has been designed to be a fast and reliable solution for Quality Assurance and Quality Control practices in manufacturing process for both laboratories and field use.

Edge is a flexible diffractometer that can be provided with different set-up:

Edge complies with the statutory requirements regarding X-ray, machine and electrical safety.

Maximum X-ray safety with radiation level significantly below the annual dose limit for general public (1 mSv/year) following ANSI N43.3 – 1993 and other industry standards for open beam X-ray operation.

Key features

Standard Configuration
Fixed Configuration with Cabin for Laboratory
Specific configuration for bridges

Applications

Documented applications

Detection of Residual Stress on sprocket wheels
Detection of Residual Stress on car motor parts (cam axles, connecting rods, engine shafts, equalisers, …)
Detection of Residual Stress induced by deep drawing (household appliances, structural parts, …)
Detection of existing Operational Stress on gas conducts
Detection of Operational Stress on large tensioned structures
Measurement of efficiency of Shot-Peening and rolling of components subjected to Stress
Definition of the quantity of Retained Austenite on bearings and parts of diesel motor injectors
Detection of Residual Stress in castings (cast iron parts of tool machines and aluminium components)
Detection of Stress induced by welding (laser and electron)
Search for a correlation between residual stress and stress resistance of aluminium alloy car rims
Optimisation of working parameters for swarf removal to improve the stress resistance of mechanical components
Detection of Residual Stress on helicoidal and leaf springs
Search for critical zones after applying work loads (arms and aeronautics)

Matrices, elements and ranges depend on the configuration supplied; EMUS confirms them in the quotation.

Industries

Sectors served

Automotive Aerospace Energy Metal Processing

GNR application fields

Material ScienceMetals

Specifications

Technical data

Goniometer

Geometry: Theta/Theta
Radius: 80 mm
Range 2Theta Detector: 45 – 170°

Generator

Max Power: 4 W (40 kV, 0.1 mA)
Stability: < 1.0% RSD
Anode: Cr (30 kV, 0.1 mA) (other anodes available on request)

Detector

DECTRIS Mythen2R 1D

Optics

Collimator: 0.5, 1.0, 2.0 mm (other diameters available on request)

Alignment via Laser

Accuracy 10 μm

Precision 4 μm

Range 100 +/- 25 mm

Cooling

Air Cooled

Dimensions

Trolley: 795 x 518 x 310 mm
Instrument: 480/322 x 330 x 450 mm
Cabin: 500 x 500 x 600 mm
Weight: 29 kg (Instrument + Main Unit + Battery + Trolley)

Reproduced from official GNR product information. Values apply to the configuration described by GNR; final configuration is confirmed in the EMUS quotation.

Software

Operating software

GNR proprietary software X-Sense® for Edge supports several tasks of analysis, from Data Acquisition, having the full control of all the process and hardware settings (generator and tube, detector, measurements set up) to Data Analysis, calculating the residual stress or retained austenite values.
An extremely easy to use software for Uni-axial, Bi-axial and Tri-axial residual stress analysis has been developed in compliance with ASTM E915 practice and UNI EN 15305.

Gallery

Product imagery

Videos

Official product videos

Downloads

Brochures & application notes

Edge — brochure

PDF · Brochure

Edge — NDT measurement of tension in cables and strands by XRD (application leaflet)

PDF · Application note
