Bearing Dust Shield Automatic Optical Inspection Machine
The machine specializes in inspecting appearance defects of bearing dust shields, including rust spots, bruises, scratches, and incomplete molding.
About the Bearing Dust Shield Automatic Optical Inspection Machine
The machine specializes in inspecting appearance defects of bearing dust shields, including rust spots, bruises, scratches, and incomplete molding. It also features material mix prevention.
Documented functions: defect detection, classification & sorting. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Innovative Light Source DesignInnovative light source design improves the inspection effect;
- Defects Statistics FunctionDefects statistics function helps to improve the former process;
- Automatically LoadingAutomatically loading, sorting, photographing, and NG sorting.
Technical data
- Test Model
- By outer diameter sub-file
- Minimum Defect Size
- 0.3mm
- Mean Time to Failure
- 10,000H
- Speed
- 1800～3600pcs/h
- Power
- 2000 W
- Voltage
- 220V, 50HZ
- Air Power
- 0.5～0.8MPa
- Size/Weigh
- 1 m*0.8 m*1.65 m / 150kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Features
- 1. Real-time display detection status and the number of NG alarm； 2.The software has long-range technical support functions.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.

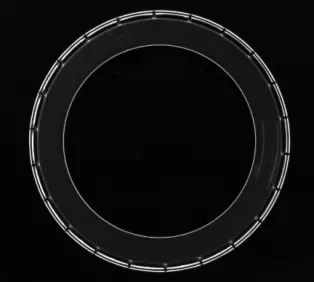

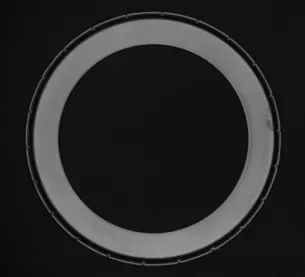

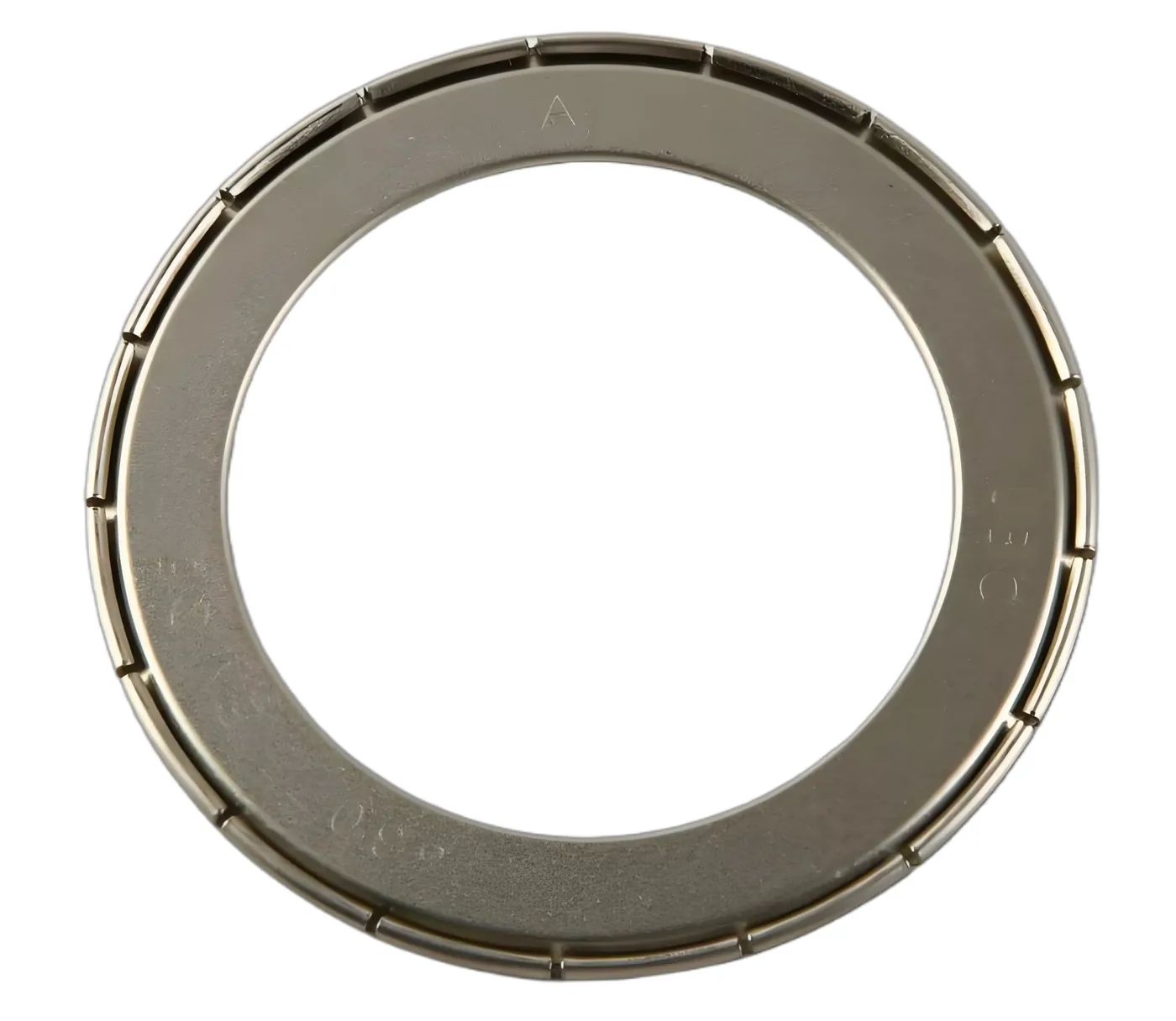

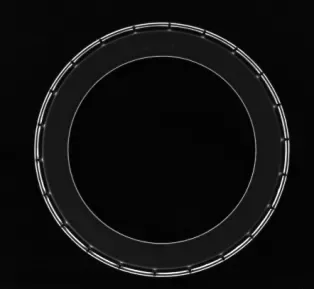

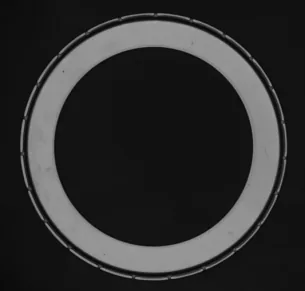

Product imagery
