Sealing Ring Automatic Optical Inspection Machine
It uses a multi-angle, multi-station imaging system to achieve 360-degree defect-free detection, ensuring 100% full inspection of all functional surfaces and details with high-precision industrial cameras and a proprietary imaging method.
About the Sealing Ring Automatic Optical Inspection Machine
It uses a multi-angle, multi-station imaging system to achieve 360-degree defect-free detection, ensuring 100% full inspection of all functional surfaces and details with high-precision industrial cameras and a proprietary imaging method. Different mechanical solutions are available for various product sizes to meet different production cycle requirements. The self-developed image software, with independent intellectual property rights, supports strong compatibility and can be customized for different manufacturers. By combining traditional and AI algorithms, it accurately detects defects and reduces error rates.
Documented functions: defect detection. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Full AutomationIntegrated into production lines for real-time in-line inspection, minimizing manual intervention and reducing downtime.
- Comprehensive CoverageCapable of detecting multiple defects simultaneously (dimensions, appearance, surface flaws, etc.).
- AI Algorithm OptimizationDeep learning-based systems continuously improve defect recognition models, reducing false positives and missed detections.
Technical data
- Inspection Items

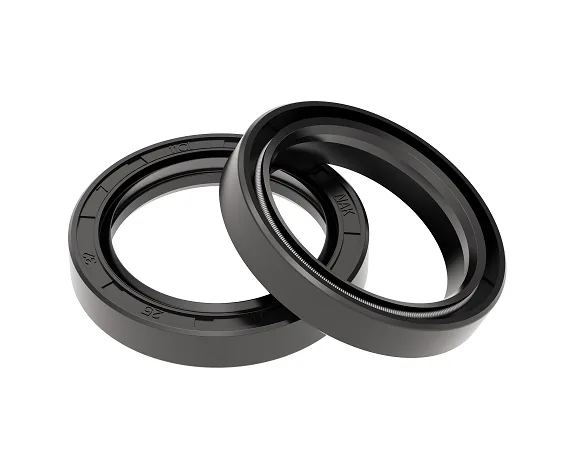

- Toroidal surface, main lip, secondary lip, leakage spring, groove, chamfer, end face, mounting frame, inner diameter, outer diameter, etc
- Surface Defects

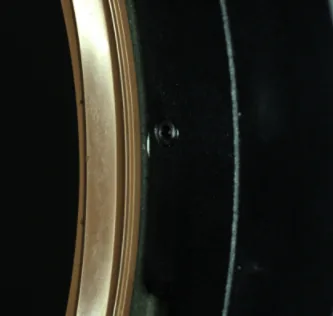

- Appearance defects such as dents, scratches, abrasions, breakage, impurities, aged glue, bubbles and other surface defects
- Requirements
- Detection surface is clean,and no foreign matter and oil are greater than the detection accuracy
- Environment
- Temperature:5℃~30℃ Relative Humidity:<70%RH
- Precision
- 0.1mm
- Inspection Range
- Φ20~160mm
- Air Supply
- 0.5MPa~0.8 MPa
- Speed
- 4~15 S/Pcs
- Resolution
- 0.02mm
- Power
- 220V,50Hz
- Supply Voltage
- 2,000W
- Size/Weight
- 2.5m*1.6 m*2.0 m / 500kg
- Features
- 1. Real-time display of detection status and NG product quantity alarm2. The software has remote technical support function3. It can be equipped with automatic replacement function, reduce the cost of use4. There are different mechanism solutions for products of different size segments to meet the requirements of various products
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
