Bearing Ring Automatic Optical Inspection Machine

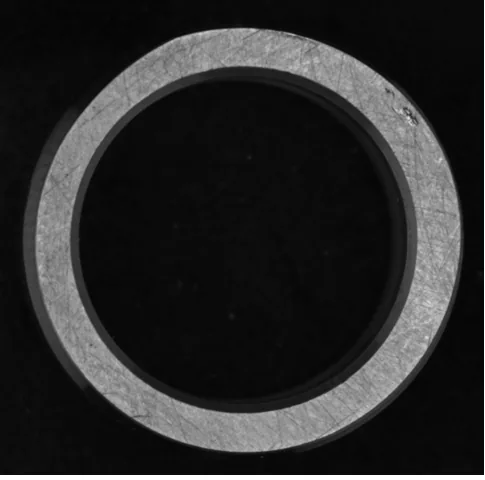

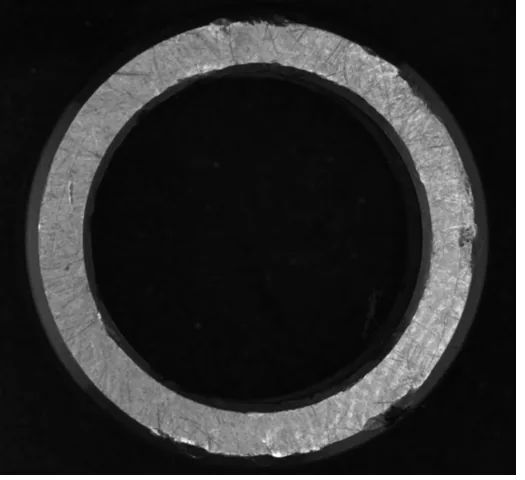

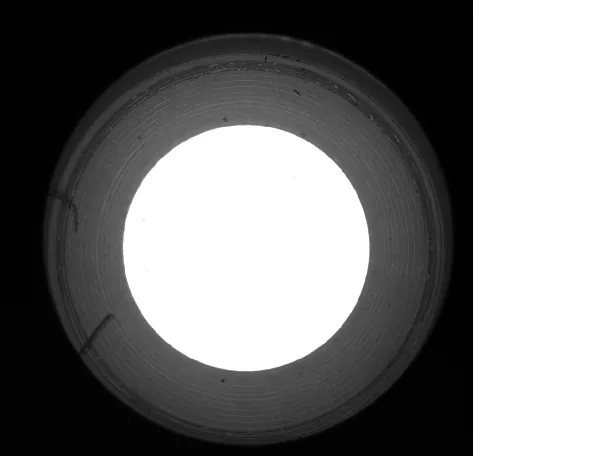

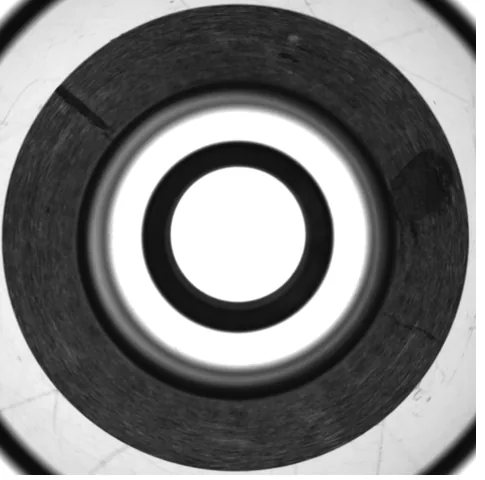

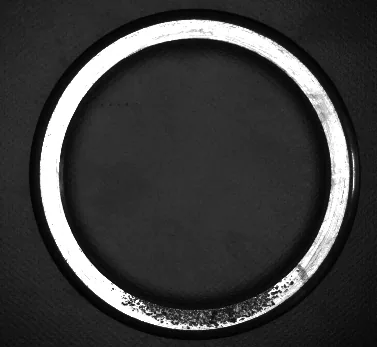

The AOI machine for bearing ring appearance defects is a professional inspection device for vehicle and grinding parts, capable of detecting surface defects such as rust, scratches, black spots, notches, missing chamfer, and so on.
About the Bearing Ring Automatic Optical Inspection Machine
The AOI machine for bearing ring appearance defects is a professional inspection device for vehicle and grinding parts, capable of detecting surface defects such as rust, scratches, black spots, notches, missing chamfer, and so on.
Documented functions: defect detection. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- 360-degree Detection without Dead AngleIt achieves 360-degree comprehensive detection of outer diameter, chamfer and both ends of bearing rings.
- High Inspection EfficiencyIt has high inspection efficiency, which can realize both in-line and offline detection.

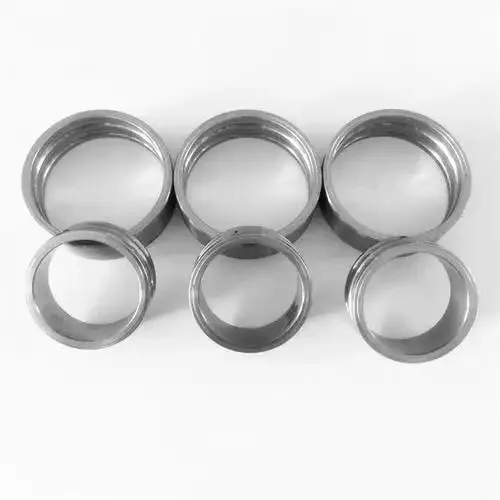

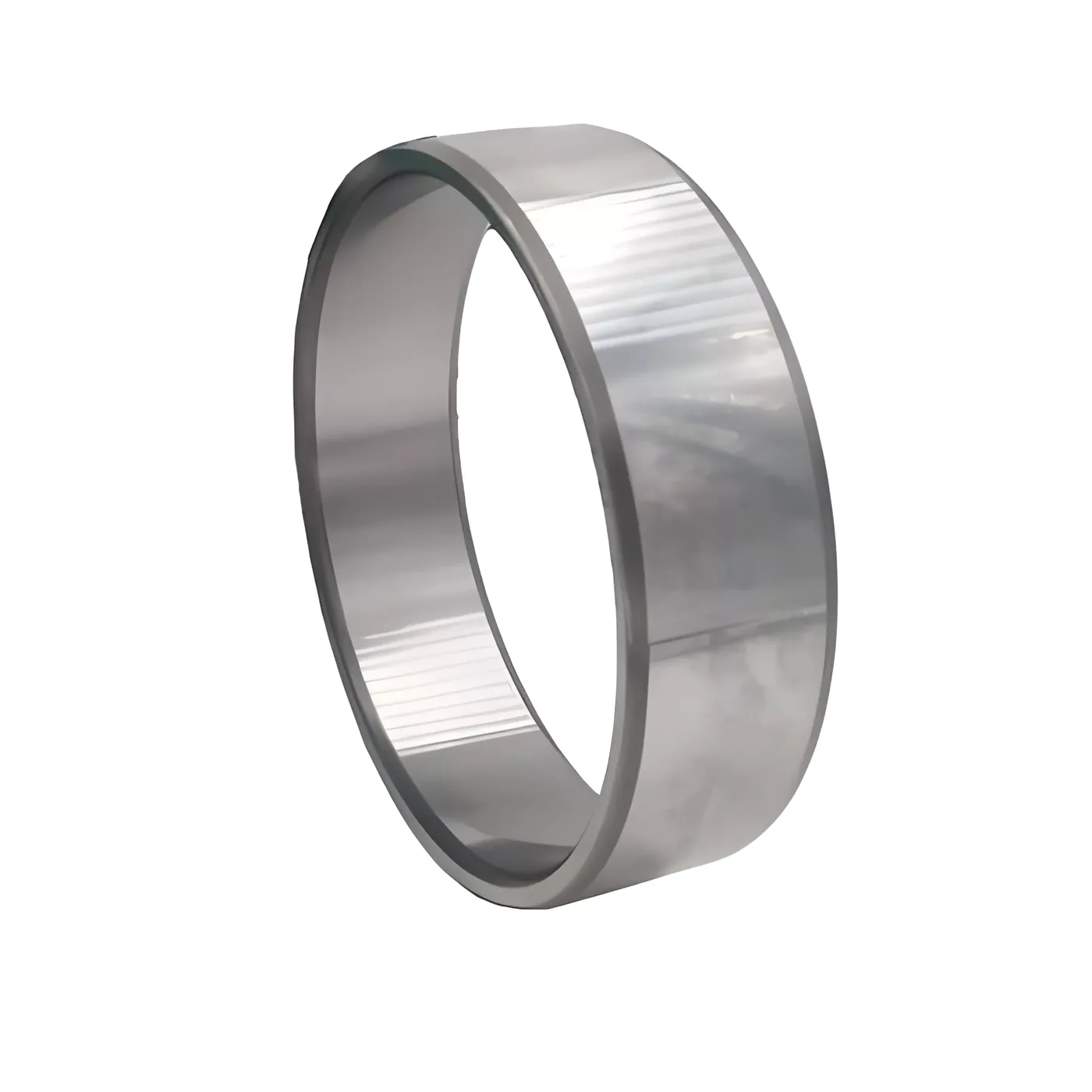

- Wide Range of ApplicationIt has wide range of application, being able to detect roller rings, needle roller rings and ball roller rings.
Technical data
- Inspection Item
- Type of Appearance defect — Character, rust, error processing, cut, abrasion, dent, mixing, material defects and so on.
- Inspection Range
- Ø 10~100mm，H5~50mm（Need to be graded detection）
- Inspection Requirements
- Surface clean, no oil
- Speed
- 900~7,200pcs/h
- Mean Time to Failure
- 10,000H
- Optical Resolution
- 0.05mm
- Voltage
- 220V,50HZ
- Power
- 1000W
- Air Pressure
- 0.5～0.8MPa
- Size/Weight
- 1.0 m*1.0 m*1.75 m / 300kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Features
- 1. Real-time display detection status and the number of NG alarm;2. support for remote debugging.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.

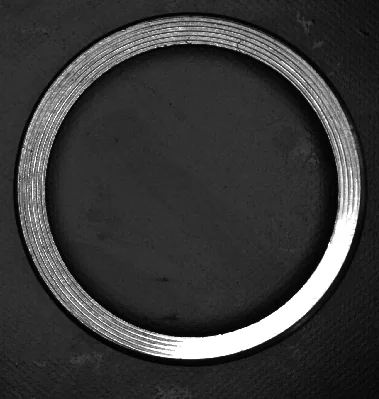

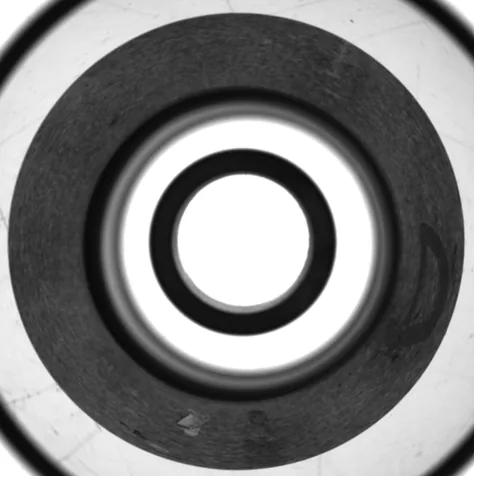

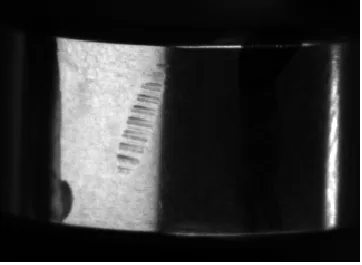

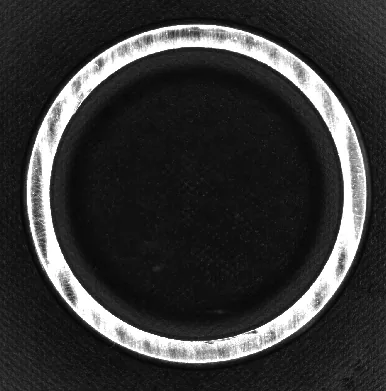

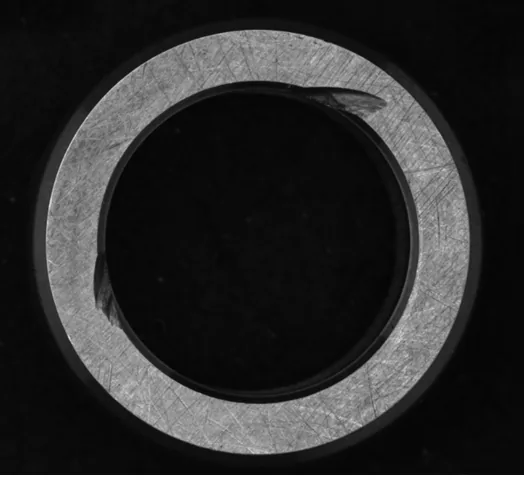

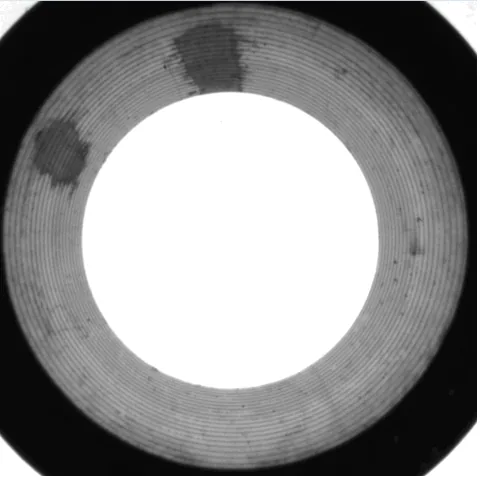

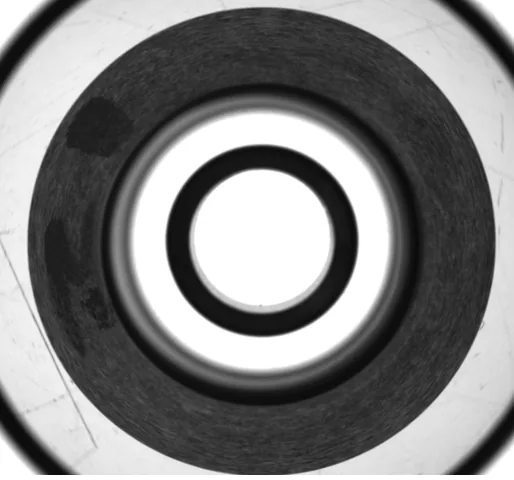

Product imagery
