UVin UV Endoscope
Model: UVin
Flexible video endoscope with 365 nm UV-LEDs and daylight LEDs for fluorescent penetrant and magnetic particle testing and residue detection.
About the UVin UV Endoscope

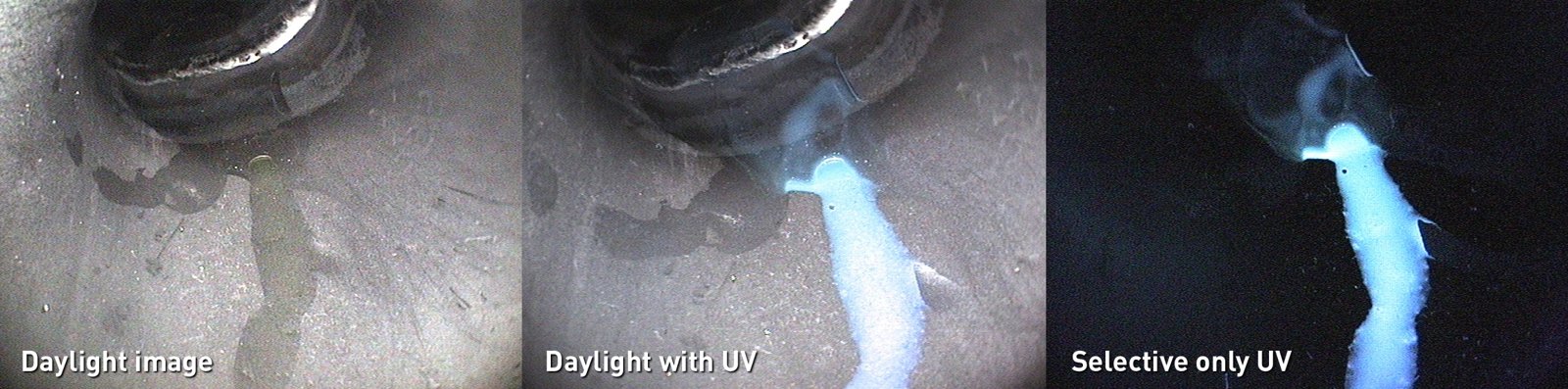

The UVin is a flexible video endoscope equipped with high-performance 365 nm UV-LEDs that excite fluorescent agents — many oils, proteins and common NDT testing media — and make them visible, even when weak. Additional daylight LEDs can be added; both UV and white light are infinitely adjustable and can be used simultaneously, so false indications from deposits in turning grooves or dirt can often be identified in the same pass. With a probe head of only Ø 13.4 mm, the UVin brings fluorescent dye penetrant (PT) and magnetic particle (MT) testing into small components and narrow cavities, and documents product residues for cleanliness checks.
- High-performance UV-LEDs at 365 nm
- Optional daylight LEDs; UV and white light infinitely adjustable
- Simultaneous UV and daylight operation

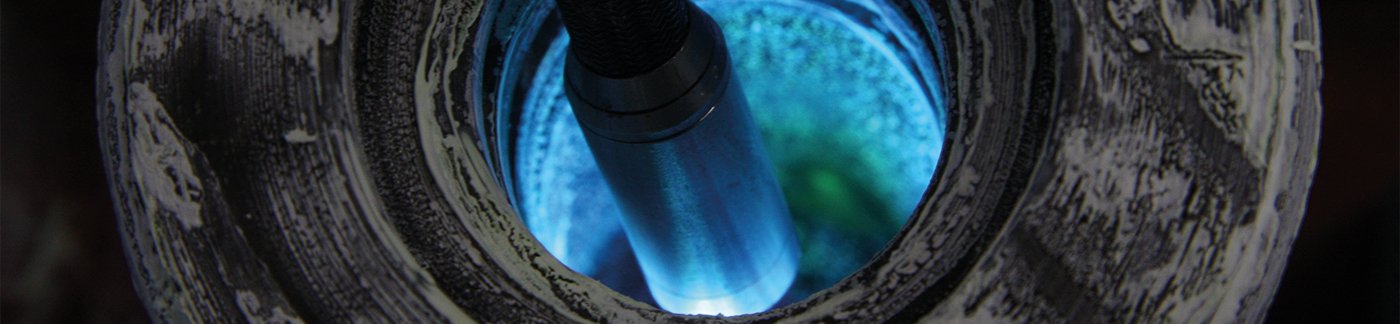

- Flexible video endoscope with Ø 13.4 mm probe head
- Direct documentation of indications
Technical data
- UV wavelength
- 365 nm
- Daylight
- Optional white-light LEDs
- Head diameter
- Ø 13.4 mm
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Additional daylight LEDs
Where the UVin UV Endoscope is used

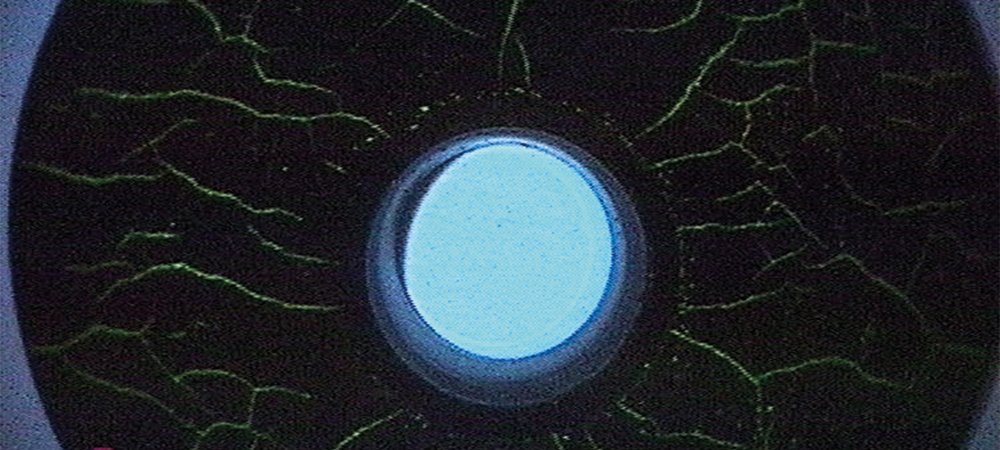

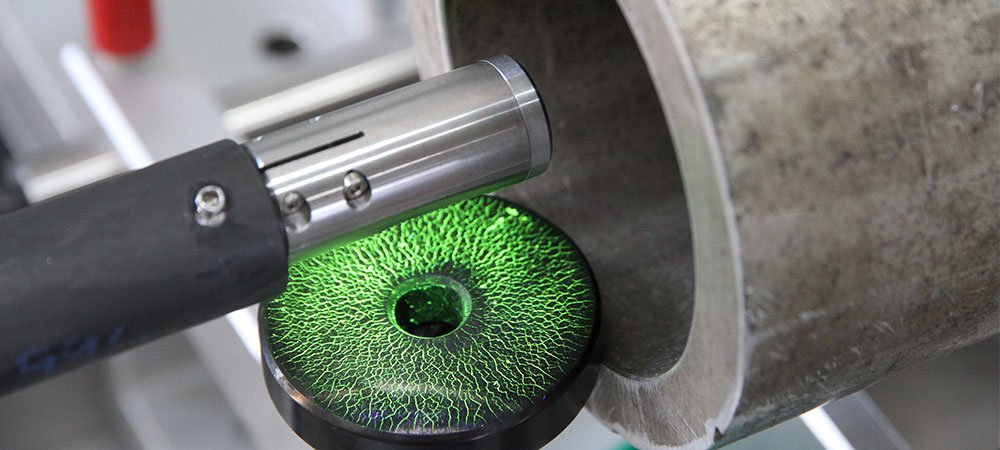

- Fluorescent dye penetrant testing (PT)
- Fluorescent magnetic particle testing (MT)
- Surface crack detection in cavities

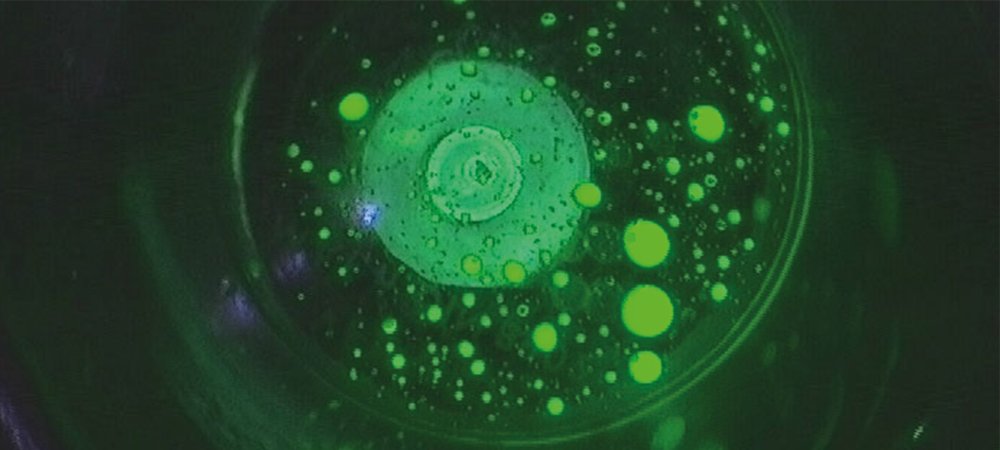

- Cleanliness checks for oil and product residues
Product imagery
Brochures & catalogues
UVin — Brochure
PDF ·Brochure
Videoscopes — Catalogue
PDF ·Catalogue
Other viZaar systems to consider
How EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
viZaar industrial imaging AG
TheUVin UV Endoscope is part of the viZaar metrology portfolio, supplied and supported by EMUS across the Balkan region.
Request Technical Consultation
Talk to an EMUS engineer about theUVin UV Endoscope, your parts and tolerances, and the configuration that fits your inspection workflow.
