VUMAN E3/E3+ Videoscope
Model: VUMAN E3 / E3+
Long-range industrial videoscope with interchangeable probes from Ø 6.1 mm and working lengths up to 30 m, X-WAY articulation and remote focus.
About the VUMAN E3/E3+ Videoscope

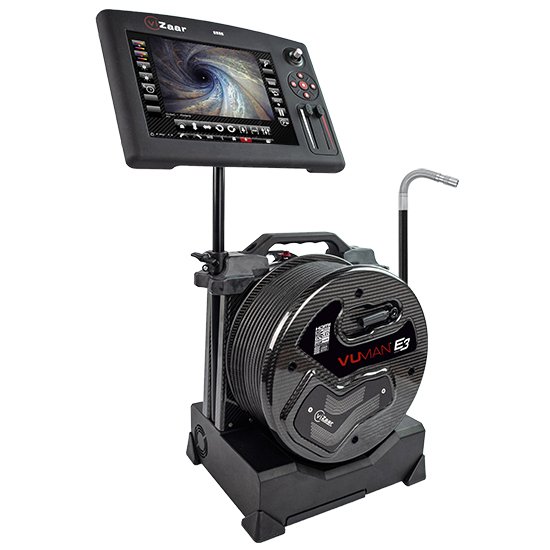

The VUMAN E3/E3+ is viZaar's flagship videoscope for long-range remote visual inspection and the current generation of the VUMAN® system that followed the VUMAN RA-Y. Its V3 interchangeable probe concept combines several videoscopes in one: probes from Ø 6.1 mm to 12.7 mm and 5 m to 30 m long are exchanged on site, including spring-loaded, articulating and endlessly rotating camera heads. The highlight is a 6.1 mm articulating probe with up to 30 m working length — the smallest 4-way articulating long-range videoscope. A pneumatic X-WAY articulation driven by an integrated micro compressor gives full up/down/left/right control via joystick, and the trans-reflective VUSCREEN touchscreen remains readable in bright light and operable with gloves.

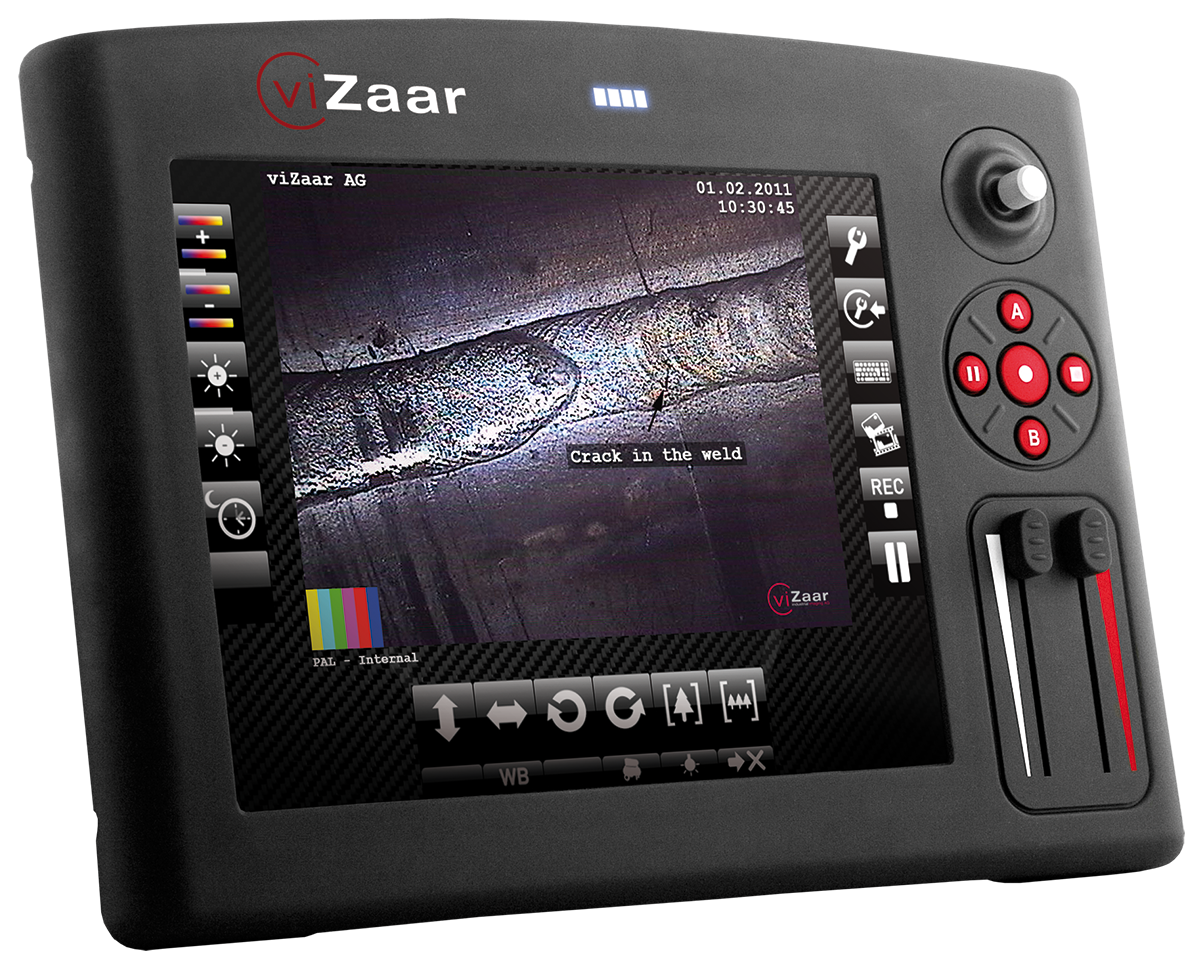

- Trans-reflective VUSCREEN touchscreen — clear image and glove operation
- Remote focus for a sharp image from 3 mm to infinity

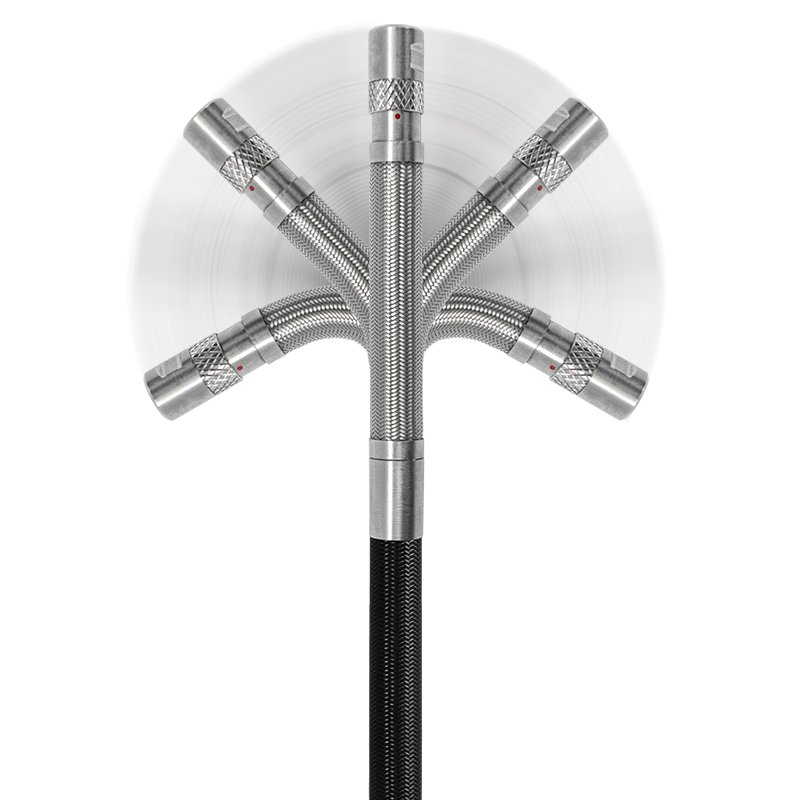

- Pneumatic X-WAY 4-way articulation up to 160°

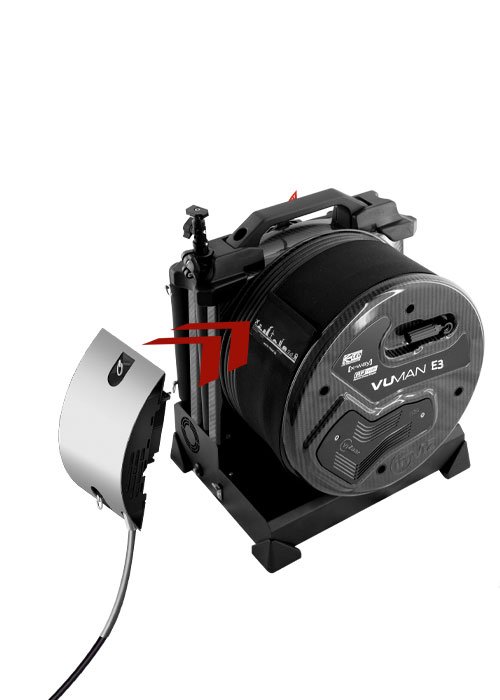

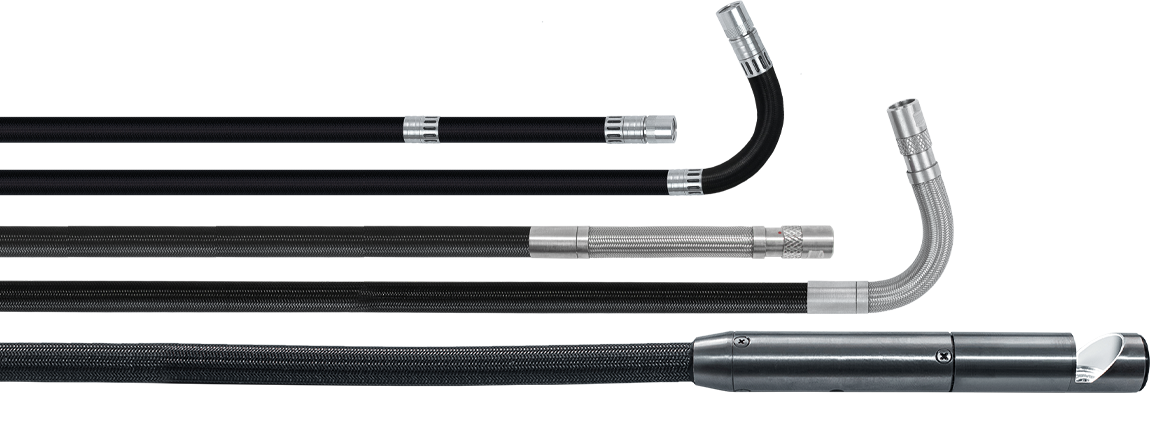

- Interchangeable V3 video probes up to 30 m length
- Probe deployment drum with handle for easy stowing
- Integrated micro compressor for pneumatic articulation
- Robust, lightweight carbon fibre housing
- Optic adapters to change direction and field of view
Technical data
- Probe diameter
- 6.1 mm – 12.7 mm
- Working length
- 5 m – 30 m
- Standard probes
- 18 interchangeable standard probes
- X-WAY
- 4-way, up to 160°
- Remote focus
- 3 mm to ∞
- Material
- Carbon fibre
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Available options
- VUSCREEN control unit
- Optic adapters (DOV/FOV)
- Centering device kits
- Guide tubes
Product imagery
Brochures & catalogues
VUMAN E3/E3+ — Brochure
PDF ·Brochure
Videoscopes — Catalogue
PDF ·Catalogue
Other viZaar systems to consider
How EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
viZaar industrial imaging AG
TheVUMAN E3/E3+ Videoscope is part of the viZaar metrology portfolio, supplied and supported by EMUS across the Balkan region.
Request Technical Consultation
Talk to an EMUS engineer about theVUMAN E3/E3+ Videoscope, your parts and tolerances, and the configuration that fits your inspection workflow.
