MTIS
Inline X-ray inspection system for radial truck/bus (TBR) and passenger-car (PCR) tyres with U-shaped line detector, 4-spindle manipulator and Y.TireAXIS ADR.
About the MTIS
MTIS is Comet Yxlon's X-ray system for 24/7 inline inspection of radial tyres, in TBR (truck and bus) and PCR (passenger car) versions. Comet Yxlon reports more than 375 units sold and an uptime above 95 % — manufacturer figures, not EMUS commitments.

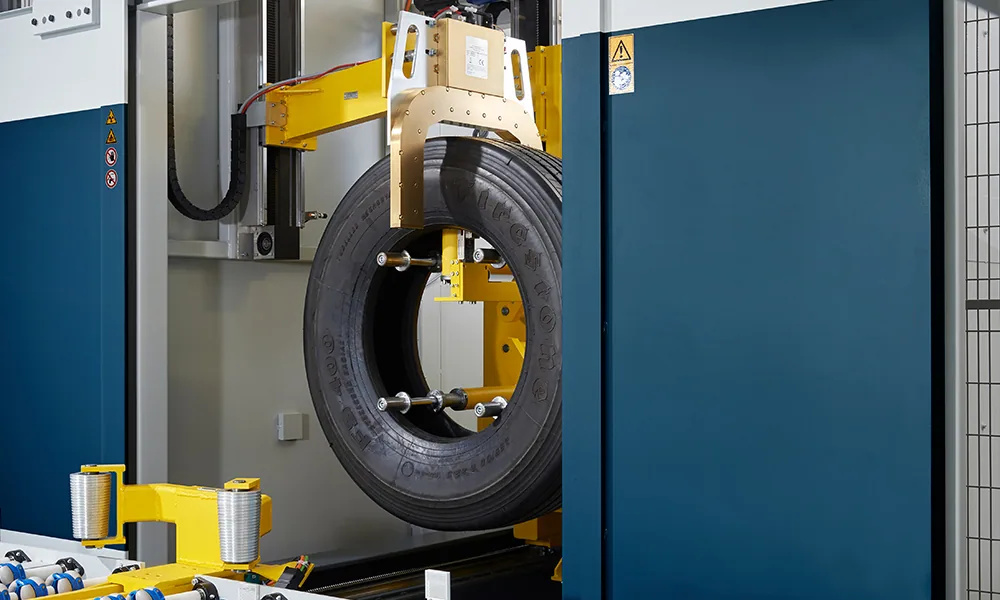

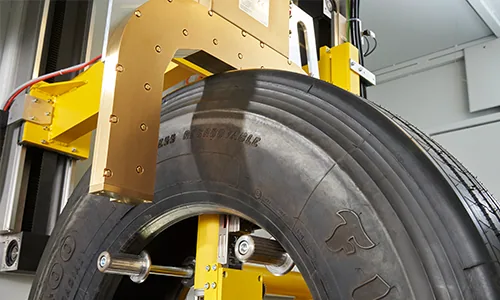

A horseshoe-shaped UScan3 line detector (16-bit) images the tyre while four synchronously driven spindles rotate it without slipping or deformation. This reproducible manipulation is the basis for collecting statistical process data on every tyre.

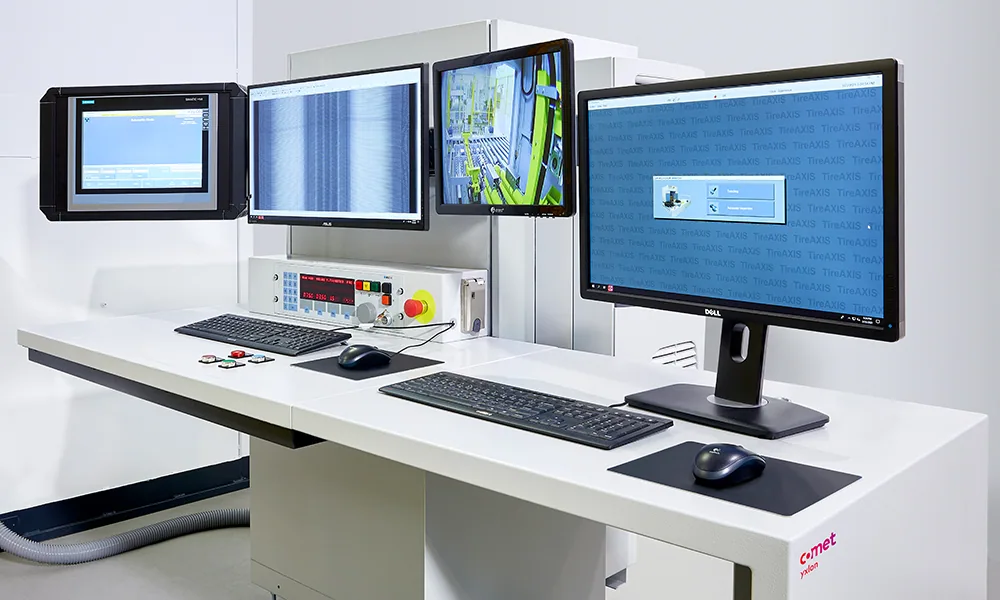

Y.TireAXIS™ performs automatic defect recognition (ADR) with configurable inspection programs; Y.TireView supports supervised inspection with live view and image adjustment. Detectable irregularities include mispositioned steel components, loose wires or dog ears, cord separation or irregular spacing, foreign inclusions, bead-core defects, irregular belt edges and asymmetric tread structure. Integration options include standard conveyor interfaces, MES connection and barcode readers.
Versions & configurations
Y.MTIS-TBR
Truck and bus radial tyres up to 160 kg.
Y.MTIS-PCR
Passenger-car radial tyres up to 60 kg.
- UScan3 U-shaped line detector16-bit dynamic range at production speeds.

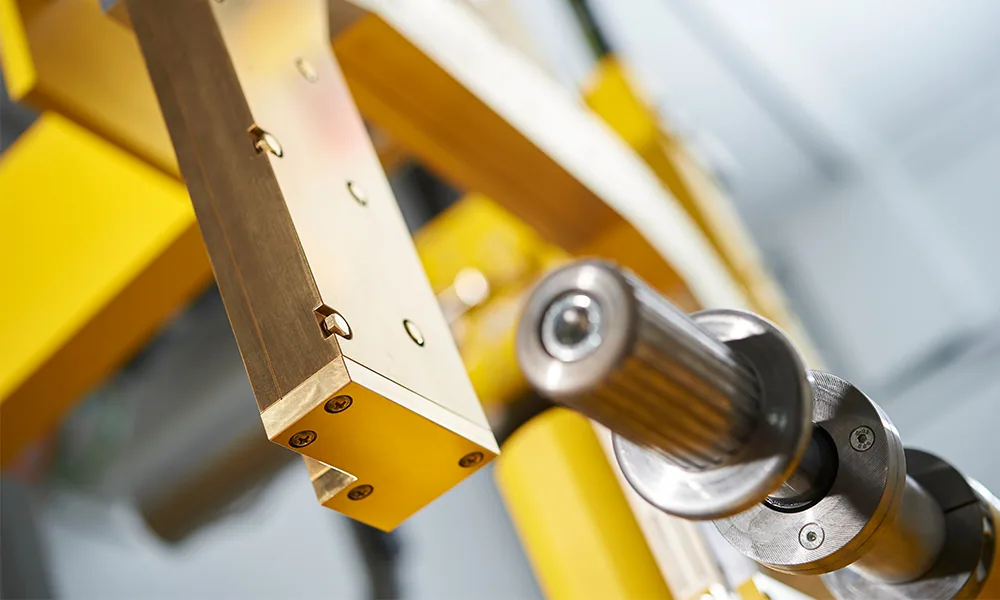

- 4-spindle manipulatorServo-driven rotation without slipping for reproducible results.
- Y.TireAXIS™ ADRSupervised or fully automatic inspection with configurable programs.

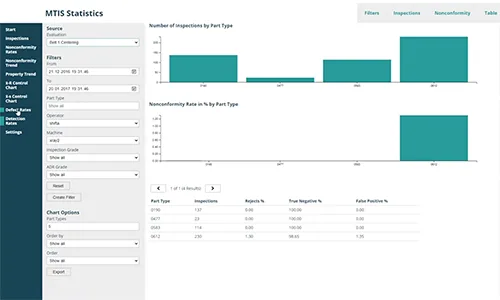

- Statistical process controlFull dataset for every inspected tyre.
- Line integrationConveyor interfaces, MES connection, barcode readers.
Technical data
- Tyre width
- 100–508 mm (4"–20")
- Tyre inner diameter
- 13"–26"
- Max. weight
- 160 kg
- System dimensions
- approx. 5400 × 5100 × 2700 mm
- Detector active area
- 2469 px (UScan 3-L)
- Tyre width
- 100–400 mm (UScan 3-L); 100–350 mm (UScan 3-M)
- Tyre inner diameter
- 13"–26"; 12" on request
- Max. weight
- 60 kg
- System dimensions
- approx. 4800 × 5100 × 2700 mm
- Detector active area
- 2469 px (UScan 3-L); 1819 px (UScan 3-M)
- X-ray tube
- 100 kV / 300 W
- Pixel pitch
- 500 µm
- Bit depth
- 16 bit
Data from official Comet Yxlon product information (yxlon.comet.tech). Maximum values depend on configuration; voxel size, detail detectability and MPE are different quantities. Final configuration is confirmed in the EMUS quotation.
Options & packages
- UScan 3-L or UScan 3-M detector (PCR)
- MES interface
- Barcode reader

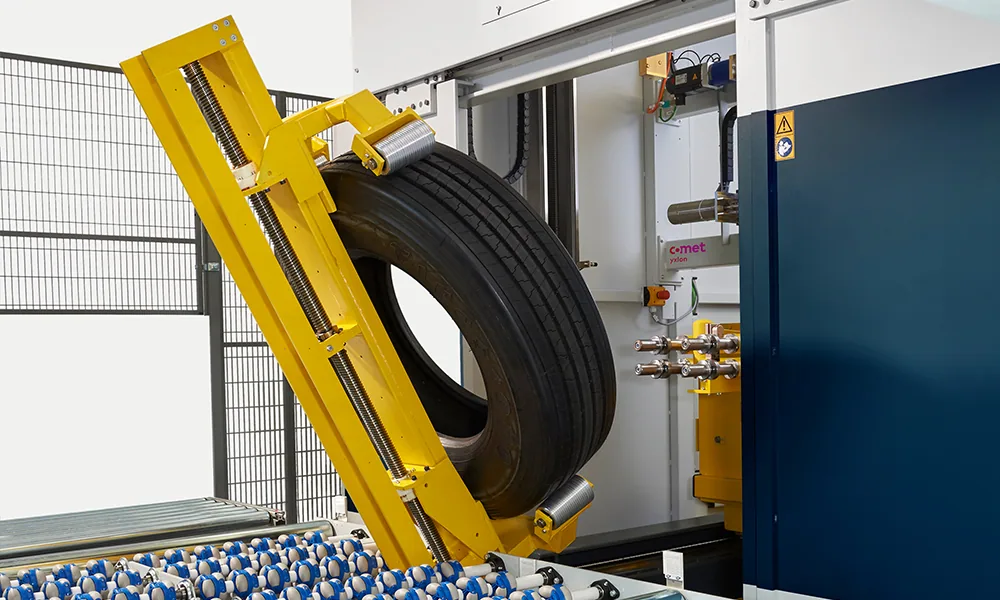

- Automatic tyre loading
Where the MTIS is used
- Inline final inspection of radial TBR and PCR tyres
- Steel-cord and belt-edge irregularities
- Bead-core defects and foreign inclusions
- Statistical process control in tyre production
Product imagery
Official product videos
How EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
Comet Yxlon
TheMTIS is part of the Comet Yxlon portfolio, presented by EMUS for customers in the Balkan region.
