UX20
Compact X-ray and CT system for cast parts and industrial components up to 100 kg, with mini-focus or optional 225 kV meso-focus tube and line integration via CY Line Connect.
About the UX20

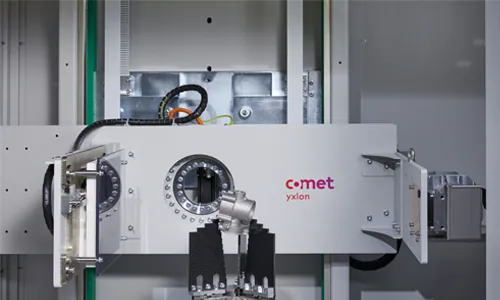

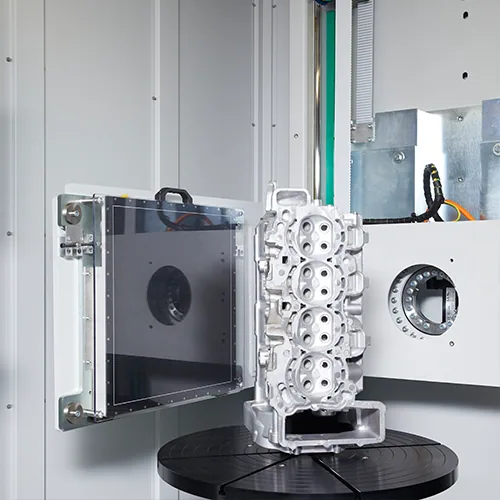

The UX20 is a universal X-ray and CT inspection system aimed especially at castings — a growing need as foundries produce larger and more complex e-mobility components. It is designed so operators of any experience level can run 2D and 3D inspections in manual, assisted or automated mode.

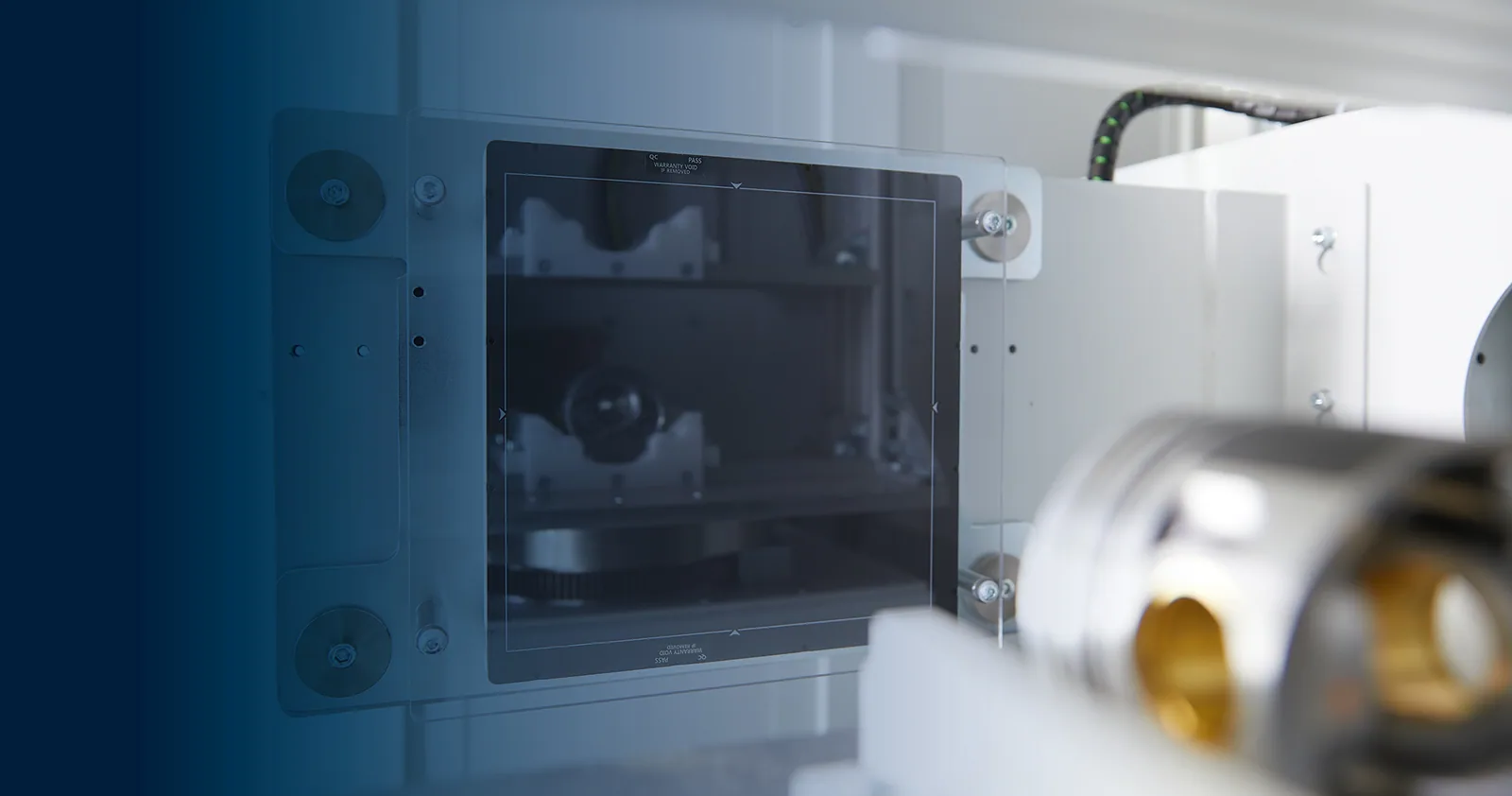

Two detector configurations are offered: flat-panel detector 2323 HB (179 µm pixel pitch) or 4343 DXi (139 µm, 3072 × 3072 px). The 4343 DXi configuration gives the larger inspection envelopes — 800 × 1100 mm in 2D, 340 × 280 mm in CT and 540 × 1100 mm in CT with ScanExtend. Sources are 160–225 kV mini-focus tubes or the optional 225 kV meso-focus tube, a sealed tube with three focal spots reaching into the micro-focus range.

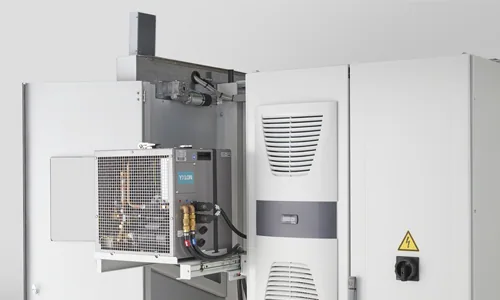

Software includes SmartGuard collision protection, ScatterFix 2.0, ScanExtend, FlexCenter, track-and-trace of part IDs, Automated Data Transfer and the Healthmonitor. CY Line Connect provides a standard hardware and software interface (PLC, stack light, handling/data/safety connections) for integration into automated production lines.
Versions & configurations
UX20 with 2323 HB
Smaller envelope, 179 µm pixel pitch.
UX20 with 4343 DXi
Larger envelope, 139 µm pixel pitch.
- Two detector configurationsFlat-panel 2323 HB or 4343 DXi.
- Optional 225 kV meso-focus tubeSealed tube, three focal spots, low maintenance.
- CY Line ConnectStandard interface package for automated line integration.
- SmartGuardWizard-based collision protection for asymmetric parts.
- ScatterFix 2.0Reduced scatter for better surface determination on massive parts.

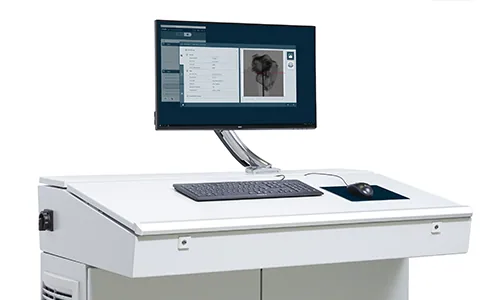

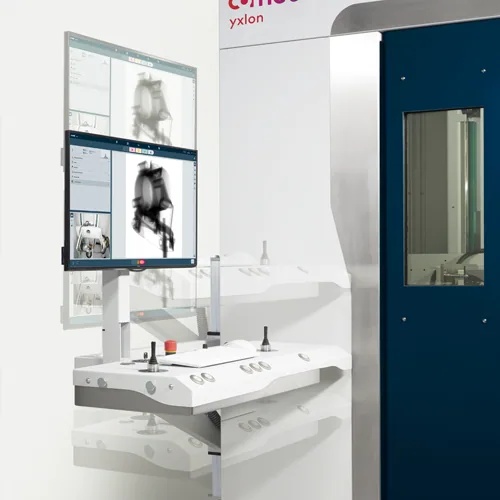

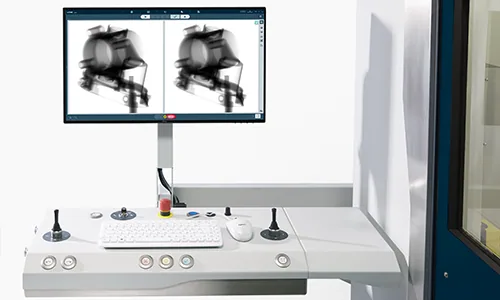

- Ergonomic operator deskHeight-adjustable; controls usable with gloves.
Technical data
- Detector matrix
- 1280 × 1280 px
- Pixel pitch
- 179 µm
- Inspection envelope DR (2D)
- 710 × 1090 mm
- Inspection envelope CT (3D)
- 190 × 165 mm
- CT envelope with ScanExtend
- 315 × 1085 mm
- Detector matrix
- 3072 × 3072 px
- Pixel pitch
- 139 µm
- Inspection envelope DR (2D)
- 800 × 1100 mm
- Inspection envelope CT (3D)
- 340 × 280 mm
- CT envelope with ScanExtend
- 540 × 1100 mm
- Max. sample weight
- 100 kg
- System dimensions (W × D × H)
- 2250 × 1770 × 2350 mm
- X-ray tubes
- 160–225 kV mini-focus; 225 kV meso-focus (optional)
- Oblique viewing
- ±55° (45° in central beam)
- CT modes
- Cone-beam CT, QuickScan, QualityScan, FlexCenter, ZoomScan, SpeedMode, ScanExtend
- Manipulation
- 5 axes
Data from official Comet Yxlon product information (yxlon.comet.tech). Maximum values depend on configuration; voxel size, detail detectability and MPE are different quantities. Final configuration is confirmed in the EMUS quotation.
Options & packages
- 225 kV meso-focus tube
- CT workstation
- CY Line Connect
- Vista / Vista X packages
- Dragonfly 3D World
Where the UX20 is used

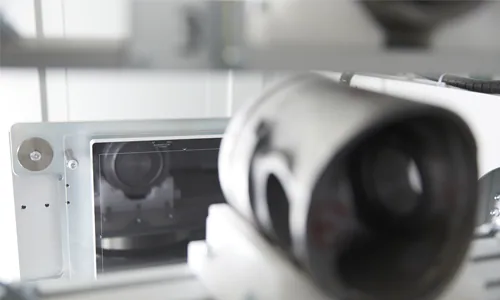

- Automotive and aerospace castings
- Welded structures
- Multi-material components
- Additively manufactured parts
- Special alloys, ceramics, plastics and composites
- Porosity, crack and inclusion analysis
- Assembly checks and inner-structure measurements
- First-article, spot-check and small-series inspection
