Deep-drawn Parts Automatic Optical Inspection Machine
An optical automated inspection system for deep-drawn parts, specifically designed for surface defect detection and dimensional measurement.
About the Deep-drawn Parts Automatic Optical Inspection Machine

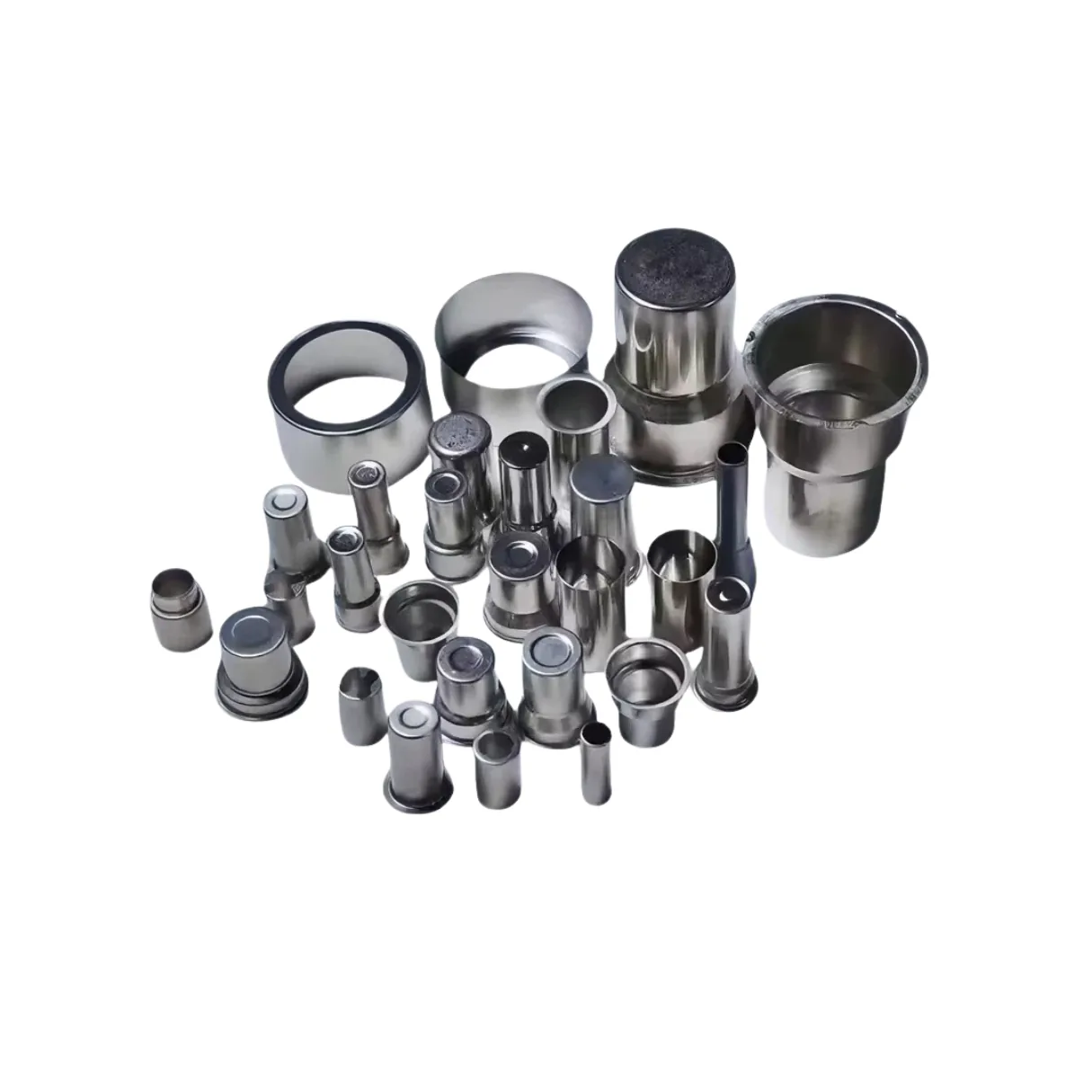

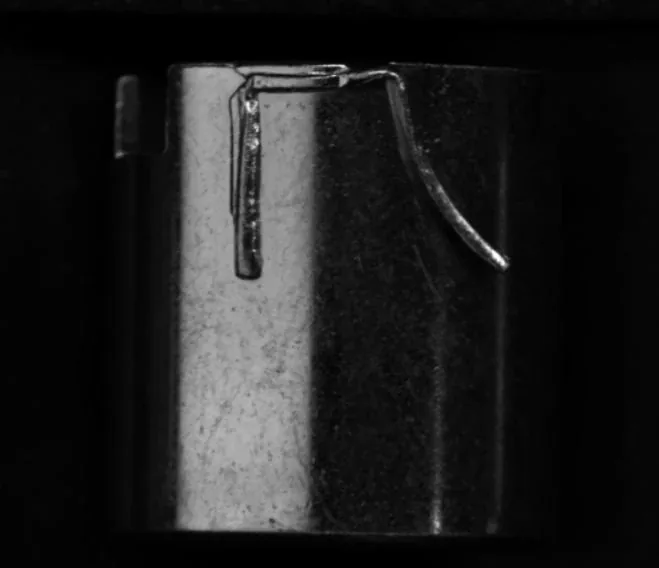

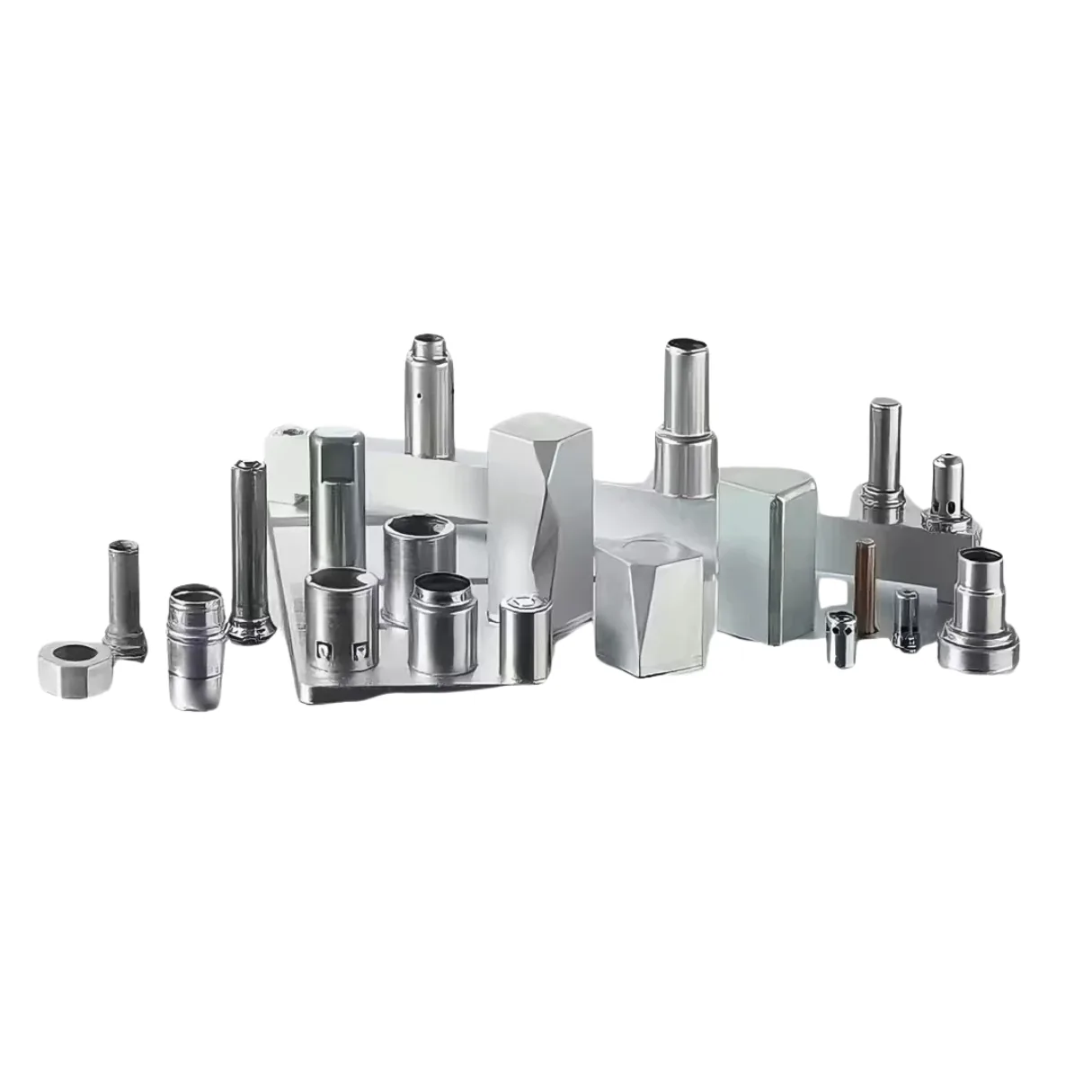

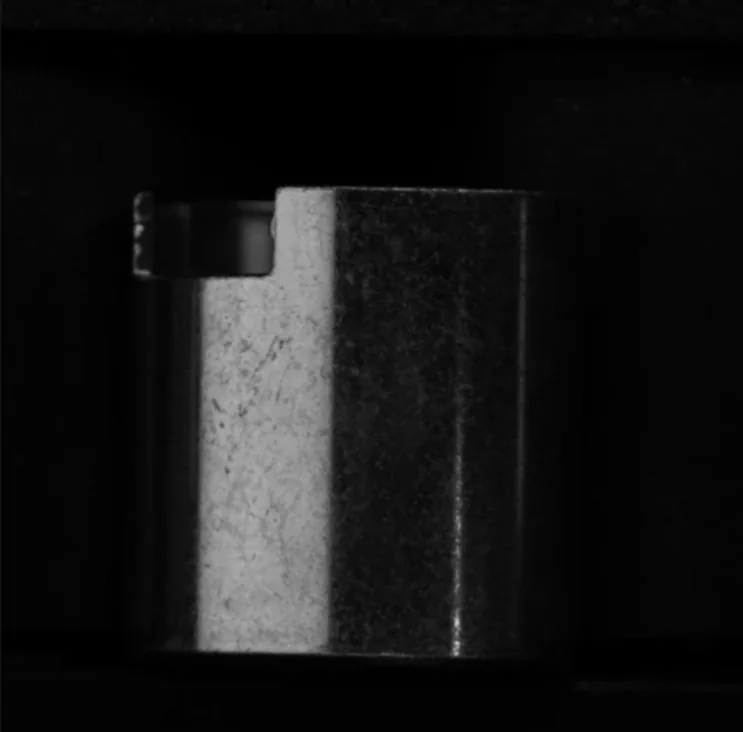

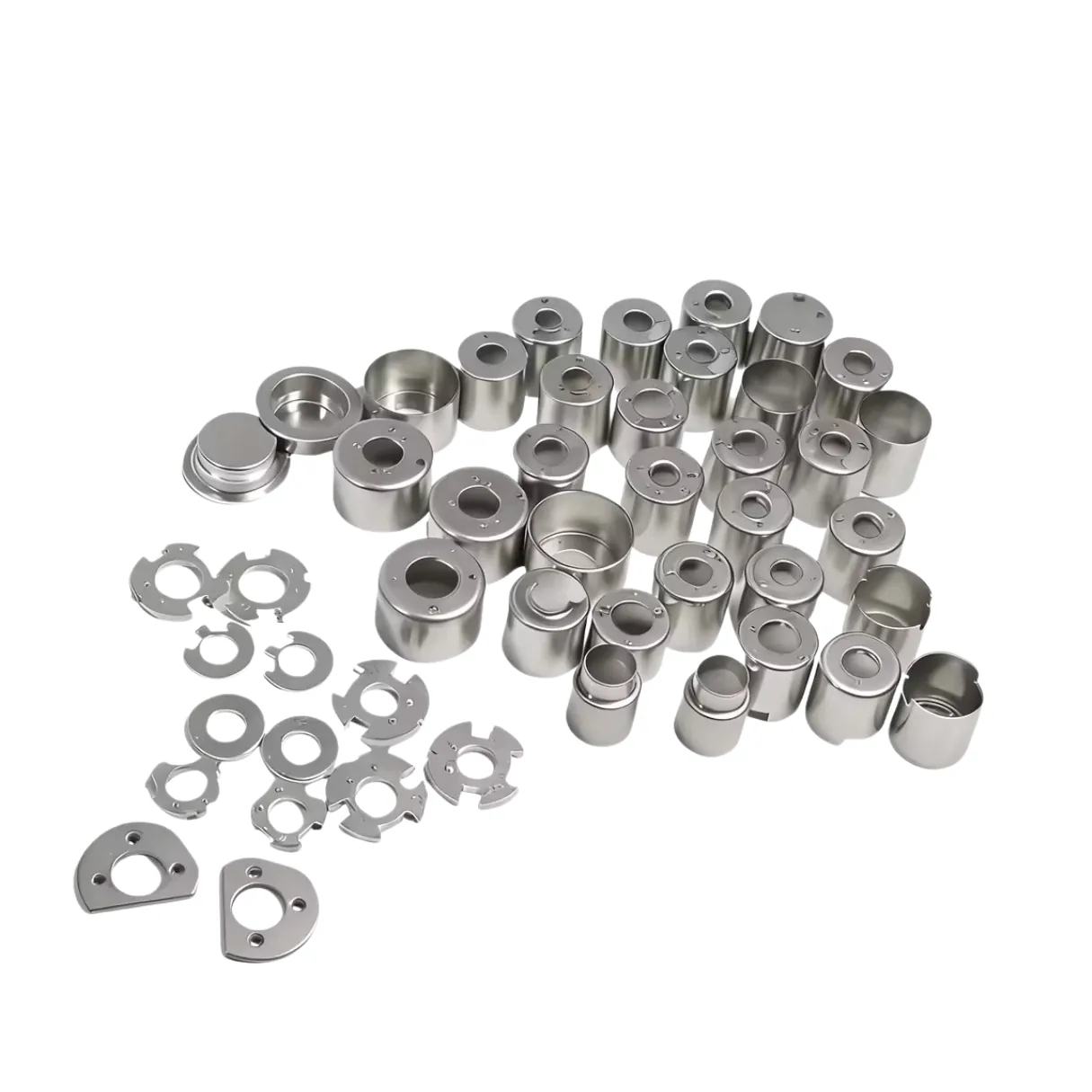

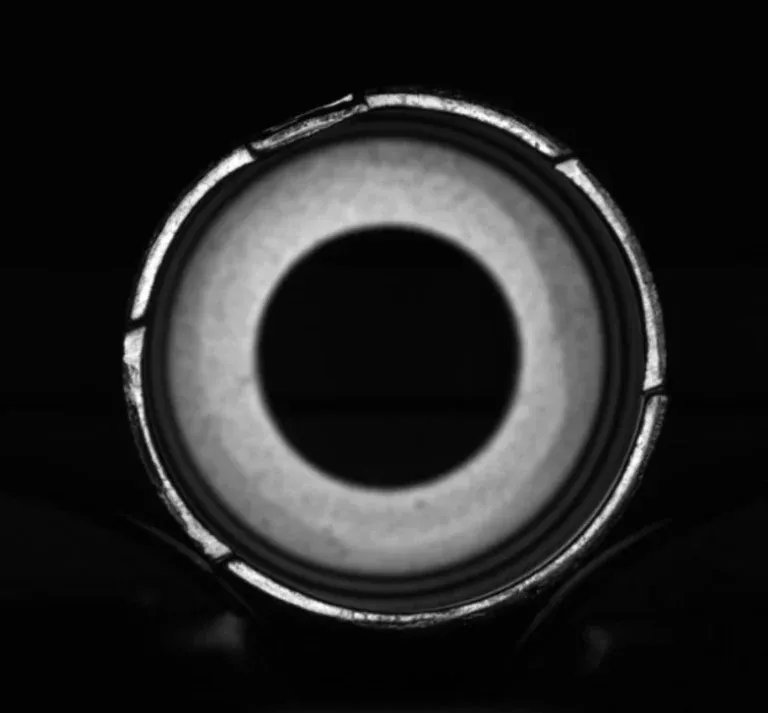

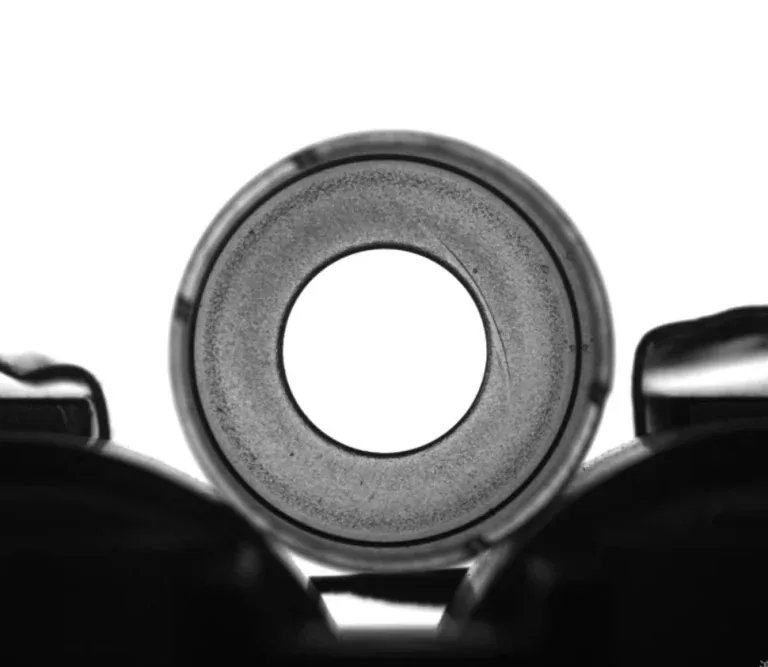

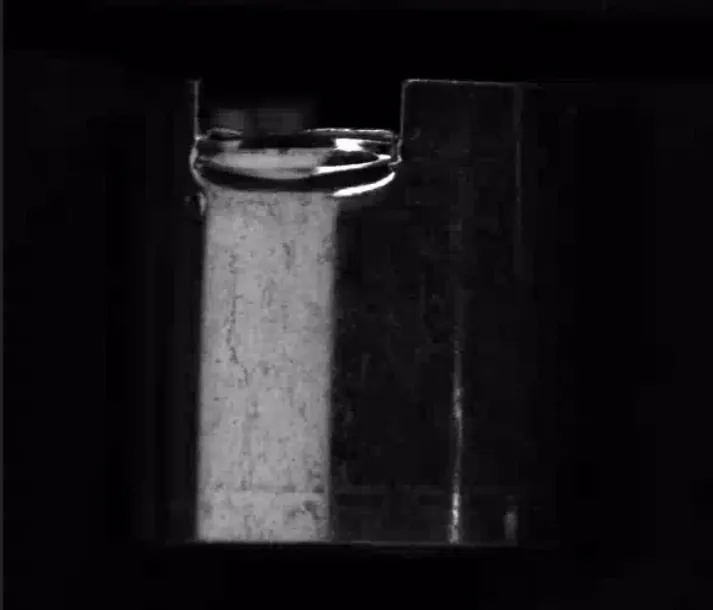

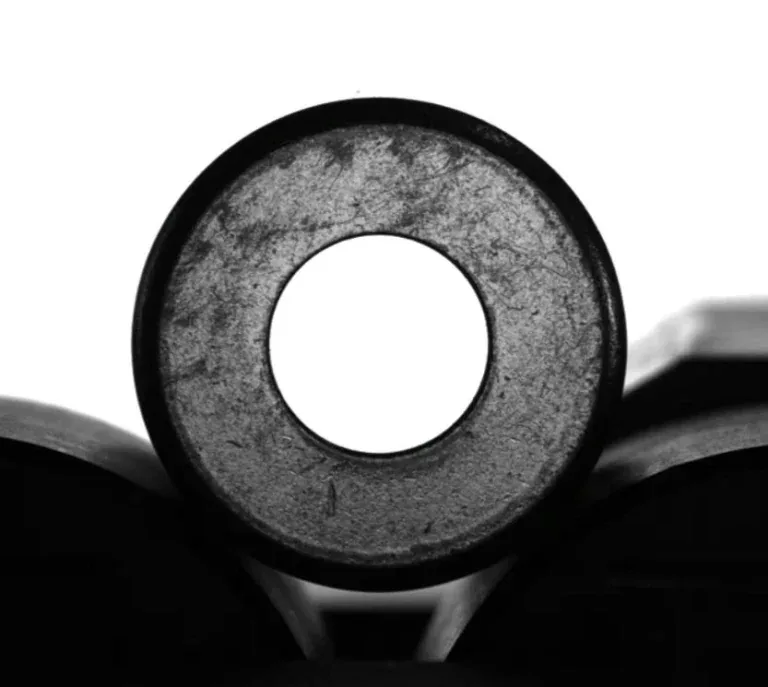

An optical automated inspection system for deep-drawn parts, specifically designed for surface defect detection and dimensional measurement. It can accurately identify common defects such as scratches, inner bottom dents, and poor plating on inner walls.
Documented functions: defect detection, dimensional measurement. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- High-Speed & High-Precision InspectionHandles deep-drawn parts from 5–60 mm, with cycle times as fast as 0.6 s per part and accuracy up to 0.2 mm—ensuring fast, consistent quality control.
- Smart Operation with Reliable UptimeReal-time status monitoring, NG alarms, and low-material alerts. Remote support and debugging help reduce maintenance costs and keep production running smoothly.
- AI-Powered Continuous ImprovementBuilt-in AI enables self-learning and ongoing optimization, expanding inspection capabilities and defect coverage while supporting smarter system upgrades.
Technical data
- Inspection Item:
- scratches, bottom inner indentation, poor electroplating on the inner wall and others
- Inspection Range:
- Ø 5-60 mm
- Inspection Requirements
- Surface clean, no oil
- Optical Resolution:
- 0.02mm
- Detection Precision:
- 0.2mm
- Mean Time to Failure:
- 10,000 H
- Speed:
- 0.6 -2.5 s/pc
- Power:
- 1,000W
- Voltage:
- 220V±10%, 50Hz
- Size/Weight:
- 1.2m*1.2m*2m/450Kg
- Air Power:
- 0.5MPa～0.8MPa
- Working Environment:
- Temperature：5℃~40℃ Relative Humidity：＜70%RH
- Features:
- 1. Real-time detecting status and alarms of NG products 2. Material shortage alarm 3. Remote technical support via device software
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
