Valve Guide Automatic Optical Inspection Machine
The Automatic Optical Inspection Machine for Valve Guide Appearance Defects is specifically designed for the fully automated optical inspection of valve guides.
About the Valve Guide Automatic Optical Inspection Machine
The Automatic Optical Inspection Machine for Valve Guide Appearance Defects is specifically designed for the fully automated optical inspection of valve guides. It simultaneously enables high-precision surface defect identification, dimensional measurement, laser marking, and more.
Documented functions: defect detection, dimensional measurement. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Intelligent Image Processing and Defect RecognitionEquipped with built-in image processing algorithms (such as edge detection, morphological processing, template matching, deep learning, etc.), it can automatically identify various types of defects, classify and record data in real time, and upload it.
- Modularity and ScalabilityThe modular design of hardware and software facilitates future upgrades (such as adding inspection stations or replacing with higher-resolution cameras). Expandable networking capabilities support remote monitoring and maintenance.
- High-Speed Inspection and Real-Time JudgmentWith a detection speed of 3,600-5,000 pieces per hour, it meets production line cycle requirements. Real-time results (OK/NG) are output, and defective products are automatically rejected.
Technical data
- Inspection Item

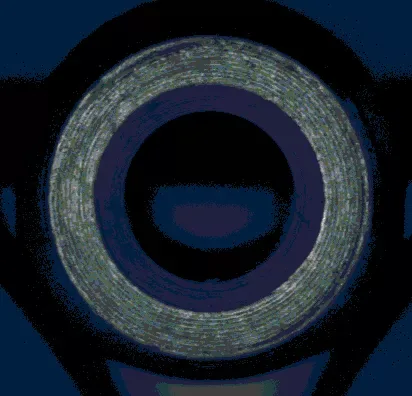

- Chipping, scratches, clamping marks, impact marks, cracks, ripples, shrinkage holes, rust, end surface flaws, and chamfer imperfections.
- Inspection Range
- Ø 5-15mm, H 20-100mm
- Inspection Requirements
- Surface clean, no oil
- Optical Resolution
- 0.03mm
- Mean Time to Failure
- 10,000H
- Speed
- 3,600-5,000 pcs/h
- Power
- 5KW
- Voltage
- 220V，50HZ
- Size/Weight
- 4.5m*4.5m*2.2m / 3T
- Air Power
- 0.5MPa～0.8MPa
- Working Environment
- 5℃-30℃；Humidity<70%
- Features
- 1. Real-time display detection status and the number of NG alarm.2. The device software has long-range technical support function.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.

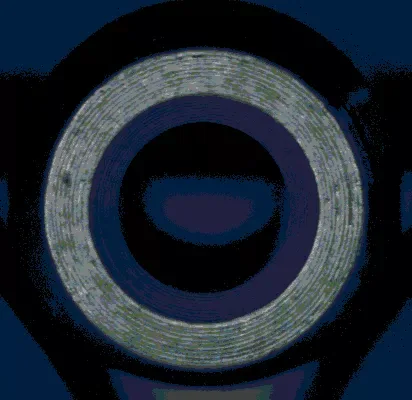

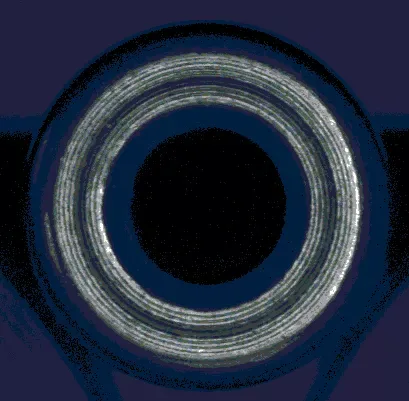

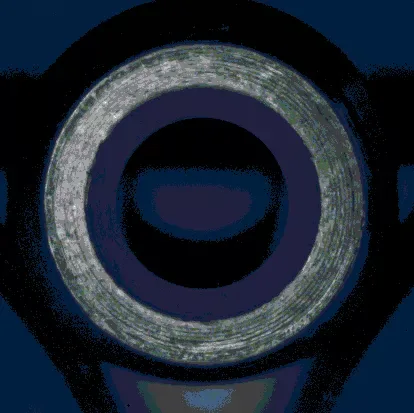

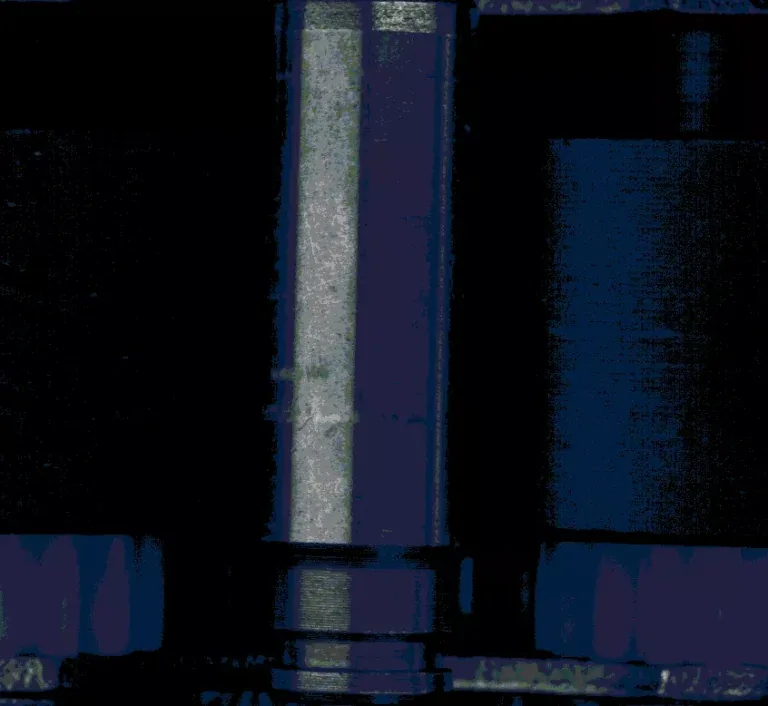

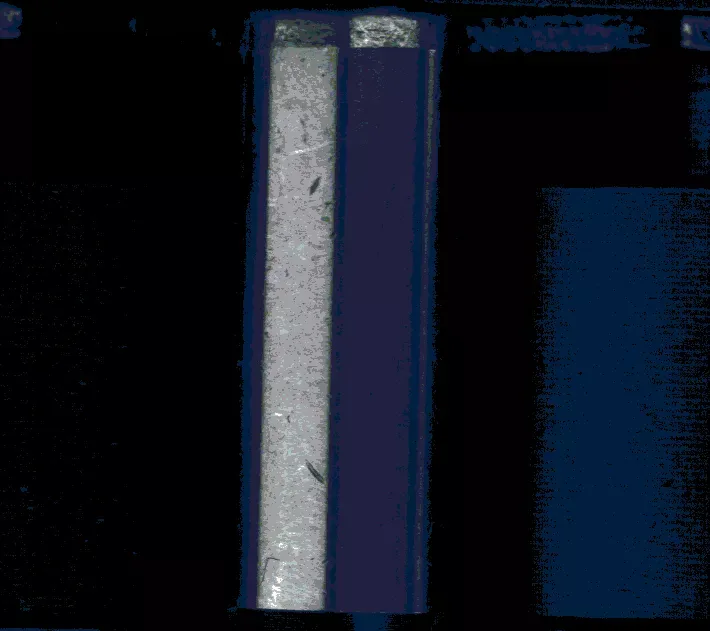

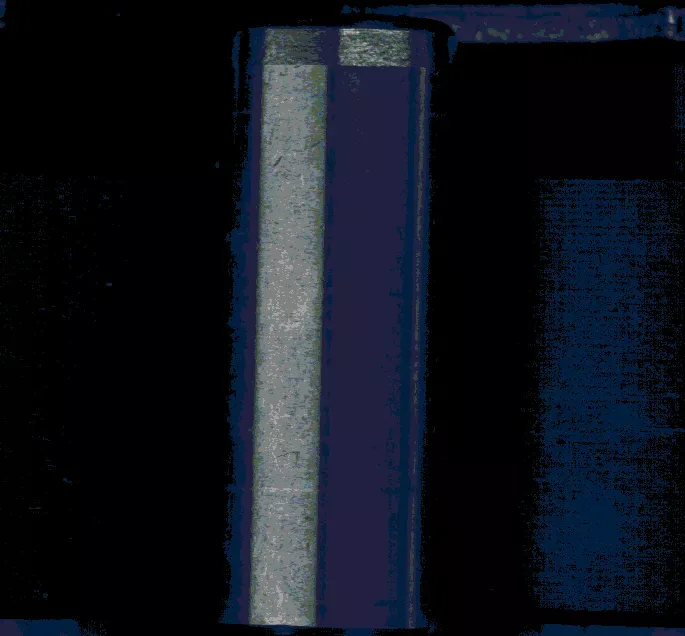

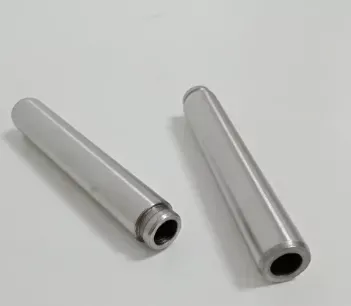

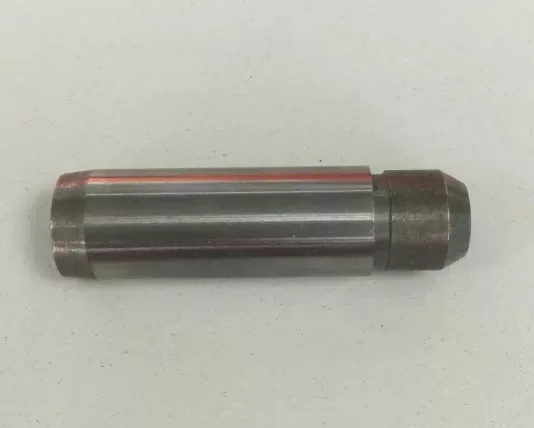

Product imagery
