Valve Retainer Appearance Automatic Optical Inspection Machine

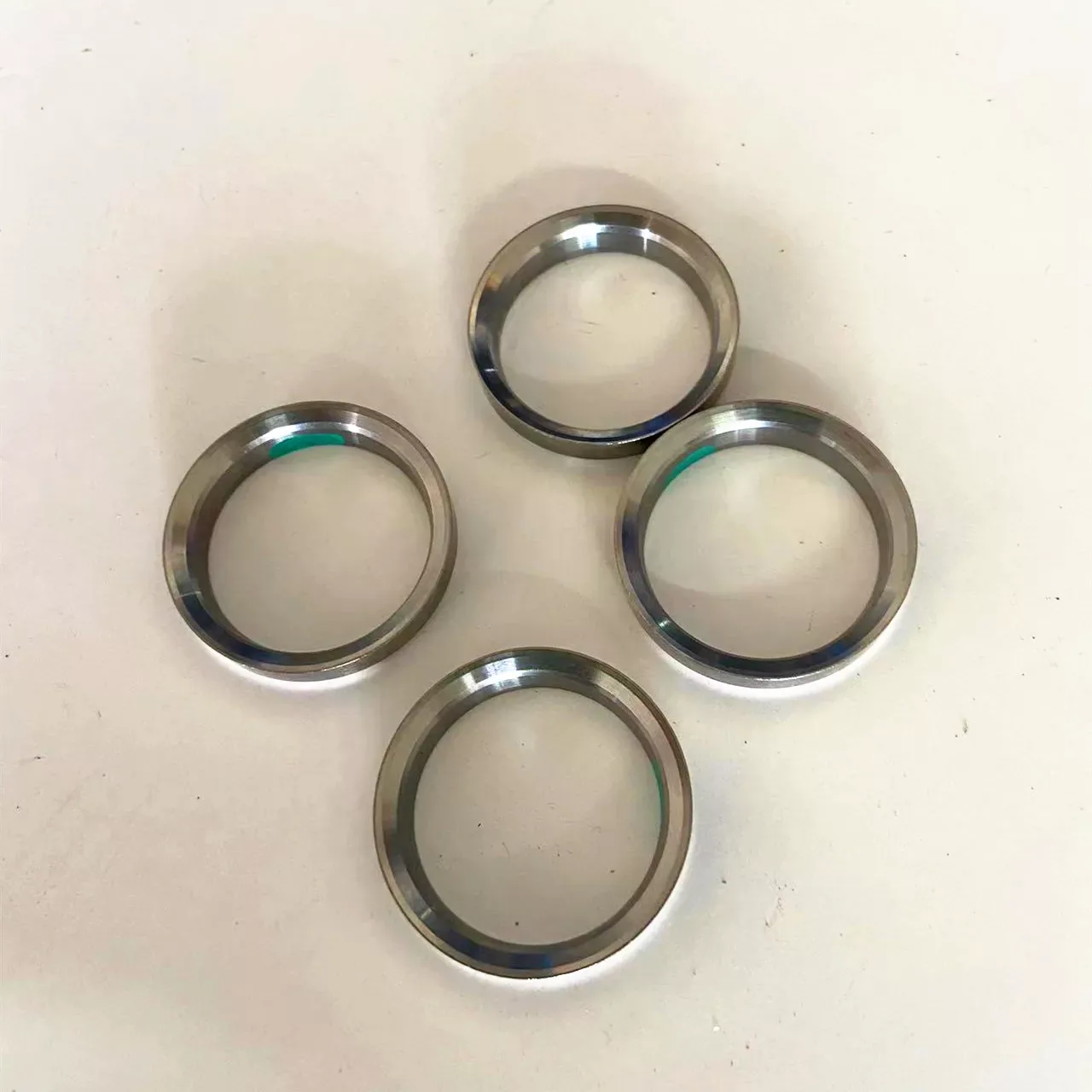

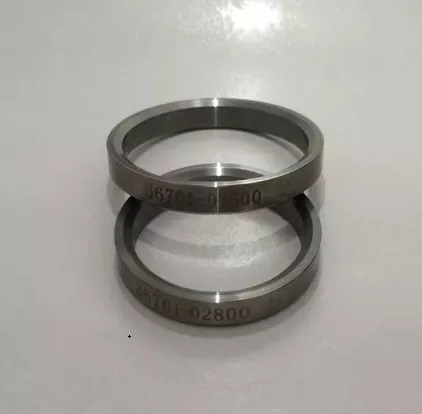

This specialized equipment is designed for the fully automated optical inspection of valve seat rings.
About the Valve Retainer Appearance Automatic Optical Inspection Machine
This specialized equipment is designed for the fully automated optical inspection of valve seat rings. It simultaneously enables high-precision identification of surface defects, dimensional and weight measurement, and laser marking. The system offers a high degree of automation, along with stable and reliable performance.
Documented functions: defect detection, dimensional measurement. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Real-time Upload of Inspection DataThe human-machine interface displays product weight and defect data in real time, automatically generates graphical statistics, and provides data query and traceability functions.
- One-Touch Automatic DetectionAfter workpieces are manually loaded in batches, the equipment automatically completes the entire process from feeding, inspection, to material collection.
- Intelligent Software SystemFeatures a user-friendly human-machine interface for easy setup and debugging.
Technical data
- Inspection Item

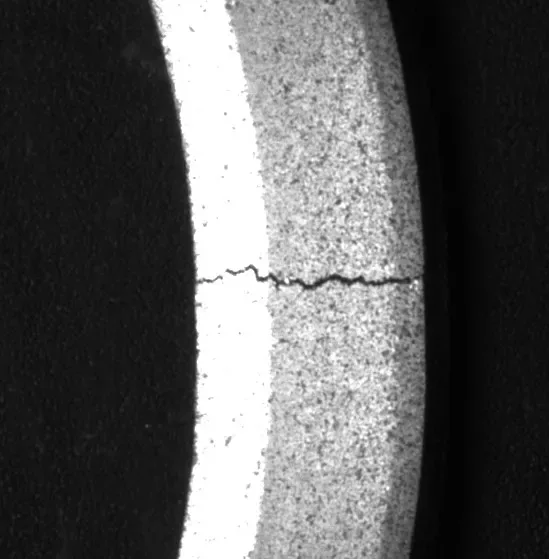

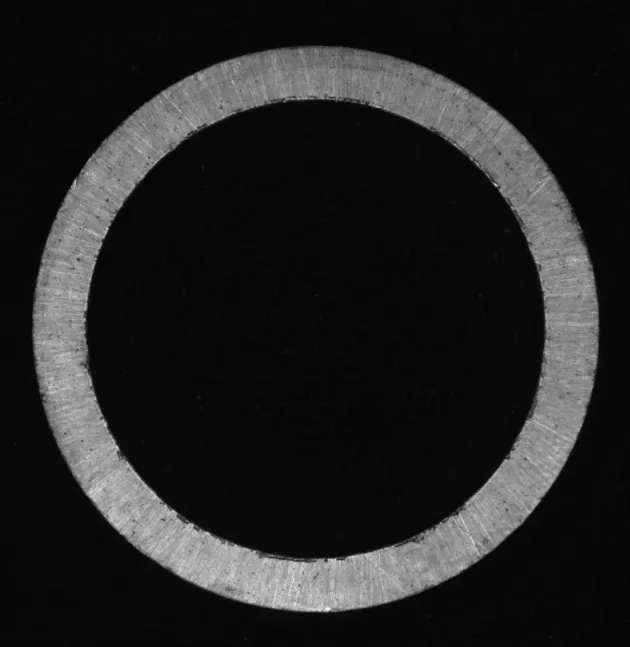

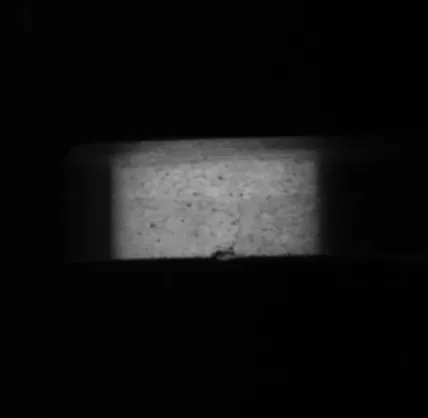

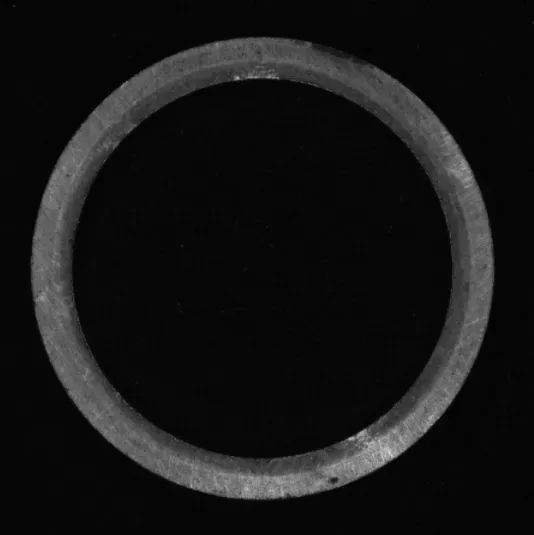

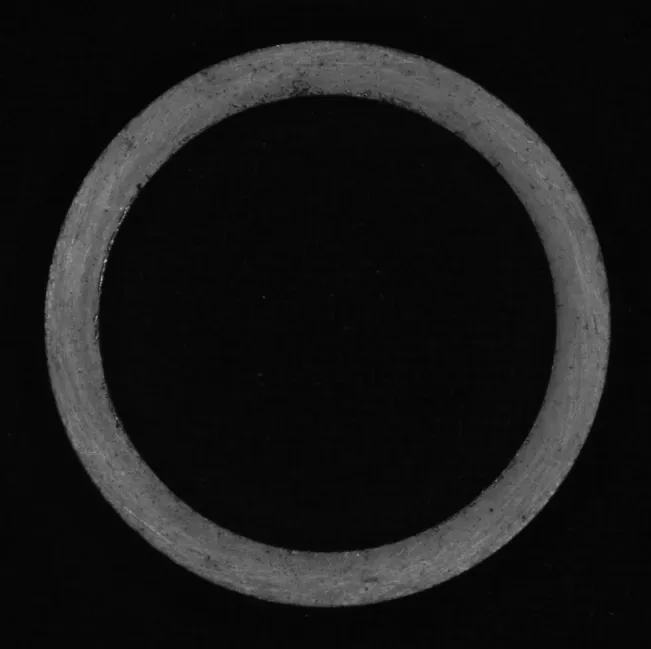

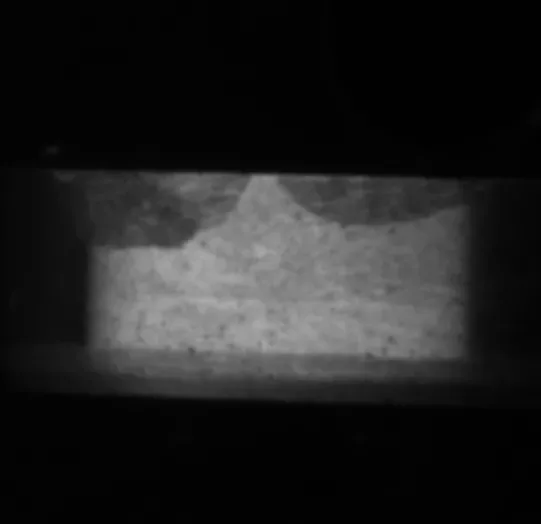

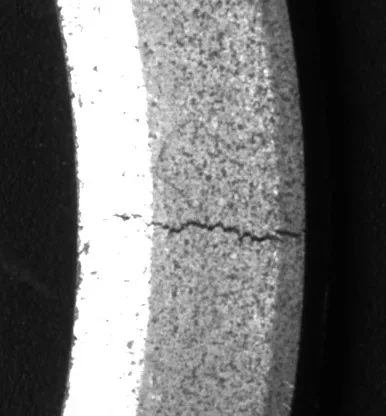

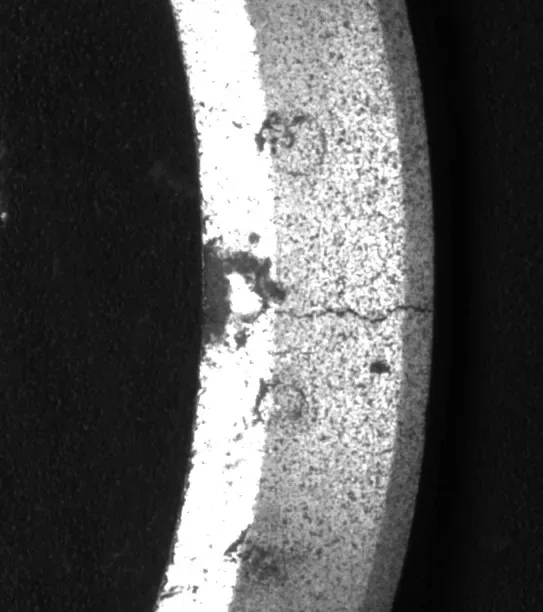

- Chipping, micro-chipping, edge collapse, shrinkage holes, impact marks, fractures, corrosion, machining residues, ripples, burrs, flash, and copper residue.
- Inspection Range
- Ø 18~60mm , H 3~15mm
- inspection requirements
- Surface clean, no oil
- Optical Resolution
- 0.03mm
- Mean Time to Failure
- 10,000H
- Speed
- 3,600-5,000 Pcs/h
- Voltage
- 220V, 50HZ
- Power
- 5KW
- Air Power
- 0.5MPa～0.8MPa
- Size/Weight
- 3.5m*4.5m*2.2m / 3T
- Working Environment
- 5℃-30℃；Humidity<70%
- Features
- 1. Real-time display detection status and the number of NG alarm; 2. Support for remote debugging.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
