Piston Automatic Optical Inspection Machine
This equipment is specifically designed for the inspection of surface defects on engine pistons, as well as for high-precision dimensional and weight measurement.
About the Piston Automatic Optical Inspection Machine
This equipment is specifically designed for the inspection of surface defects on engine pistons, as well as for high-precision dimensional and weight measurement.
Documented functions: defect detection, dimensional measurement. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Independently Developed Inspection SoftwareThis proprietary software is engineered to meet a wide range of customer detection requirements.
- Comprehensive Data Statistics FunctionThe system provides complete statistical capabilities, displaying real-time detection counts and defect quantities by category. This enables manufacturers to promptly identify issues and reduce customer complaint rates.
- Multi-Model CompatibilityA single machine can be configured with inspection programs for various piston models. It enables rapid production changeovers without hardware replacements, significantly improving equipment utilization.
Technical data
- Inspection Item
- Casting holes, through-holes, cracks, oxides, air bubbles, cold shuts, casting bruises, demolding scratches, fusion defects, casting burrs/flashes, machining bruises, and resin layer abrasions.
- Inspection Item
- Ø 50~100mm
- Inspection Requirements
- Surface clean, no oil
- Optical Resolution
- 0.03mm
- Mean Time to Failure
- 10,000H
- Speed
- 12 Second/Pcs
- Voltage
- 220V, 50HZ
- Power
- 10KW
- Air Power
- 0.5MPa～0.8MPa
- Size/Weight
- 5.6m*2.06m*2.36m / 4.8T
- Working Environment
- 5℃-30℃；Humidity<70%
- Other Features
- 1. Real-time display of inspection status with NG product quantity alerts.2. Automated loading and unloading3. Remote debugging support.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.

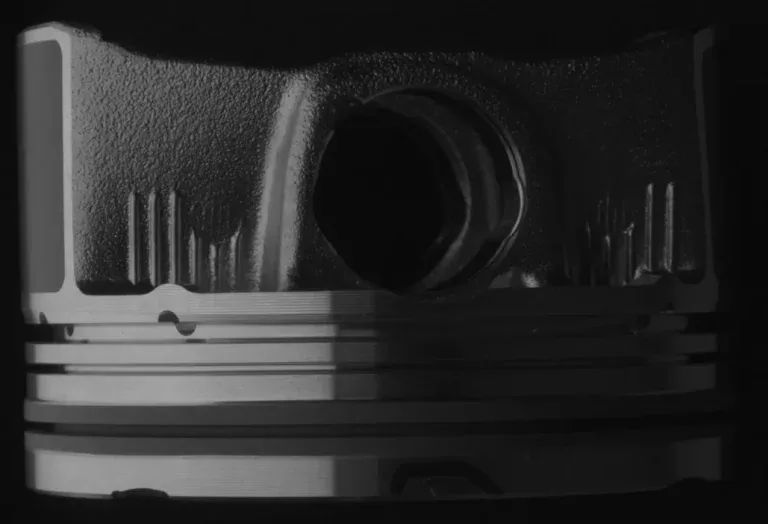

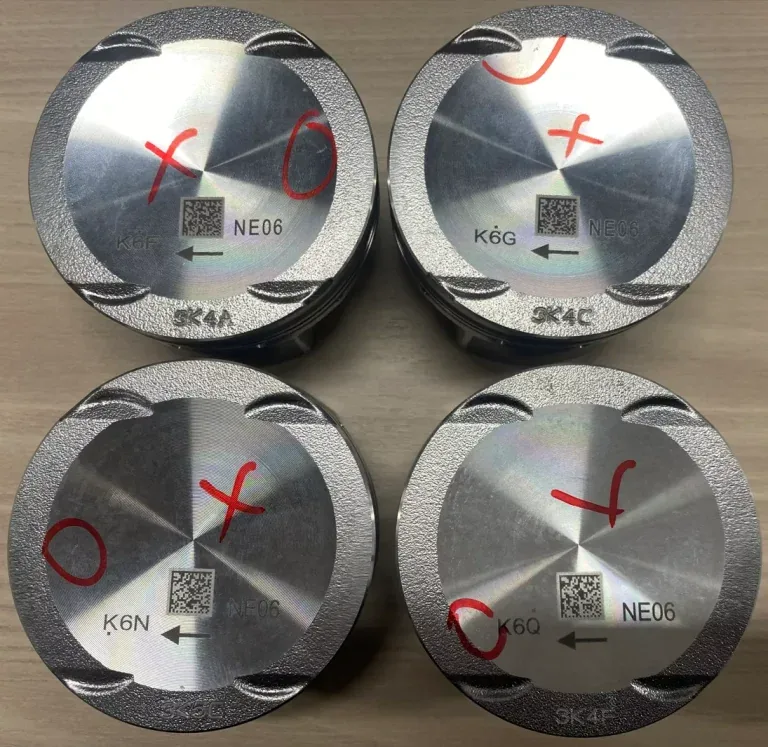

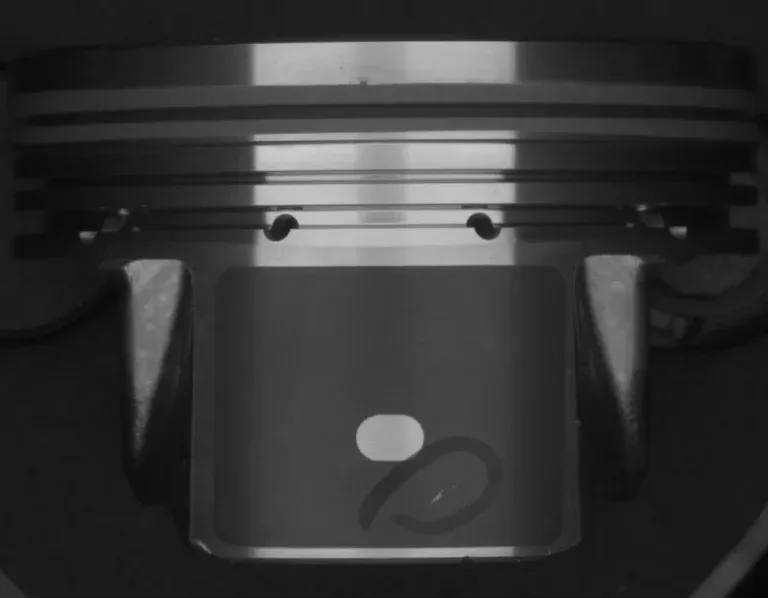

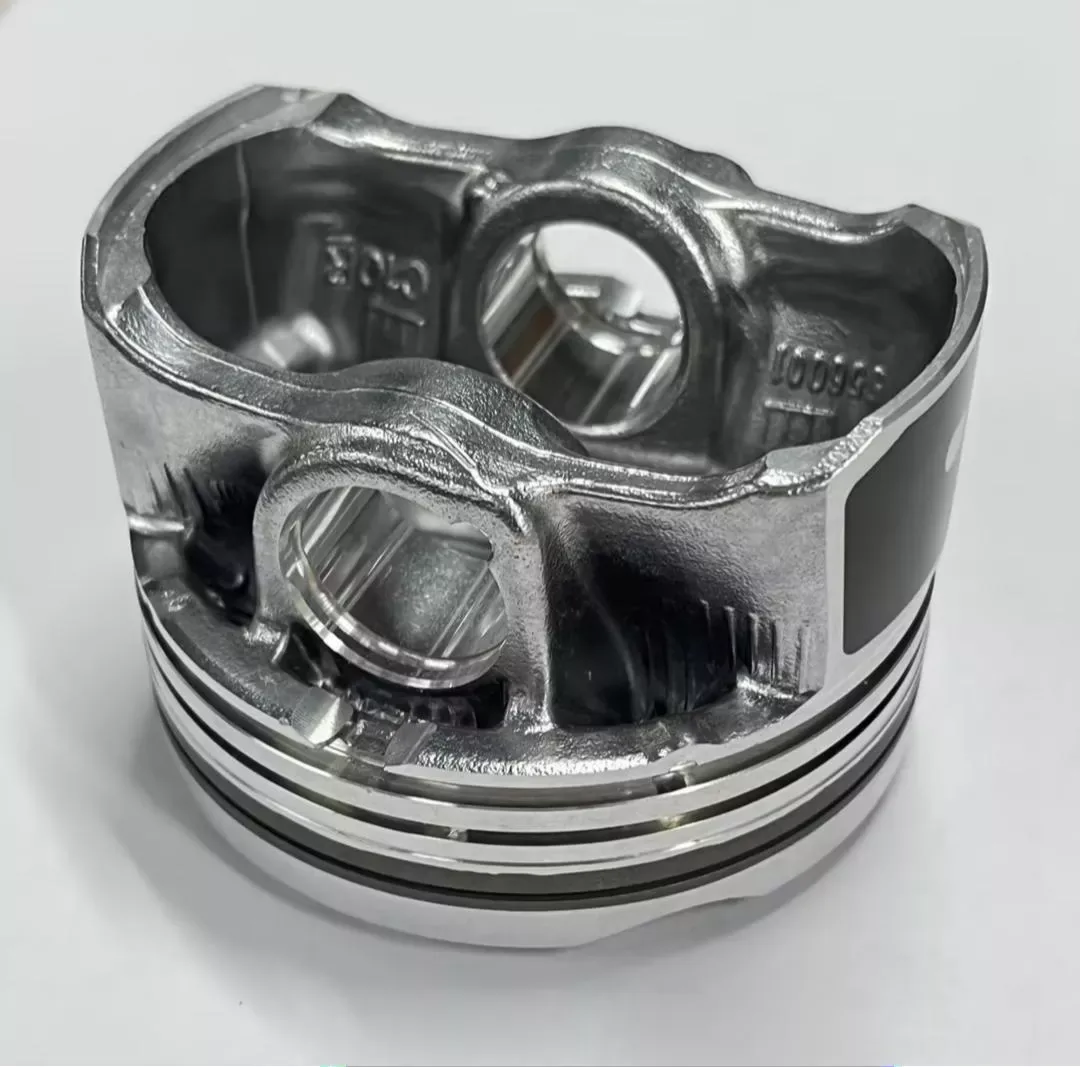

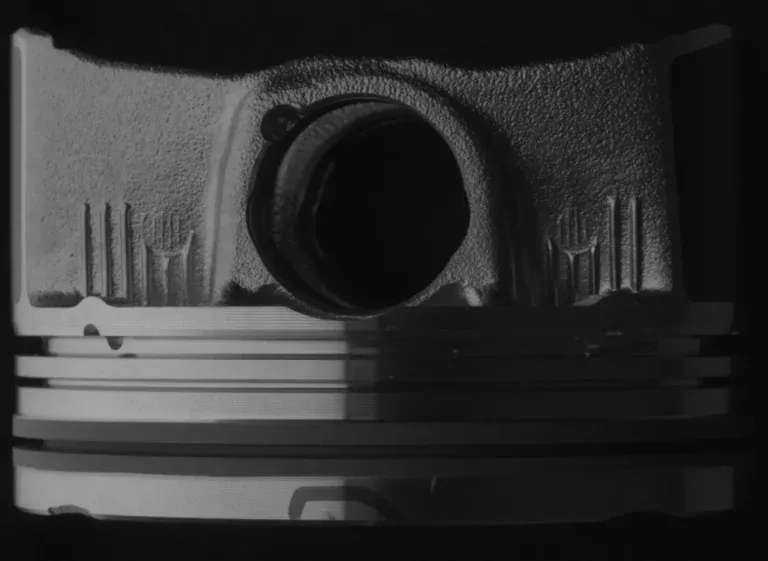

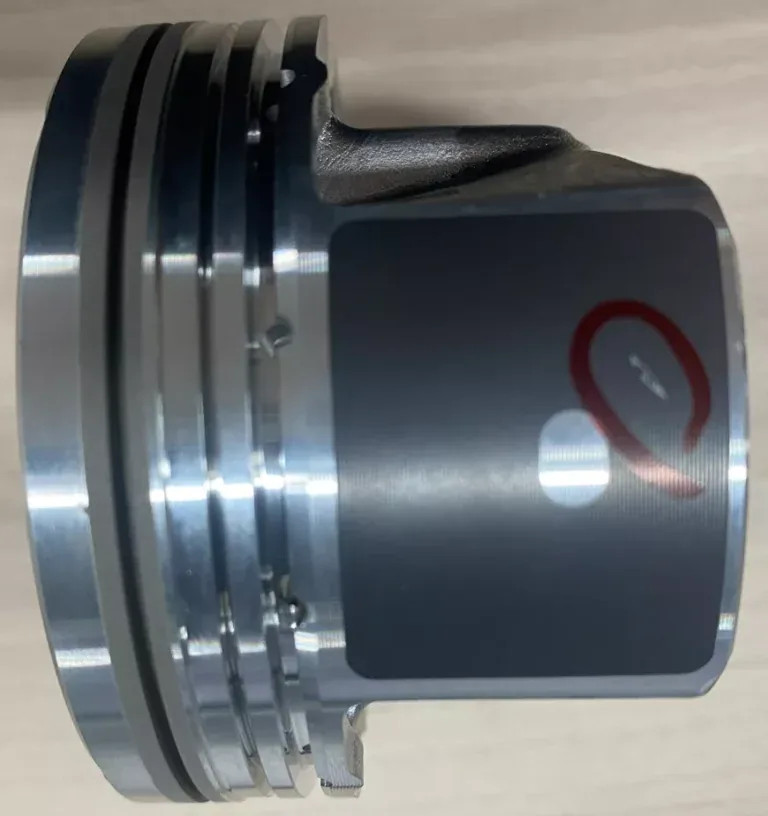

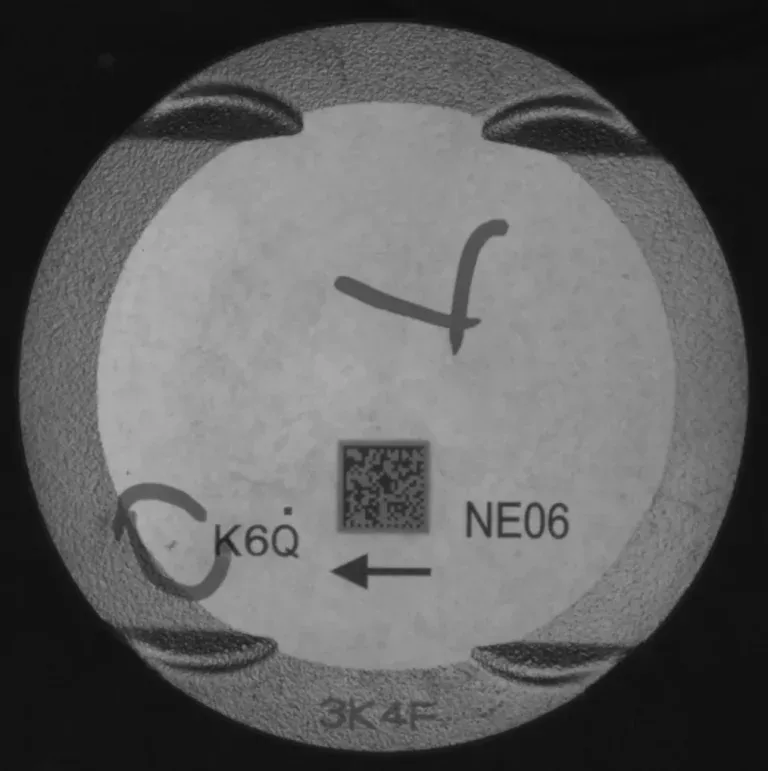

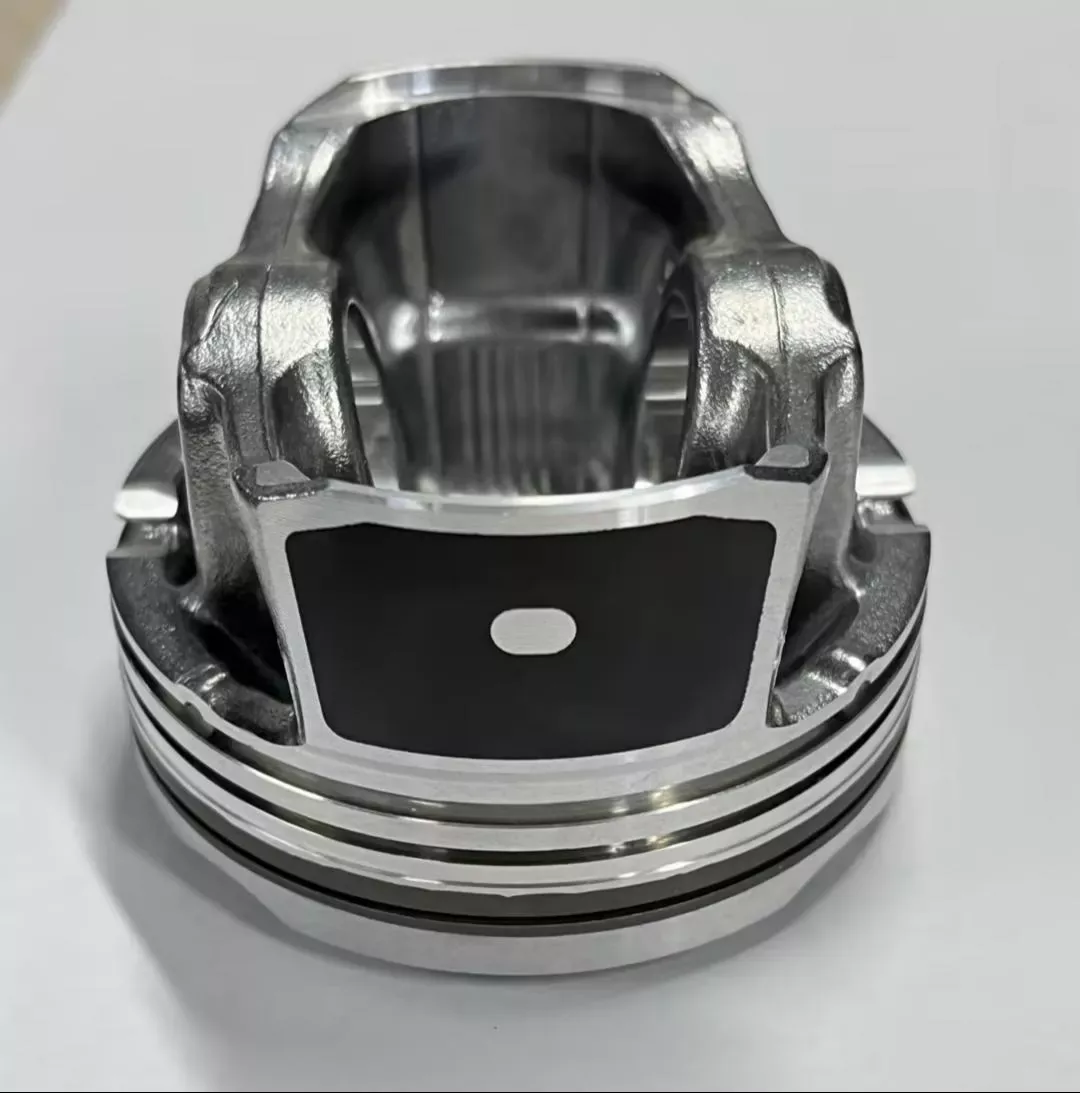

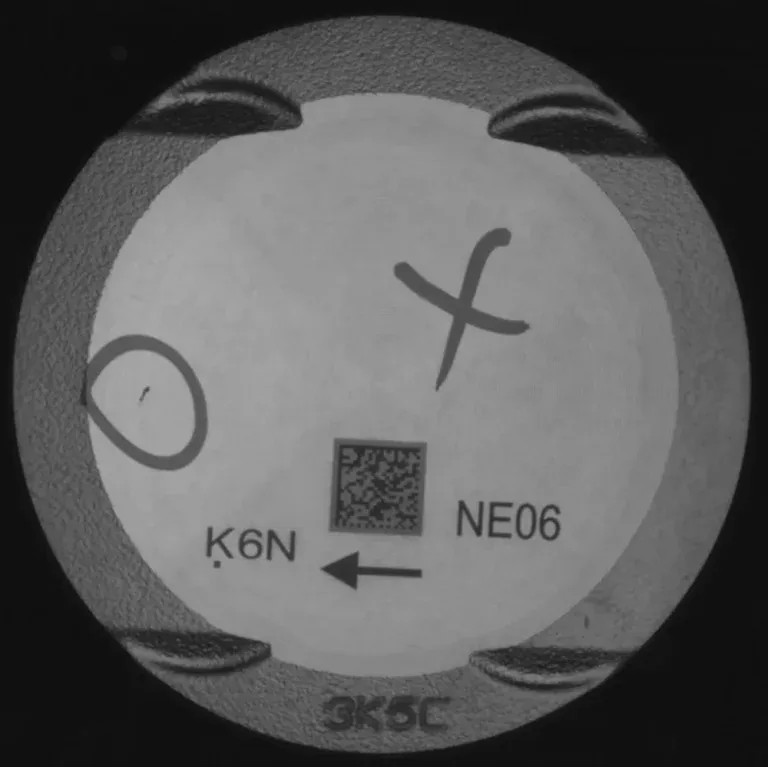

Product imagery
