AVX550 Floor-Standing Vision System
Model: AVX550
Large-format CNC vision system with 550 x 400 x 250 mm travel and optional dual camera inputs.
About the AVX550 Floor-Standing Vision System
The AVX550 provides large-format X-Y-Z travel of 22" x 16" x 10" (550 x 400 x 250 mm) for large parts with many intricate features. An optional dual-camera configuration allows macro and micro measurements on one system without changing lenses or recalibrating. Linear-guide X-Y transports driven by precision lead screws and servo motors give smooth, high-speed positioning on a substantial granite base and bridge.
- Precision mechanical linear-bearing transports
- Granite base and bridge for stability
- MetLogix™ M3 software on a 24" touchscreen PC
- LED ring, transmitted and coaxial illumination
- 1.3 MP color camera, 1/3" SXVGA sensor
- Optional dual camera inputs
Technical data
- XYZ travel
- 22" x 16" x 10" (550 x 400 x 250 mm)
- Camera
- 1.3 MP color, 1/3" SXVGA
- Zoom option
- Dedicated 12:1 CNC zoom; 0.5x, 1.5x, 2.0x auxiliary lenses
- Net weight
- 1,360 lb (617 kg)
- Shipping weight
- 1,720 lb (782 kg)
- Shipping dimensions
- 78" x 40.4" x 41.3" (198 x 102.5 x 105 cm)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Dual camera inputs
- Dedicated 12:1 CNC zoom optics
- 0.5x, 1.5x, 2.0x auxiliary lenses
- Quadrant LED surface illumination
- DXF/FOV CAD comparison
- Adjustable ergonomic workstation
- CNC rotary axis fixture
- Renishaw touch probe kit and change rack
- Calibration standards and fixtures
Where the AVX550 Floor-Standing Vision System is used
- Large parts with many features
- QC laboratory and engineering
- Macro and micro measurement on one system
- Comparison to DXF CAD designs

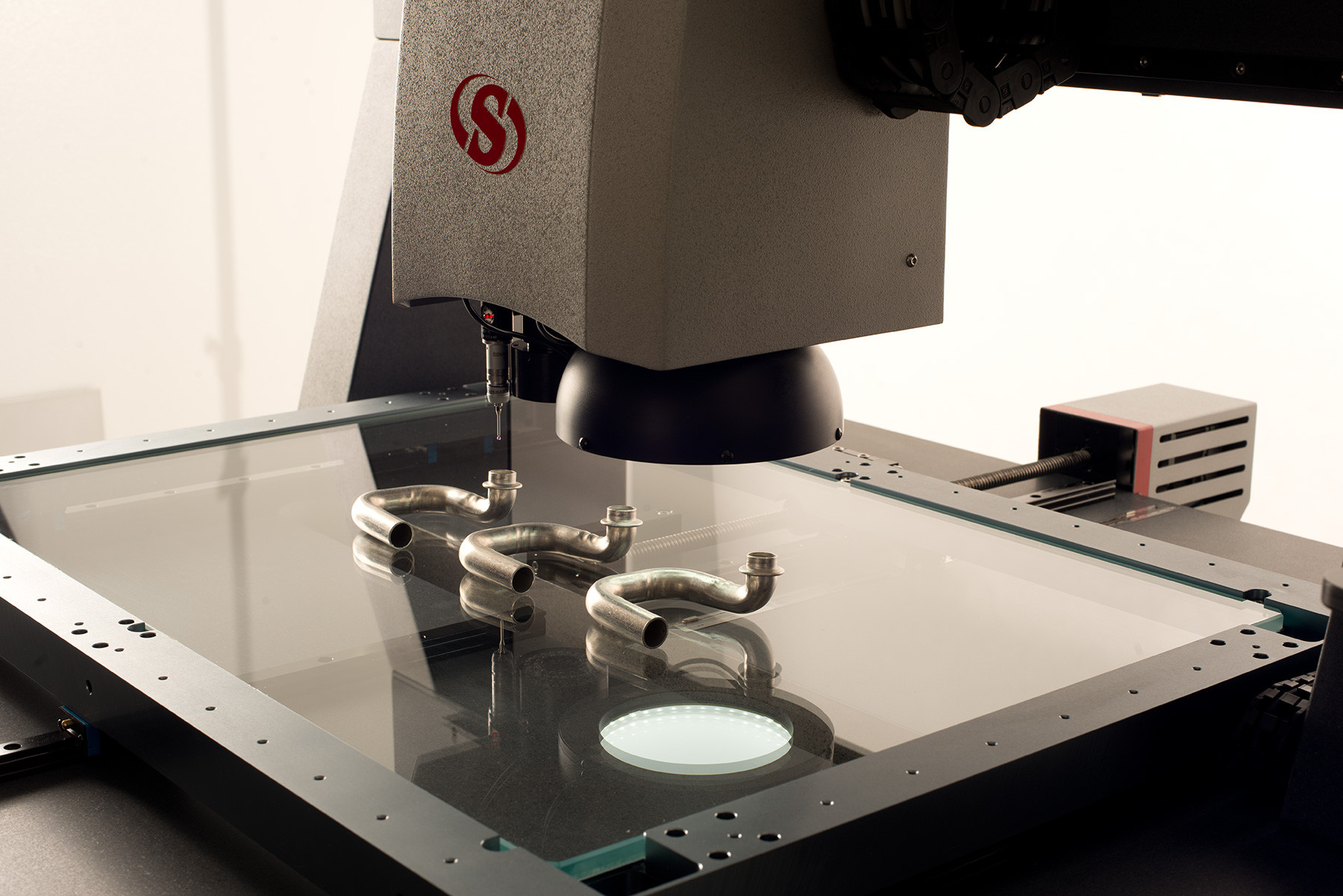

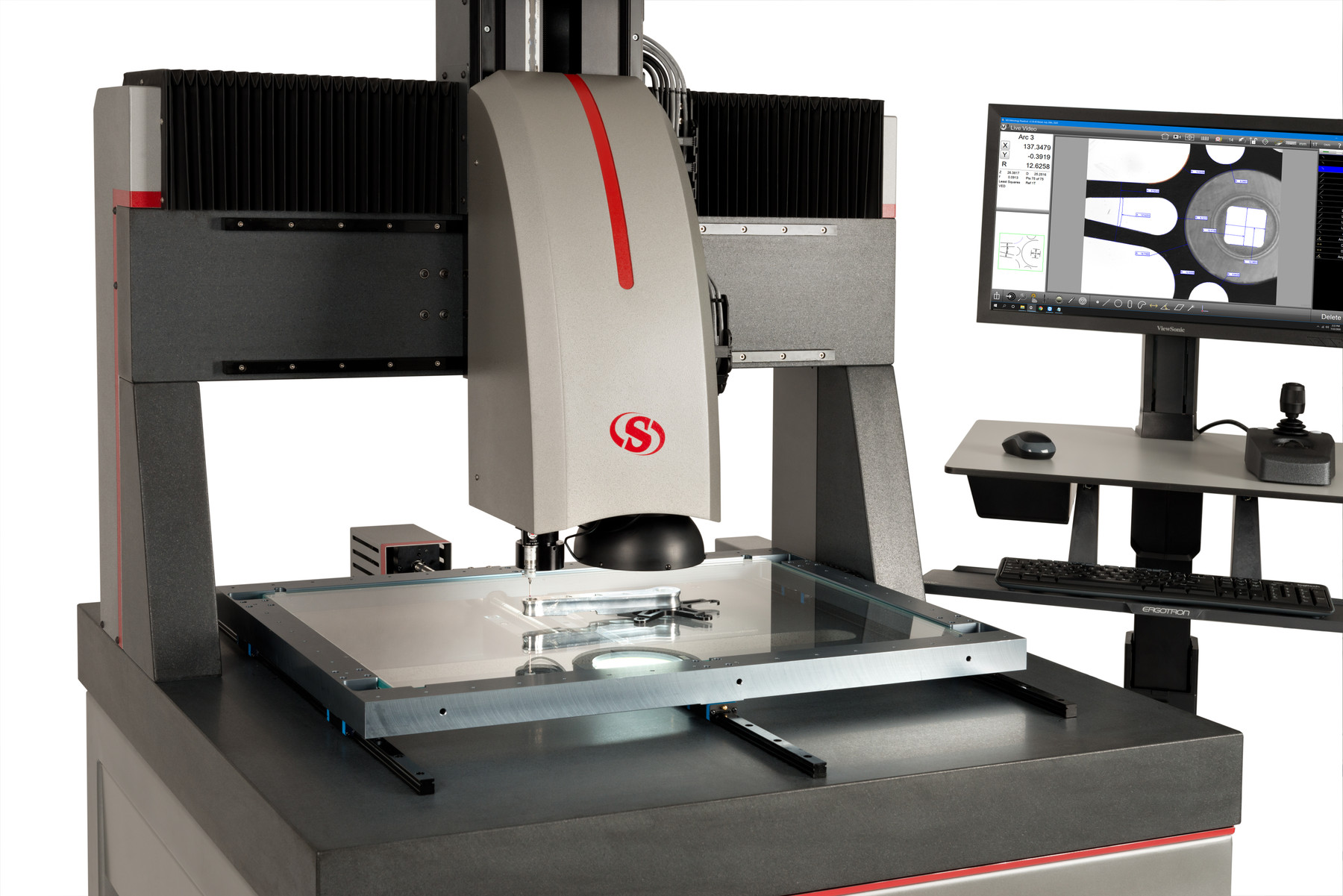

Product imagery
