AVR400 CNC Vision System
Model: AVR400 / AVR400 FOV
Largest Starrett benchtop CNC vision platform: 400 x 300 x 200 mm travel at up to 120 mm/s.
About the AVR400 CNC Vision System
The AVR400 updates the AVR benchtop series with 400 x 300 x 200 mm (15.8" x 11.8" x 7.9") XYZ travel — the largest Starrett benchtop vision platform — and stage speed doubled to up to 120 mm/s. It keeps the AVR CNC capabilities and full range of zoom (AVR400, 12:1 zoom) and telecentric (AVR400 FOV) optics, allowing a broad range of part sizes or batches of multiple parts to be measured in less time.
Configurations on this page
AVR400
12:1 zoom optics as standard; 0.5x, 1.5x, 2.0x auxiliary lenses.
AVR400 FOV
Quick-change bayonet or fixed mount for telecentric optics: 0.30x, 0.50x, 0.80x, 1.0x, 2.0x, 4.0x.
- XYZ travel 400 x 300 x 200 mm
- Stage travel speed up to 120 mm/s
- Full CNC X-Y-Z or motorized manual positioning with joystick pendant
- MetLogix™ M3 software with video edge detection and FOV measurement
- Renishaw scales, 4 µin (0.1 µm) on X, Y, Z (select models)
- Collimated LED sub-stage and LED ring light; color camera
- Granite base; touch-probe compatible
Technical data
- XYZ travel
- 400 x 300 x 200 mm (15.8" x 11.8" x 7.9")
- Max. stage speed
- 120 mm/s
- Scale resolution
- 4 µin (0.1 µm), select models
- AVR400
- 12:1 zoom; 0.5x, 1.5x, 2.0x auxiliary lenses
- AVR400 FOV
- Telecentric 0.30x, 0.50x, 0.80x, 1.0x, 2.0x, 4.0x
- Net weight
- 330 lb (150 kg)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Programmable darkfield quadrant LED illumination (zoom optics)
- Renishaw touch probe kit
- 2 or 4 bay touch probe change rack
- DXF/FOV option for automatic comparison to CAD files
- Modular system workstation
- Calibration standards
- Part fixtures and work-holding devices
- Thread measurement software module
- CNC rotary axis fixture
Where the AVR400 CNC Vision System is used
- Repetitive CNC measurement of production parts
- Automatic comparison to DXF CAD files
- First-article inspection
- Medical and precision component QC
- Batch measurement of multiple parts

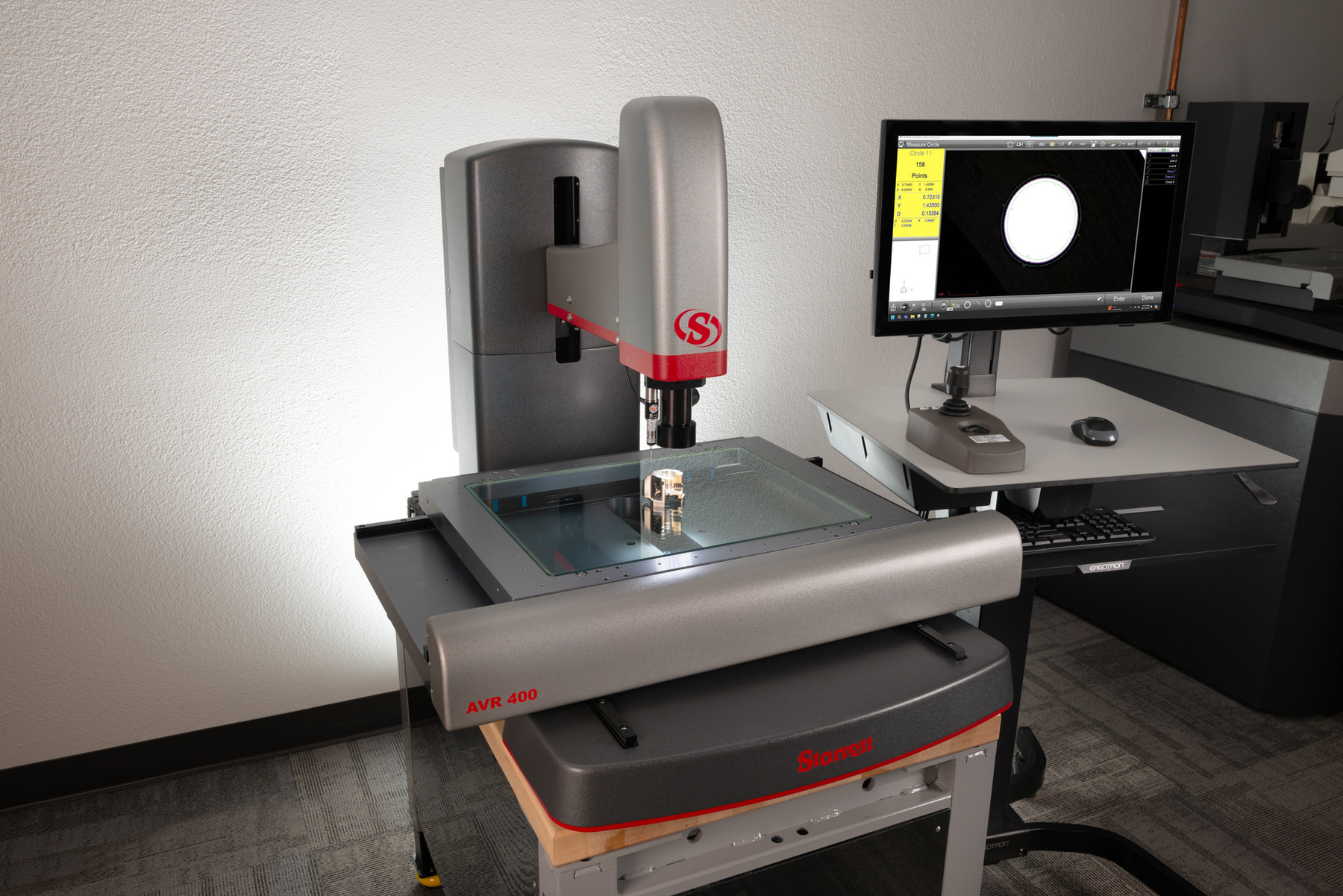

Product imagery
