HDV500 Digital Comparator
Model: HDV500
Floor-standing CNC digital video comparator on the HF600/HF750 heavy-duty stage.
About the HDV500 Digital Comparator
The HDV500 combines a large floor-standing horizontal comparator with vision metrology. It uses the same long 20" x 8" (500 x 200 mm) heavy-duty stage as the HF600 and HF750, with CNC control, 150 kg load capacity and helix angle adjustment. Interchangeable telecentric lenses on a 5-megapixel camera deliver field-of-view measurement, while MetLogix™ M3 provides DXF overlays and video edge detection against the live image.
- Steel construction with nickel-plated stage tooling plate
- 21.3" x 5.1" (540 x 130 mm) workstage top plate
- CNC control via joystick and trackball
- 330 lb (150 kg) maximum load capacity
- 3" (75 mm) focus travel
- Helix angle adjustment with ±15° Vernier scale
- Heidenhain glass scales, 20 µin (0.5 µm) resolution
- 5 MP black-and-white camera (2448 x 2058 px)
Technical data
- X-Y stage travel
- 20" x 8" (500 x 200 mm)
- Max. load
- 330 lb (150 kg)
- Focus travel
- 3" (75 mm)
- Helix adjustment
- ±15°
- Scale resolution
- 20 µin (0.5 µm)
- Camera
- 5 MP black and white, 2448 x 2058 px
- Telecentric FOV options
- 34.7 x 29 mm, 53.8 x 45 mm, 76.5 x 64 mm
- Rotary indexing table
- APT60, APT120 or APT200
- Net weight
- 1,330 lb (600 kg)
- Shipping weight
- 1,400 lb (635 kg)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Interchangeable 6.5:1 zoom optics
- 3 interchangeable telecentric lenses
- MetLogix™ profile fitting and thread measurement software
- APT60, APT120 or APT200 rotary indexing table
- Accessories, work-holding and calibration standards
Where the HDV500 Digital Comparator is used
- Large and heavy part profile measurement
- Thread form inspection
- Comparison to DXF CAD
- Rotary indexed inspection

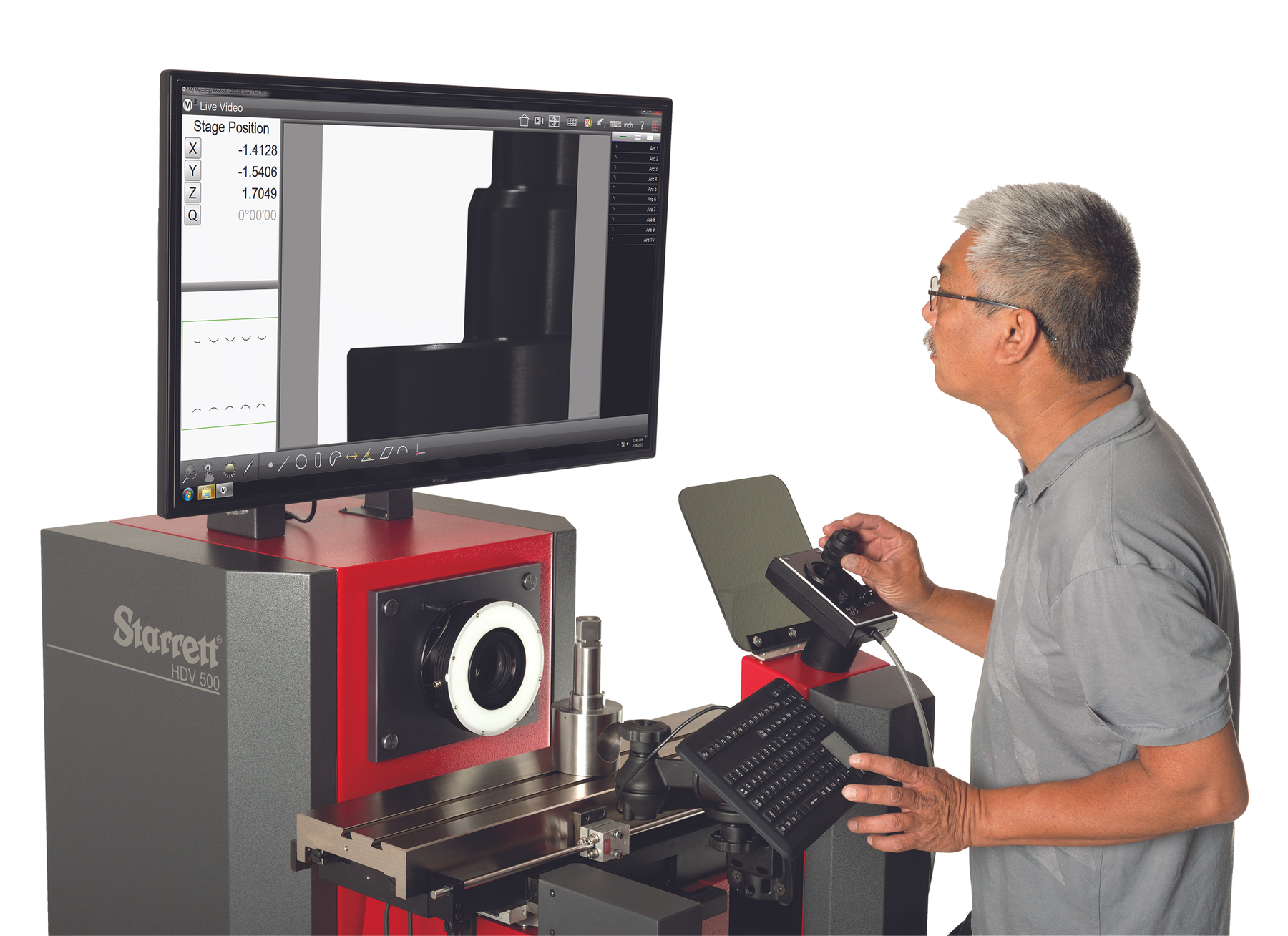

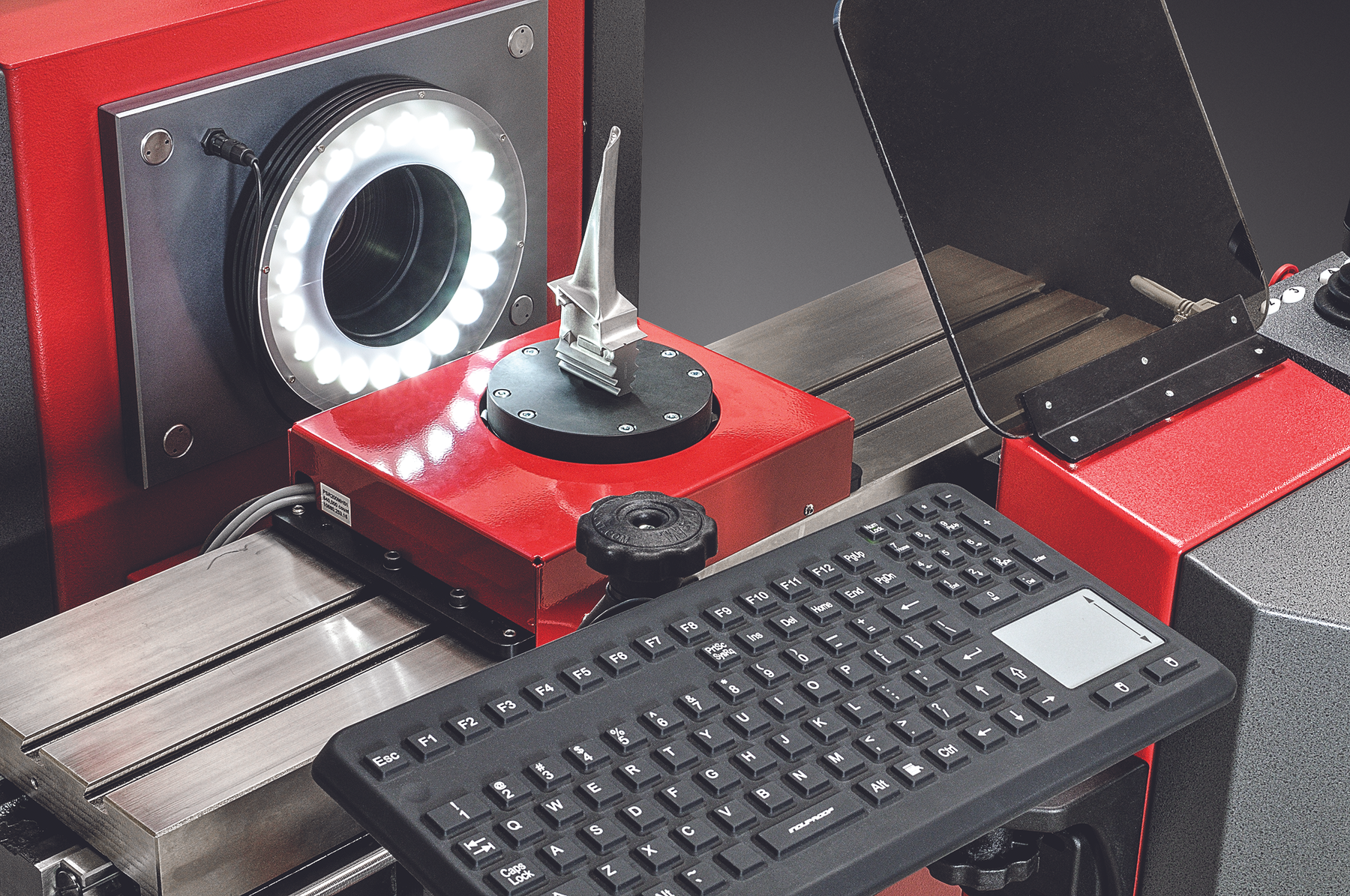

Product imagery
