HF600 Optical Comparator
Model: HF600
Floor-standing horizontal optical comparator with 24" (600 mm) screen and four-position lens turret.
About the HF600 Optical Comparator
The HF600 is a floor-standing horizontal comparator for small to large workpieces, from the QC lab to the production floor. Its 24" (600 mm) screen, motorized X-Y stage with 330 lb (150 kg) capacity and four-position lens turret support fast magnification changes. 2D measurement software handles diameters, radii, angles, lines, points and skew correction; advanced software adds CAD import, CAD export for reverse engineering, reporting and networking.
- 24" (600 mm) screen with precision cross lines and overlay clips
- 20" x 8" (500 x 200 mm) X-Y travel workstage
- Motorized X and Y axes with joystick and variable speed control
- Four-lens projection turret
- Heidenhain linear scales, 20 µin (0.5 µm) resolution
- Screen-driven rotary Q-axis with 1' resolution
- Retractable duplex fiber-optic surface illumination
- Full canopy and curtains
Technical data
- Screen diameter
- 24" (600 mm)
- X-Y travel
- 20" x 8" (500 x 200 mm)
- Scale resolution
- 20 µin (0.5 µm)
- Angle resolution
- 1'
- Stage capacity
- 330 lb (150 kg), evenly distributed
- Capacity between centers
- 17.5" (440 mm)
- Lens turret
- 4 positions (lenses not included)
- Lens options
- 10x, 20x, 25x, 50x
- Net weight
- 1,340 lb (610 kg)
- Shipping weight
- 1,500 lb (680 kg)
- Shipping dimensions
- 81" x 49" x 89" (206 x 125 x 226 cm)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Fully automatic CNC controls
- Automatic optical edge detection
- Swing-away lamp house
- Extensive line of accessories
Where the HF600 Optical Comparator is used
- Profile and contour inspection
- Shop-floor dimensional QC
- Angle and radius measurement
- First-article inspection
- Large and heavy workpieces
- CAD comparison and reverse engineering

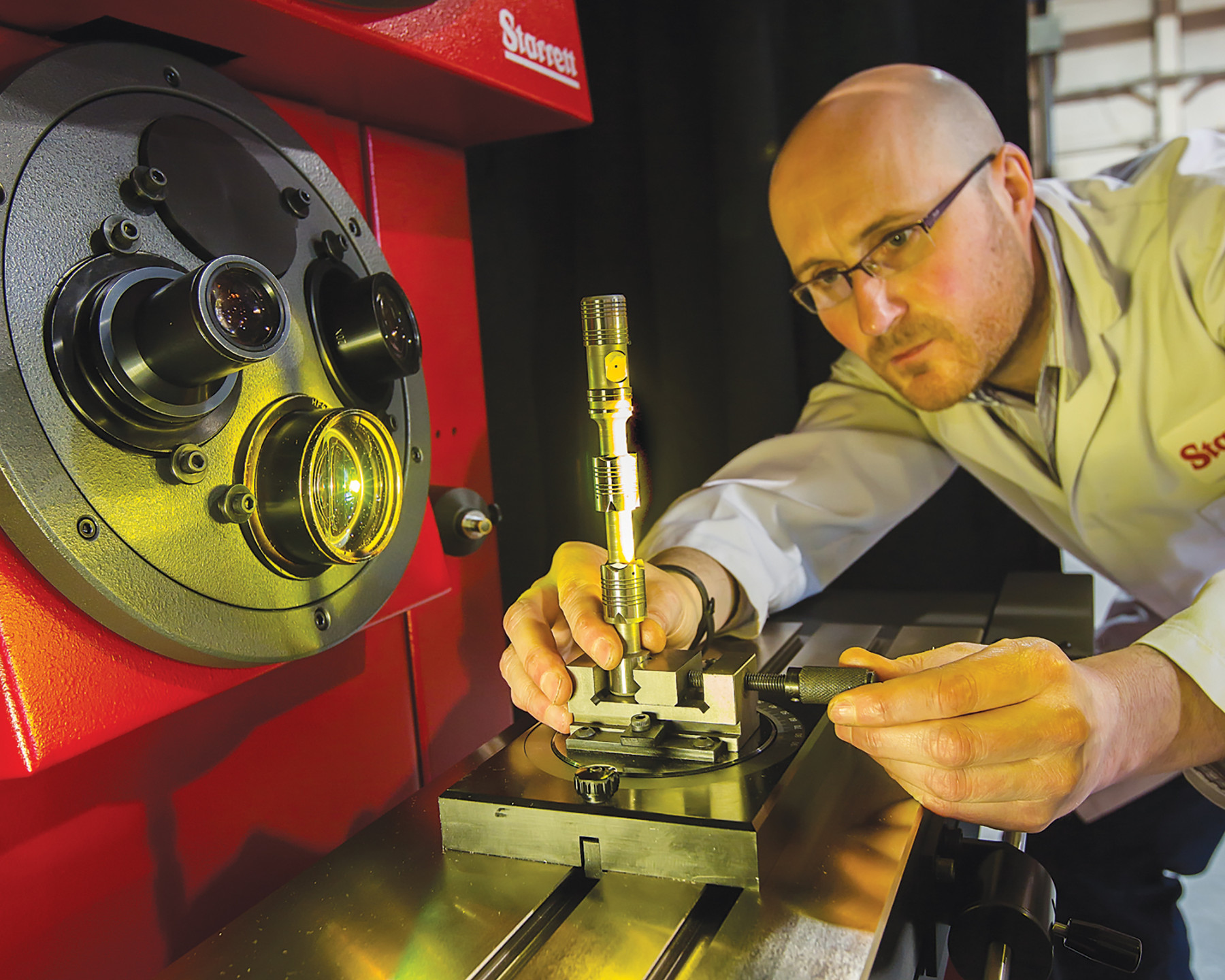

Product imagery
