HDV400 Digital Comparator
Model: HDV400
Horizontal digital video comparator combining comparator workstage and vision metrology software.
About the HDV400 Digital Comparator
The HDV400 is configured like a horizontal comparator but measures like a vision system. Its patented interchangeable lens mount couples telecentric optics to a 5-megapixel camera, with optical distortion as low as 0.001% for accurate field-of-view measurement. With MetLogix™ M3, DXF CAD files can be imported to create 2D go/no-go overlays, and video edge detection compares the live part image to the CAD data in real time. Manual or CNC control is available.
- Steel and aluminum construction, hard-anodized stage plate and riser
- 21.3" x 5.1" (540 x 130 mm) workstage, 110 lb (50 kg) capacity
- 2" (51 mm) focus travel
- Heidenhain glass scales, 20 µin (0.5 µm) X and Y resolution
- 5 MP color camera (2448 x 2058 px)
- 24" (60 cm) touchscreen monitor (1920 x 1080 px)
- LED surface and profile illumination
- Manual handwheels or CNC with joystick and trackball
Technical data
- Workstage
- 21.3" x 5.1" (540 x 130 mm)
- Max. load
- 110 lb (50 kg)
- Focus travel
- 2" (51 mm)
- Scale resolution (X, Y)
- 20 µin (0.5 µm)
- Camera
- 5 MP color, 2448 x 2058 px
- Telecentric FOV range (option)
- 1.14" to 0.09" (29 to 2.3 mm), 6 lenses
- Distortion
- As low as 0.001%
- Measurement software
- MetLogix™ M3 (DXF/FOV, profile fitting, thread modules optional)
- Net weight
- 230 lb (105 kg)
- Shipping weight
- 440 lb (200 kg)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- 6 interchangeable telecentric lenses (patent US 9,360,435 B2)
- Interchangeable 6.5:1 zoom optics
- MetLogix™ M3 DXF/FOV, profile fitting and thread modules
- CNC controls
- 22" or 31" cabinet stands
- Swing-away lamp house
- Calibration standards and work-holding devices
Where the HDV400 Digital Comparator is used
- Go/no-go comparison to DXF CAD
- Field-of-view measurement
- Thread and profile measurement
- Production quality control

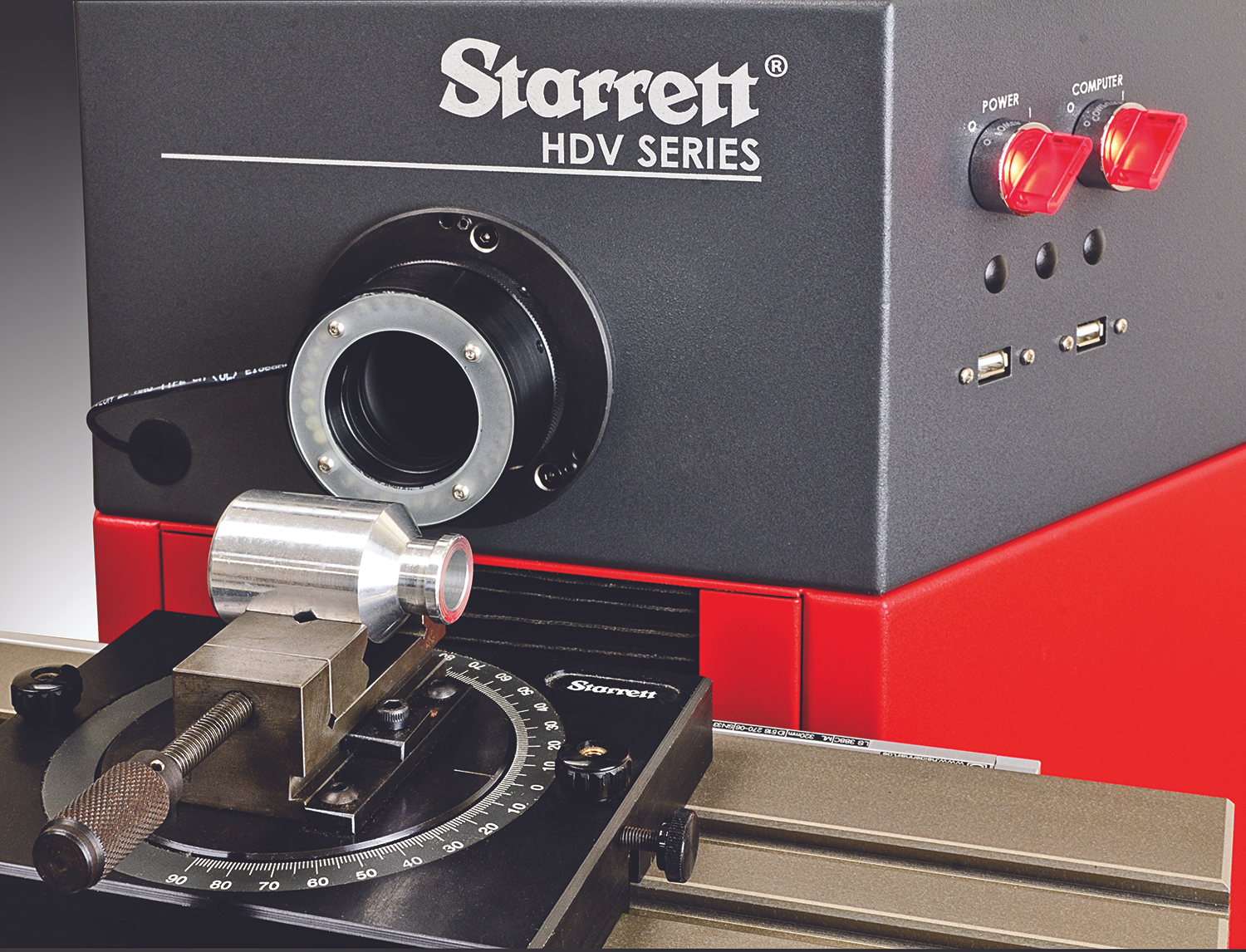

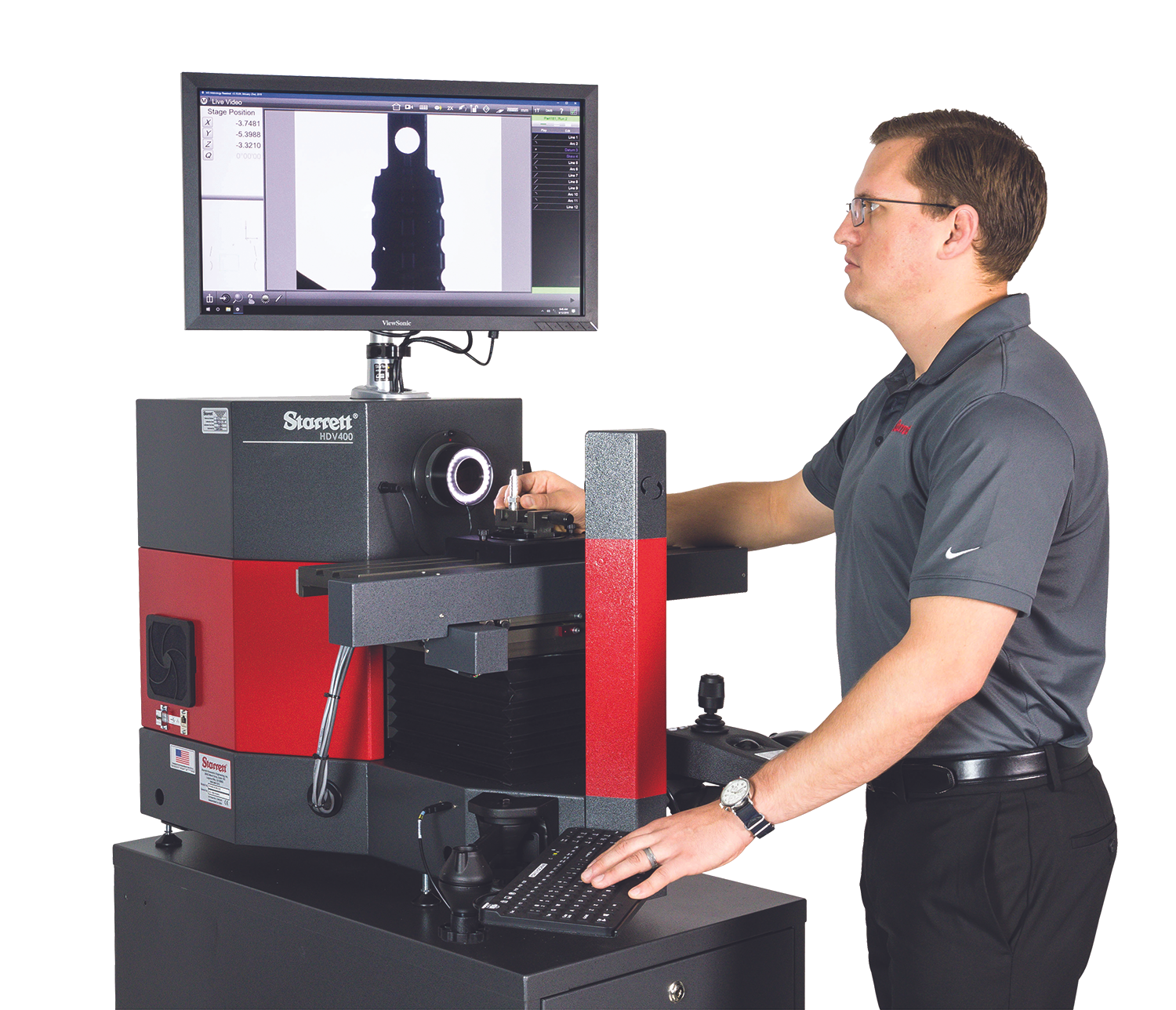

Product imagery
