HB400 Optical Comparator
Model: HB400
Horizontal benchtop optical comparator with 16" (400 mm) screen, LED lighting and 50 kg stage capacity.
About the HB400 Optical Comparator
The HB400 brings floor-model comparator performance to the bench. A 16" (400 mm) viewing screen, LED profile and surface illumination and a 110 lb (50 kg) workstage handle a wide range of turned and machined parts. A single bayonet lens mount accepts five interchangeable fixed lenses, and optional automatic optical edge detection removes operator subjectivity when locating part edges. Motorized axes and a swing-away lamp house are available as options.
- 16" x 6" (400 x 150 mm) X-Y travel workstage
- All-metal construction with hard-anodized stage tooling plate
- Single bayonet-style lens mounting system
- Collimating condenser with yellow/green filter
- Linear glass-scale encoders, 20 µin (0.5 µm) resolution on X and Y
- LED profile and surface illumination; fixed duplex fiber-optic surface light
- Digital protractor with 1' resolution via Q-axis readout
- MetLogix™ M2, M2E or Mx-series digital readout
- Fine adjustment on all axes; quick-release X-axis
Technical data
- Screen diameter
- 16" (400 mm)
- X-Y travel
- 16" x 6" (400 x 150 mm)
- Scale resolution (X, Y)
- 20 µin (0.5 µm)
- Angle resolution
- 1'
- Stage load capacity
- 110 lb (50 kg)
- Lens options
- 10x, 20x, 25x, 50x, 100x
- Net weight
- 320 lb (145 kg)
- Shipping weight
- 385 lb (175 kg)
- Shipping dimensions
- 49" x 32" x 51" (125 x 81 x 130 cm)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Automatic optical edge detection
- Motorized X and Y axes
- Swing-away lamp house
- Purpose-built cabinet stand
- Extensive line of accessories
Where the HB400 Optical Comparator is used
- Profile and contour inspection
- Shop-floor dimensional QC
- Angle and radius measurement
- First-article inspection

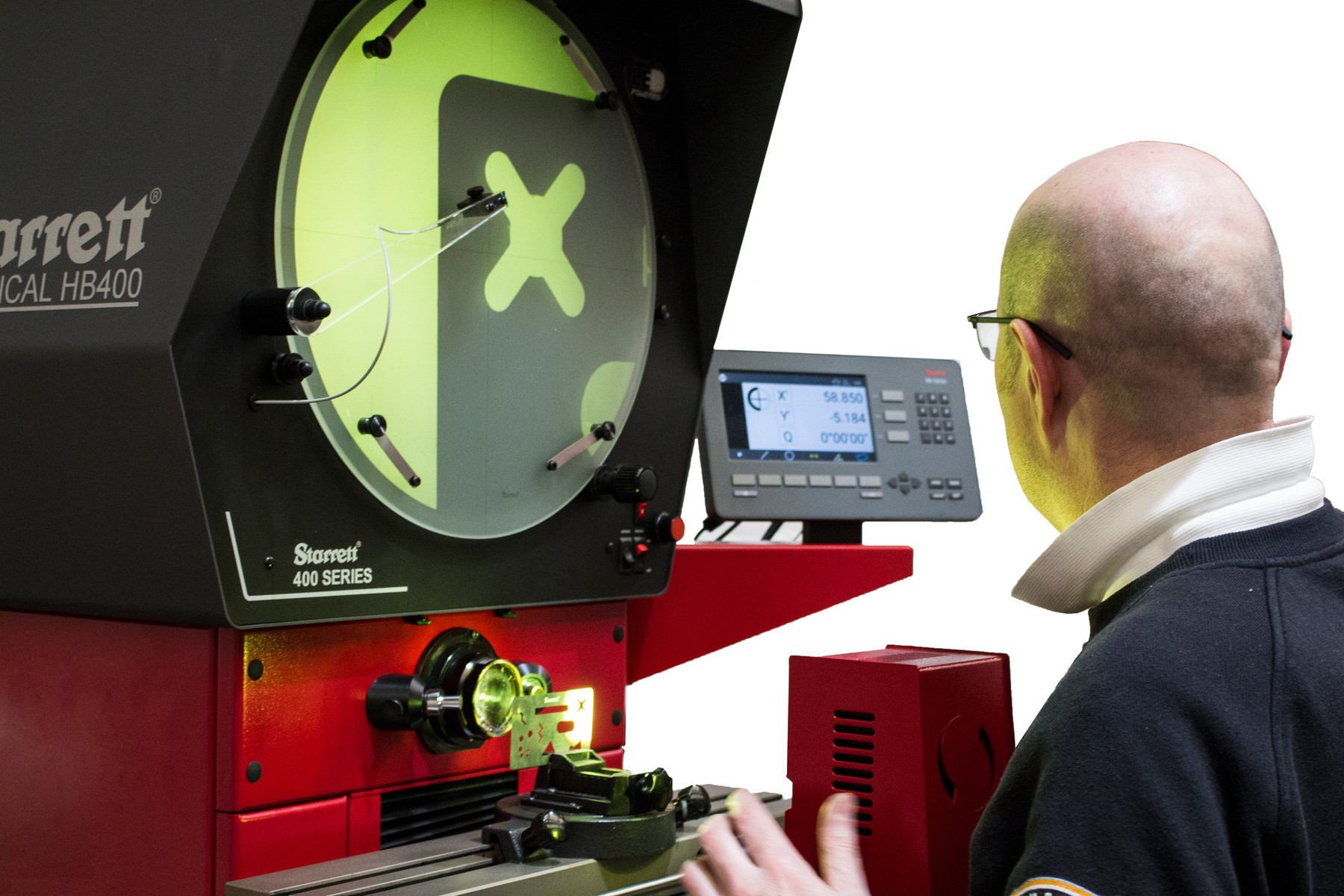

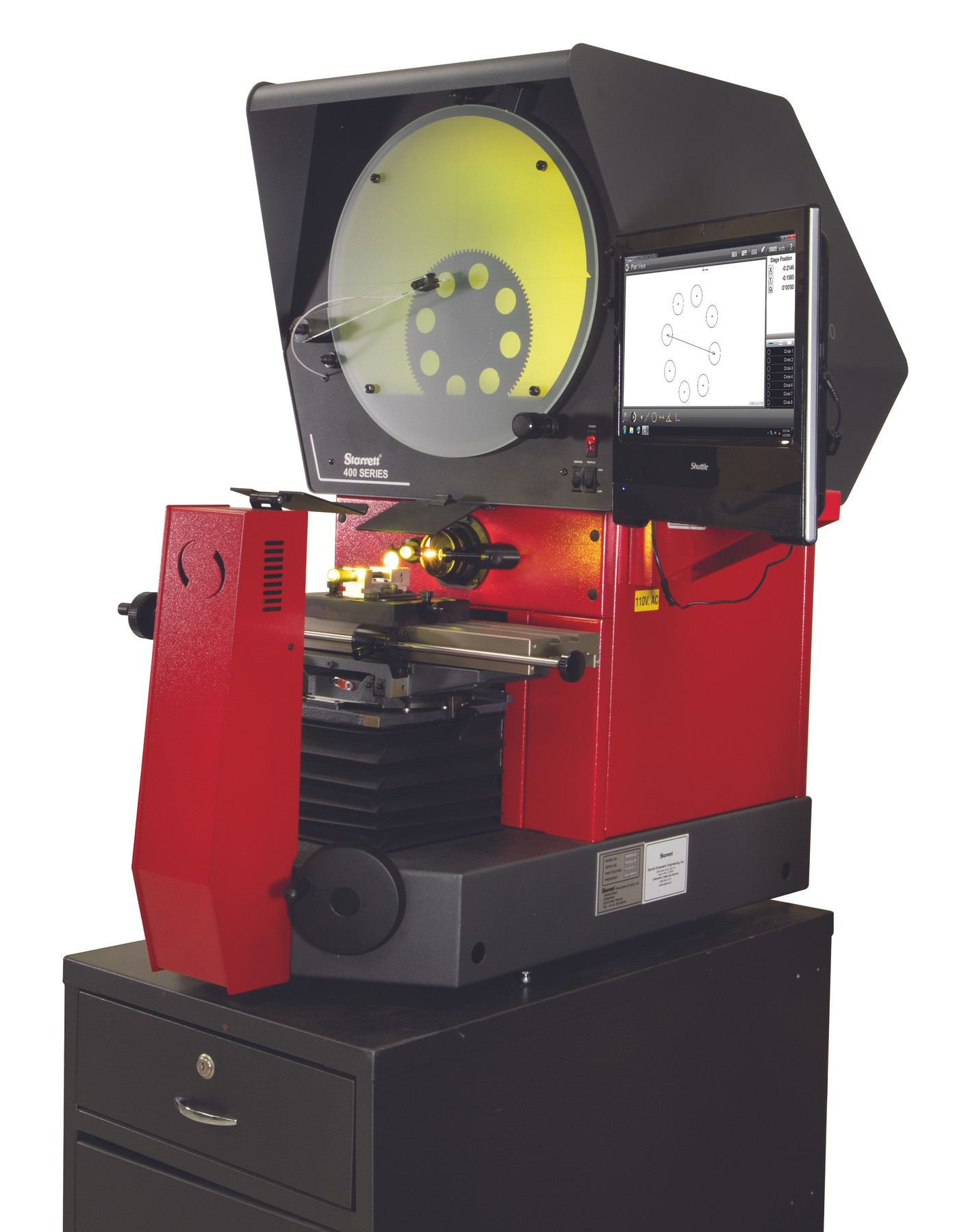

Product imagery
