MTH Manual Test Stand
Model: MTH-550
Handwheel-driven single-column tester up to 2500 N (550 lbf) with high-resolution worm gear.
About the MTH Manual Test Stand
The MTH-550 is a manually operated single-column tester for tension or compression up to 2500 N (550 lbf). Its precision worm-gear drive makes high forces easy to apply: one handwheel turn moves the crosshead 0.03" (0.75 mm), over a total stroke of 4" (102 mm). Fitted with a Starrett force gage and optional digital scale it determines spring rates and initial tension; quick-change clevis adapters accept Starrett fixtures.
- Precision worm-gear handwheel drive
- 0.03" (0.75 mm) crosshead travel per handwheel turn
- Handwheel positionable along the 30" (762 mm) column
- Quick-change clevis adapters for Starrett fixtures
- Optional digital scale and gage adapters
Technical data
- Capacity
- 2500 N (550 lbf)
- Stroke
- 4" (102 mm)
- Crosshead travel per turn
- 0.03" (0.75 mm)
- Column length
- 30" (762 mm)
- Throat
- 4" (102 mm)
- Force gage
- Starrett DFG or DFC
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options

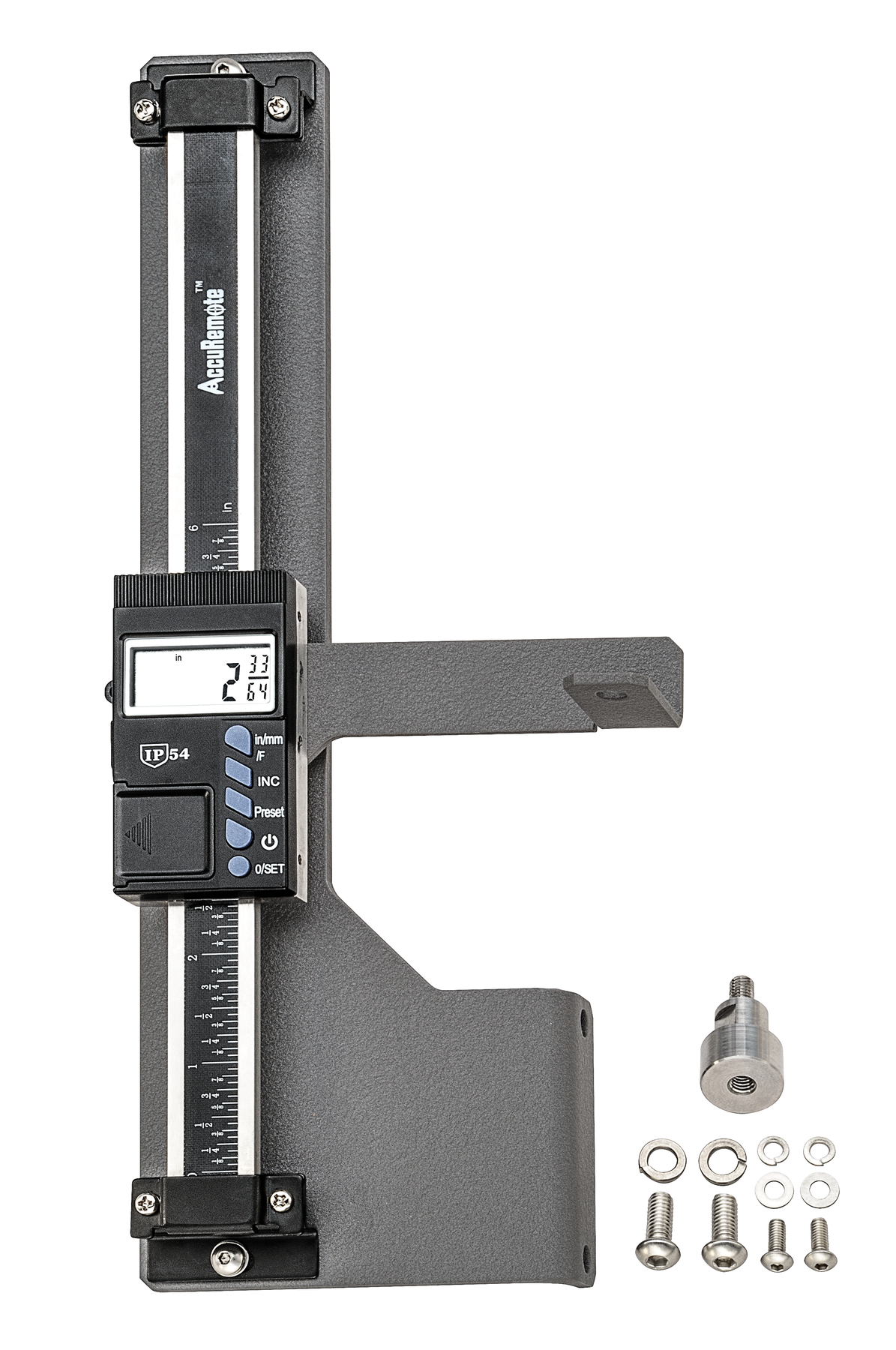

- Digital scale
- Gage adapter kits for non-Starrett gages
- Compatible Starrett fixtures
Where the MTH Manual Test Stand is used
- Spring testing
- High-force tensile testing
- High-force compression testing
