MTL-110 Manual Test Stand
Model: MTL110
Compact lever-operated single-column test stand up to 500 N (110 lbf).
About the MTL-110 Manual Test Stand

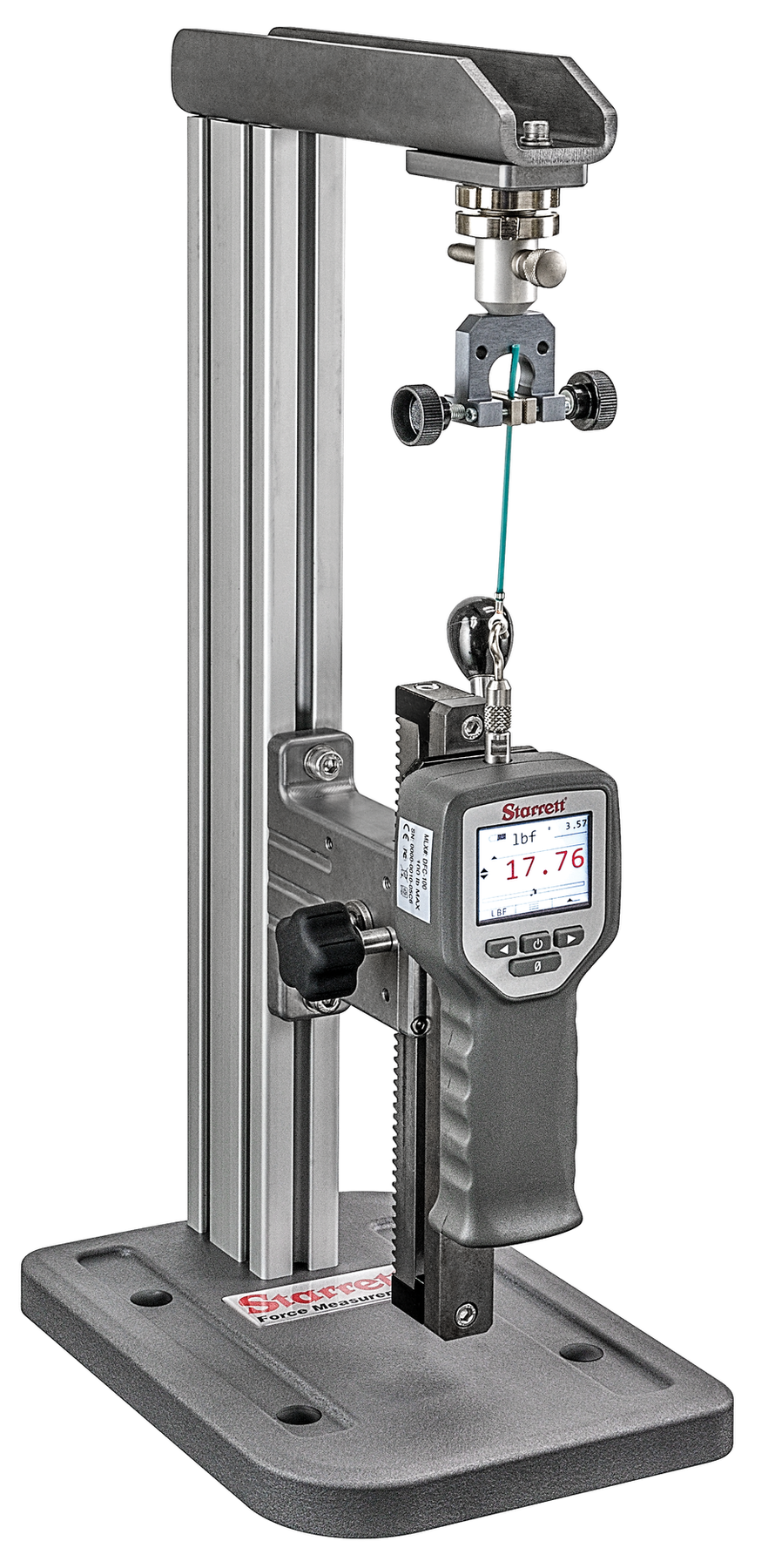

The MTL110 is a single-column, manually operated tester for tension or compression up to 500 N (110 lbf), used with a Starrett DFG or DFC gage. Its compact design suits component testing in small workspaces: the quick-action lever moves the rack-and-pinion crosshead 3" (76 mm) per revolution over a 6" (152 mm) stroke, and can be positioned anywhere on the 20" (508 mm) column. Optional legs allow horizontal testing; a digital scale can measure deflection.
- Quick-action lever, 3" (76 mm) crosshead travel per revolution
- Tension or compression testing
- Adjustable base adapter for different gage models
- Optional digital scale for deflection measurement

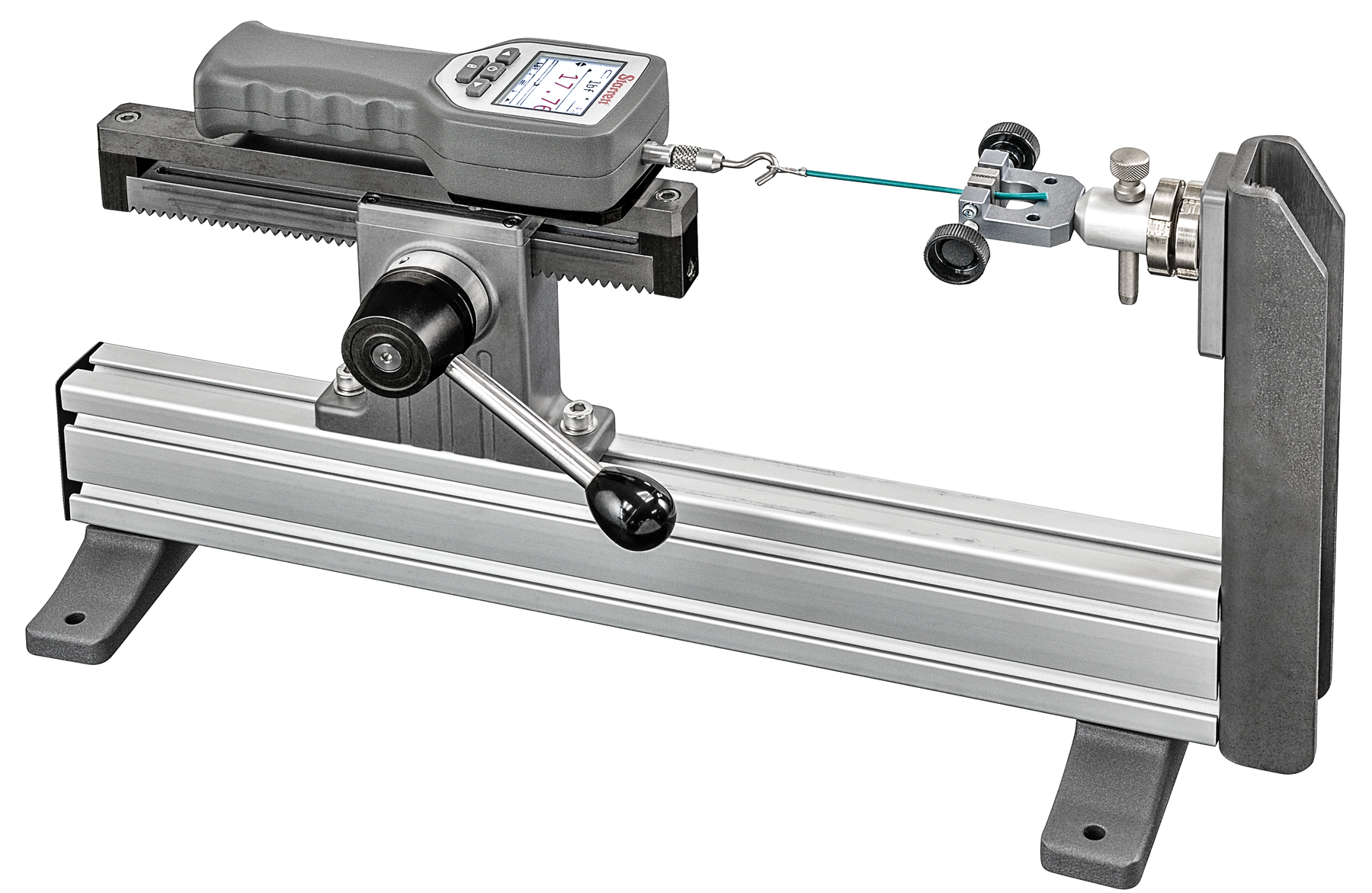

- Optional legs for horizontal testing
Technical data
- Capacity
- 500 N (110 lbf)
- Stroke
- 6" (152 mm)
- Column length
- 20" (508 mm)
- Throat
- 6" (152 mm)
- Force gage
- Starrett DFG or DFC
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Digital scale for deflection
- Legs for horizontal testing
- Compatible Starrett fixtures
Where the MTL-110 Manual Test Stand is used
- Component testing
- Tensile testing
- Compression testing
- Horizontal pull testing
