MVR300 Manual Vision System
Model: MVR300 / MVR300 FOV
Manual benchtop vision system for quick QC measurement of parts up to 12" (300 mm).
About the MVR300 Manual Vision System
The MVR300 is a manual vision metrology system for quick quality-control measurement. It offers dedicated or interchangeable 6.5:1 zoom optics (MVR300) or telecentric lenses (MVR300 FOV) on a quick-change bayonet mount, a maximum FOV of 0.93" (24 mm), and stage motion integrated with MetLogix™ M3 for parts up to 12" (300 mm). A granite base, precision linear guides and a motorized Z-axis with variable speed support stable, accurate positioning.
Configurations on this page
MVR300
Dedicated or interchangeable 6.5:1 zoom lens on quick-change bayonet mount; 0.5x, 1.5x, 2.0x auxiliary lenses.
MVR300 FOV
Dedicated or interchangeable telecentric optics: 0.3x, 0.5x, 0.8x, 1.0x, 2.0x, 4.0x.
- Manual X-Y positioning via handwheels
- Motorized Z-axis with variable speed, 8" (200 mm) travel
- MetLogix™ M3 software with video edge detection
- FOV measurement integrated with stage motion
- Renishaw scales, 20 µin (0.5 µm) X and Y resolution
- Color camera; collimated LED sub-stage and LED ring light
- Granite base with precision linear guides
Technical data
- Max. part length
- 12" (300 mm)
- Z travel
- 8" (200 mm)
- Max. field of view
- 0.93" (24 mm)
- Scale resolution (X, Y)
- 20 µin (0.5 µm)
- MVR300
- Dedicated or interchangeable 6.5:1 zoom; 0.5x, 1.5x, 2.0x auxiliary lenses
- MVR300 FOV
- Telecentric 0.3x, 0.5x, 0.8x, 1.0x, 2.0x, 4.0x
- Net weight
- 230 lb (113 kg)
- Shipping weight
- 450 lb (205 kg)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- DXF/FOV option for automatic comparison to CAD files
- Modular system workstation
- Calibration standards
- Thread measurement software module
- Part fixtures and work-holding devices
Where the MVR300 Manual Vision System is used
- Quick QC measurement
- Receiving inspection
- Comparison to DXF CAD files
- Thread measurement

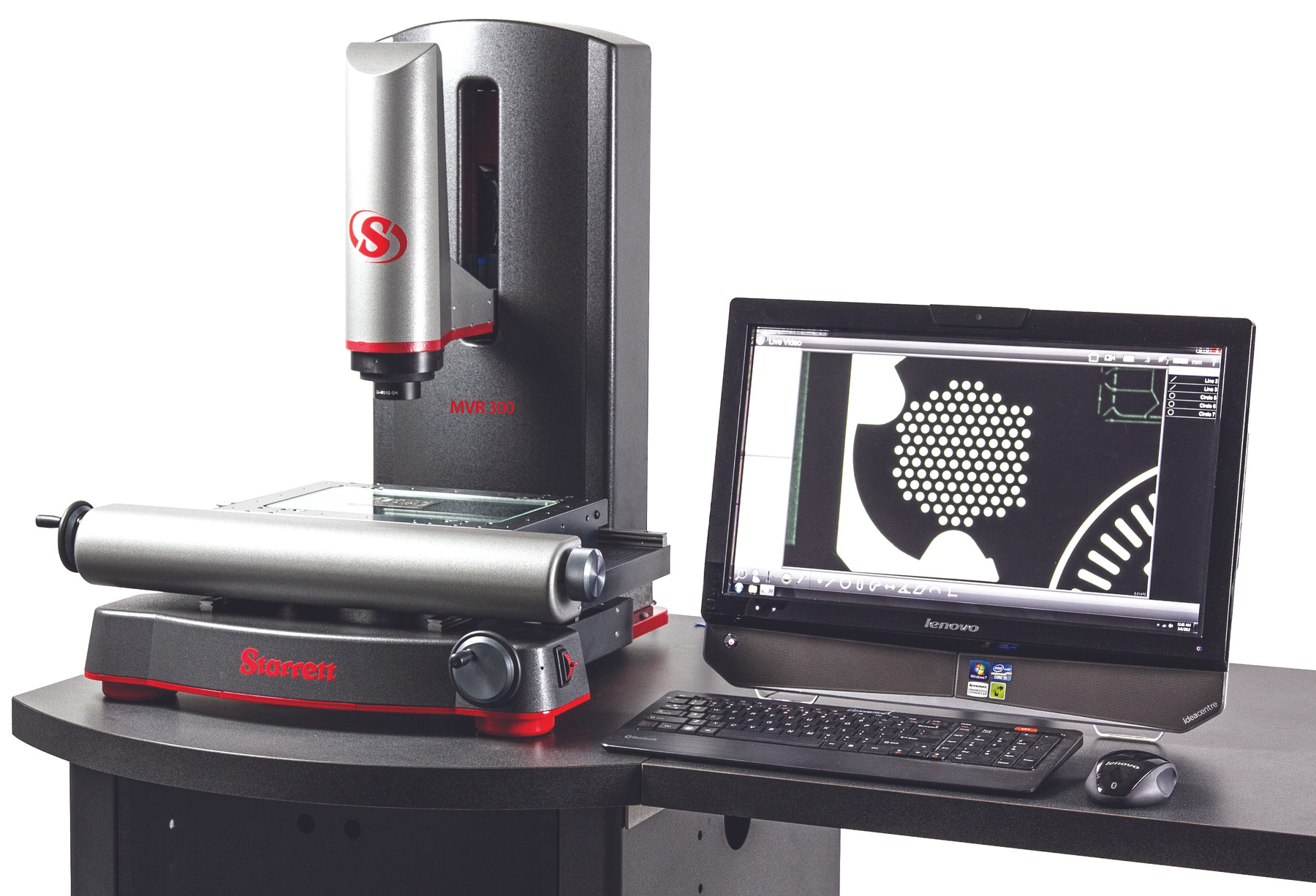

Product imagery
