AVR300 CNC Vision System
Model: AVR300 / AVR300 FOV
Benchtop CNC vision system for parts up to 12" (300 mm), with zoom or telecentric (FOV) optics.
About the AVR300 CNC Vision System
The AVR300 extends the AVR CNC platform to parts up to 12" (300 mm) long. Like the AVR200 it is available with dedicated zoom optics (AVR300) or interchangeable telecentric lenses (AVR300 FOV) for micron-level field-of-view measurement, a maximum FOV of 0.93" (24 mm), and MetLogix™ M3 touchscreen software with video edge detection, 2D constructs and CAD comparison.
Configurations on this page
AVR300
Dedicated 6.5:1 or 12:1 CNC zoom optics; bayonet lenses for the 6.5:1 manual zoom; 0.5x, 1.5x, 2.0x auxiliary lenses.
AVR300 FOV
Quick-change bayonet or fixed mount for telecentric optics: 0.30x, 0.50x, 0.80x, 1.0x, 2.0x, 4.0x.
- Z travel: 8" (200 mm)
- Full CNC X-Y-Z or motorized manual positioning with joystick pendant
- MetLogix™ M3 metrology software with video edge detection
- FOV measurement integrated with stage motion
- Renishaw scales, 4 µin (0.1 µm) on X, Y, Z (select models)
- Color digital camera; collimated LED sub-stage and LED ring light
- Granite base; touch-probe compatible
Technical data
- Max. part length
- 12" (300 mm)
- Z travel
- 8" (200 mm)
- Max. field of view
- 0.93" (24 mm)
- Scale resolution
- 4 µin (0.1 µm), select models
- AVR300
- Dedicated 6.5:1 or 12:1 CNC zoom; 0.5x, 1.5x, 2.0x auxiliary lenses
- AVR300 FOV
- Telecentric 0.30x, 0.50x, 0.80x, 1.0x, 2.0x, 4.0x
- Net weight
- 225 lb (102 kg)
- Shipping weight
- 300 lb (135 kg)
- Shipping dimensions
- 34" x 29.2" x 35" (87 x 74 x 89 cm)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Programmable darkfield quadrant LED illumination (zoom optics)
- Renishaw touch probe kit
- 2 or 4 bay touch probe change rack
- DXF/FOV option for automatic comparison to CAD files
- Modular system workstation
- Calibration standards
- Part fixtures and work-holding devices
- Thread measurement software module
- CNC rotary axis fixture
Where the AVR300 CNC Vision System is used
- Repetitive CNC measurement of production parts
- Automatic comparison to DXF CAD files
- First-article inspection
- Medical and precision component QC

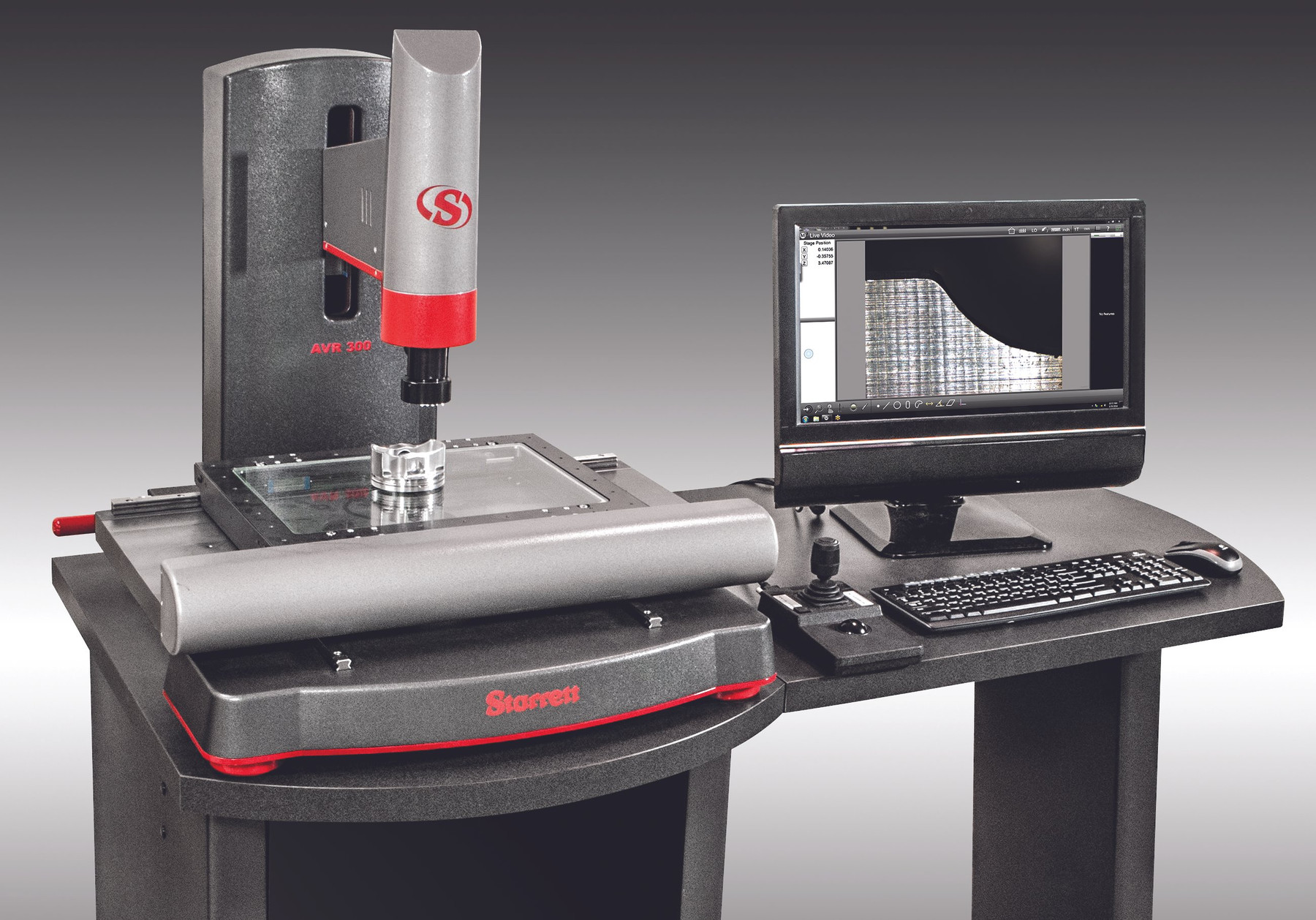

Product imagery
