Centering Devices
Centering disks and spiders that keep VUCAM and VUMAN probes centred in pipes for consistent distance and image quality.
About the Centering Devices

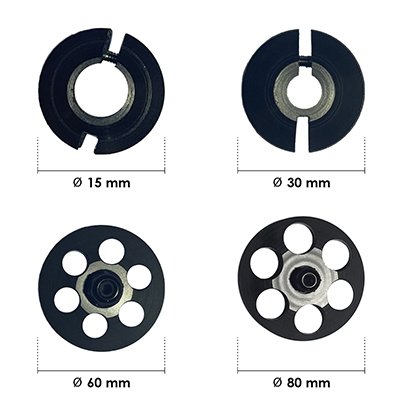

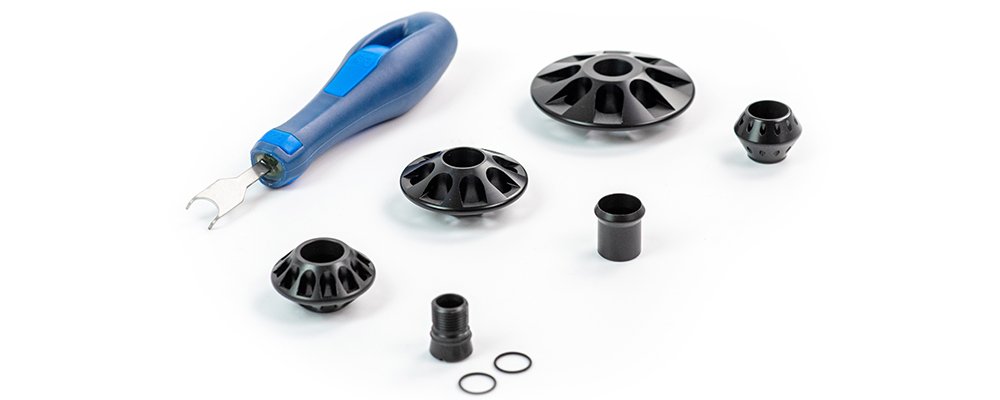

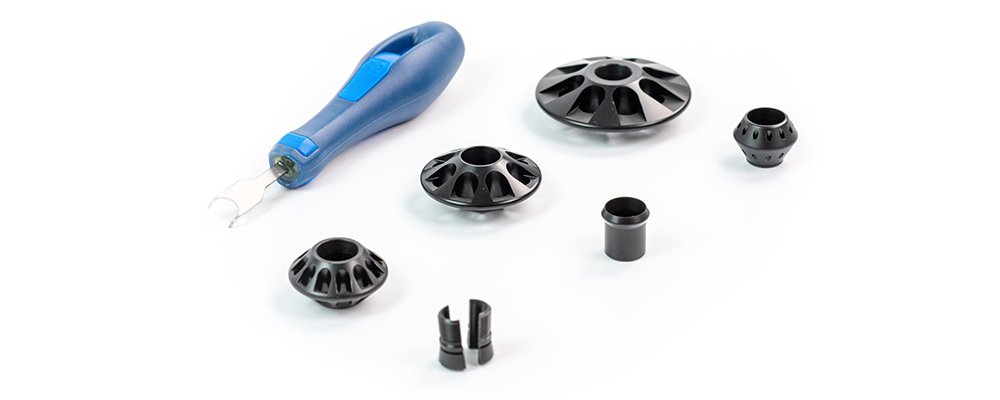

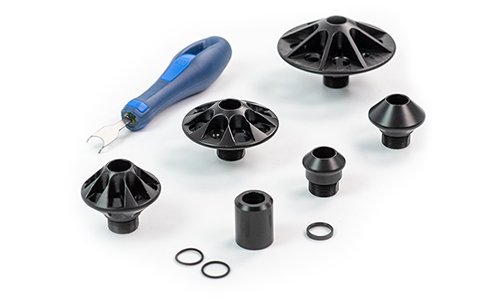

Centering devices keep a video probe in the middle of a pipe, giving a constant distance to the wall, uniform illumination and protection for the probe head. viZaar offers kits for videoscopes of various diameters, including articulating probes: four centering disks for the VUCAM XO/XO+, and for every VUMAN E3 interchangeable probe a matching kit — for example 6.1 mm and 8.4 mm sets with Ø 60, 44, 34, 24 and 17 mm disks, mounting tool and mounting adapter. Larger centering spiders are available for pipe cameras.
- Kits for VUCAM XO/XO+ and every VUMAN E3 probe
- Disks Ø 17, 24, 34, 44 and 60 mm (6.1 / 8.4 mm sets)
- Mounting tool and adapter included
- Suitable for X-WAY articulating probes

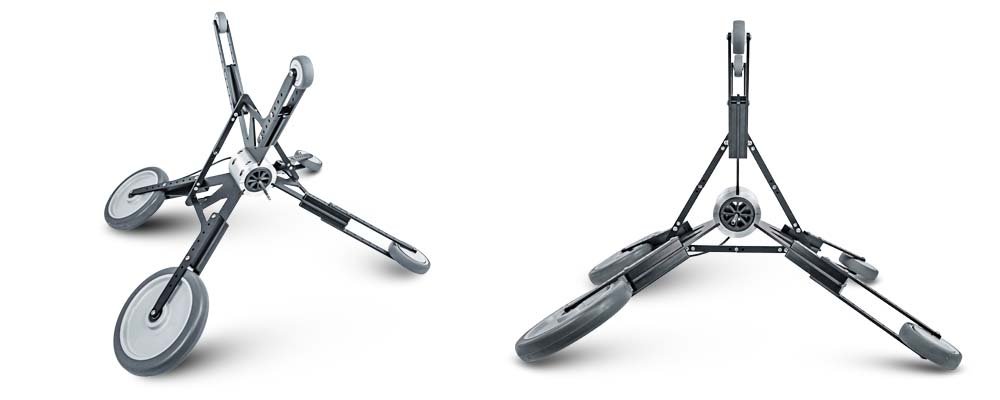

- Centering spiders for larger pipes
Technical data
- Disk diameters
- 60 / 44 / 34 / 24 / 17 mm
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Where the Centering Devices is used
- Pipe inspection with videoscopes
- Weld seam inspection in tubes
- Consistent documentation distance
