VUCAM Portable Videoscope
Model: VUCAM XF / XO / D (+)
Handheld portable videoscope series with Ø 4 and 6 mm probes, 120° articulation, lengths up to 6.6 m and pre-trigger recording.
About the VUCAM Portable Videoscope
The VUCAM® series is viZaar's robust portable videoscope for flexible on-site inspection, from the automotive sector to non-destructive materials testing. The ergonomic handle with hot keys and the 5.7" touchscreen control unit with flip function make one-hand operation possible, while ultra-thin 4 and 6 mm probes with 120° articulation pass through narrow tube turns. Images and videos are stored in standard formats on SD card — no evaluation software is needed — and the adjustable pre-trigger recording ensures an important moment is never missed. The carbon housing combines minimum weight with maximum robustness, and integrated hooks and a tripod thread allow hands-free use.
Configurations on this page
VUCAM XF
Ø 4 mm probe with optional side-view optic adapters — gears, bearings, welds, defence.
VUCAM XO
Ø 6 mm, the sturdiest probe, with three optional optic adapters changing DOV, DOF and FOV.
VUCAM D
Combines Ø 4 and 6 mm interchangeable probes on one control unit.
VUCAM+ versions
Video-via-LAN (unicast/broadcast), video out, push-to-FTP and audio commentary via headset.

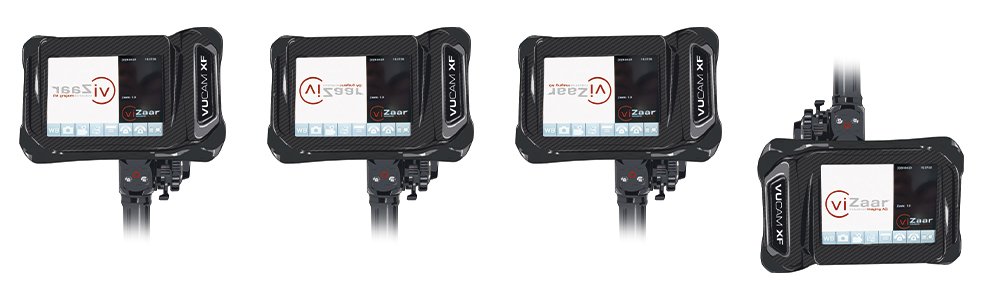

- 5.7" LED-backlit touchscreen, 640 × 480 px, with flip function
- Ergonomic handle with hot keys
- Ultra-thin Ø 4 and 6 mm probes with 120° articulation
- Optional optic adapters for different DOV, DOF and FOV
- Pre-trigger recording
- Images and videos in standard format on SD card
- Carbon housing; integrated hooks and standard tripod thread
Technical data
- Diameter
- 4.0 mm (XF), 6.0 mm (XO), both (D)
- Standard length
- Up to 6.6 m
- Articulation
- 120°
- Screen
- 5.7" touchscreen, 640 × 480 px
- Media
- External SD card
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Optic adapters
- Centring tools
- Guide tubes
- Pro and Premium accessory kits
Where the VUCAM Portable Videoscope is used
- Gear and bearing inspection
- Weld seam inspection
- Automotive components
- Defence and safety engineering
- General NDT visual testing
