INVIZx98 Full-HD PTZ Camera

About the INVIZx98 Full-HD PTZ Camera

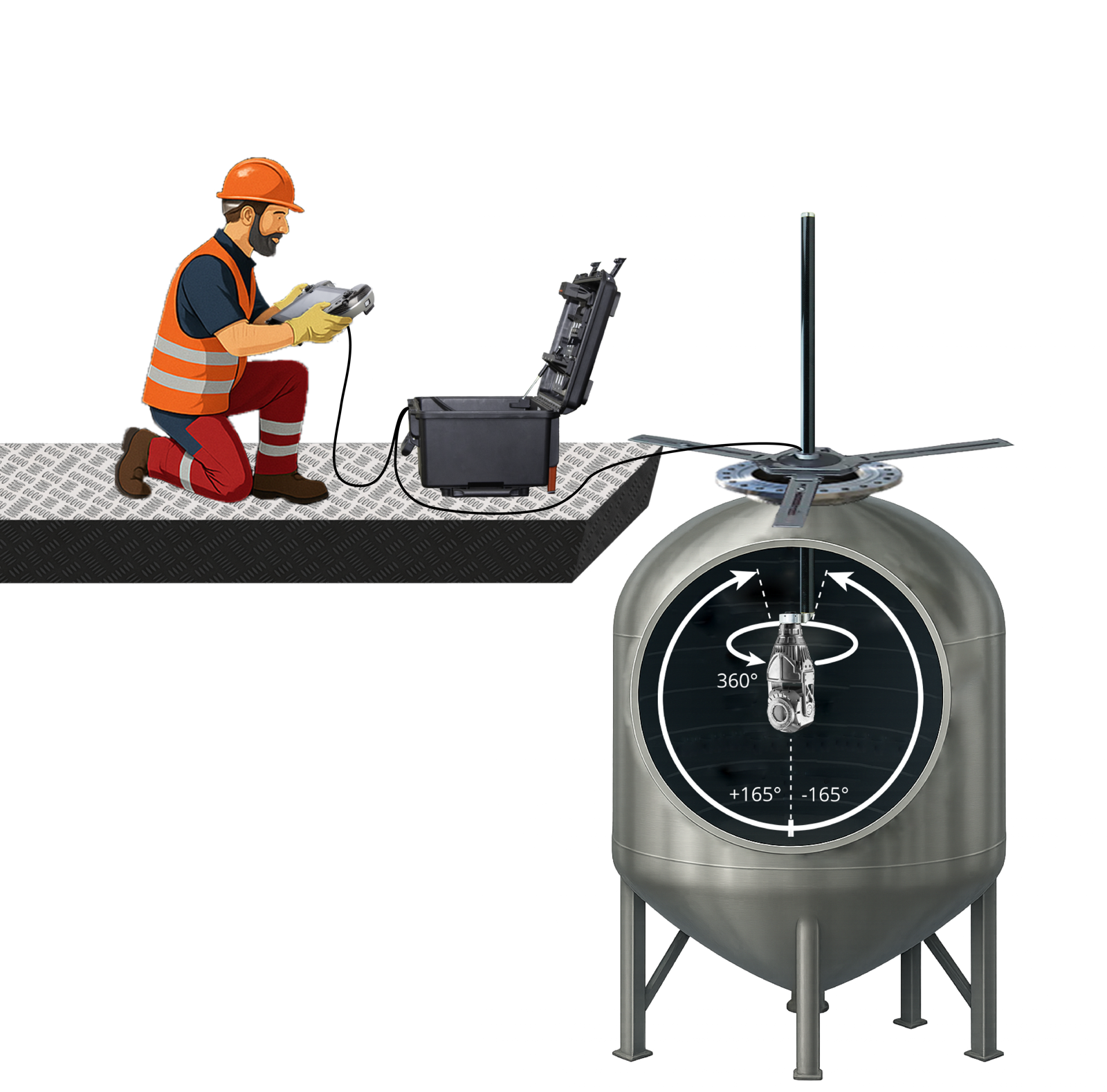

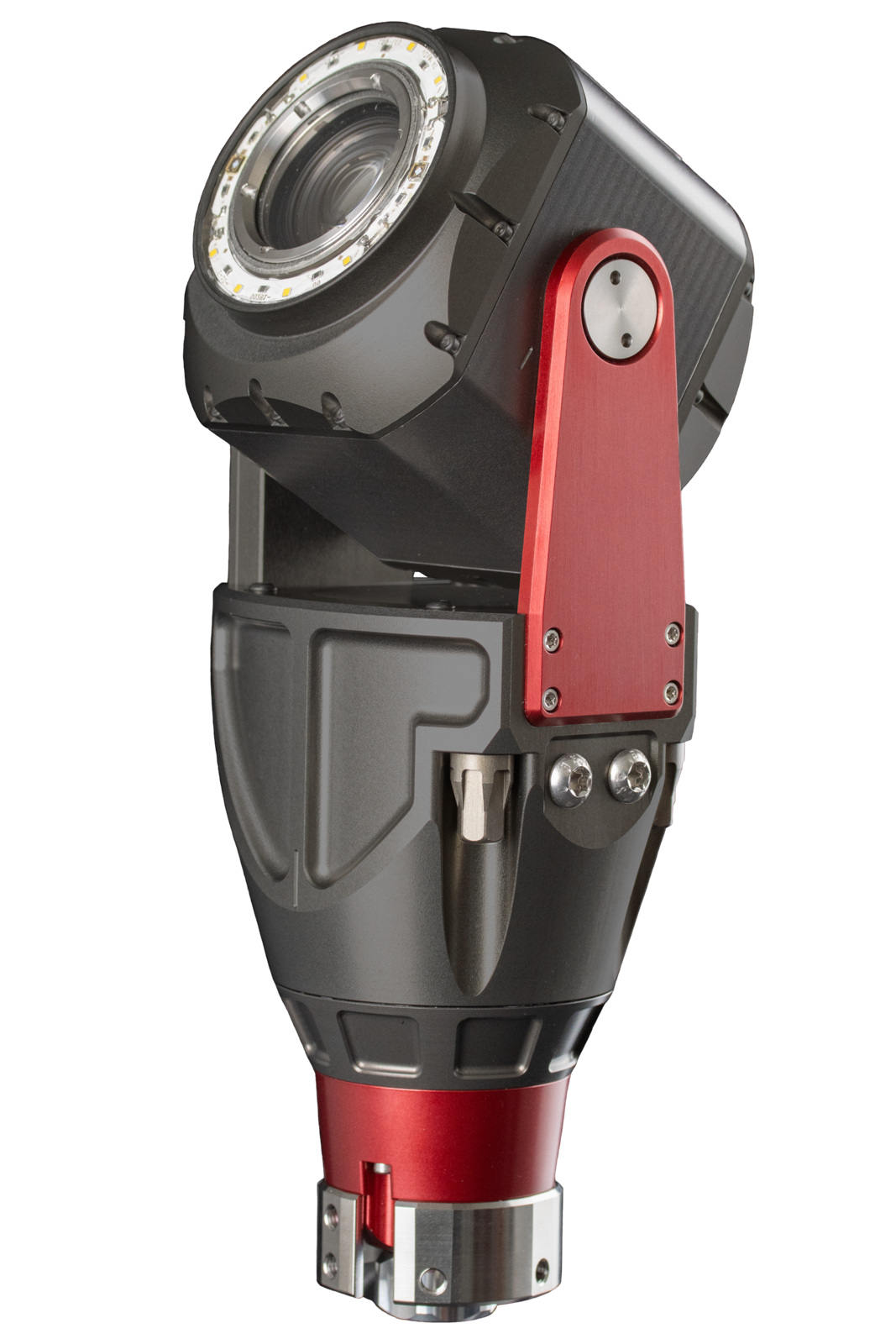

The INVIZx98 is viZaar's next-generation Full-HD pan-tilt-zoom camera for remote visual inspection of large-volume vessels, tanks and reactors. It delivers uncompressed Full-HD (1920 × 1080) images without scaling losses, with light sensitivity down to 0.125 lux, a 10 mm minimum focus distance and a 68° diagonal field of view. Endless 360° rotation, a 330° (±165°) tilt range and preset positions reached in under 2 seconds enable repeatable, automated inspection routines; a 10x optical zoom on a 1/2.8" Sony® IMX CMOS sensor resolves fine detail. A dual white-light LED system delivers up to 2,000 lm in Turbo mode with independently controlled rings for contrast lighting; 365 nm UV, laser or LED boost modules are optional. The Grade 5 titanium housing is watertight to 45 m as standard (60 m optional) and resists saltwater, acids, alkalis and solvents; the hard-anodized INVIZx98 Al weighs only 1,400 g. The camera is operated and documented via the VUnit control unit.

• Uncompressed Full-HD 1920 × 1080 px imaging
• 10x optical zoom, 1/2.8" Sony® IMX CMOS sensor
• Endless 360° rotation and 330° tilt, presets in < 2 s
• Dimmable dual LED illumination up to 2,000 lm
• Grade 5 titanium housing, watertight to 45 m
• INVIZx98 Al hard-anodized aluminium version, 1,400 g
• Optional 365 nm UV, laser unit or LED boost module

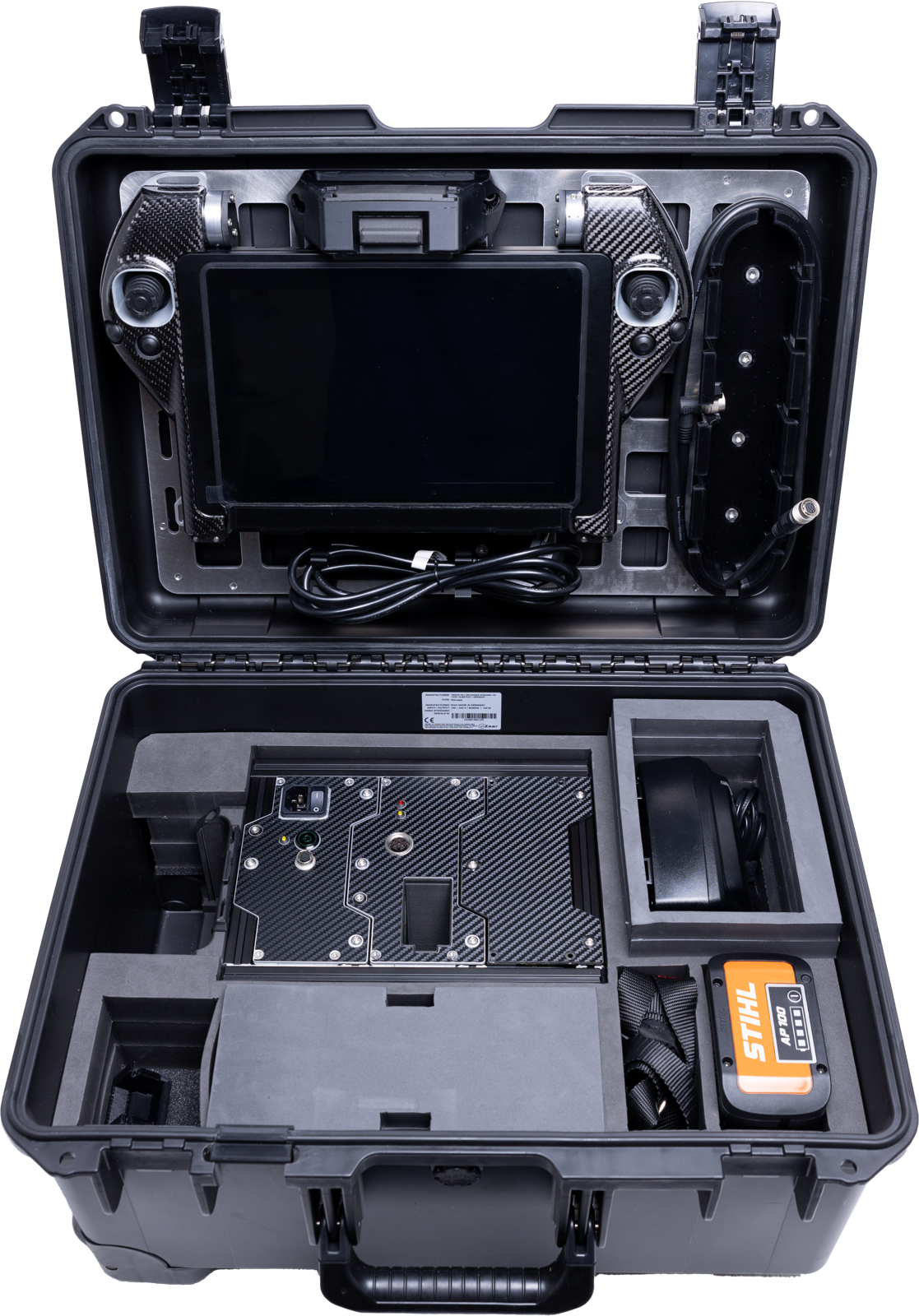

• VUnit documentation system with HDMI output
