SNK 60x PTZ Tank Camera
Model: SNK 60x
Fifth-generation pan-tilt-zoom tank camera with 60x zoom, macro from 1 cm, 347° pan, 240° tilt and Run & Scan automation.
About the SNK 60x PTZ Tank Camera

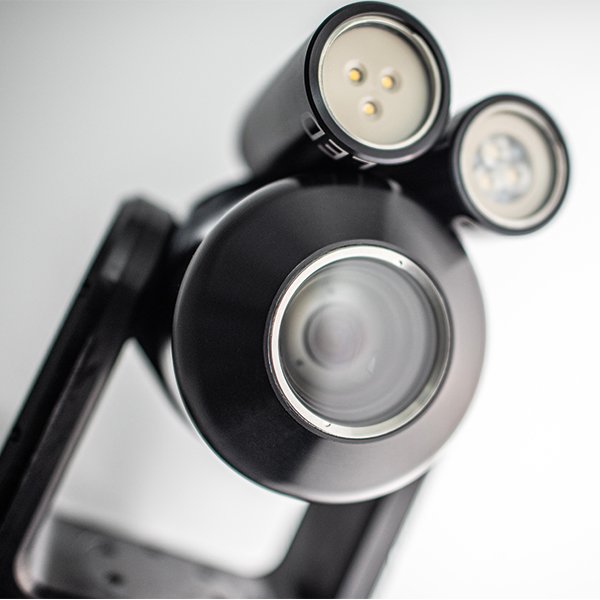

The SNK 60x is the fifth generation of viZaar's tank inspection camera for tanks, containers and large pipes. A 60x zoom detects the smallest cracks and weld changes even at great distances, while the macro function delivers a sharp image from only 1 cm. The camera swivels 347° and tilts 240°, and with the Run & Scan function positions can be stored and approached automatically and reproducibly to scan a vessel wall systematically. Battery operation makes it independent of power outlets in critical environments. It is operated via the MATRIX E3 documentation unit, and existing Revolver 80 systems can be extended with the SNK 60x camera head. Accessories include carbon-fibre rods, pushing trolleys, a manhole tripod and a camera lift.
- 60x zoom with macro function from 1 cm
- 347° swivel range and 240° tilt range
- High-performance LED lighting (LED or halogen versions)
- Run & Scan — stored, reproducible positions

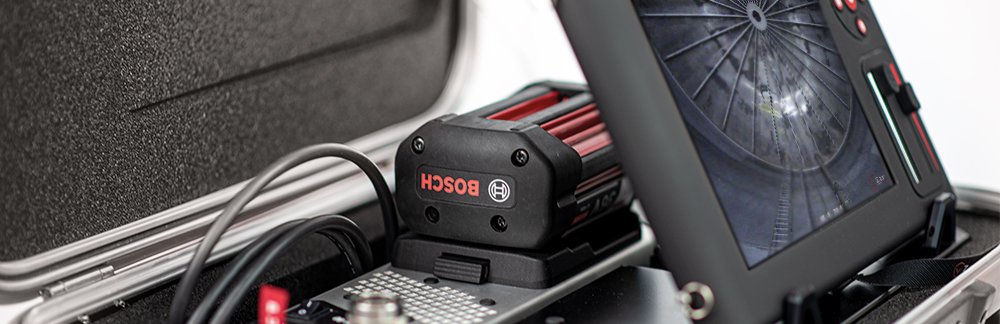

- Battery operation, independent of mains

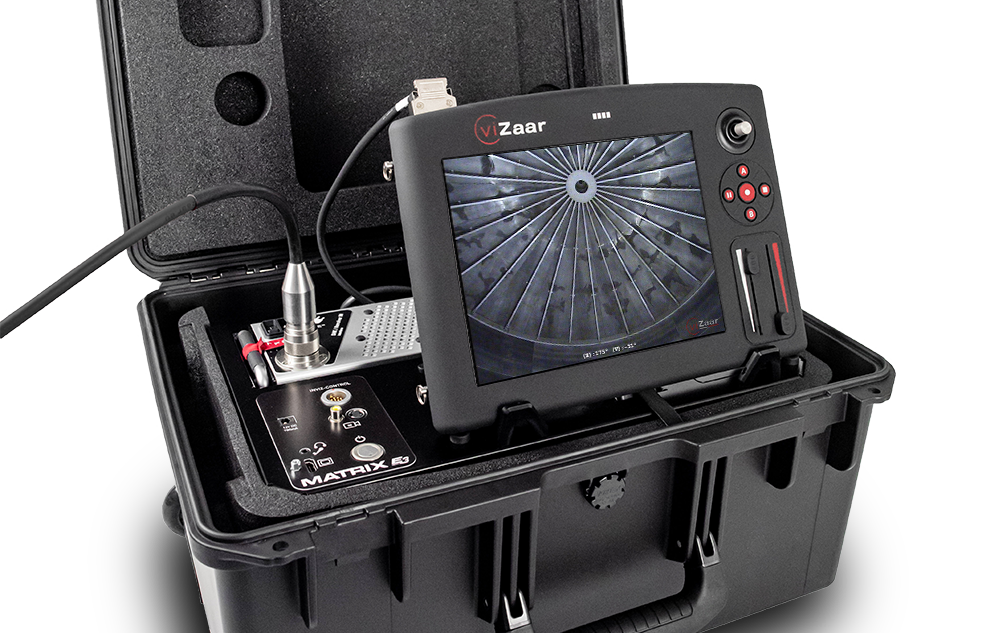

- Operation and documentation via MATRIX E3
- Carbon rods, trolleys, manhole tripod and camera lift
Technical data
- Zoom
- 60x with macro (from 1 cm)
- Swivel / tilt
- 347° / 240°
- Documentation unit
- MATRIX E3
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Carbon-fibre rods
- Pushing trolleys
- Manhole tripod
- Camera lift
- LED or halogen versions
Where the SNK 60x PTZ Tank Camera is used
- Tanks, vessels, boilers, chimneys and manholes
- Agitators and reactor internals
- Underwater: ship bottoms, cisterns, water basins
- Pharmaceutical, nuclear and food sectors
Product imagery
Official product videos
Brochures & catalogues
SNK 60x — Brochure
PDF ·Brochure
Tank, vessel & pipe inspection cameras — Catalogue
PDF ·Catalogue
